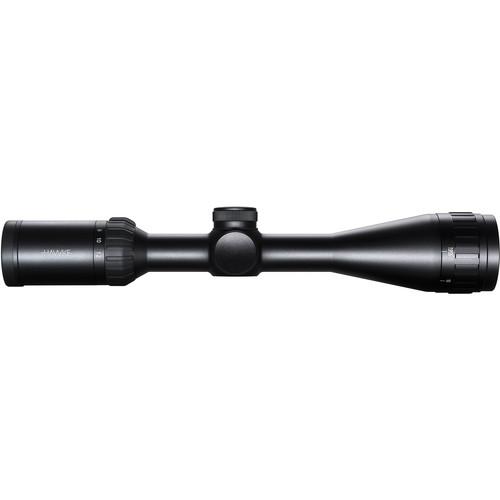

Product description Enhance your competitive edge in precision and low-light target acquisitions with Hawke Sports Optics' 4-12x40 Airmax AO Riflescope. The riflescope is optimized for airguns and features a 40mm objective that will collect more light at dawn and dusk than an average scope. The fully multi-coated optics offers 16 layers of anti-reflection coatings to increase resolution, contrast, and image brightness. Located in the 2nd focal plane is an etched-on-glass AMX ranging duplex reticle. It is specially designed for airguns with bent trajectories and features 0.75 MOA dots on a thin crosshair with spacing of half mil-dot spacing. To further assist with precision aiming, the parallax effect can be corrected from 7.5 yd to infinity by using the adjustable objective ring. To compensate for wind and ballistic bullet drop, the riflescope offers 80 MOA of windage and elevation adjustment range and a ¼ MOA per click impact point correction.
The lightweight and durable aluminum housing features a 1" single-piece maintube. It is filled with nitrogen for fogproof and waterproof performance. The overall design features a slender, unobtrusive shape and low-profile capped turrets. To ease the zooming process, the fast-focus eyepiece is outfitted with a high-torque knurled rubber zoom ring. To keep your scope's lenses protected from debris, dust, and dirt while it is not used, one objective lens cap and one ocular lens cap are also included. - Optical Performance
-
- 4-12x zoom range
- 40mm objective lens
- Fully multi-coated optics with 16 layers of anti-reflection coatings
- 30-11' field of view at 100 yards

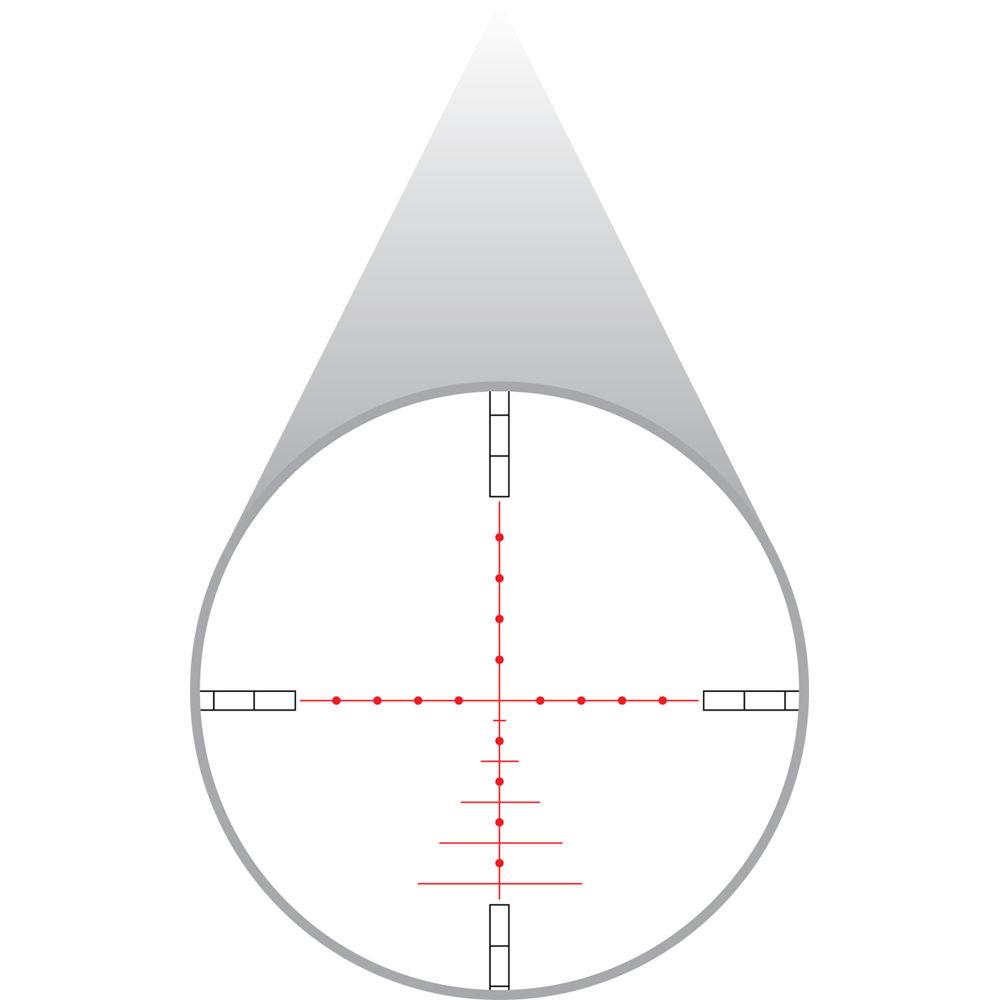

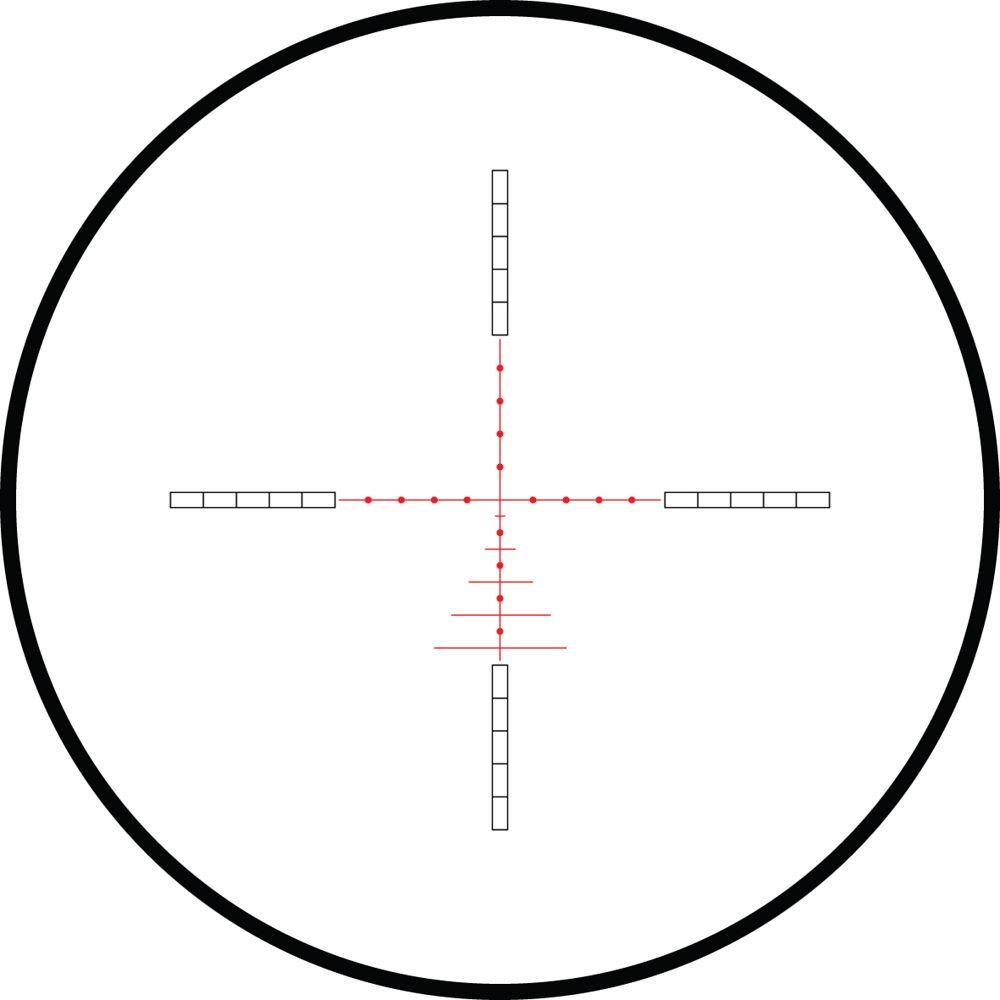

- AMX Ranging Duplex Reticle
-
- 2nd focal plane
- Etched duplex crosshair-style reticle
- 0.75 MOA dots on crosshairs with half mil-dot spacing
- Sub-tension set at 10x magnification
- Horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5, and 4.5 mil spacing
- Hollow posts are broken up into 1-mil segments and can be used for bracketing
- Use and Handling
-
- 1/4 MOA impact point correction
- 80 MOA windage and elevation range
- Side parallax turret, adjustable from 7.5 yards to infinity
- Short capped turrets do not get in the way
- 3.5" long eye relief
- 10-3.3mm exit pupil
- Compatibility with Hawke Ballistic Reticle Calculator (BRC)
-
- Downloadable free Hawke BRC software and mobile apps for Android / iOS / Windows allow you to:
- Customize the reticle performance
- Change Ballistic Coefficient (BC)
- Change zero distances, muzzle velocity, and magnification
- Plot your trajectory and find suitable aim points
- Print trajectory graphs, reticle images, and range calculations - Construction Details
-
- 1" single-piece maintube
- Lightweight and durable aluminum housing
- Adjustable objective bell for parallax correction
- Fast-focus eyepiece with knurled high-torque zoom ring
- Nitrogen-filled, water and fogproof
In the Box Hawke Sport Optics 4-12x40 Airmax AO Riflescope (AMX Ranging Duplex Reticle) - Lens Cloth
- Ocular Lens Cover
- Objective Lens Cover
- Limited Lifetime Warranty
- Limited 10-Year Europe Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 4-12x40 Airmax AO Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 13130 Specs | | | Magnification | 4 to 12x | | Objective Lens Diameter | 40 mm | | Field of View | 4x: 29.9' @ 100 yd / 10.3 m @ 100 m
12x: 11' @ 100 yd / 3.7 m @ 100 m | | Exit Pupil Diameter | 4x: 10 mm
12x: 3.3 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | AMX Duplex Ranging Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 80 MOA | | Elevation Adjustment | 80 MOA | | Parallax Correction | Yes, 7.5 yd / 6.9 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 12.7" / 32.2 cm | | Weight | 18.4 oz / 522 g | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 14.7 x 4.2 x 3.1" |
