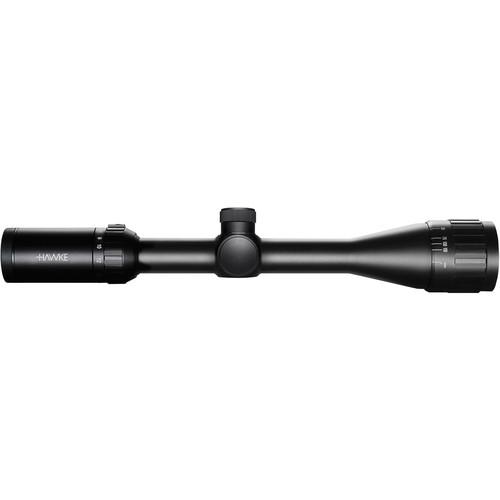

Product description Designed for mid to long-range use with a broad zoom magnification range and competent low-light performance, the Hawke Optics 4-12x40 Vantage AO Riflescope boasts a 40mm objective lens that draws in generous amounts of light versus smaller objectives while still maintaining a relatively low profile. Covered finger-adjustable turrets help guard against accidental adjustments while a fast-focus collar, parallax adjustment ring, and knurled rheostat knob allow you to quickly adapt to rapidly changing situations. Complementing the performance of the scope is a lightweight and durable anodized aluminum housing with a 1" one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof. - Optical Performance
-
- 4-12x zoom range
- 40mm objective lens
- 11-layer anti-reflection fully multi-coated optics
- 26.2-8.7' field of view at 100 yards

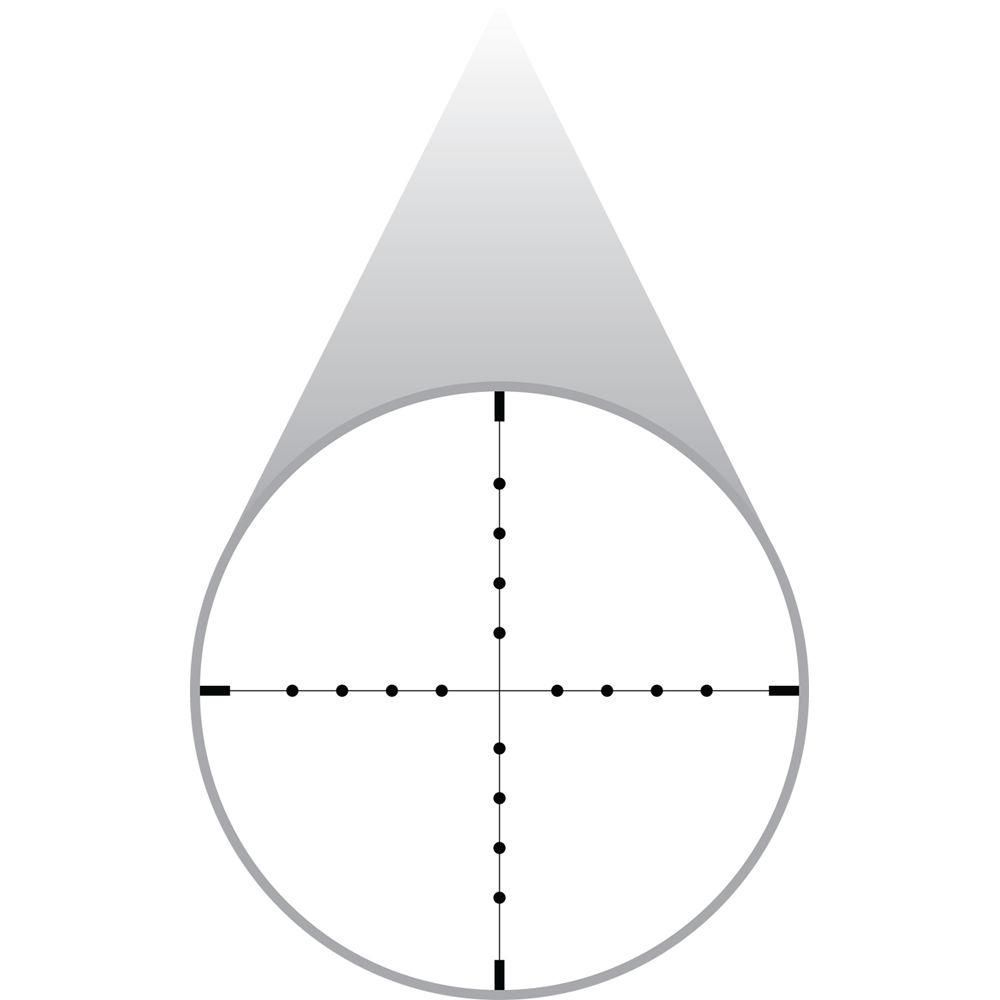

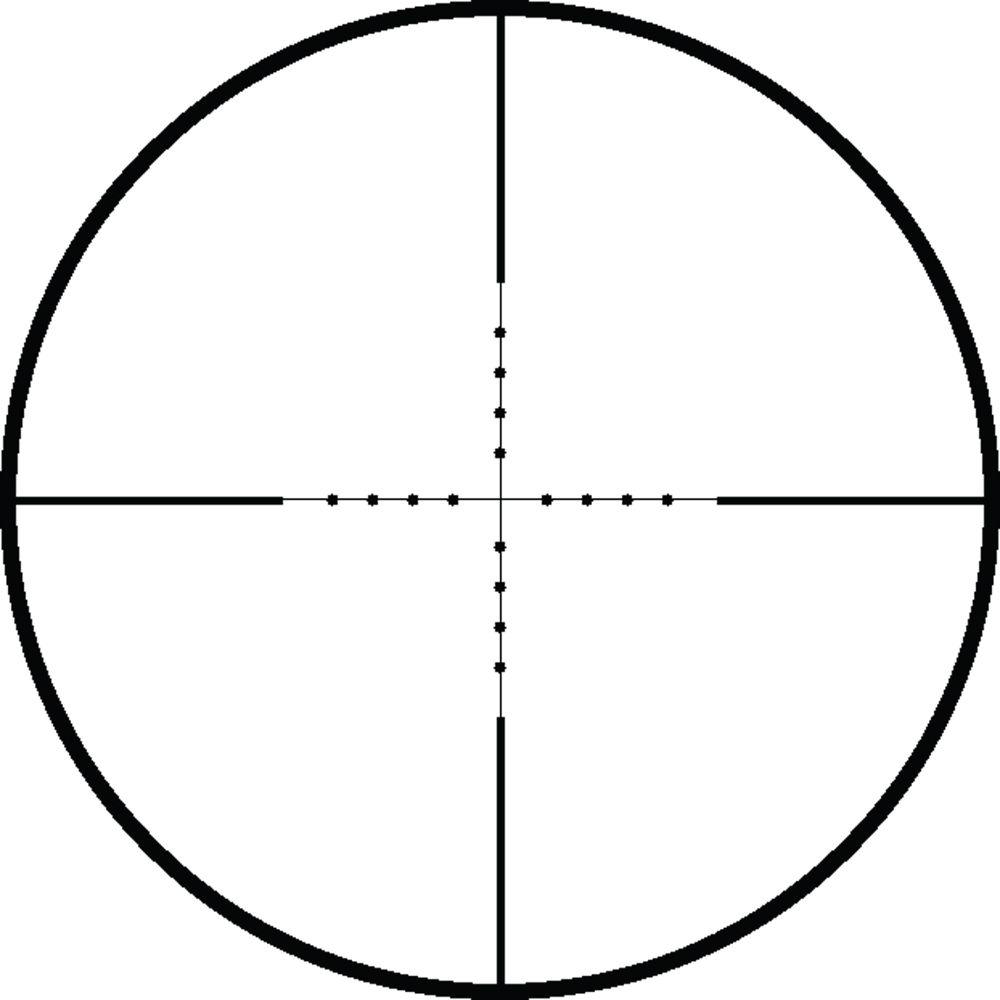

- Reticle Details
-
- Mil Dot duplex crosshair-style reticle
- Thick outer posts with thin center hairs
- Placed on second focal plane, sub-tension set at 10x magnification
- Four mil dots on all axes spaced 1 mrad (3.44 MOA) apart
- Etched on glass to prevent fading and shifting out of center over time
- Use for ranging, hold-over/under, and estimating target size
- Use and Handling
-
- Fast-focus collar
- 1/4 MOA per click impact point correction
- 100 MOA windage and elevation adjustment range
- Adjustable parallax from 10 yards to infinity
- Low-profile covered turret caps prevent accidental adjustment
- 3.5" long eye relief
- 10-3mm exit pupil
- Construction Details
-
- 1" one-piece maintube
- Lightweight and durable aluminum alloy housing
- Nitrogen-filled for water and fogproof performance
- Rated for use on most calibers and recoil-resistant
- Length: 13.6 inches
- Weight: 17.1 ounces
In the Box Hawke Sport Optics 4-12x40 Vantage AO Riflescope (Mil Dot Duplex Reticle) Lens Cloth Ocular Lens Cover Objective Lens Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 4-12x40 Vantage AO Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 14141 Specs | | | Magnification | 4 to 12x | | Objective Lens Diameter | 40 mm | | Field of View | 4x: 26.2' @ 100 yd / 8.7 m @ 100 m
12x: 8.7' @ 100 yd / 2.9 m @ 100 m | | Exit Pupil Diameter | 4x: 10 mm
12x: 3 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | MIL Duplex Crosshair-Dot Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 100 MOA | | Elevation Adjustment | 100 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 13.6" / 34.6 cm | | Weight | 17.1 oz / 485 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 15.7 x 3.9 x 3.0" |
