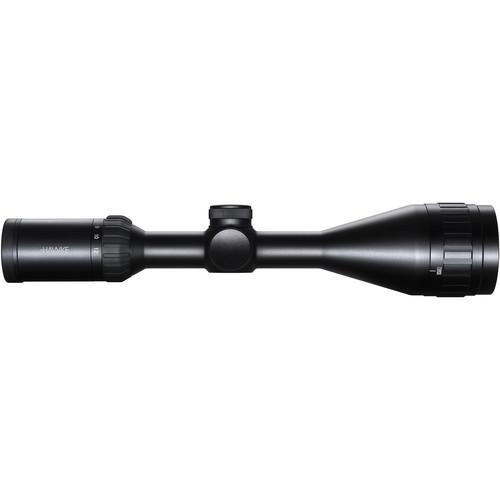

Product description Enhance your competitive edge in precision and low-light shooting with the Hawke 4-12x50 Airmax AO Riflescope. The riflescope is optimized for airguns and features a large 50mm objective, which scoops more light at dawn and dusk. Its fully multi-coated optics, with 16 layers of anti-reflection coatings, increase image resolution, clarity, and brightness. Located on the 2nd focal plane is an etched-on-glass AMX ranging duplex reticle that is designed for airguns that can have bent trajectories. It offers multiple aiming points using 0.75 MOA dots spaced at 1 mil on a thin crosshair. The transparent segmented posts can also be used for bracketing. The horizontal bars are spaced at 0.5, 1.5, 2.5, 3.5, and 4.5 mil intervals. To add more accuracy, the parallax can be corrected from 7.5 yd to infinity with the adjustable objective. To help with compensation for wind and ballistic bullet drop, the riflescope offers 70 MOA of windage and elevation adjustment range and a ¼ MOA per click impact point correction.
The lightweight and durable aluminum housing features a 1" single-piece maintube. It is filled with nitrogen for fogproof and waterproof performance. The overall design features a slender, unobtrusive shape and low-profile capped turrets. To ease the zooming process, the fast-focus eyepiece is outfitted with a high-torque knurled rubber zoom ring. For parallax correction, use the rotating adjustable objective ring. To keep your scope's lenses protected from debris, dust, and dirt while it is not used, one objective lens cap and one ocular lens cap are also included. - Optical Performance
-
- 4-12x zoom range
- 50mm objective lens
- 16-layer anti-reflection fully multi-coated optics improves contrast and image brightness
- 30-11' field of view at 100 yards

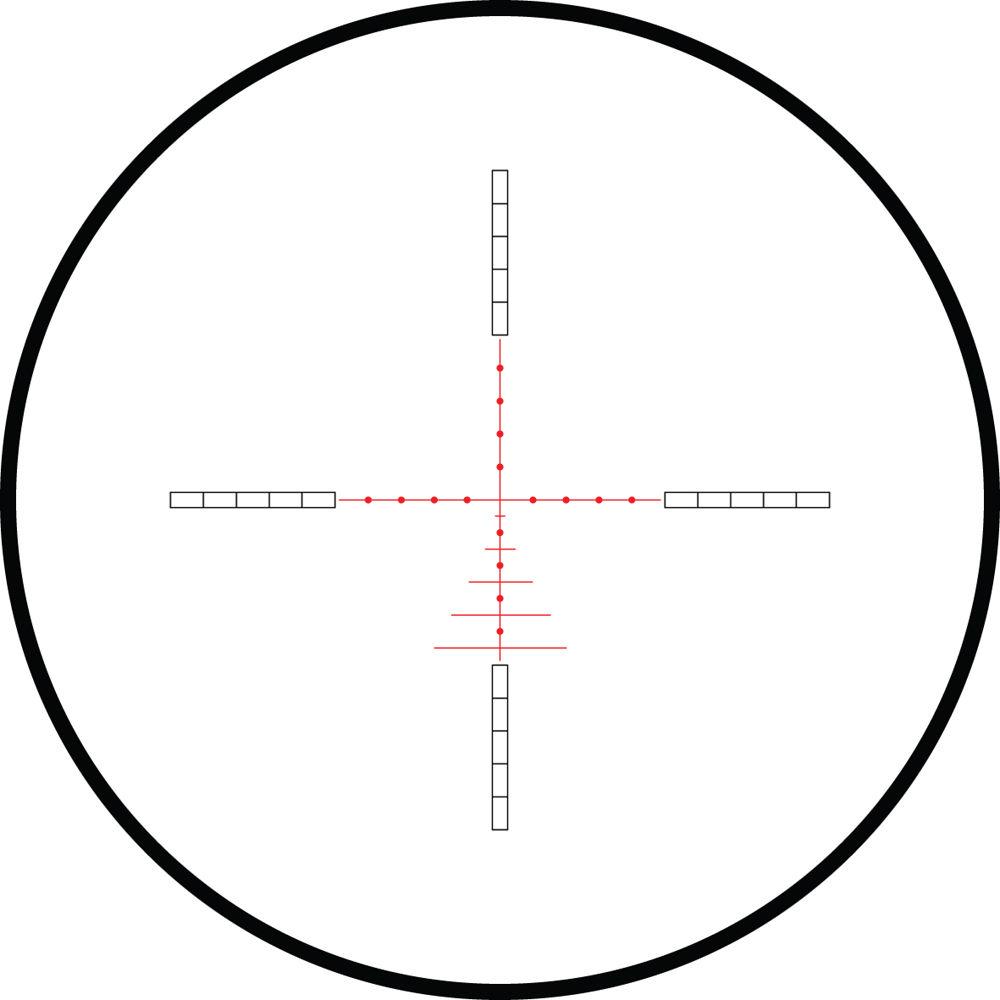

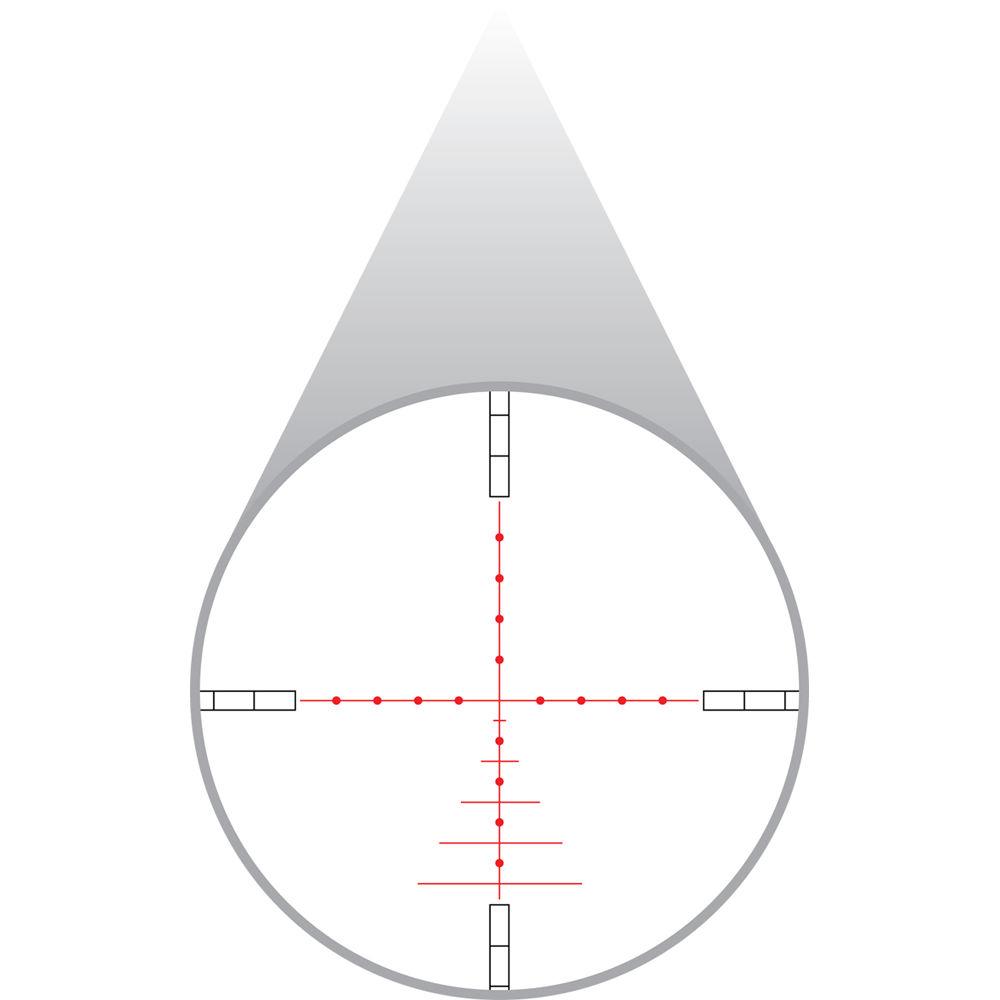

- AMX Ranging Duplex Reticle
-
- 2nd focal plane
- Etched on glass
- Optimized for the bent trajectories of airguns
- 0.75 MOA dots on crosshair spaced 1 mil (3.44 MOA) apart
- Horizontal bars are spaced at intervals of: 0.5, 1.5, 2.5, 3.5, and 4.5 mil
- Hollow posts are broken up into 1-mil segments and can be used for bracketing
- Use and Handling
-
- Fast-focus eyepiece
- 1/4 MOA impact point correction
- 70 MOA windage and elevation adjustment range
- Parallax: 7.5 yd to infinity
- Wide 13-4mm exit pupil
- 3.5" eye relief
- Compatibility with Hawke Ballistic Reticle Calculator (BRC)
- Downloadable free Hawke BRC software and mobile apps for Android / iOS / Windows allow you to:
- Customize the reticle performance
- Change Ballistic Coefficient (BC)
- Change zero distances, muzzle velocity, and magnification
- Plot your trajectory and find suitable aim points
- Print trajectory graphs, reticle images, and range calculations
- Construction Details
-
- 1" one-piece maintube
- Lightweight aluminum housing
- Adjustable objective for parallax correction
- High-torque eyepiece zoom ring
- Nitrogen-filled, water & fogproof
In the Box Hawke Sport Optics 4-12x50 Airmax AO Riflescope (AMX Ranging Duplex Reticle) Lens Cloth Ocular Lens Cover Objective Lens Cover Limited Lifetime Warranty Limited 10-Year Europe Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 4-12x50 Airmax AO Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 13140 Specs | | | Magnification | 4 to 12x | | Objective Lens Diameter | 50 mm | | Field of View | 4x: 29.9' @ 100 yd / 10.3 m @ 100 m
12x: 11' @ 100 yd / 3.7 m @ 100 m | | Exit Pupil Diameter | 4x: 12.5 mm
12x: 4.2 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | AMX Duplex Ranging Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 70 MOA | | Elevation Adjustment | 70 MOA | | Parallax Correction | Yes, 7.5 yd / 6.9 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 13" / 33 cm | | Weight | 21.9 oz / 620.9 g | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 14.5 x 3.9 x 3.1" |
