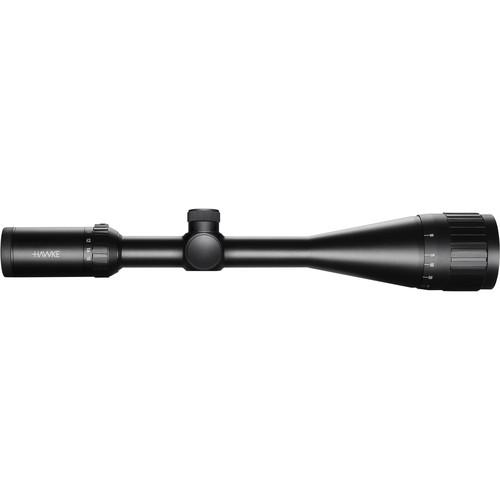

User Manual for Hawke Sport Optics 4-12x50 Vantage AO IR Riflescope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 4-12x50 Vantage AO
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
 |
User manual for the Hawke Sport Optics 4-12x50 Vantage AO contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|
Product description Designed for long-range shooting, especially in low-light conditions, the Hawke Sports Optics 4-12x50 Vantage AO IR Riflescope boasts a large objective to draw in generous amounts of light to allow its use at dawn and dusk, or in heavily canopied areas. To further improve the scope's performance, all of its optical surfaces are fully multi-coated to boost light transmission and improve color fidelity, contrast, and image brightness. A large objective also helps to produce a wide exit pupil, even at the highest magnification, to ensure that when the eye dilates in low-light the entire field of view is easy to see without having to move your eye or head to see the whole scene.The partially-illuminated crosshair reticle has four mil dots on all four sides of the center point that can be used for hold-over/under, ranging, or target size estimation. It has five selectable brightness levels in either red or green so it can be customized for most lighting and weather conditions. Red is ideal for low-light conditions or in areas with a very green background where a green reticle can get lost; while green light is easier to see in bright sunlight versus red. Covered turrets help guard against accidental adjustments while a fast-focus collar, adjustable parallax, and knurled rheostat allow you to quickly adapt to rapidly changing situations. Complementing the performance of the scope is a lightweight and durable anodized aluminum housing with a 1" one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof. - Optical Performance
-
- 4-12x zoom range
- 50mm objective lens
- 11-layer anti-reflection fully multi-coated optics improves contrast and image brightness
- 26.2-8.7' field of view at 100 yards

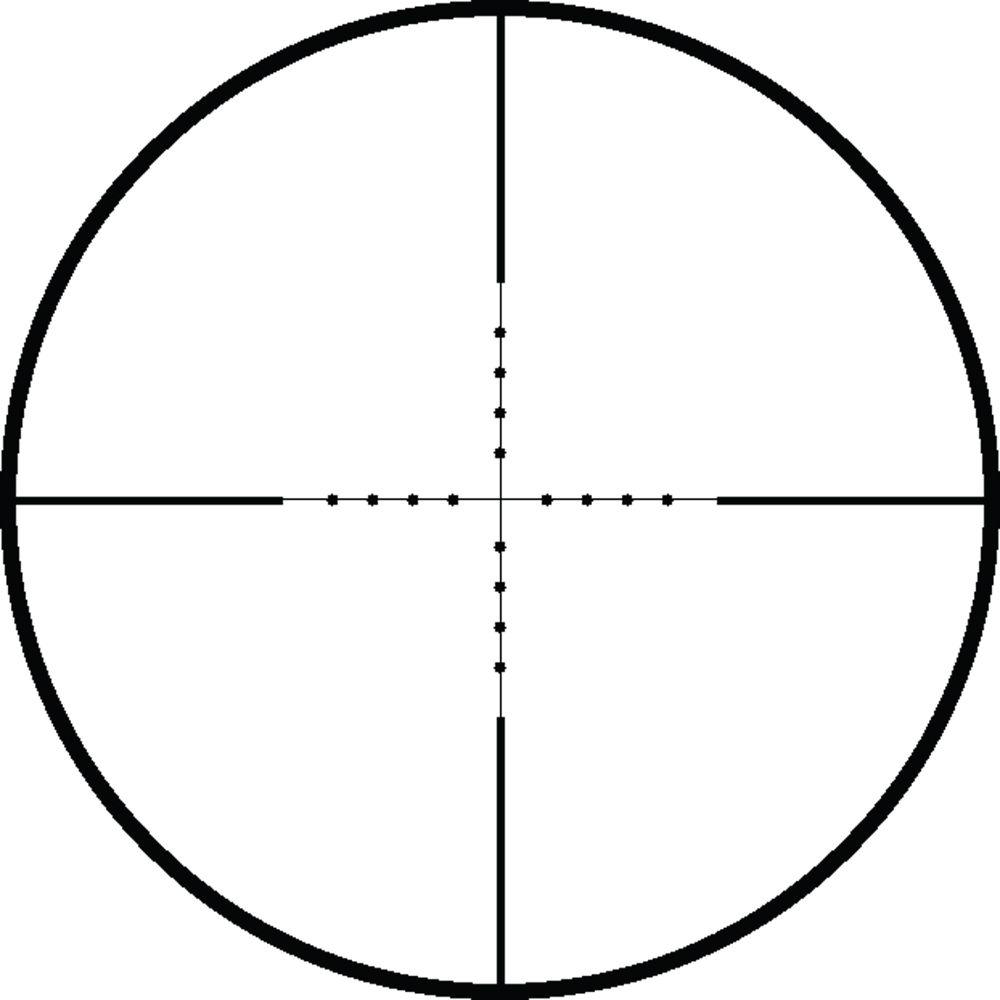

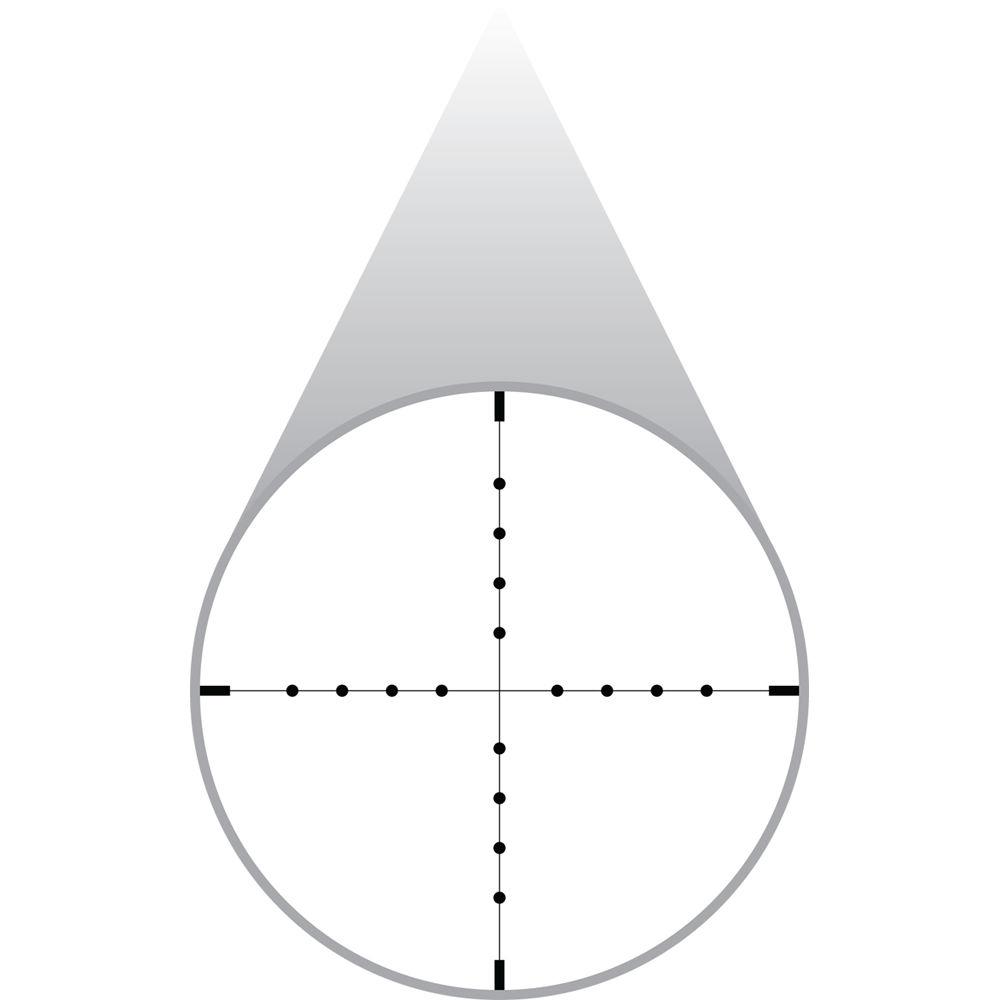

- Reticle Details
-
- Partially illuminated duplex crosshair-style reticle
- Etched black outer posts
- Illuminated center crosshairs
- Four mil dots on crosshairs spaced 1 mrad (3.44 MOA) apart from center point
- Illumination can be turned off for non-illuminated black hairs
- Use for ranging, hold-over/under, and estimating target size
- Placed on second focal plane
- Sub-tension set at 10x magnification
- Partially illuminated:
- Knurled Posi-Grip adjustment collar
- Five selectable brightness levels
- Choose between red and green colors
- Red is ideal for low-light conditions or in areas with green background where a green reticle can get lost
- Green is easier to see in bright daylight than red
- Runs on one included CR2032 coin-cell battery
- Use and Handling
-
- Fast-focus collar
- 1/4 MOA per click impact point correction
- 90 MOA windage and elevation adjustment range
- Adjustable parallax from 10 yards to infinity
- Wide 13-4mm exit pupil; when the eye dilates in low-light conditions, the entire scene will still be visible
- 3.5" long eye relief
- Construction Details
-
- 1" one-piece maintube
- Lightweight and durable aluminum alloy housing
- Nitrogen-filled for water and fogproof performance
- Rated for use on most calibers and recoil-resistant
- Length: 13.7 inches
- Weight: 21.2 ounces
In the Box Hawke Sport Optics 4-12x50 Vantage AO IR Riflescope (Mil Dot IR Illuminated Reticle) Lens Cloth CR2032 Battery Ocular Lens Cover Objective Lens Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 4-12x50 Vantage AO IR Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 14252 Specs | | | Magnification | 4 to 12x | | Objective Lens Diameter | 50 mm | | Field of View | 4x: 26.2' @ 100 yd / 8.7 m @ 100 m
12x: 8.7' @ 100 yd / 2.9 m @ 100 m | | Exit Pupil Diameter | 4x: 13 mm
12x: 4 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | MIL Dot Duplex Crosshair Reticle (Second Focal Plane) | | Illumination | Partially Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 90 MOA | | Elevation Adjustment | 90 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 13.7" / 34.8 cm | | Weight | 21.2 oz / 600 g | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 15.7 x 4.1 x 3.0" |
