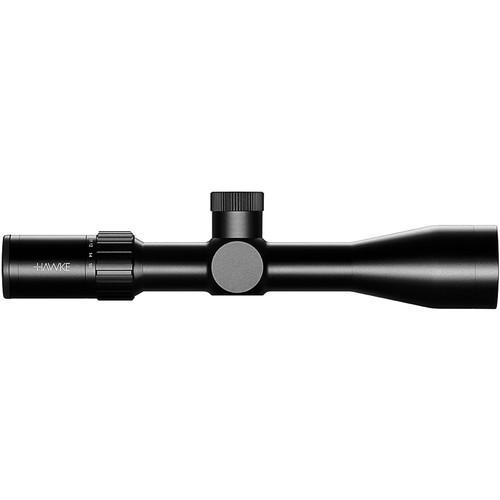

Product description Designed for use on airguns, the Hawke 4-16x44 Airmax 30 SF Compact Riflescope employs a broad magnification range, a generous objective, fully multi-coated optics, and a partially illuminated reticle. The duplex ranging AMX IR reticle is based on a mil-dot system and provides multiple aiming points on all axes, which allows you to compensate for loopy trajectories quickly without having to manipulate the windage and elevation turrets. The reticle's center crosshairs, mil dots, and stadia have six brightness levels, with off positions in between.
The scope's 44mm objective lens and 16-layer anti-reflection optical coatings increase light transmission to enhance its low-light performance, such as at dawn, dusk, or in heavily canopied woods. Capped, resettable target turrets adjust at 1/10 MRAD per click, with a total elevation and windage adjustment range of 20 MRAD, allow for precise impact point correction, and a side parallax adjustment with removable wheel allows correction of parallax errors from 10 yards to infinity. Complementing the performance of the scope is a lightweight and durable anodized aluminum housing with a robust 30mm one-piece maintube that is nitrogen filled and O-ring sealed to be water and fogproof. - Optical Performance
-
- 4-16x zoom range
- 40mm objective lens
- 16-layer anti-reflection fully multi-coated optics improve contrast, color rendition, and overall image brightness
- 32.8-8.2' field of view at 100 yards

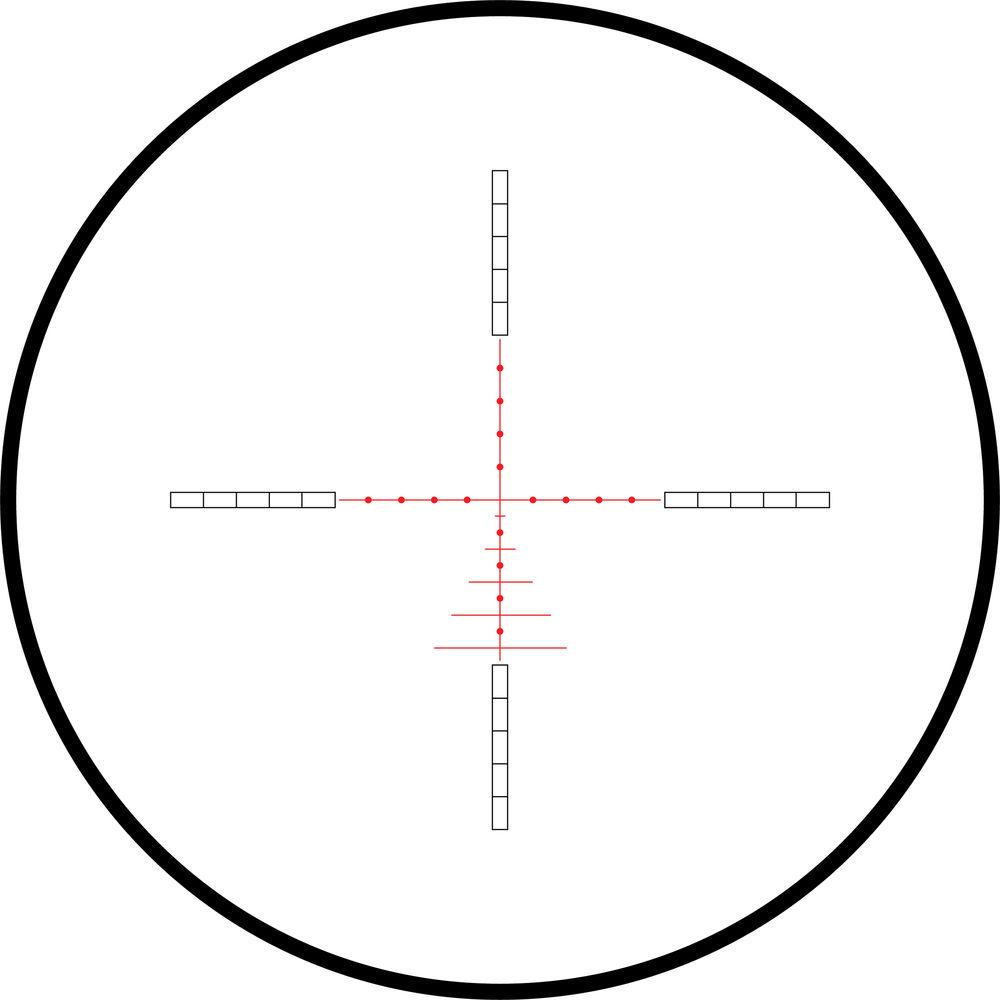

- AMX IR Reticle
-
- Modified duplex crosshair-style reticle
- 1 mil spacing on all axes for ranging, hold-over/under, and target size estimation
- Hollow non-illuminated outer posts with 1 mil indicators
- 1/2 mil-dot spacing on the lower post offer aim-points long distance ballistic drop compensation

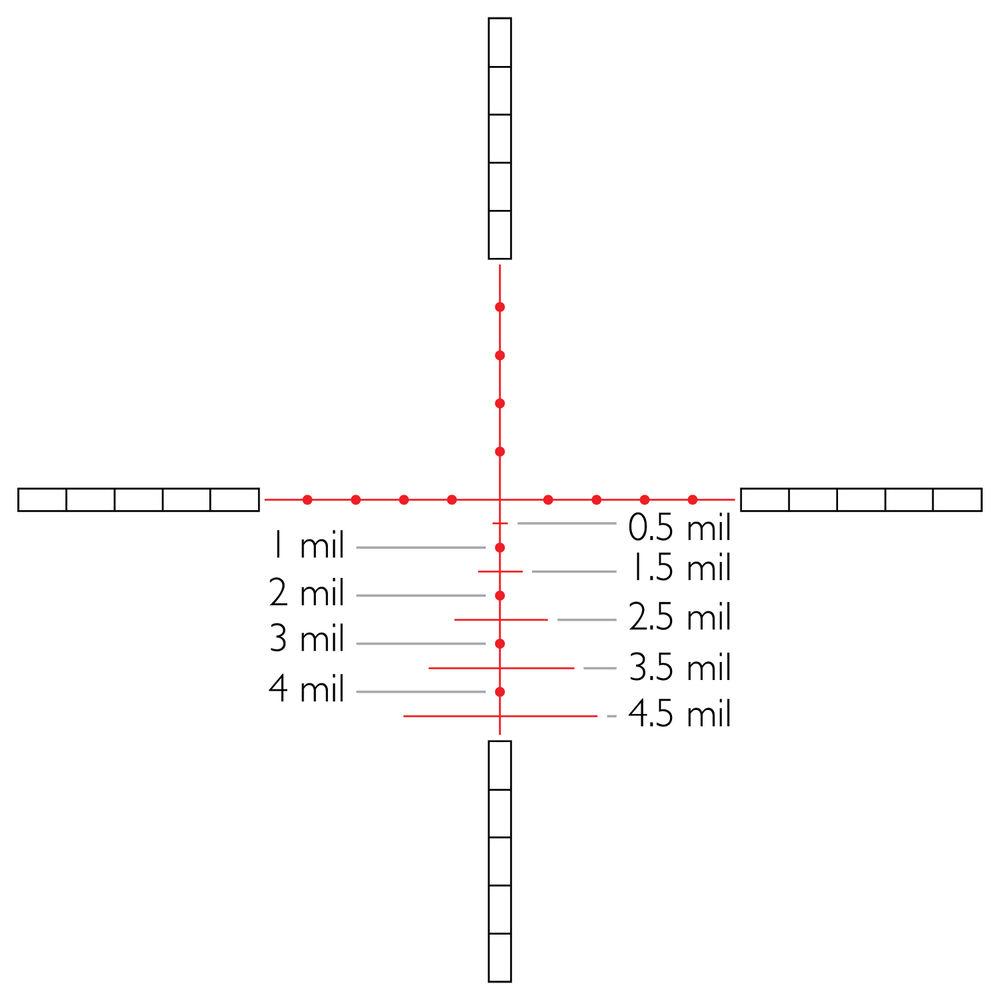

- Horizontal bars calculated at 0.5/1.5/2.5/3.5/4.5 mil spacing
- Mil-spaced hollow outer bars for bracketing
- Sub-tension set at 10x
- Illuminated in red
- Center hairs and mil-dots illuminated for low-light use
- Six brightness levels with off position in between
- Etched onto glass resists fading or shifting over time
- Placed on second focal plane
- Runs on one included CR2032 battery
- Use and Handling
-
- Fast-focus collar
- High-torque zoom ring ensures magnification doesn't change from recoil
- 1/10 MRAD per click impact point correction
- 20 MRAD windage and elevation adjustment range
- Side parallax turret, adjustable from 10 yards to infinity
- Capped, resettable target turrets enable fast windage, elevation, and parallax adjustments
- Removable side wheel for faster and more precise parallax adjustment, even when wearing gloves
- 3" eye relief
- 11-3mm exit pupil
- Construction Details
-
- Sturdy 30mm one-piece maintube
- Lightweight and durable aluminum-alloy housing
- Nitrogen filled for water and fogproof performance
- Rated for use on all calibers and recoil resistant

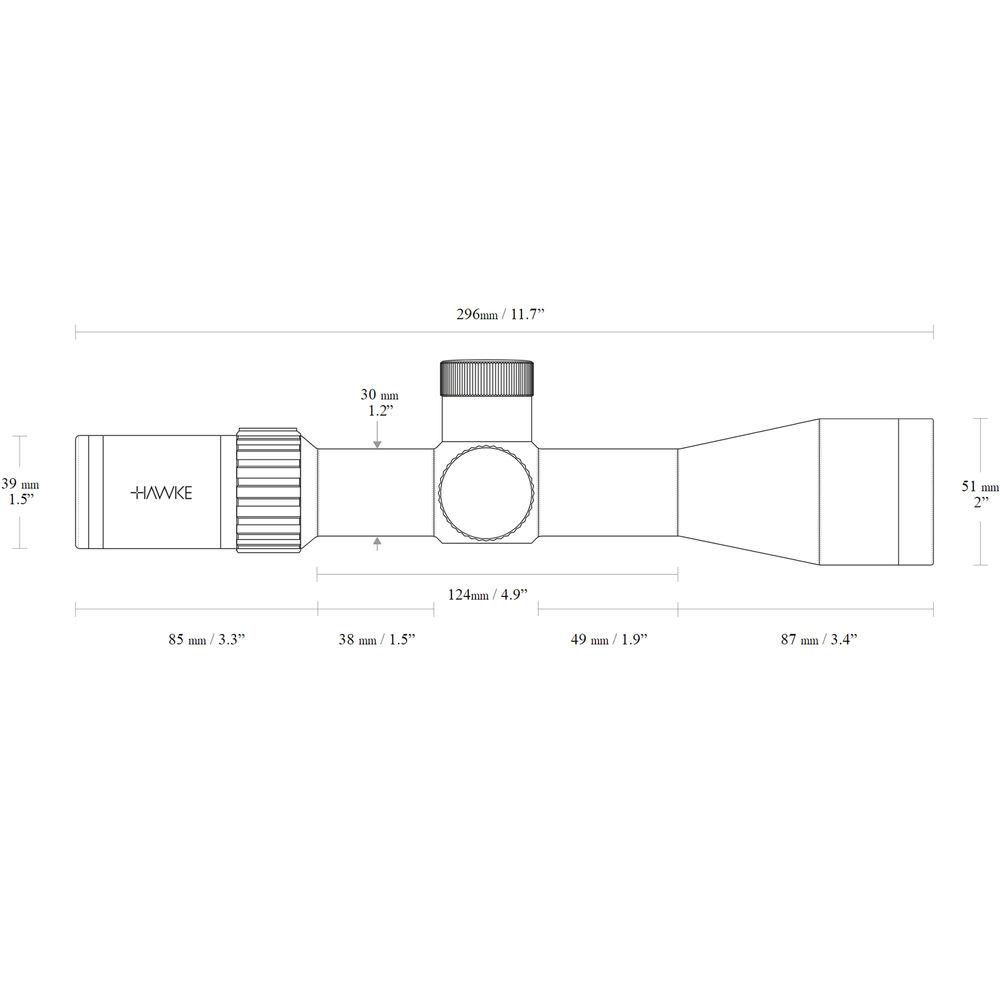

- Length: 11.7"
- Weight: 21.9 ounces
In the Box Hawke Sport Optics 4-16x44 Airmax 30 SF Compact Riflescope (AMX IR Illuminated Reticle, Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 4-16x44 Airmax 30 SF Compact Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 13210 Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 44 mm | | Field of View | 4x: 32.8' @ 100 yd / 10.9 m @ 100 m
16x: 8.2' @ 100 yd / 2.7 m @ 100 m | | Exit Pupil Diameter | 4x: 11 mm
16x: 2.8 mm | | Eye Relief | 3" / 76.2 mm | | | | Reticle Type | AMX IR Reticle (Second Focal Plane) | | Illumination | Partially Illuminated | | Illuminated Color | Red | | Brightness Settings | Adjustable Brightness (6 Levels) | | | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 20 MRAD | | Elevation Adjustment | 20 MRAD | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 11.7" / 29.7 cm | | Weight | 21.9 oz / 621 g |
