Hawke Sport Optics 4-16x44 Vantage SF

Search your instruction manual in PDF to download

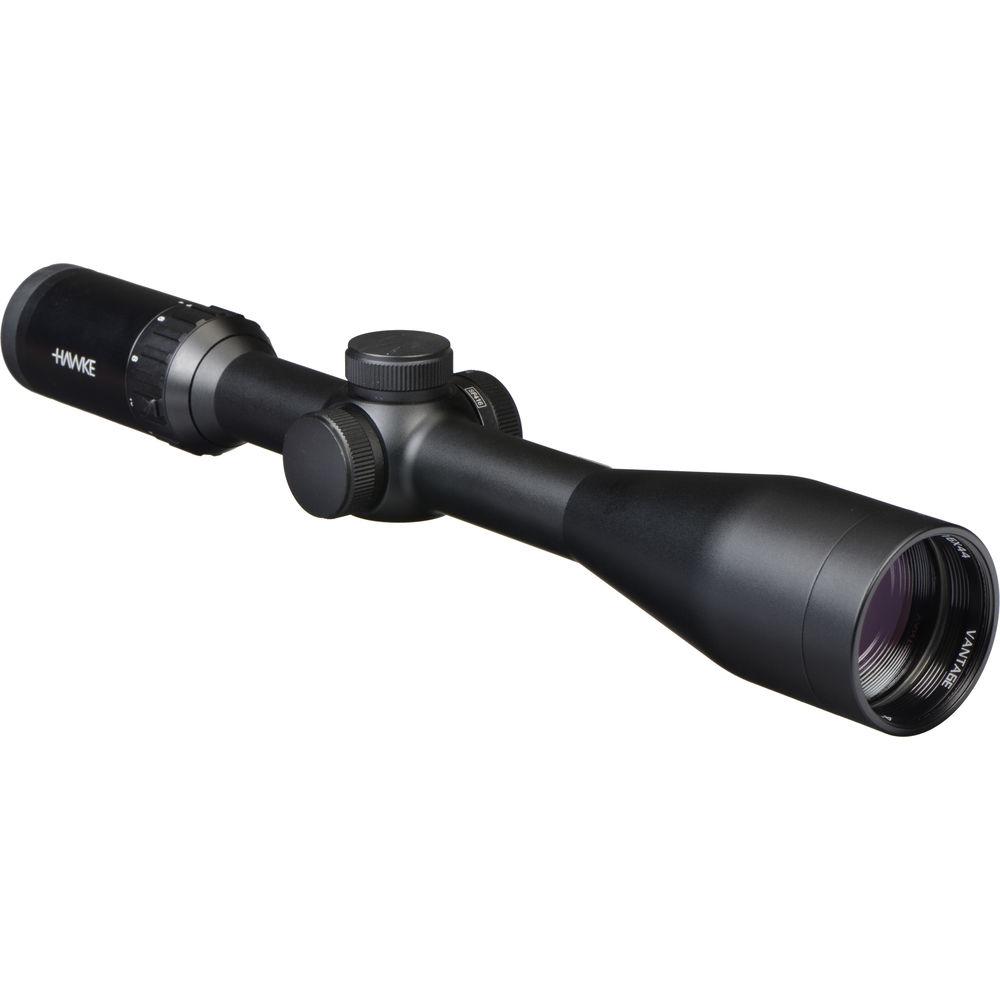

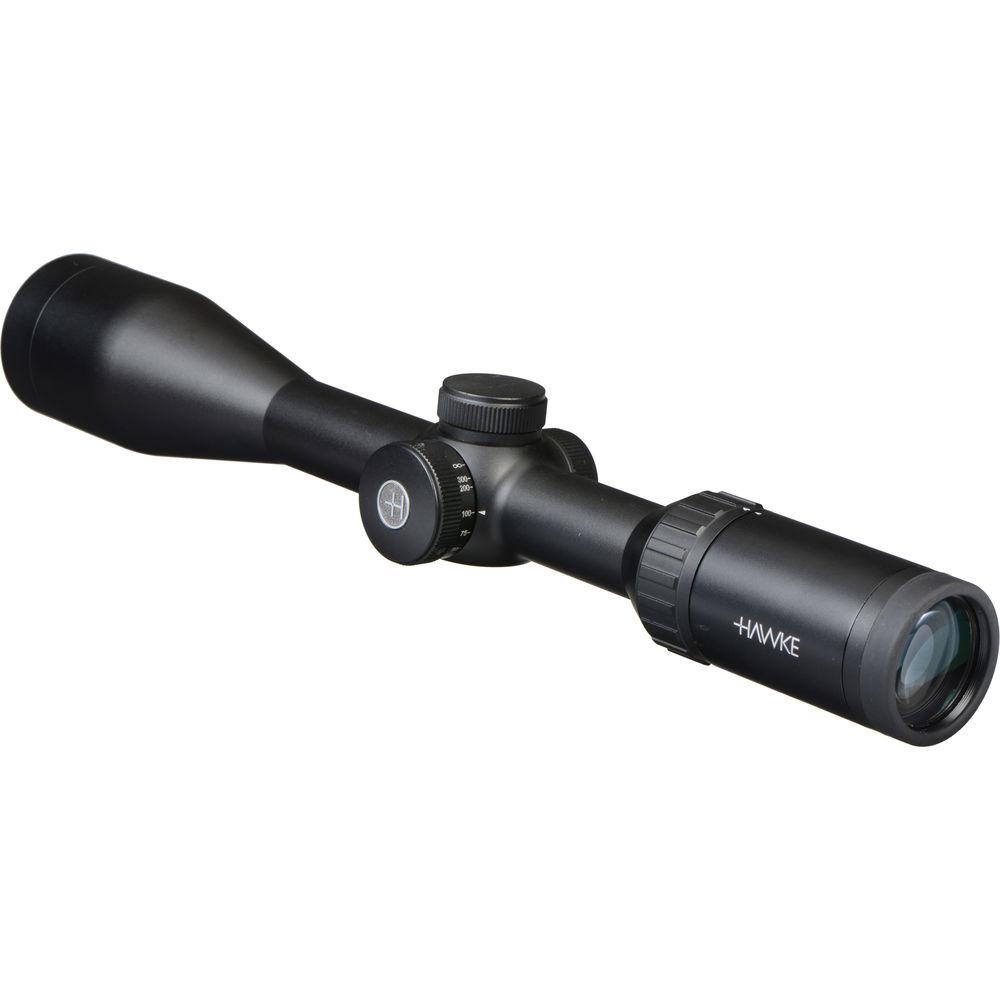

User Manual for Hawke Sport Optics 4-16x44 Vantage SF Riflescope

Click to enlarge the picture
Hawke Sport Optics 4-16x44 Vantage SF Riflescope Contents of the user manual for the Hawke Sport Optics 4-16x44 Vantage SF
  • Product category: Riflescopes Hawke Sport Optics
  • Brand: Hawke Sport Optics
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hawke Sport Optics Riflescopes

Hawke Sport Optics 4-16x44 Vantage SF Riflescope Hawke Sport Optics 4-16x44 Vantage SF Riflescope
User manual for the Hawke Sport Optics 4-16x44 Vantage SF contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hawke Sport Optics product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!



Product description

The Hawke Optics 4-16x44 Vantage SF Riflescope is a versatile all-purpose scope that is ideal for mid to long-range shooting with competent low-light performance. A broad zoom range brings even small, distant targets up-close; and the combination of a 44mm objective lens, that draws in a generous amount of light, and the 11-layer fully multi-coated optics maximize light transmission to produce bright and clear high-contrast images - even in low-light conditions such as dawn, dusk, or in heavily canopied woods.Its modified duplex reticle has 1/2 mil diameter dots on the fine center crosshairs, with dashes midway between each dot to assist in hold-over/under, range estimation, or target size estimation. Complementing the performance of the scope is a lightweight and durable anodized magnesium alloy housing, with a 1" one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof. Threads on the ocular and objective provide a solid mounting point for optional accessories such as sun shades.
    Optical Performance
    • 4-16x zoom range
    • 44mm objective lens
    • 11-layer anti-reflection fully multi-coated optics improves color fidelity, contrast, and overall image brightness
    • 22.9-5.8' field of view at 100 yards
    Reticle Details
    • Modified duplex crosshair-style
    • Thicker outer posts
    • Thin center hairs with mil dots and stadia markers
      • 0.5 mil diameter dots with dashes in between for precision aiming
      • Dots and stadia can be used for hold-over/under, range estimation, target size estimation
    • Second focal plane placement, sub-tensions set at 10x
    Use and Handling
    • Fast-focus collar
    • High-torque zoom mechanism maintains settings even after repeated recoils
    • 1/4 MOA per click impact point correction
    • 65 MOA windage and elevation adjustment range
    • Finger-adjustable, low-profile covered turret caps prevent accidental adjustment
    • Side parallax adjustment turret, adjustment range from 15 yards to infinity
    • Comfortable 11-3mm exit pupil
    • 3.5" eye relief
    Construction Details
    • 1" one-piece maintube
    • Lightweight and durable magnesium alloy housing
    • Nitrogen-filled for water and fogproof performance
    • Rated for use on most calibers and recoil-resistant
    • Threads on ocular and objective for mounting optional accessories like eyecups and sun shades
    • Length: 13.5 inches
    • Weight: 17.8 ounces
In the Box Hawke Sport Optics 4-16x44 Vantage SF Riflescope (1/2 Mil Dot Duplex Reticle)
  • Lens Cloth
  • Ocular Lens Cover
  • Objective Lens Cover
  • Limited Lifetime Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hawke Sport Optics 4-16x44 Vantage SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hawke Sport Optics 14161 Specs

    Magnification 4 to 16x
    Objective Lens Diameter 44 mm
    Field of View 4x: 22.9' @ 100 yd / 7.6 m @ 100 m
    16x: 5.8' @ 100 yd / 1.9 m @ 100 m
    Exit Pupil Diameter 4x: 11 mm
    16x: 3 mm
    Eye Relief 3.5" / 89 mm
    Reticle Type 1/2 MIL Dot Duplex Crosshair Reticle (Second Focal Plane)
    Impact Point Correction 1/4 MOA per Click
    Windage Adjustment 65 MOA
    Elevation Adjustment 65 MOA
    Parallax Correction Yes, 15 yd / 13.7 m to Infinity
    Water Resistance Waterproof
    Fogproof Yes, Nitrogen Filled
    Maintube Diameter 1"
    Battery None
    Dimensions Length: 13.5" / 34.2 cm
    Weight 17.8 oz / 505 g
    Package Weight 1.84 lb
    Box Dimensions (LxWxH) 16.6 x 3.85 x 3.2"

    Rating

    90% users recommend this product to others. And what about you?
    Rating: 4.5 of 5

    This product has already been rated by 23 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Hawke Sport Optics 4-16x44 Vantage SF Riflescope

    Subject: Query
    Date: 17.08.2022 21:37:17Name: Vincent Nastri
    Really like this scope but can I unscrew the click discs after zeroing and reset to zero so after making any adjustments I can reset to my set zero?
    I don’t want to undo the two small screws on each Knob to reset and have any bits flying out.
    Regards Vincent.
