User Manual for Hawke Sport Optics 4-16x50 Airmax 30 Side Focus Riflescope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 4-16x50 Airmax 30
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
 |
User manual for the Hawke Sport Optics 4-16x50 Airmax 30 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|

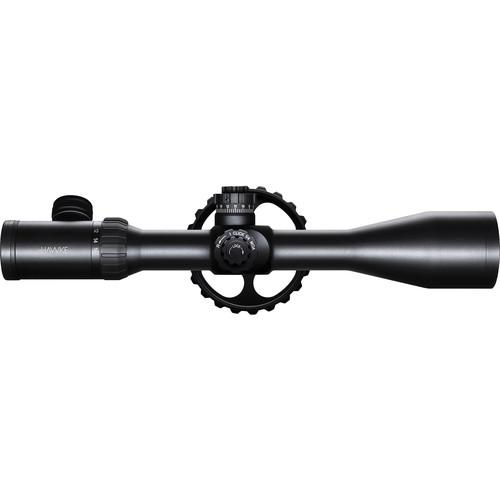

Product description Enhance your competitive edge in precision and low-light shooting with the Hawke Optics 4-16x50 Airmax 30 Side Focus Riflescope. The riflescope is optimized for airguns and features a large 50mm objective to collect more light at dawn and dusk than most scopes with smaller apertures. The fully multi-coated optics offer 16 layers of anti-reflection coatings to increase image resolution, clarity, and brightness. Located on the 2nd focal plane is an etched-on-glass AMX ranging duplex illuminated reticle. It provides multiple aiming points to allow you to adjust your shots quickly without using windage and elevation adjustments. It features illuminated 0.75 MOA dots spaced at 1 mrad, an illuminated thin crosshair, and transparent segmented posts that can be used for bracketing. With the sub-tension set at 10x magnification, the horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5, and 4.5 mil spacing. To make precise shots you can easily correct for parallax from 10 yd to infinity with the adjustable objective. To help with compensation for wind and ballistic bullet drop, the riflescope offers 85 MOA of windage and elevation adjustment range and a 1/4 MOA per click impact point correction.
The lightweight and durable aluminum housing features a 30mm single-piece maintube. It is filled with nitrogen for fogproof and waterproof performance. To prevent recoil-related zoom shift, the fast-focus eyepiece is outfitted with a high-torque zoom ring. For easy adjustments, the scope features exposed finger-operated turrets and 4" side focus parallax wheel. For blocking direct sunlight that could cause glare, you can attach the included sunshade to the objective bell. To keep your scope's lenses protected from debris, dust, and dirt while it is not used, one flip-up metal objective lens cap and one flip-up metal ocular lens cap are also included. - Optical Performance
-
- 4-16x zoom range
- 50mm objective lens
- 16 layers anti-reflection fully multi-coated optics improves contrast and image brightness
- 23-6.5' field of view at 100 yards

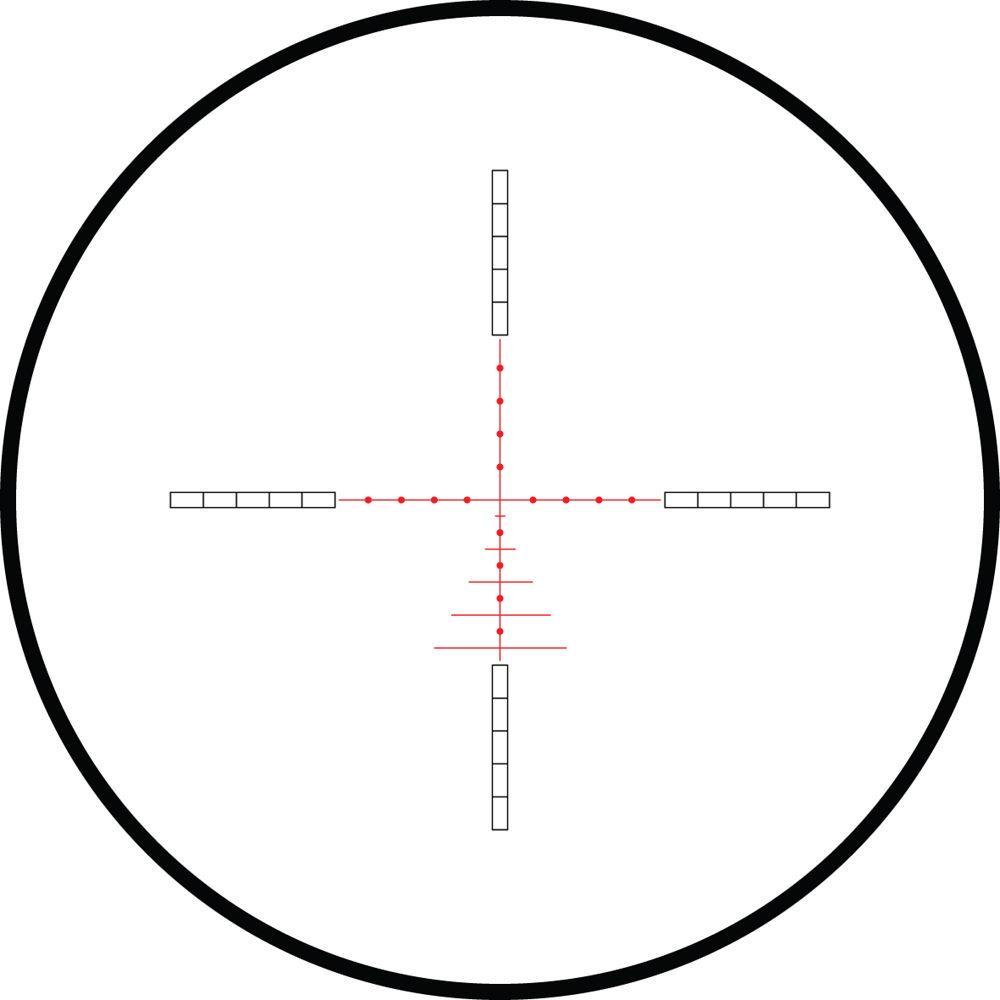

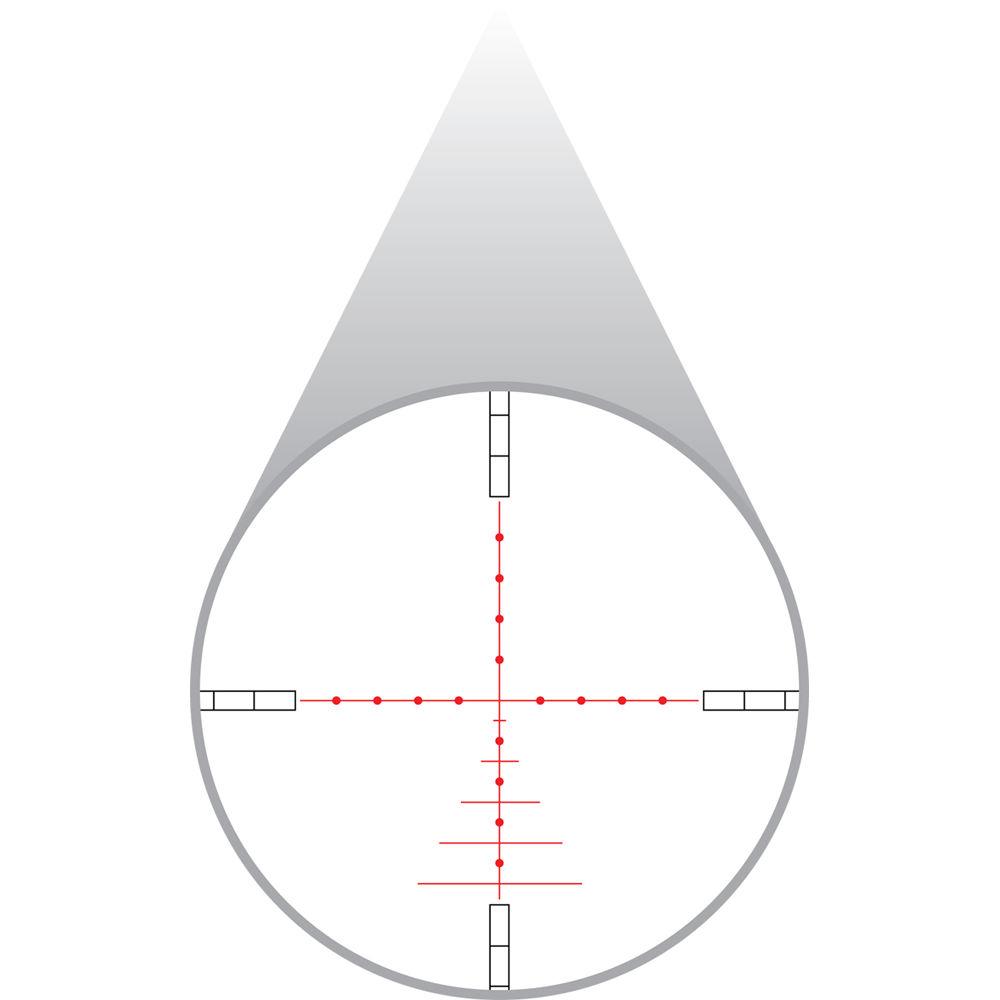

- AMX Illuminated Ranging Duplex Reticle
-
- 2nd focal plane
- Etched duplex crosshair-style reticle
- 0.75 MOA dots on crosshairs spaced 1 mrad (3.44 MOA) apart
- Sub-tension set at 10x magnification
- Horizontal bars are spaced at intervals of: 0.5, 1.5, 2.5, 3.5, and 4.5 mil
- Hollow posts are broken up into 1-mil segments and can be used for bracketing
- Stepless rheostat provides continuous brightness adjustment
- Large illuminated area includes crosshair and dots
- Use and Handling
-
- Fast-focus eyepiece
- 1/4 MOA impact point correction
- 85 MOA windage and elevation adjustment range
- Parallax: 10 yd to infinity
- Eye relief: 4"
- Exit pupil: 12.5 - 3.1mm
- Construction Details
-
- 30mm one-piece maintube
- Side focus parallax knob
- Lightweight and durable aluminum alloy housing
- Posi-grip rubber coating
- Nitrogen-filled. water and fogproof
In the Box Hawke Sport Optics 4-16x50 Airmax 30 Side Focus Riflescope (AMX Ranging Duplex Illuminated Reticle) - Lens Cloth
- 4" Screw-in Sunshade
- 4" Side Focus Wheel
- CR-2032 Battery
- Flip-Out Metal Ocular Cover
- Flip-Out Metal Objective Cover
- Limited Lifetime Warranty
- Limited 10-Year Europe Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 4-16x50 Airmax 30 Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 13310 Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 50 mm | | Field of View | 4x: 23' @ 100 yd / 7.7 m @ 100 m
16x: 6.5' @ 100 yd / 2.2 m @ 100 m | | Exit Pupil Diameter | 4x: 12.5 mm
16x: 3.1 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | AMX Duplex Ranging Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 85 MOA | | Elevation Adjustment | 85 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.1" / 358 mm | | Weight | 27.5 oz / 779.6 g |
