Hawke Sport Optics 4-16x50 Endurance 30

Search your instruction manual in PDF to download

User Manual for Hawke Sport Optics 4-16x50 Endurance 30 WA SF Riflescope

Click to enlarge the picture
Hawke Sport Optics 4-16x50 Endurance 30 WA SF Riflescope Contents of the user manual for the Hawke Sport Optics 4-16x50 Endurance 30
  • Product category: Riflescopes Hawke Sport Optics
  • Brand: Hawke Sport Optics
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hawke Sport Optics Riflescopes

Hawke Sport Optics 4-16x50 Endurance 30 WA SF Riflescope Hawke Sport Optics 4-16x50 Endurance 30 WA SF Riflescope Hawke Sport Optics 4-16x50 Endurance 30 WA SF Riflescope Hawke Sport Optics 4-16x50 Endurance 30 WA SF Riflescope Hawke Sport Optics 4-16x50 Endurance 30 WA SF Riflescope Hawke Sport Optics 4-16x50 Endurance 30 WA SF Riflescope Hawke Sport Optics 4-16x50 Endurance 30 WA SF Riflescope Hawke Sport Optics 4-16x50 Endurance 30 WA SF Riflescope Hawke Sport Optics 4-16x50 Endurance 30 WA SF Riflescope
User manual for the Hawke Sport Optics 4-16x50 Endurance 30 contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hawke Sport Optics product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!



Product description

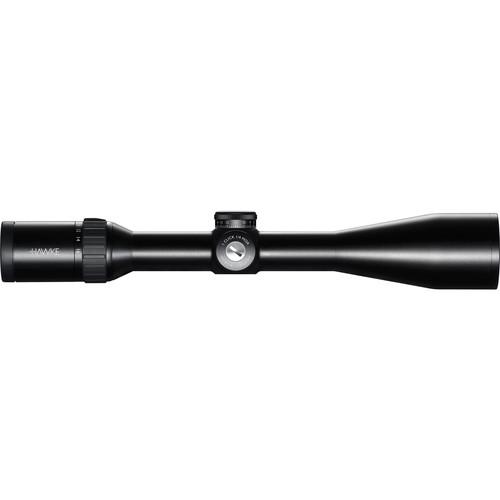

Hawke's 4-16x50 Endurance 30 WA SF Riflescope combines a 4-16x zoom with a wide 50mm objective in a compact and lightweight body to deliver a versatile scope for precision and distance hunting in low light. The scope features many characteristics of the series such as bright and clear fully multi-coated optics, a strong and durable one-piece 30mm maintube, a 15-yard minimum parallax-free range, and a fast-focus eyepiece while also introducing improvements in the form of an extended 31.2-7.8' (at 100 yards) field of view, 75 MOA windage and elevation ranges, and an increased number of layers of coatings (18). At the core of the optical system is the second focal plane LR Dot illuminated reticle, defined by the German #4 outline with three posts, a thin crosshair with ballistic stadia, and a brilliant red illuminated target dot. The reticle draws power from the included CR2032 battery, has six brightness levels, and provides a precise aiming reference.
    Optical Performance
    • 4-16x magnification
    • 50mm objective diameter
    • Precision-ground optics
    • 18-layer fully multi-coated optics
    • Wide-angle optical system (WA): 31.2-7.8' at 100 yards
      Use and Handling
      • 1/4 MOA impact point correction
      • 75 MOA windage and elevation ranges
      • Parallax-free from 15 yards to infinity
      • 4"-long eye relief
        Construction Details
        • 30mm one-piece maintube
        • Lightweight and durable aluminum-alloy housing
        • Threaded objective bezel for attaching accessories

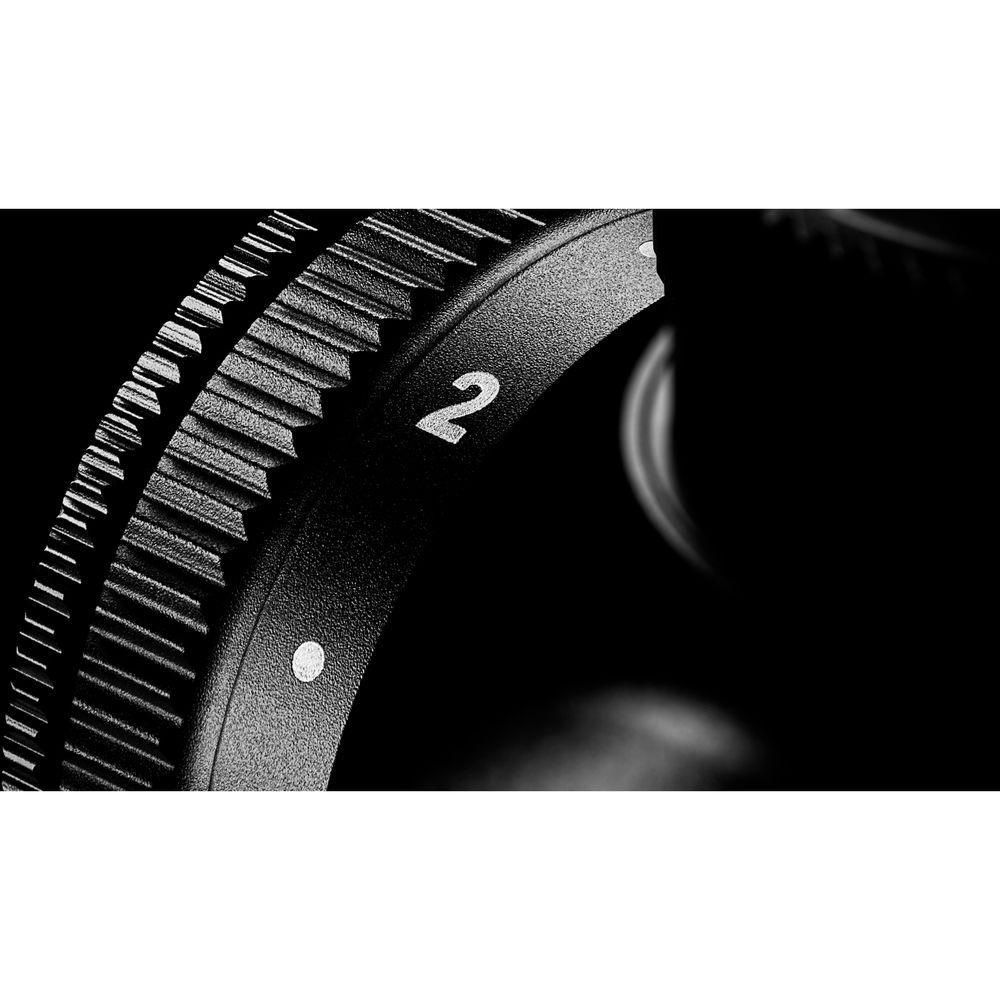

        • Exposed, finger-operated turrets have graduations for easy adjustments
        • Fast-focus eyepiece with a high-torque zoom ring
        • Side-focus parallax corrector knob
        • Nitrogen filled for water and fogproof performance
        • Two lens covers and a 4" sunshade are included

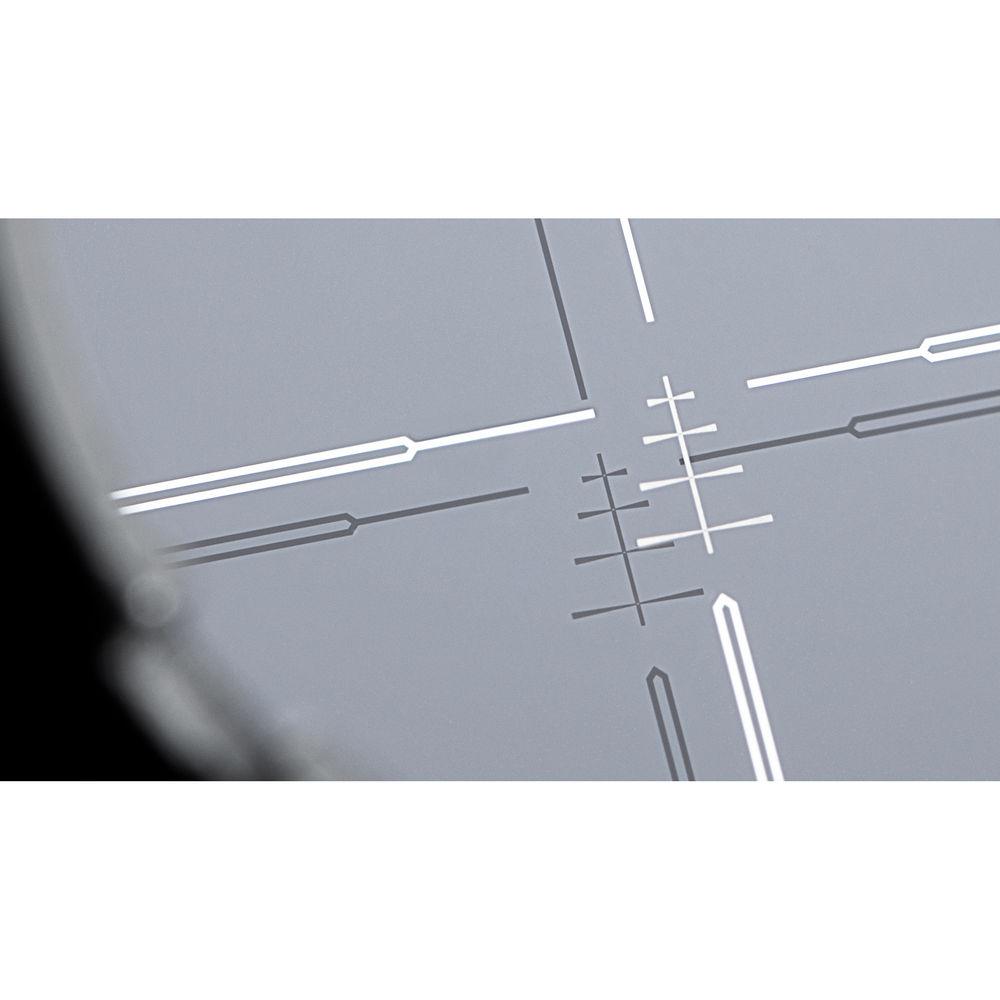

          LR Dot Illuminated Reticle
          • Second focal plane
          • German #4 style outline
          • For centerfire trajectories, like .308 Winchester
          • Three solid posts
          • Fine crosshair with two vertical bars below center
          • Brilliant red target dot
          • Six brightness levels
          In the Box Hawke Sport Optics 4-16x50 Endurance 30 WA SF Riflescope (LR Dot Illuminated Reticle, Matte Black)
        • CR2032 Battery
        • 4" Sunshade
        • 2 x Lens Covers
        • Limited Lifetime Warranty
        Table of Contents




Upload User Manual

Have you got an user manual for the Hawke Sport Optics 4-16x50 Endurance 30 WA SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Hawke Sport Optics 16350 Specs

Magnification 4 to 16x
Objective Lens Diameter 50 mm
Field of View 4x: 31.2' @ 100 yd / 10.4 m @ 100 m
16x: 7.8' @ 100 yd / 2.6 m @ 100 m
Exit Pupil Diameter 4x: 13 mm
16x: 3 mm
Eye Relief 4" / 102 mm
Reticle Type LR Dot Reticle (Second Focal Plane)
Impact Point Correction 1/4 MOA per Click
Windage Adjustment 75 MOA
Elevation Adjustment 75 MOA
Parallax Correction Yes, 15 yd / 13.7 m to Infinity
Water Resistance Waterproof
Fogproof Yes, Nitrogen Filled
Maintube Diameter 30 mm
Battery 1 x CR2032
Dimensions Length: 14.5" / 369 mm
Weight 19.7 oz / 644 g
