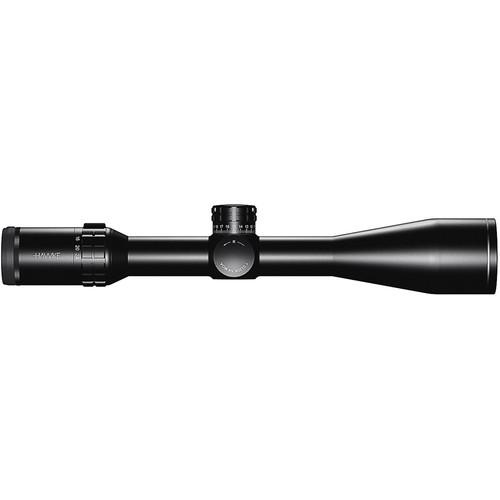

Product description Designed for long-range use with exceptional low-light performance, the Hawke Sport Optics 4-24x50 Frontier 30 SF Riflescope offers a broad zoom range, making it ideal for game of all sizes at most distances. Its large 50mm objective and 21-layer anti-reflection fully multi-coated optics draw in copious amounts of light compared to smaller objective scopes, which provides you with bright and clear images during the dawn and dusk hours, when many game animals are most active, and in heavily canopied areas.
Six brightness levels ensure users will see the LR Dot reticle in a wide range of light conditions. The LR Dot was developed around a typical centrefire trajectory, like the .308 Winchester round, which is popular around the world for shooting fairly large game. The scope's locking fast-focus collar and knurled rheostat control allow you to quickly adapt to rapidly changing situations. A side-mounted focus dial permits parallax adjustment from 15 yards to infinity. The lightweight and durable anodized aluminum housing consists of a 30mm one-piece maintube offering ample elevation adjustment. The tube is nitrogen filled and sealed for water and fogproof performance. - Optical Performance
-
- 4-24x zoom range
- 50mm objective lens
- 21-layer anti-reflection fully multi-coated optics
- 28.2-4.8' field of view at 100 yards

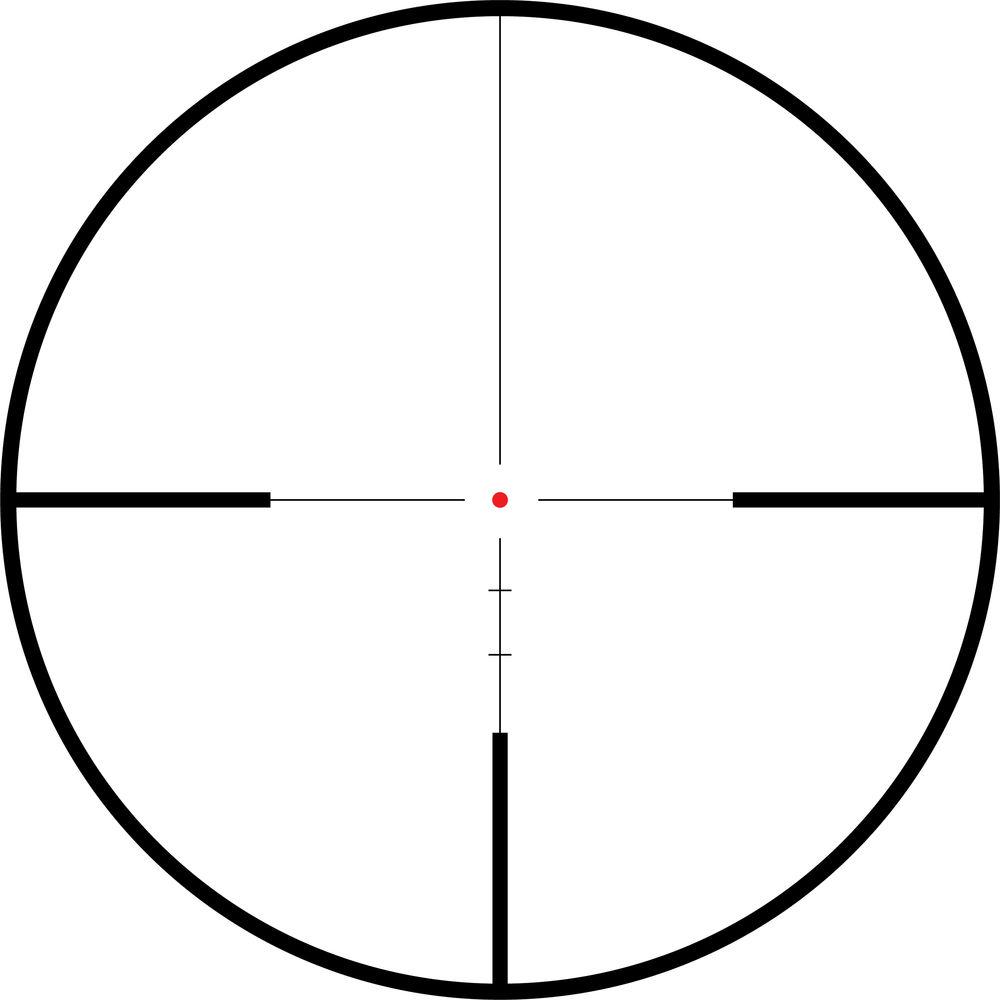

- LR Dot SFP Reticle
-
- Developed around a typical centrefire trajectory, like the .308 Winchester round, which is popular around the world for shooting fairly large game

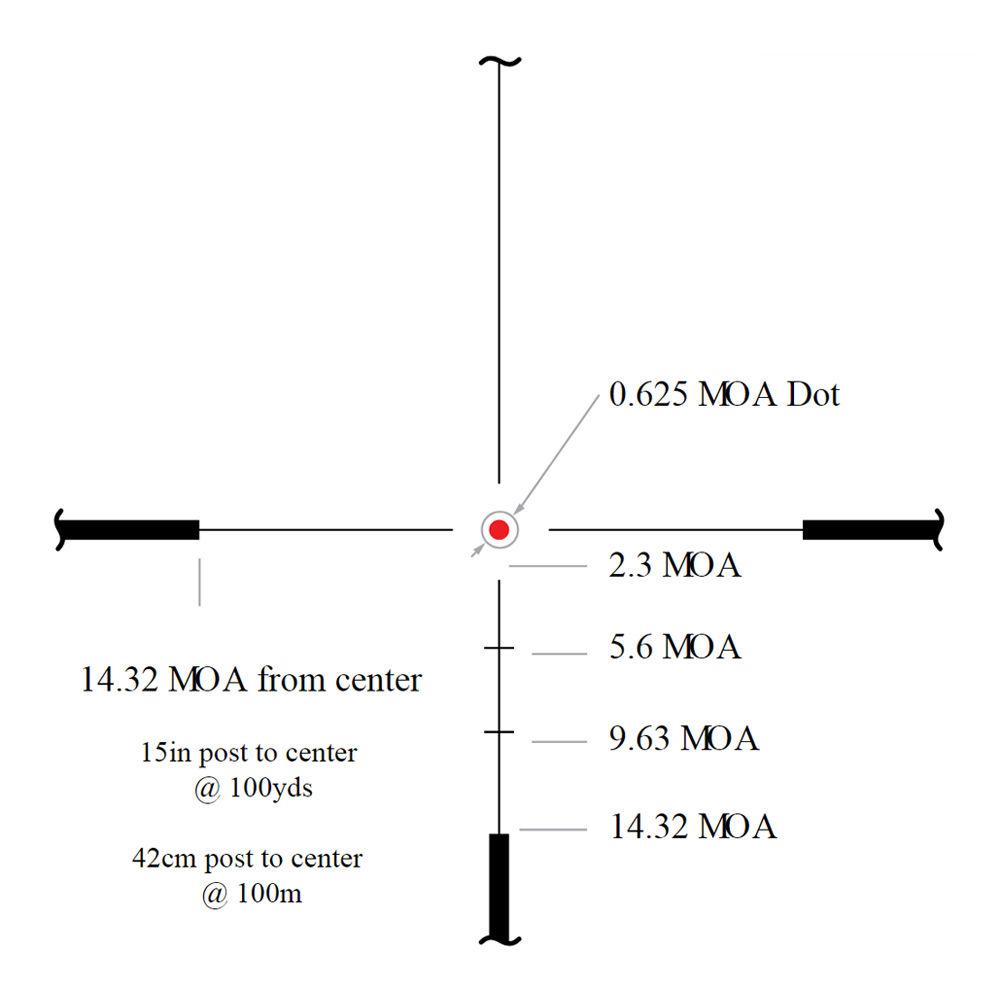

- Elevation aim points at 2.3, 5.6, 9.6, and 14.3 MOA
- Lower aim points can be used for zeroing in meters (200, 300, 400, and 500)
- Thick posts are 14.3 MOA from center, equal to 15" at 100 yards
- Runs on one included CR2032 coin-cell battery
- Use and Handling
-
- Locking fast-focus collar
- 1/4 MOA per click impact point correction
- 75 MOA windage and elevation adjustment range
- Parallax adjustment from 15 yards to infinity, side adjustment turret
- Exposed, locking, zero-stop turrets
- Long 4" eye relief
- Construction Details
-
- 30mm one-piece maintube
- Lightweight and durable aluminum-alloy housing
- Nitrogen filled for water and fogproof performance
- Front and rear flip-up lens covers
- Screw-on removable 4" sunshade

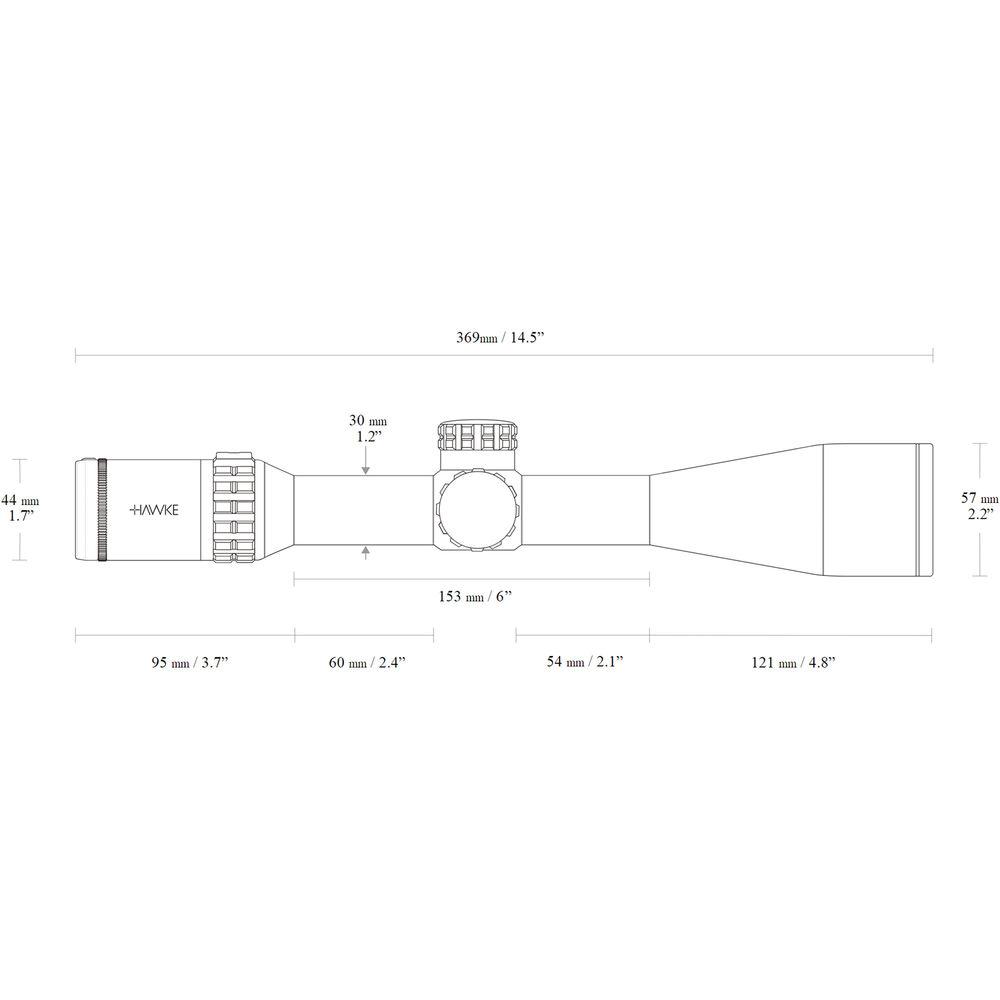

- Length: 14.5 inches
- Weight: 23.4 ounces
In the Box Hawke Sport Optics 4-24x50 Frontier 30 SF Riflescope (LR Dot Illuminated Reticle) - Zoom Lever
- Screw-On Sunshade
- Lens Cloth
- 2 x Lens Covers
- CR2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 4-24x50 Frontier 30 SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 18430 Specs | | | Magnification | 4 to 24x | | Objective Lens Diameter | 50 mm | | Field of View | 4x: 28.2' @ 100 yd / 9.4 m @ 100 m
24x: 4.8' @ 100 yd / 1.6 m @ 100 m | | Exit Pupil Diameter | 4x: 13 mm
24x: 2 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | LR Dot Reticle (Second Focal Plane) | | Illumination | Illuminated | | Brightness Settings | Adjustable Brightness (6 Levels) | | | | Mounting | None | | Filter Thread | None | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 75 MOA | | Elevation Adjustment | 75 MOA | | Parallax Correction | Yes, 15 yd / 13.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.5" / 36.8 cm | | Weight | 23.4 oz / 663 g |
