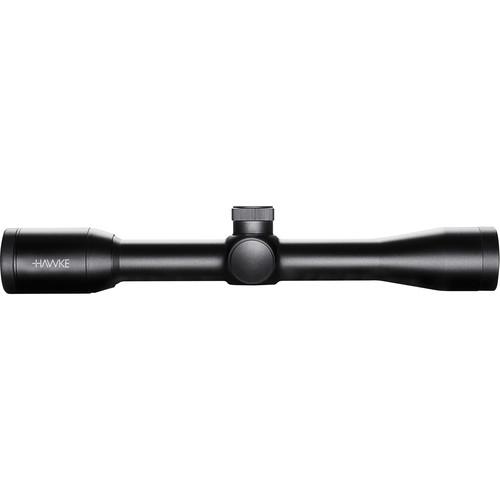

Product description The Hawke Sports Optics 4x32 Vantage Riflescope represents a basic all-purpose scope that is ideal for most close and mid-range uses. Its 11-layer fully multi-coated optics maximizes light transmission and helps off-set the smaller 32mm objective to produce bright and clear images in most lighting conditions. The relatively low-fixed magnification produces a comfortable 28.5 foot field of view at 100 yards to allow users to find and track targets easily, while its wide 8mm exit pupil will show the entire scene without vignetting even when the pupil is dilated in low-light. Complementing the performance of the scope is a lightweight and durable anodized aluminum housing with a 1" one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof. Threads on the ocular and objective provide a solid mounting point for optional accessories such as sun shades. - Optical Performance
-
- 4x fixed magnification
- 32mm objective lens
- 11-layer anti-reflection fully multi-coated optics improves image contrast and overall brightness
- 28.5' field of view at 100 yards

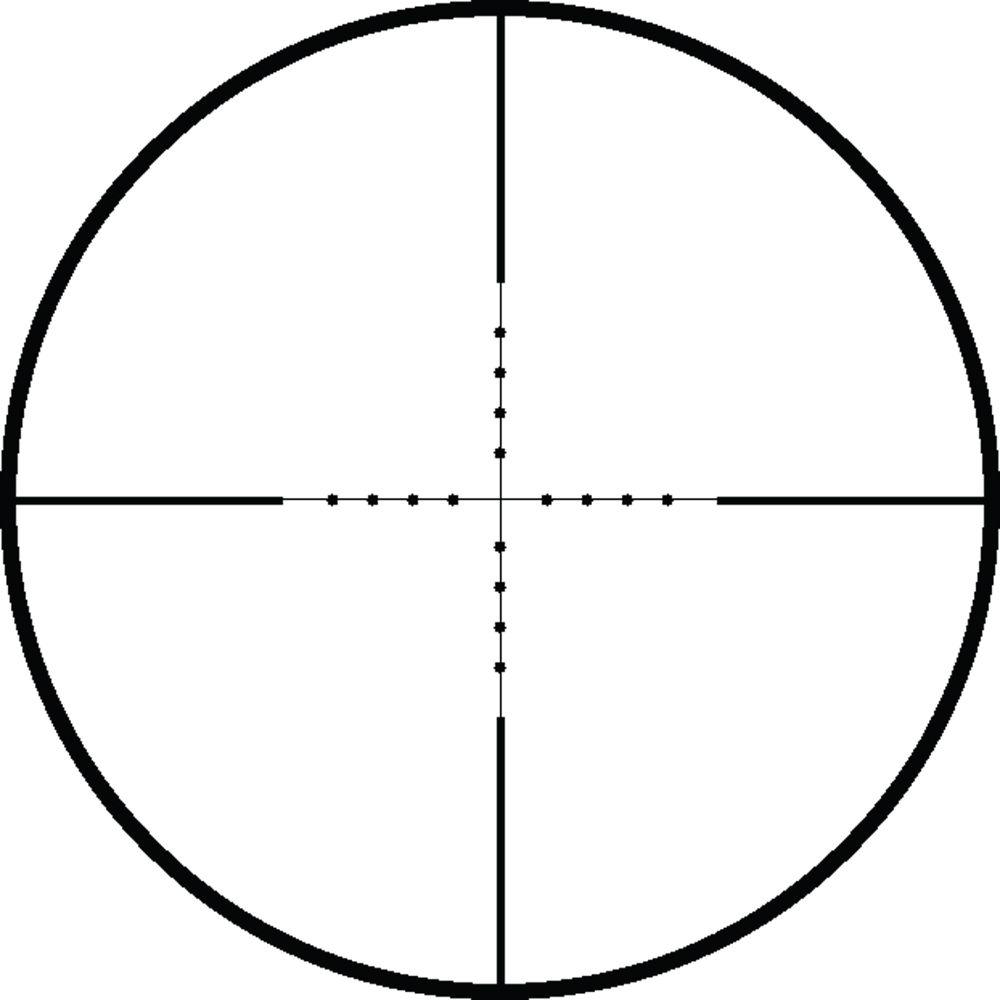

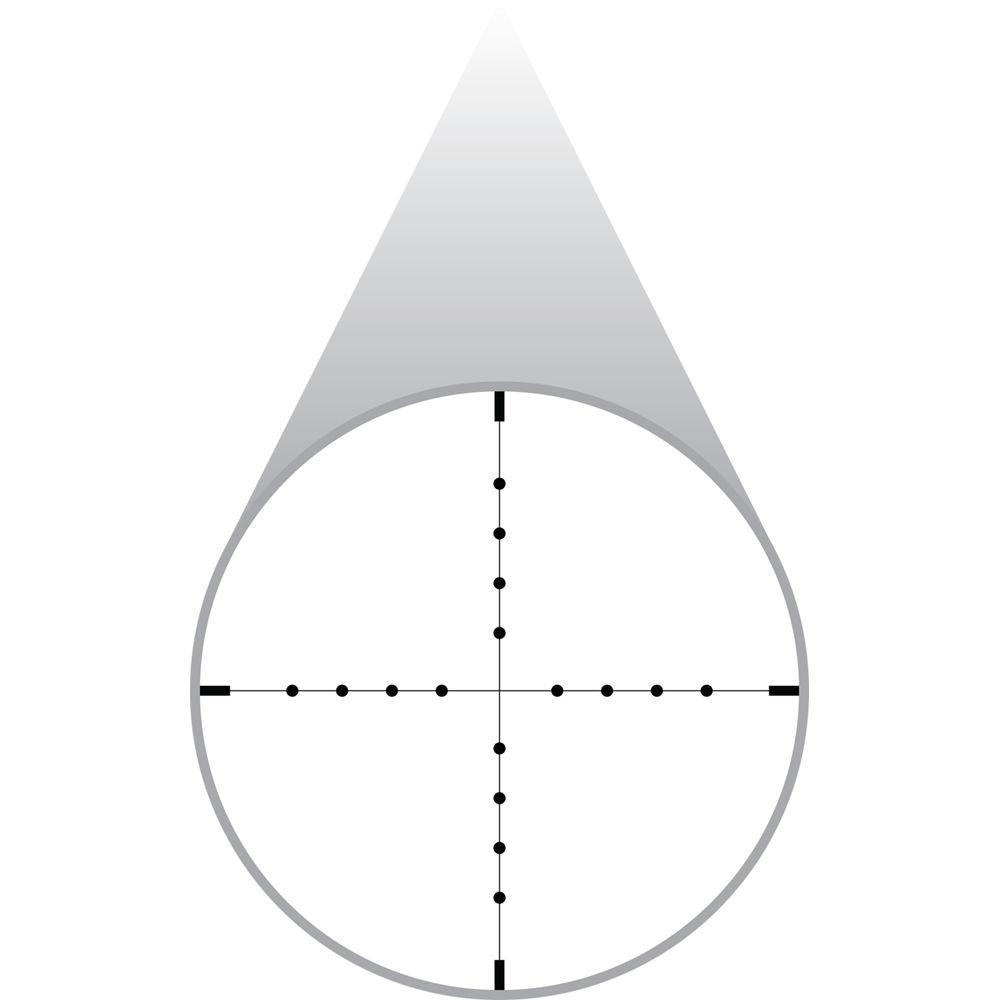

- Reticle Details
-
- Modified duplex crosshair-style reticle
- Four mil dots on all axes spaced 1 mrad (3.44 MOA) apart
- Use for ranging, hold-over/under, and estimating target size
- Etched onto glass for no fading or shift over time
- Placed on second focal plane
- Use and Handling
-
- Fast-focus collar
- 1/4 MOA per click impact point correction
- Broad 165 MOA windage and elevation adjustment range
- Parallax-free to 100 yards
- Low-profile covered turret caps prevent accidental adjustment
- 3.5" long eye relief
- Comfortable 8mm exit pupil
- Construction Details
-
- 1" one-piece maintube
- Lightweight and durable aluminum alloy housing
- Nitrogen-filled for water and fogproof performance
- Threaded objective & ocular for optional accessories such as sun shades
- Recoil-resistant, rated for use with most calibers
- Length: 11.6 inches
- Weight: 11.1 ounces
In the Box Hawke Sport Optics 4x32 Vantage Riflescope (Mil Dot Reticle) Lens Cloth Ocular Lens Cover Objective Lens Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 4x32 Vantage Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 14101 Specs | | | Magnification | 4x | | Objective Lens Diameter | 32 mm | | Field of View | 28.5' @ 100 yd / 9.5 m @ 100 m | | Exit Pupil Diameter | 8 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 165 MOA | | Elevation Adjustment | 165 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 11.6" / 29 cm | | Weight | 11.1 oz / 315 g |
