User Manual for Hawke Sport Optics 5-25x50 Frontier SF Riflescope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 5-25x50 Frontier SF
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
 |
User manual for the Hawke Sport Optics 5-25x50 Frontier SF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|

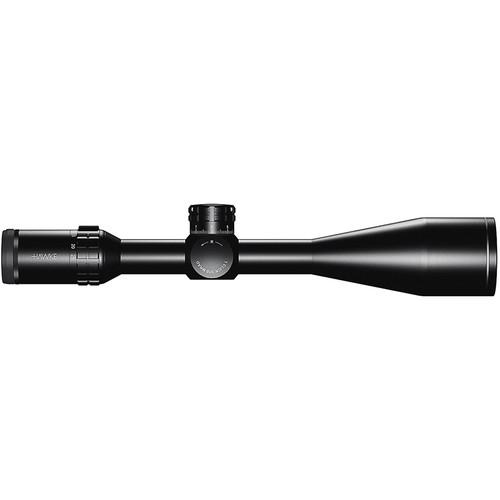

Product description Designed for medium-range use with all rifle calibers, the Hawke Sport Optics 5-25x50 Frontier SF Riflescope offers a broad zoom range, making it ideal for game of all sizes at most distances. Its 50mm objective and 21-layer anti-reflection fully multi-coated optics draw in ample light for a bright and clear image, even in lower-light hours, when many game animals are most active, and in heavily canopied areas.
Six brightness levels ensure users will see the Mil Pro (20x) reticle in a wide range of light conditions. One-half MRAD spacing out to 8 MRAD allows for precision holdover on long shots, and small 1/4 MRAD marks provide accurate range-finding capability. Exposed, locking, zero-stop turrets provide 1/10 MRAD per click of impact point adjustment, with a total adjustment range of 15 MRAD for long shots. The scope's locking ocular with removable thumb lever allow you to get on target quickly and stay there. A side-mounted focus dial permits parallax adjustment from 15 yards to infinity. The lightweight and durable aluminum housing consists of a 1" one-piece maintube, nitrogen filled and sealed for water and fogproof performance. - Optical Performance
-
- 5-25x zoom range
- 50mm objective lens
- 21-layer anti-reflection fully multi-coated optics
- 22.5-4.5' field of view at 100 yards

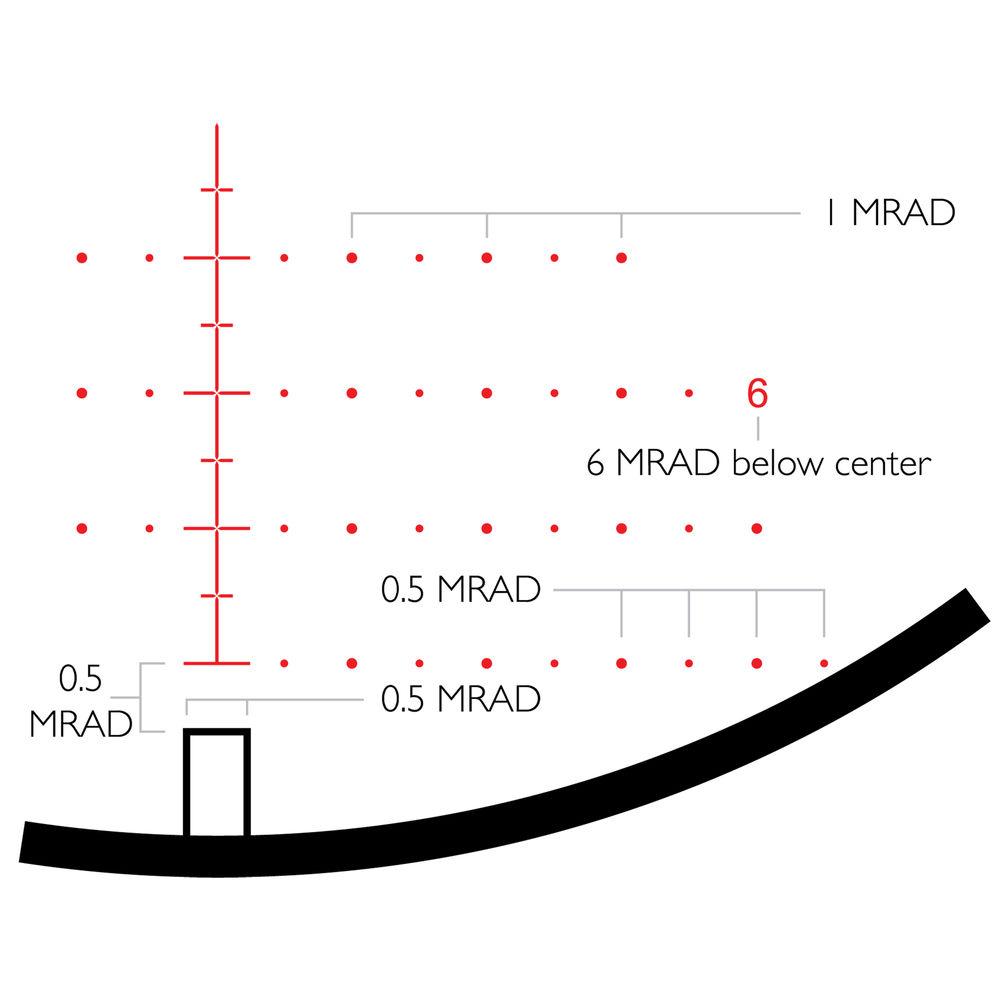

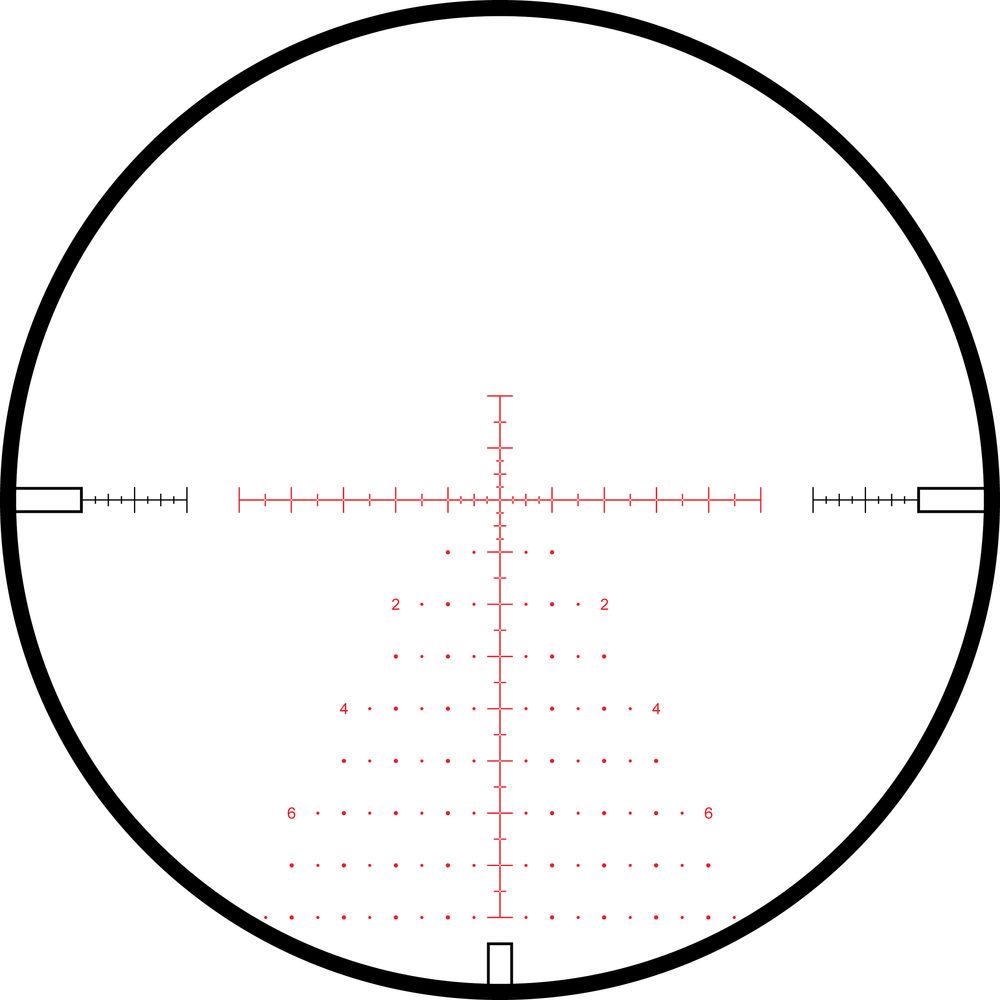

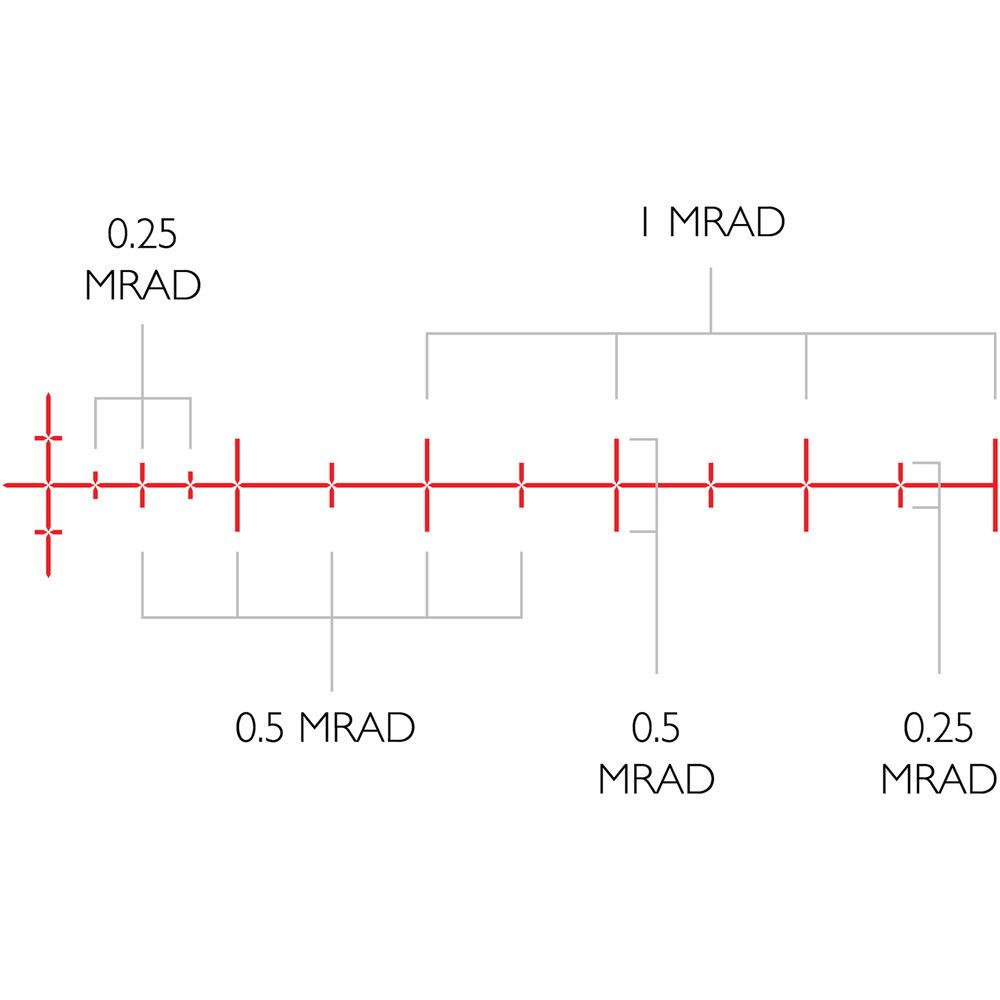

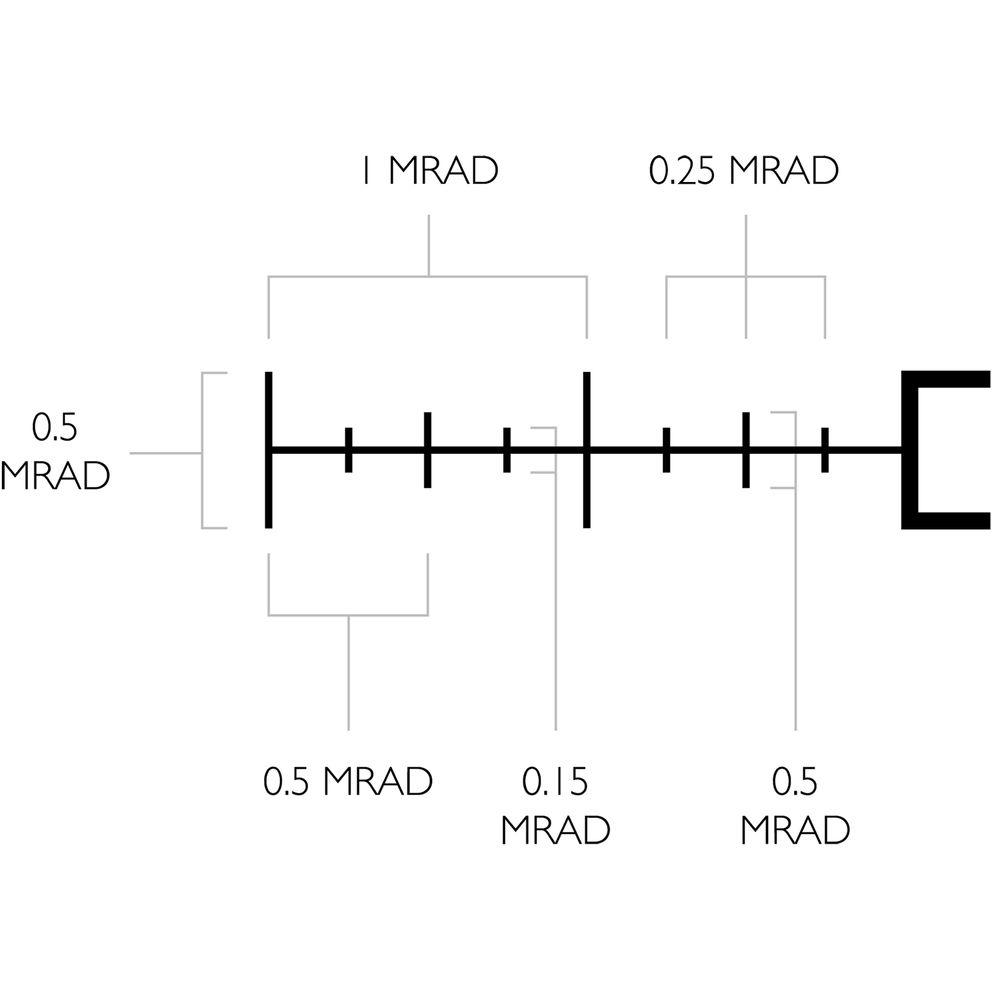

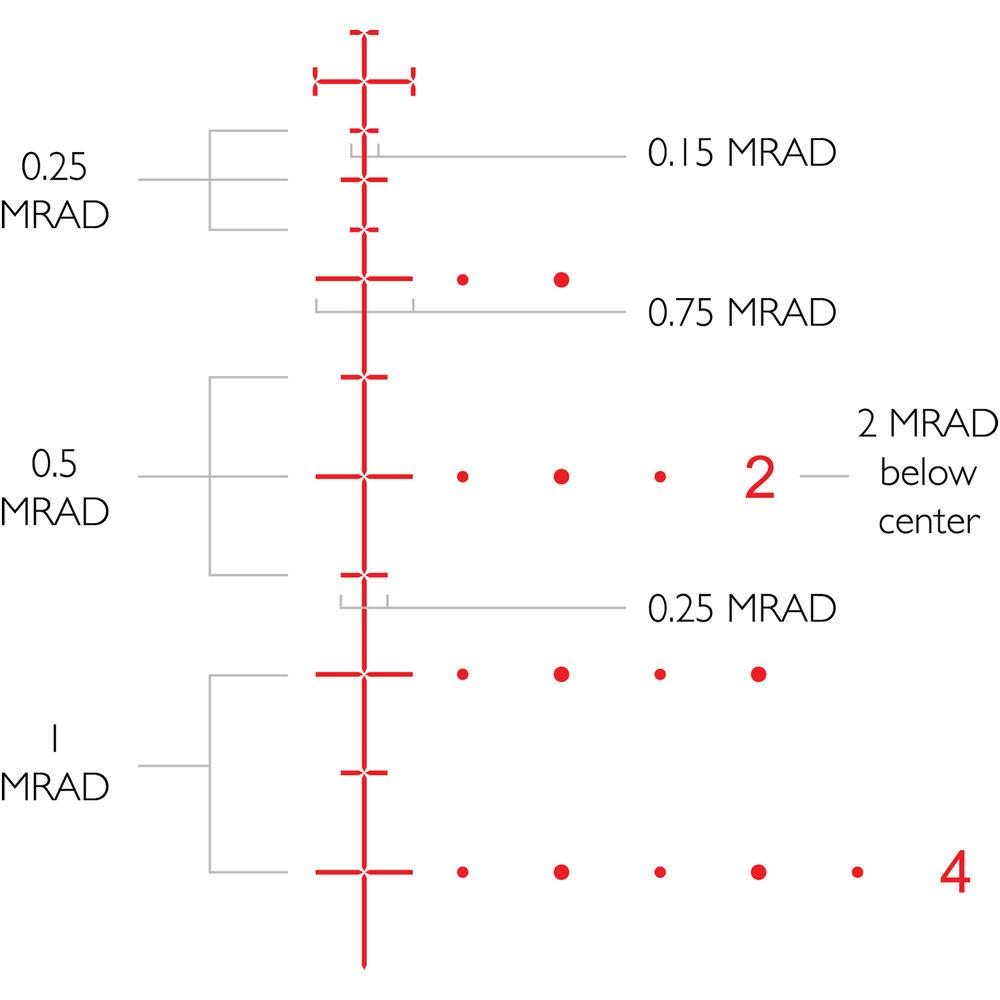

- Mil Pro (20x) Reticle
-
- Second focal plane
- Accurate MRAD spacing on 20x magnification
- One-half MRAD spaced markings extending out to 8 MRAD of holdover
- One, 1/2, and 1/4 MRAD brackets for range finding
- Every second MRAD spacing on lower section is numbered to ensure quick and easy acquisition of target and ease of reference
- Each cross has a see-through gap, allowing an unobstructed view of the target
- Additional 1/4 MRAD aim points on the center section for greater precision
- Glass-etched with red illumination, six brightness levels
- Runs on one included CR2032 coin-cell battery
- Use and Handling
-
- All-caliber rated
- Locking ocular with thumb lever
- 1/10 MRAD per click impact point correction
- 15 MRAD windage and elevation adjustment range
- Parallax adjustment from 15 yards to infinity, side adjustment turret
- Exposed, locking, zero-stop turrets
- Long 4" eye relief for high recoil and magnum calibers
- Construction Details
-
- 1" one-piece maintube
- Lightweight and durable aluminum housing
- Nitrogen filled for water and fogproof performance
- Front and rear flip-up lens covers

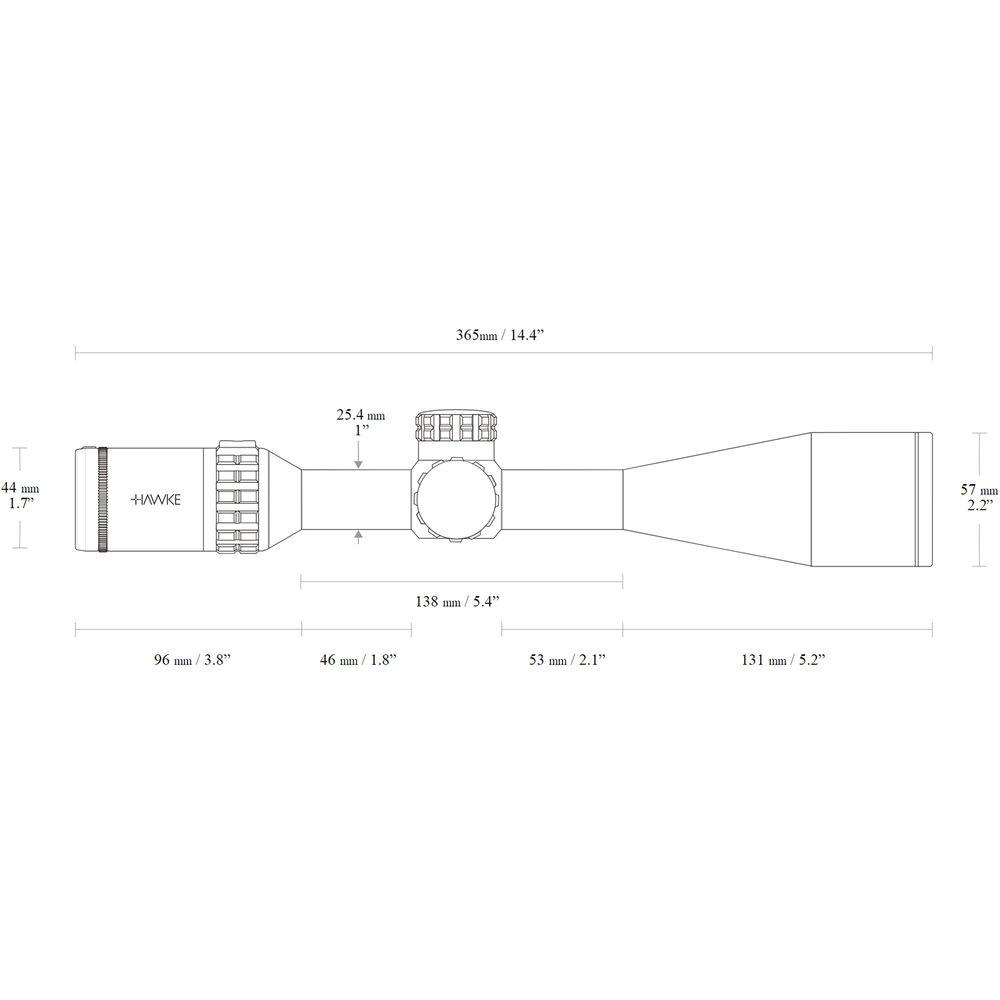

- Length: 14.4 inches
- Weight: 22.2 ounces
In the Box Hawke Sport Optics 5-25x50 Frontier SF Riflescope (Mil Pro Illuminated Reticle, Black) Zoom Lever Screw-On Sunshade 2 x Lens Covers Lens Cloth CR2032 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 5-25x50 Frontier SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 18140 Specs | | | Magnification | 5 to 25x | | Objective Lens Diameter | 50 mm | | Field of View | 5x: 22.5' @ 100 yd / 7.5 m @ 100 m
25x: 4.5' @ 100 yd / 1.5 m @ 100 m | | Exit Pupil Diameter | 5x: 10 mm
25x: 2 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | Mil Pro (20x) Reticle (Second Focal Plane) | | Illumination | Illuminated | | Brightness Settings | Adjustable Brightness (6 Levels) | | | | Mounting | None | | Filter Thread | None | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 15 MRAD | | Elevation Adjustment | 15 MRAD | | Parallax Correction | Yes, 15 yd / 13.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 14.4" / 36.6 cm | | Weight | 22.2 oz / 629 g |
