Product description

Dominate the field using the Hawke 5-25x56 Frontier FFP SF Riflescope. This iteration of the series is optimized for longer ranges, higher zoom factors, and challenging light conditions. To live up to the expectations of demanding tactical shooters, the optical system is outfitted with precision-ground lenses that are treated with 21 layers of anti-reflection full multi-coatings. For noteworthy image clarity, free of ghost images and stray light, the interior of the housing is covered with a special black finish that absorbs stray light. The scope also has an extra-wide 56mm objective to maximize brightness and visibility in challenging lighting conditions. Another highlight is the first focal plane illuminated Mil Ext. reticle, whose fine features allow precise aiming without covering the background. It resembles the German #4 style, where an illuminated milling crosshair is surrounded by three hollow posts. The optical system also provides a side focus parallax correction from 25 yards to infinity.

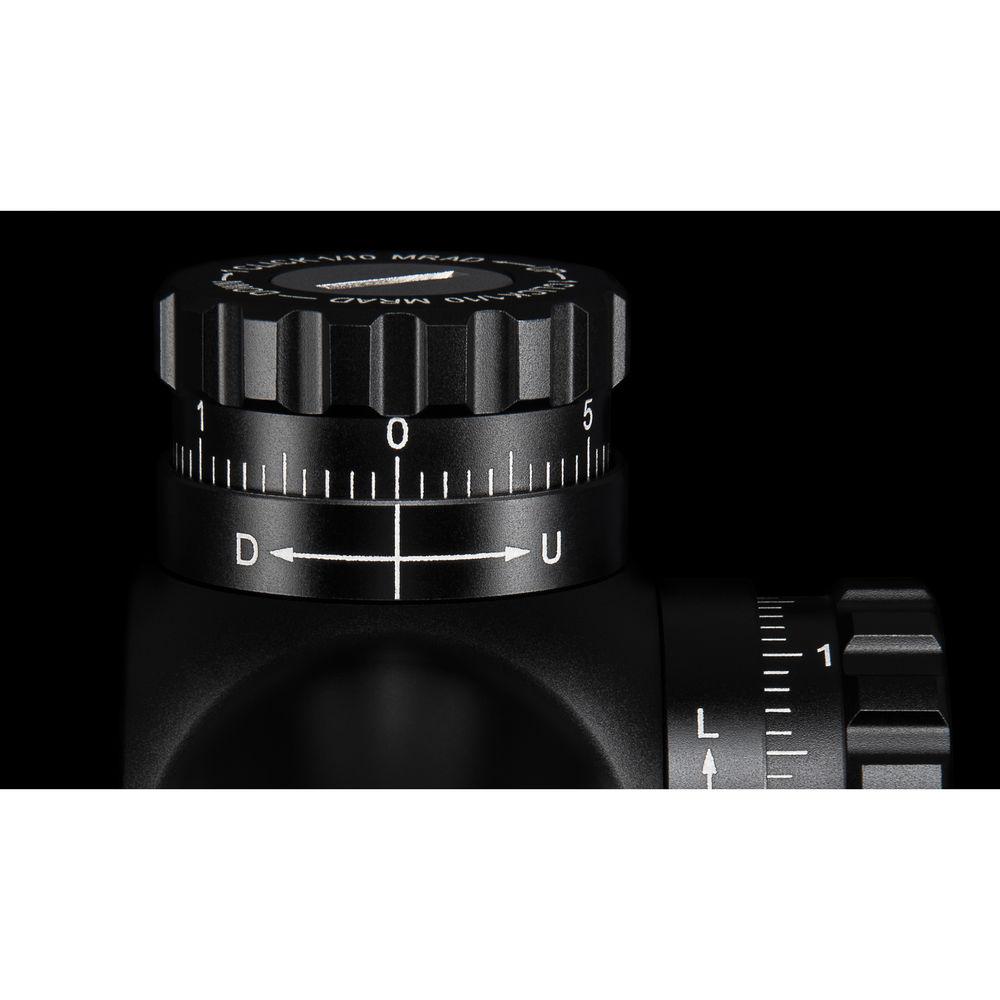

To match the quality of the optics, the housing is designed with strength, durability, and ergonomics in mind. Its defining features are a CNC-machined single-piece 30mm maintube, a scratch-resistant anodized finish, a water and fogproof performance, and a No Zero Shift anti-recoil erector gimbal system. To protect the windage and elevation adjustment knobs from accidental bumps, they have locking mechanisms, and to guard optics from dirt and debris, the scope ships with two lens covers.
    Optical Performance
    • 5-25x magnification
    • 56mm objective diameter for exceptional performance in low light
    • 21 layers of magnesium fluoride full multi-coatings
    • Black anti-reflective (absorptive) coating on the interior of the maintube prevents stray light
    • 11.2-2.3mm exit pupil diameter
    • 4" eye relief
    Use and Handling
    • 1/10 MIL impact point correction
    • 15 MIL windage and elevation
    • Side focus parallax correction from 25 yd to infinity
      Construction Details
      • Aluminum housing
      • 30mm CNC-machined one-piece maintube
      • Scratch-resistant anodizing coating
      • Exposed, finger-operated turrets
      • Threaded objective bezel for attaching accessories
      • No Zero Shift anti-recoil gimbal system protects from heavy recoil
      • Rated for use on most calibers and recoil resistant

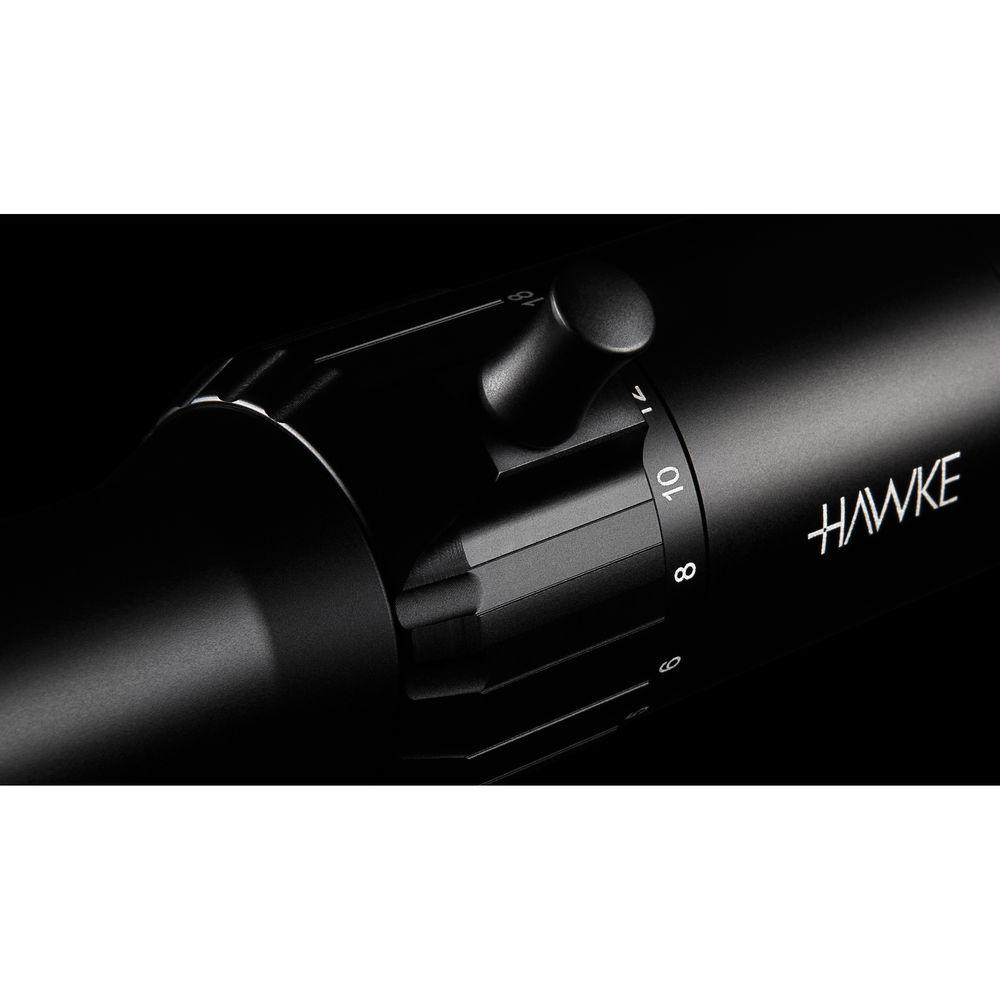

      • Two lens covers and a zoom lever are included
      • Fast focus eyepiece
      • Water and fogproof

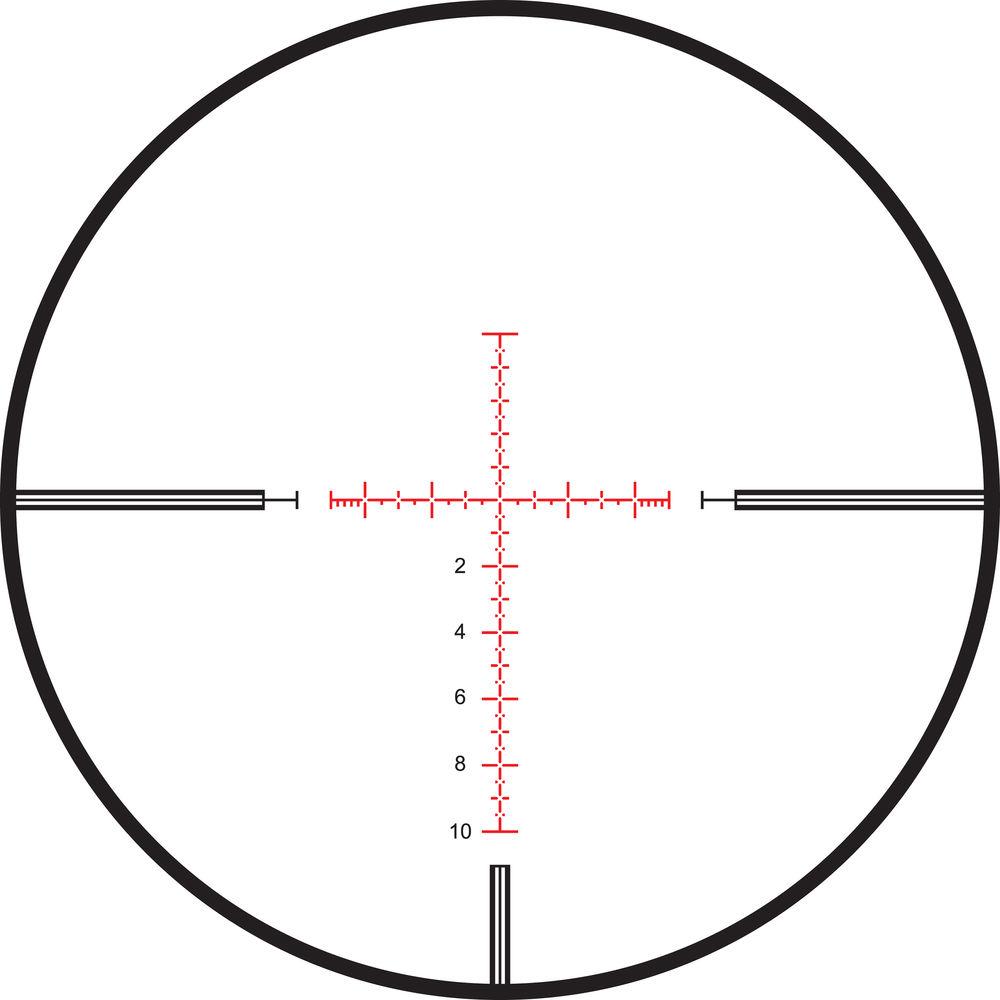

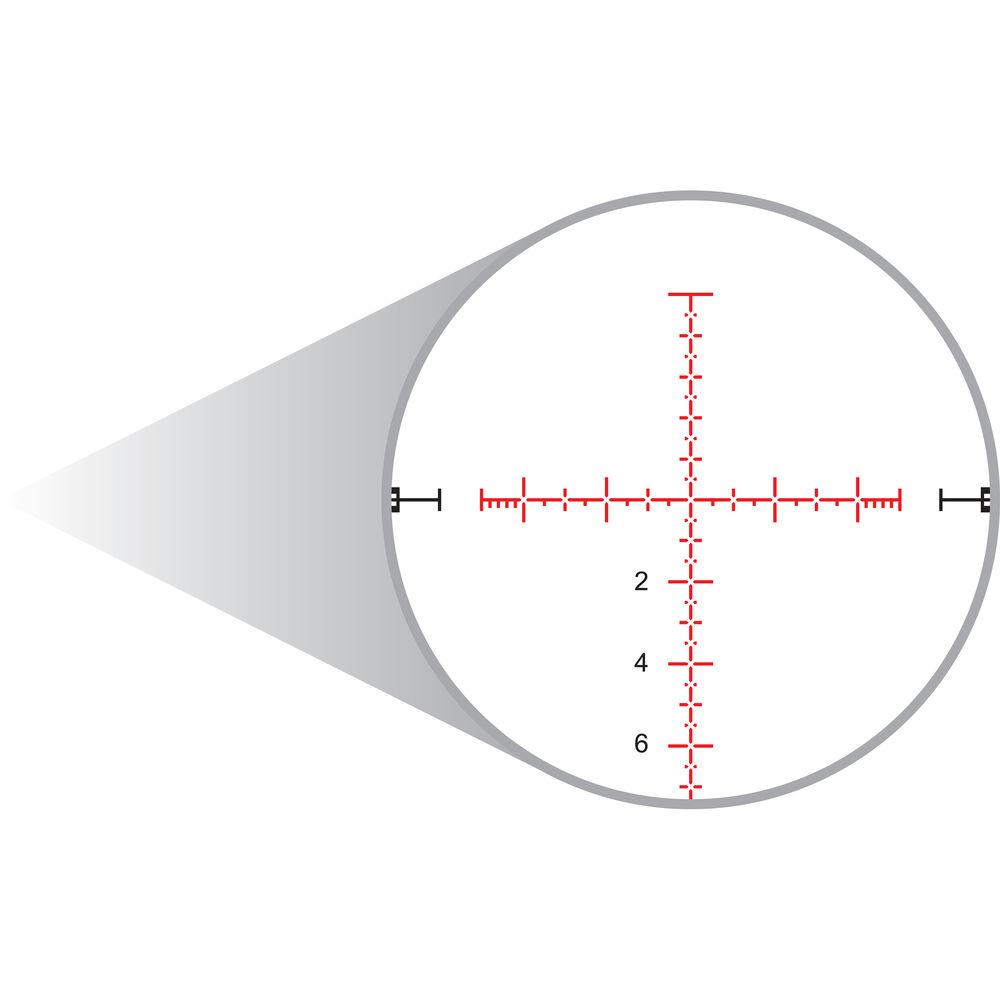

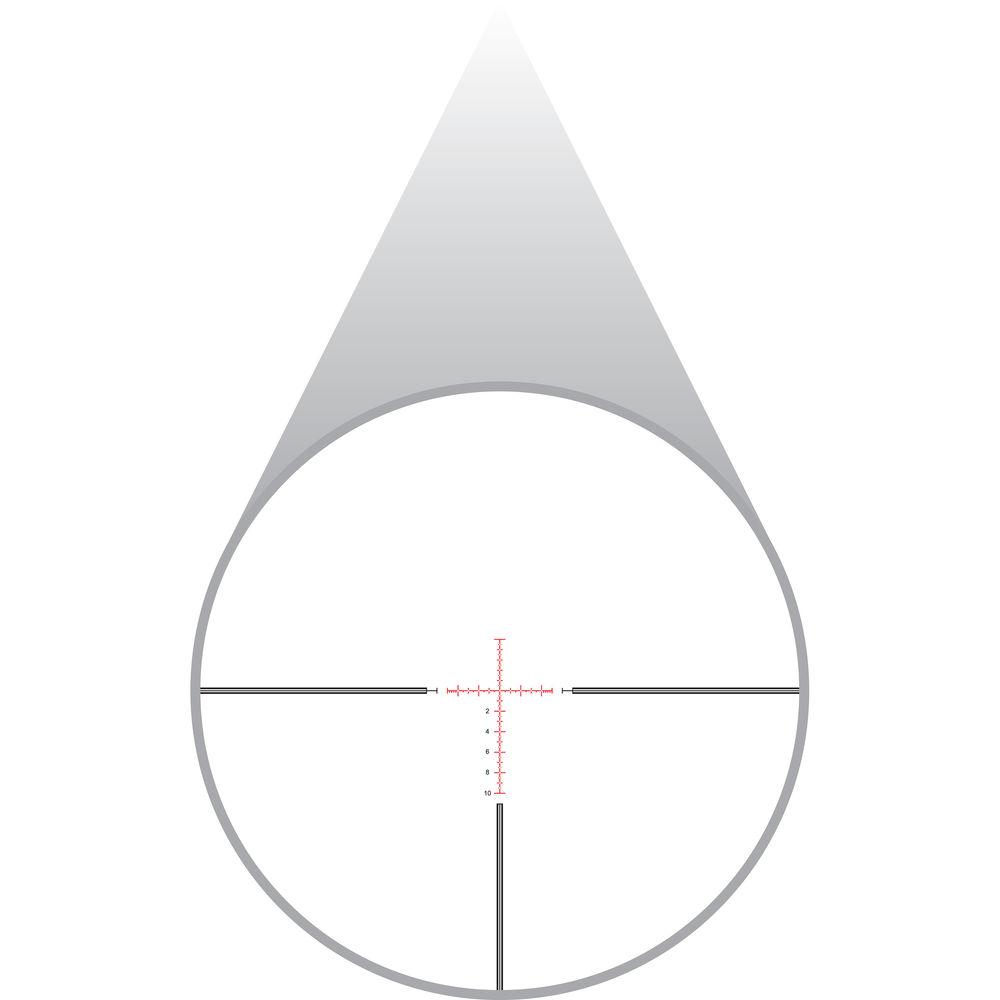

        Reticle
        • MIL Ext.
        • First focal plane
        • Three posts
        • Red illuminated milling crosshair
        • Six brightness levels
        In the Box Hawke Sport Optics 5-25x56 Frontier FFP SF Riflescope (Mil Ext. Illuminated Reticle, Matte Black)
      • 4" Sunshade
      • Zoom Lever
      • CR2032 Battery
      • 2 x Lens Covers
      • Lens Cloth
      • Limited Lifetime Warranty
      Table of Contents




Upload User Manual

Have you got an user manual for the Hawke Sport Optics 5-25x56 Frontier FFP SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Hawke Sport Optics 18330 Specs

Magnification 5 to 25x
Objective Lens Diameter 56 mm
Field of View 5x: 21.7' @ 100 yd / 7.2 m @ 100 m
25x: 4.3' @ 100 yd / 1.4 m @ 100 m
Exit Pupil Diameter 5x: 11.2 mm
25x: 2.3 mm
Eye Relief 4" / 102 mm
Reticle Type MIL Ext. Reticle (First Focal Plane)
Impact Point Correction 1/10 MIL per Click
Windage Adjustment 15 MIL
Elevation Adjustment 15 MIL
Parallax Correction Yes, 25 yd / 22.9 m to Infinity
Water Resistance Waterproof
Fogproof Yes, Nitrogen Filled
Maintube Diameter 30 mm
Battery 1 x CR2032
Dimensions Length: 15.6" / 39.6 cm
Weight 28.8 oz / 817 g
