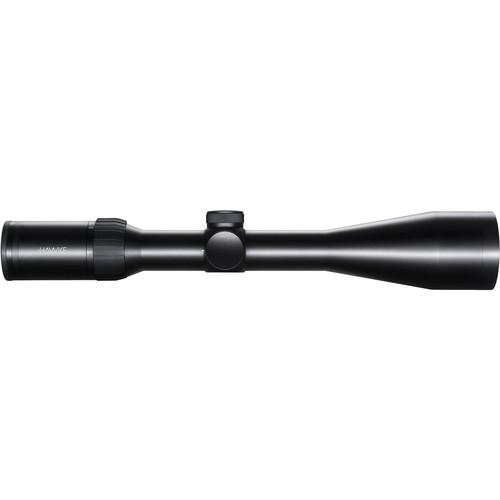

Product description Hawke Sport Optics delivered the 5-30x50 Frontier 30 Side Focus Riflescope specifically to address the needs of low-light and long-range precision shooters and hunters. To emphasize its goals, Hawke outfitted the scope with a large 50mm objective, which can scoop more light at dawn and dusk than an average scope, and an illuminated reticle. The fully multi-coated optics offer 21 layers of anti-reflection coatings to further increase resolution and image brightness. Another highlight is the German #4 style LR Dot Reticle, which consists of three posts, a thin crosshair (with holdover marks), and an illuminated red center dot. Its measurement markings are optimized for 16x and deliver 2.3 MOA, 5.6 MOA, 9.63 MOA, and 14.3 MOA aiming points when it is zeroed at 100 yd. When zeroed at 100 meters (at 16x), they correspond to 200, 300, 400, and 500 meters. For added accuracy, you can easily correct the parallax effect from 30 yd to infinity with the adjustable objective ring. To help with compensation for wind and ballistic bullet drop, the riflescope offers 60 MOA of windage and elevation adjustment range and a 1/4 MOA per click impact point correction.
The scope's aluminum construction is centered around its 30mm single-piece maintube. It is filled with nitrogen for fogproof and waterproof performance. The overall design features a slender and unobtrusive shape with capped low-profile hunting windage and elevation turrets. To prevent recoil-related zoom shift, the fast-focus eyepiece is outfitted with a high-torque zoom ring. To keep your scope's lenses protected from debris, dust, and dirt while it is not used, one objective lens cap and one ocular lens cap are also included. Other included accessories are a lens cloth, one CR2032 battery, and a screw-in sunshade. - Optical Performance
-
- 5-30x zoom range
- 50mm objective lens
- 21 layers of anti-reflection fully multi-coated optics improve contrast and image brightness
- 22.8-3.9' field of view at 100 yards
- Free Downloadable Hawke BRC (Ballistic Reticle Calculator)
-
- Compatible with Android, iOS, Mac OS X, and Windows
- Available in software and mobile apps
- Allows customization of the reticle performance
- Changes Ballistic Coefficient (BC)
- Changes zero distances, muzzle velocity, and magnification
- Plots your trajectory and finds suitable aim points
- Prints trajectory graphs, reticle images, and range calculations

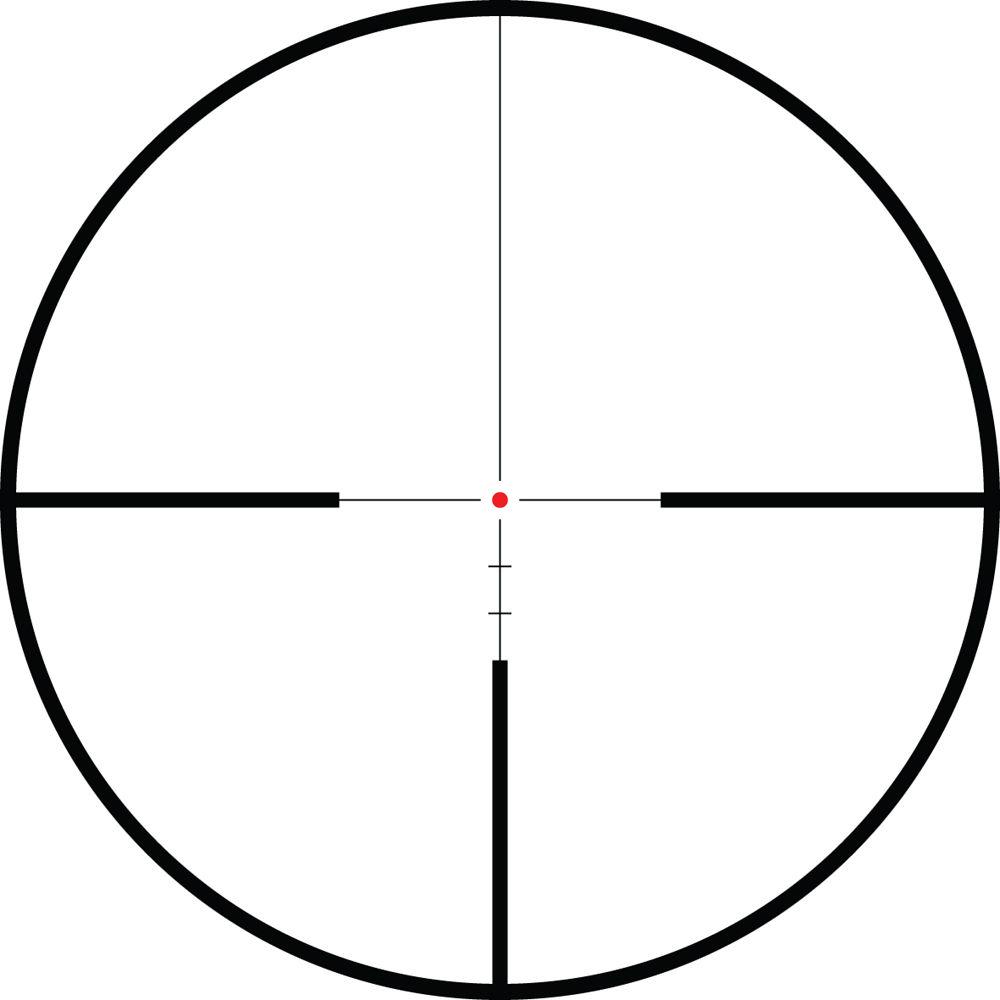

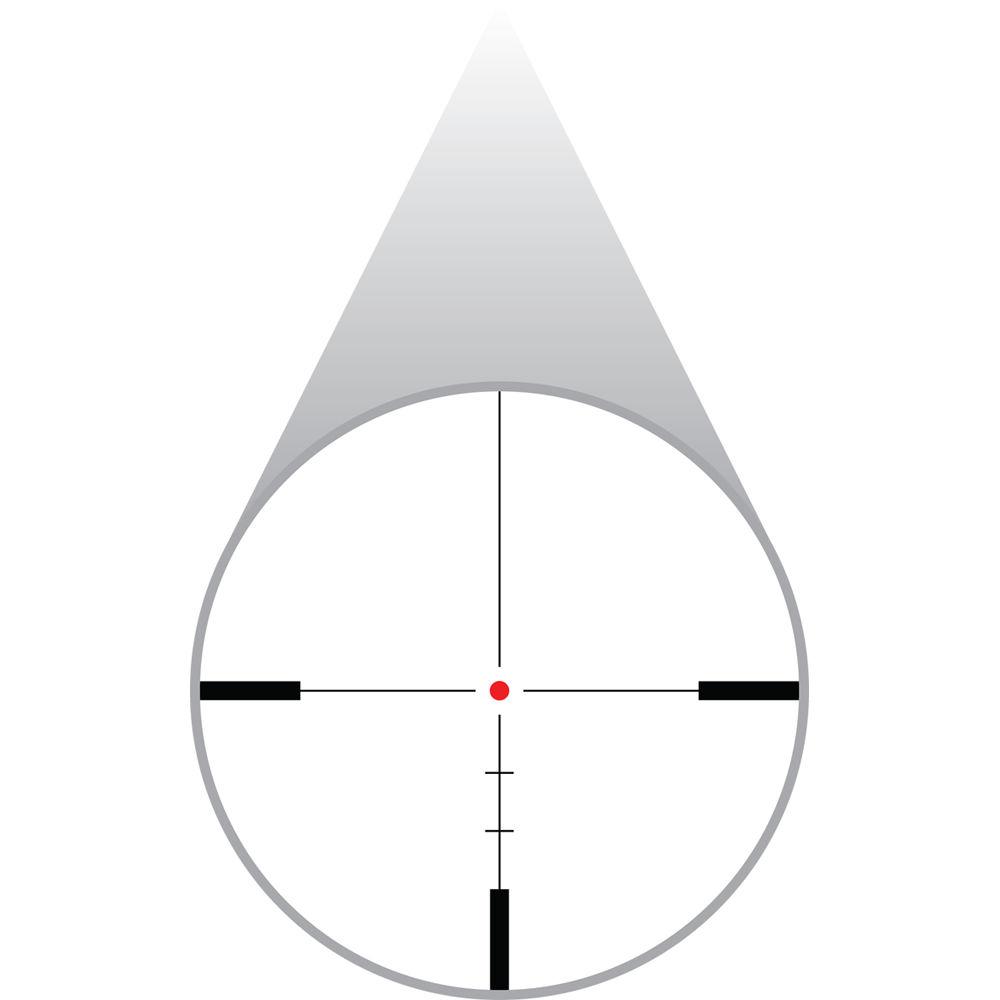

- LR Illuminated Dot Reticle
-
- 2nd focal plane
- German #4 style reticle
- Three posts and a thin crosshair
- Illuminated red center dot
- Reticle measurements are optimized for 16x zoom
- When zeroed at 100 yards, the lower aim points correspond to 2.3 MOA, 5.6 MOA, 9.63 MOA, and 14.3 MOA
- Gap between horizontal posts is 28.34 MOA wide
- When zeroed at 100 meters, the lower aim points correspond to 200, 300, 400, and 500 meters
- 11 brightness settings
- Use and Handling
-
- Fast-focus eyepiece
- 1/4 MOA impact point correction
- 60 MOA windage and elevation adjustment range
- Parallax: 30 yd to infinity
- Exit pupil: 10 - 1.7mm
- Eye relief: 4"
- Construction Details
-
- 30mm one-piece maintube
- Side focus parallax knob
- Lightweight aluminum housing
- High-torque eyepiece zoom ring
- Capped low-profile hunting windage and elevation turrets
- Nitrogen-filled, water and fogproof
In the Box Hawke Sport Optics 5-30x50 Frontier 30 Side Focus Riflescope (LR Illuminated Dot Reticle, Matte Black) - CR2032 Battery
- Sunshade
- Lens Cloth
- 2 x Lens Covers
- Limited Lifetime Warranty
- Limited 10-Year Europe Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 5-30x50 Frontier 30 Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 18230 Specs | | | Magnification | 5 to 30x | | Objective Lens Diameter | 50 mm | | Field of View | 5x: 22.8' @ 100 yd / 7.8 m @ 100 m
30x: 3.9' @ 100 yd / 1.3 m @ 100 m | | Exit Pupil Diameter | 5x: 10 mm
30x: 1.7 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | LR Dot Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.9" / 35.3 cm | | Weight | 24.5 oz / 694.6 g | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 17.0 x 3.9 x 3.7" |
