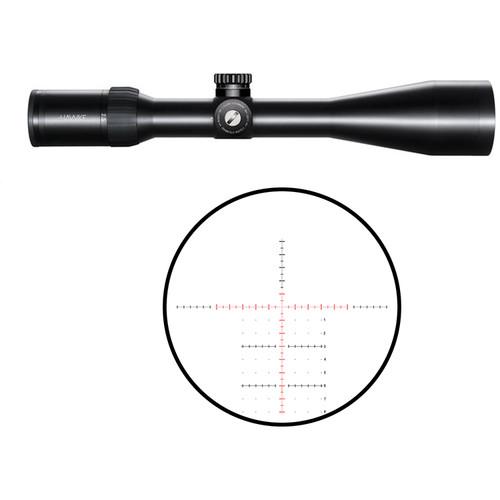

User Manual for Hawke Sport Optics 5-30x50 Frontier 30 Side Focus Riflescope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 5-30x50 Frontier 30
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
|
User manual for the Hawke Sport Optics 5-30x50 Frontier 30 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|
Product description Hawke Sport Optics delivered the 5-30x50 Frontier 30 Side Focus Riflescope specifically to address the needs of low-light and long-range precision shooters and hunters. To emphasize its goals, Hawke outfitted the scope with a large 50mm objective, which can scoop more light at dawn and dusk than an average scope, and an illuminated reticle. The fully multi-coated optics offer 21 layers of anti-reflection coatings to further increase resolution and image brightness. Another highlight is the TMX Reticle with an illuminated center area. The reticle pattern consists of a crosshair with milling crossbars and a drop-down grid of dots to help you make accurate compensation for ballistics and wind shifts. Because it is in the second image plane, the reticles readouts scale down proportionately with increasing magnification: going from 10x to 20x will change values by a factor of two. At 10x, the reticle provides 16 MRAD of total holdover range and 6 MRAD of windage range on each side. This milling grid is introduced to provide you with aiming points for any weather or situation, and to allow you to adjust your shots quickly without using windage and elevation knobs. For added accuracy, you can easily correct the parallax effect from 30 yd to infinity with the adjustable objective ring. To help with compensation for wind and ballistic bullet drop, the riflescope offers 18 MRAD of windage and elevation adjustment range and a 1/10 MRAD per click impact point correction.
The scope's aluminum construction is centered around its 30mm single-piece maintube. It is filled with nitrogen for fogproof and waterproof performance. The overall design features a slender and unobtrusive shape with exposed graduated tactical-style turrets. To prevent recoil-related zoom shift, the fast-focus eyepiece is outfitted with a high-torque zoom ring. To keep your scope's lenses protected from debris, dust, and dirt while it is not used, one objective lens cap and one ocular lens cap are also included. Other included accessories are a lens cloth, one CR2032 battery, and a screw-in sunshade. - Optical Performance
-
- 5-30x zoom range
- 50mm objective lens
- 21 layers of anti-reflection fully multi-coated optics improve contrast and image brightness
- 22.8-3.9' field of view at 100 yards
- Free Downloadable Hawke BRC (Ballistic Reticle Calculator)
-
- Compatible with Android, iOS, Mac OS X, and Windows
- Available in software and mobile apps
- Allows customization of the reticle performance
- Changes Ballistic Coefficient (BC)
- Changes zero distances, muzzle velocity, and magnification
- Plots your trajectory and finds suitable aim points
- Prints trajectory graphs, reticle images, and range calculations
- TMX Illuminated Reticle
-
- 2nd focal plane
- Thin crosshair with milling bars and a drop-down (from the center) grid of dots
- Two cascading horizontal reference lines (below the center) with milling bars
- Illuminated center portion of the crosshair
- 11 brightness settings
- Optimized for quick adjustments without using windage and elevation gear
- Use and Handling
-
- Fast-focus eyepiece
- 1/10 MRAD impact point correction
- 18 MRAD windage and elevation adjustment range
- Parallax: 30 yd to infinity
- Exit pupil: 10 - 1.7mm
- Eye relief: 4"
- Construction Details
-
- 30mm one-piece maintube
- Side focus parallax knob
- Lightweight aluminum housing
- High-torque eyepiece zoom ring
- Exposed graduated tactical-style turrets
- Nitrogen-filled, water and fogproof
In the Box Hawke Sport Optics 5-30x50 Frontier 30 Side Focus Riflescope (TMX Illuminated Reticle, Matte Black) - CR2032 Battery
- Sunshade
- Lens Cloth
- 2 x Lens Covers
- Limited Lifetime Warranty
- Limited 10-Year Europe Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 5-30x50 Frontier 30 Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 18232 Specs | | | Magnification | 5 to 30x | | Objective Lens Diameter | 50 mm | | Field of View | 5x: 22.8' @ 100 yd / 7.8 m @ 100 m
30x: 3.9' @ 100 yd / 1.3 m @ 100 m | | Exit Pupil Diameter | 5x: 10 mm
30x: 1.7 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | TMX Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 18 MRAD | | Elevation Adjustment | 18 MRAD | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.9" / 35.3 cm | | Weight | 24.5 oz / 694.6 g |
