User Manual for Hawke Sport Optics 5-30x56 Frontier 30 SF Riflescope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 5-30x56 Frontier 30
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
 |
User manual for the Hawke Sport Optics 5-30x56 Frontier 30 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|

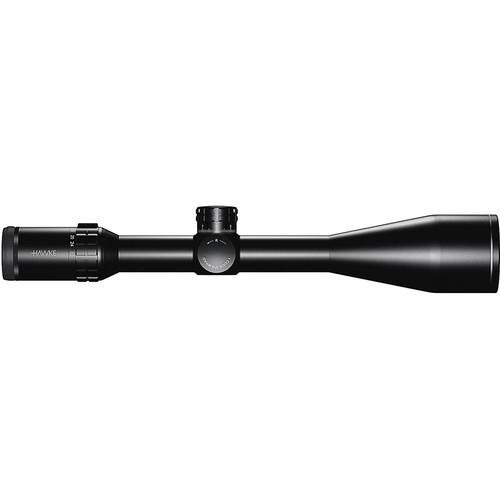

Product description Designed for long-range use with exceptional low-light performance, the Hawke Sport Optics 5-30x56 Frontier 30 SF Riflescope offers a broad zoom range, making it ideal for game of all sizes at most distances. Its large 56mm objective and 21-layer anti-reflection fully multi-coated optics draw in copious amounts of light compared to smaller objective scopes, which provides you with bright and clear images during the dawn and dusk hours, when many game animals are most active, and in heavily canopied areas.

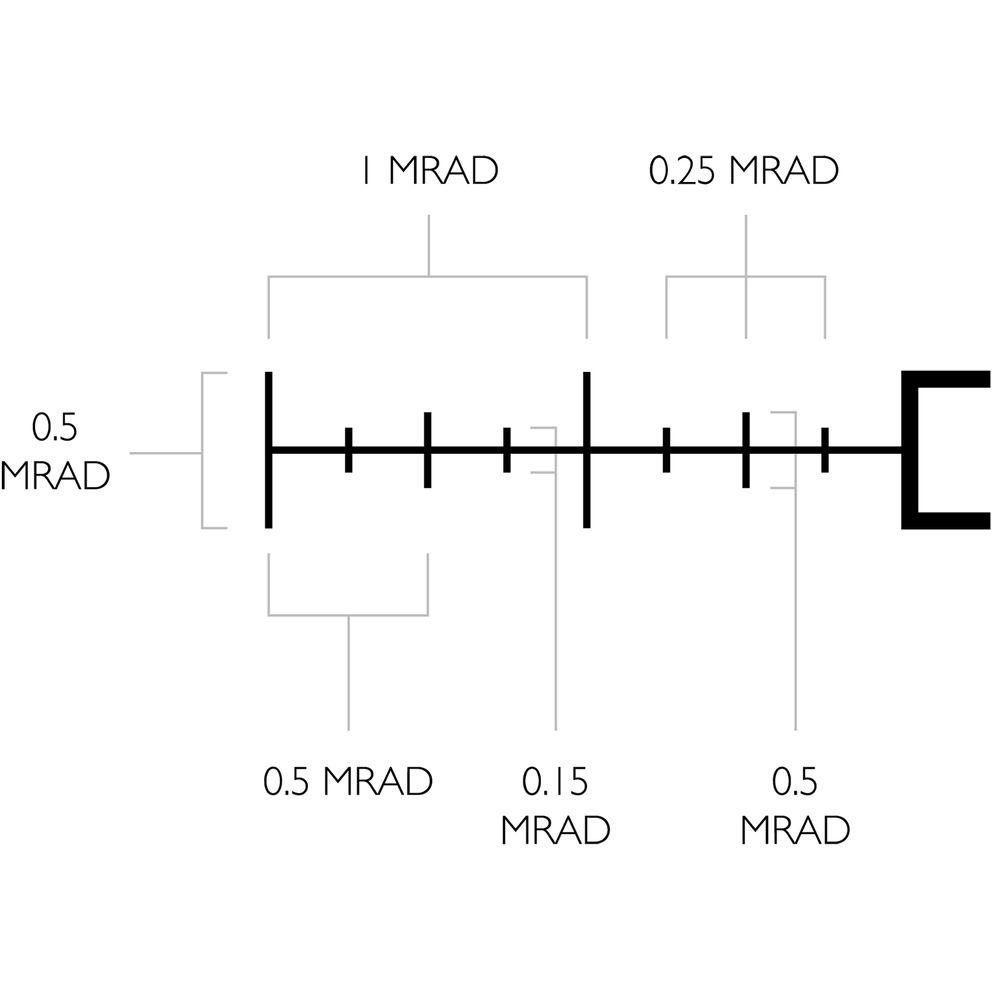

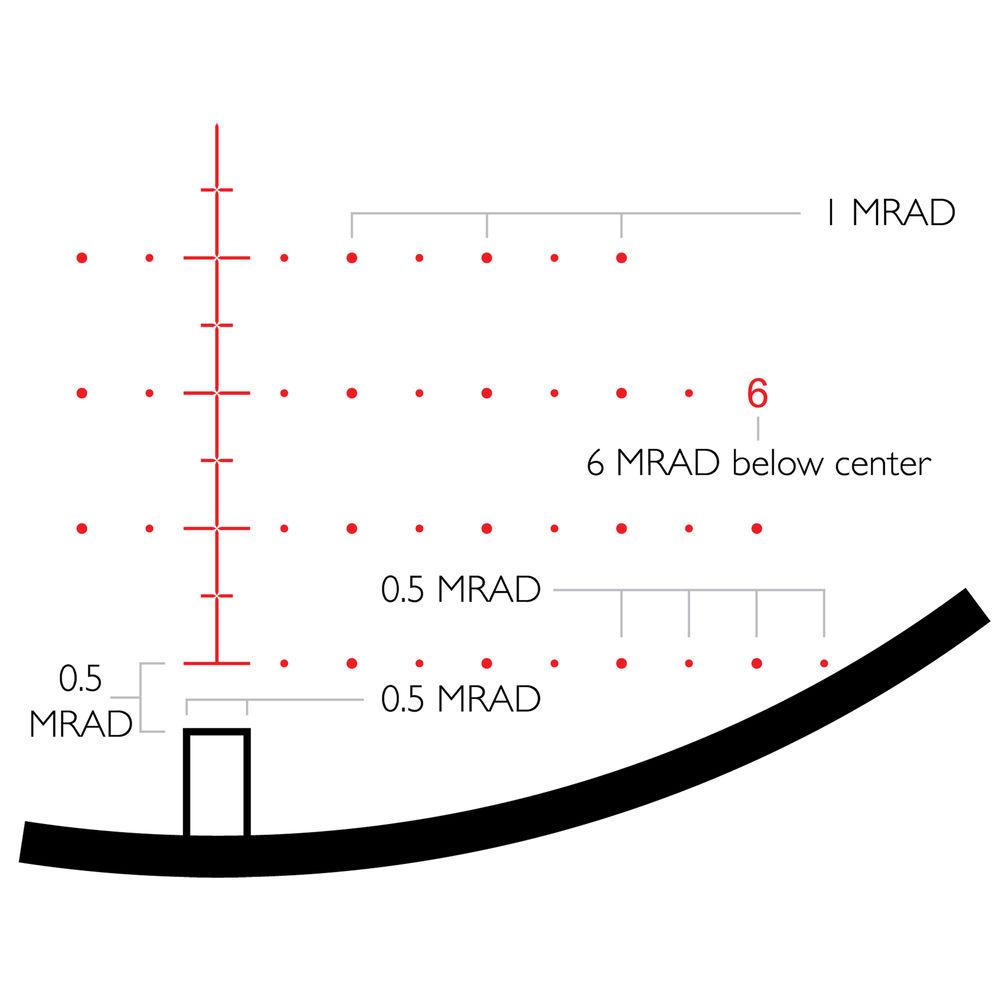

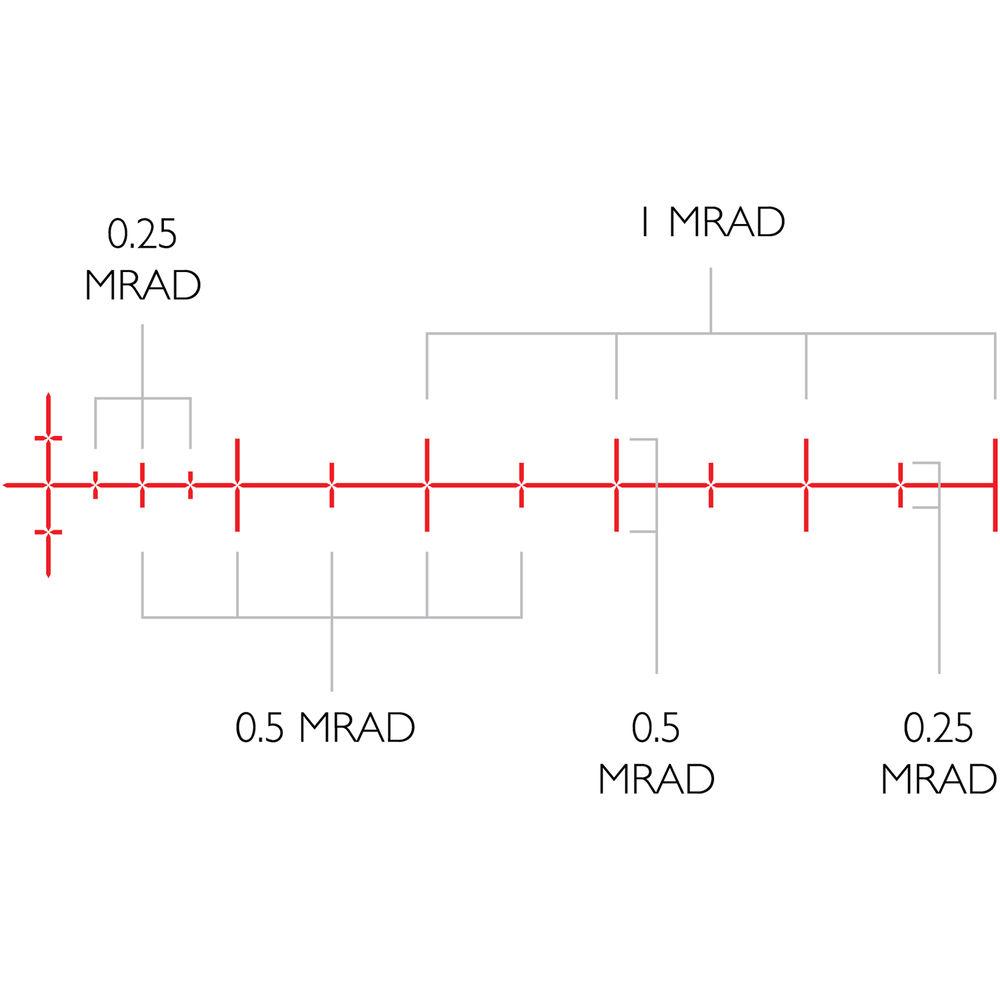

Six brightness levels ensure users will see the reticle in a wide range of light conditions. One-half MRAD spacing out to 8 MRAD allows for precision holdover on long shots, and small 1/4 MRAD marks provide accurate range-finding capability. The scope's fast-focus collar and knurled rheostat control allow you to quickly adapt to rapidly changing situations. A side-mounted focus dial permits parallax adjustment from 15 yards to infinity. The lightweight and durable anodized aluminum housing consists of a 30mm one-piece maintube offering ample elevation adjustment. The tube is nitrogen filled and O-ring sealed to be water and fogproof. - Optical Performance
-
- 5-30x zoom range
- 56mm objective lens
- 21-layer anti-reflection fully multi-coated optics
- 22.5-3.6' field of view at 100 yards

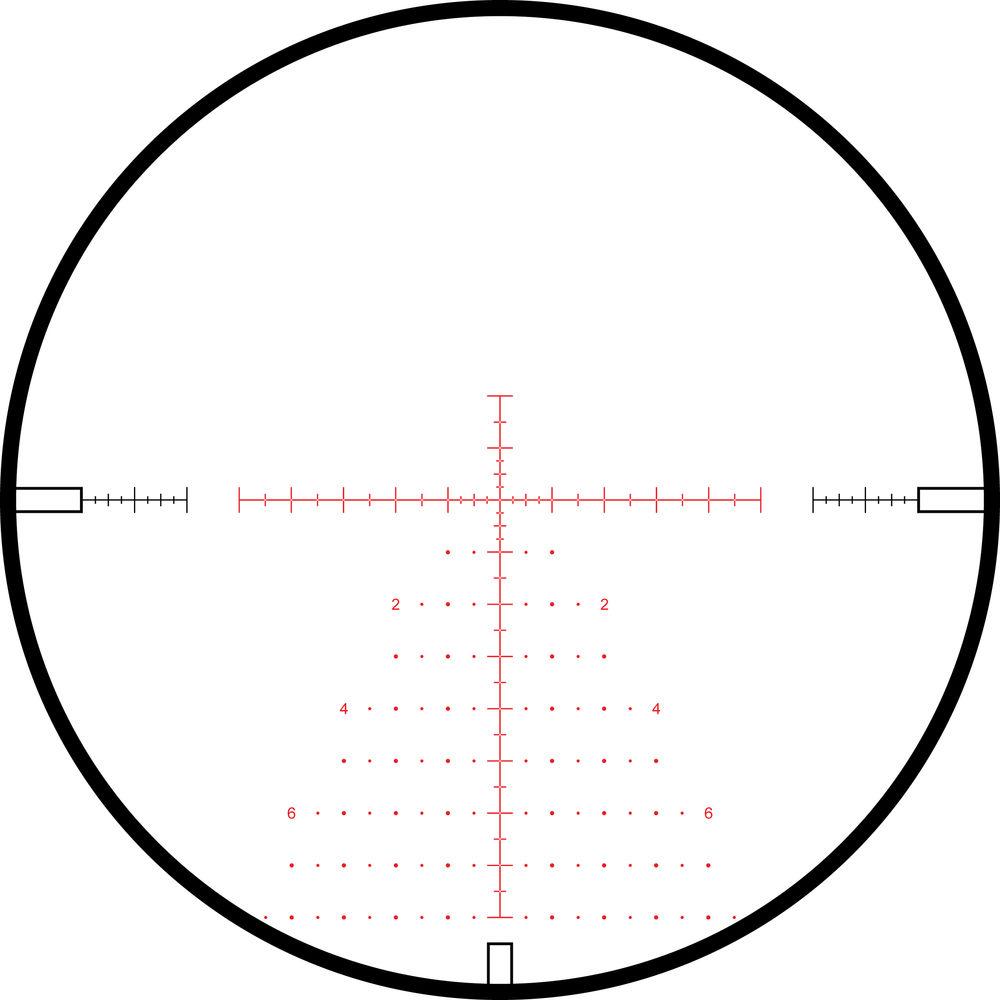

- Mil Pro SFP Reticle
-
- Accurate MRAD spacing on 20
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 5-30x56 Frontier 30 SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 18441 Specs | | | Magnification | 5 to 30x | | Objective Lens Diameter | 56 mm | | Field of View | 5x: 22.5' @ 100 yd / 7.5 m @ 100 m
30x: 3.6' @ 100 yd / 1.2 m @ 100 m | | Exit Pupil Diameter | 5x: 11 mm

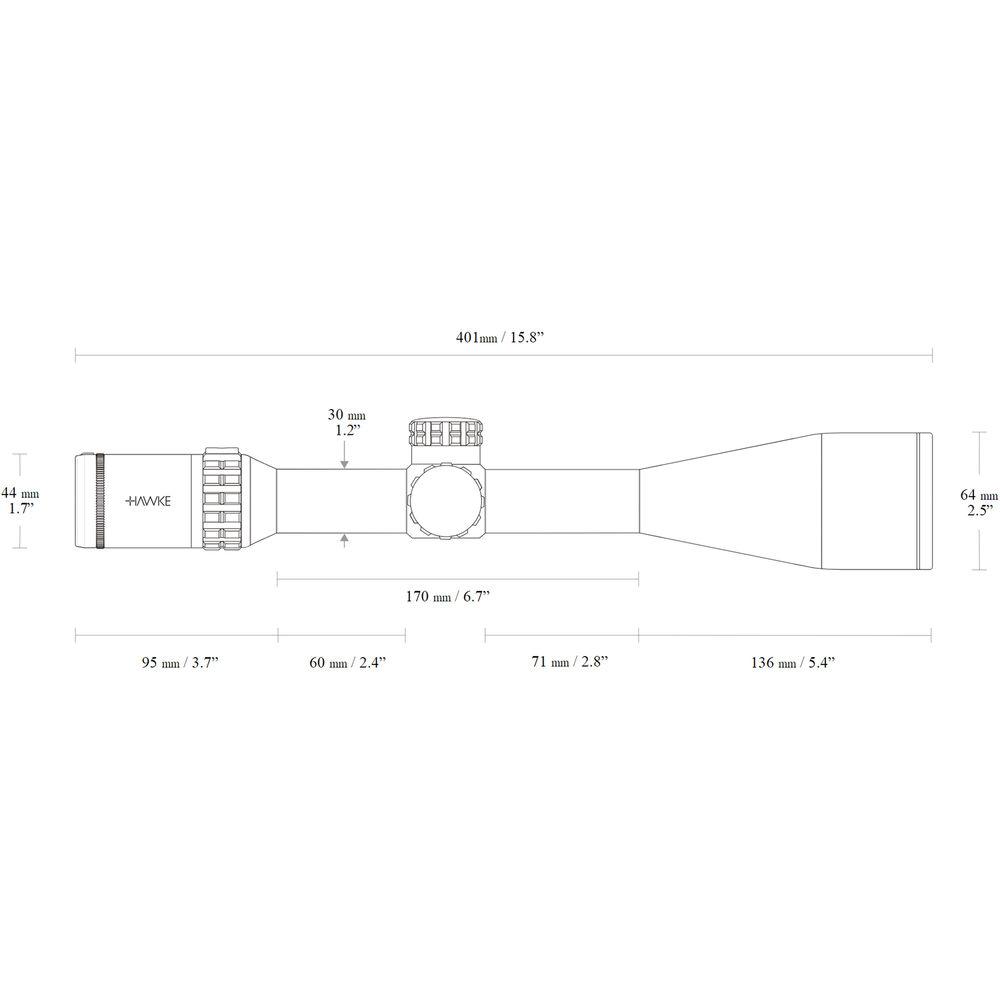

30x: 2 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | Mil Pro Reticle (Second Focal Plane) | | Illumination | Illuminated | | Brightness Settings | Adjustable Brightness (6 Levels) | | | | Mounting | None | | Filter Thread | None | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 17 MRAD | | Elevation Adjustment | 17 MRAD | | Parallax Correction | Yes, 15 yd / 13.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 15.8" / 40.1 cm | | Weight | 25.5 oz / 723 g |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
