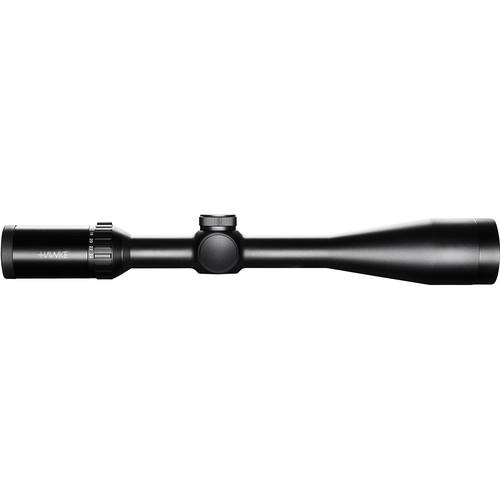

Product description The Hawke Optics 6-24x44 Vantage SF Riflescope is a versatile all-purpose scope that is ideal for long-range shooting while striking a delicate balance between low-light performance and a relatively low-profile. A broad high zoom range brings even the smallest, most distant targets up-close. Plus, the combination of a 44mm objective lens that draws in a generous amount of light and the 11-layer fully multi-coated optics maximize light transmission to produce bright and clear high-contrast images - even in low-light conditions such as dawn, dusk, or in heavily canopied woods.Its modified duplex reticle has 1/2 mil diameter dots on the fine center crosshairs, with dashes midway between each dot to assist in hold-over/under, range estimation, or target size estimation. Complementing the performance of the scope is a lightweight and durable anodized aluminum alloy housing with a 1" one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof. Threads on the ocular and objective provide a solid mounting point for optional accessories such as sun shades. - Optical Performance
-
- 6-24x zoom range
- 44mm objective lens
- 11-layer anti-reflection fully multi-coated optics improves color fidelity, contrast, and overall image brightness
- 15.3-3.8' field of view at 100 yards

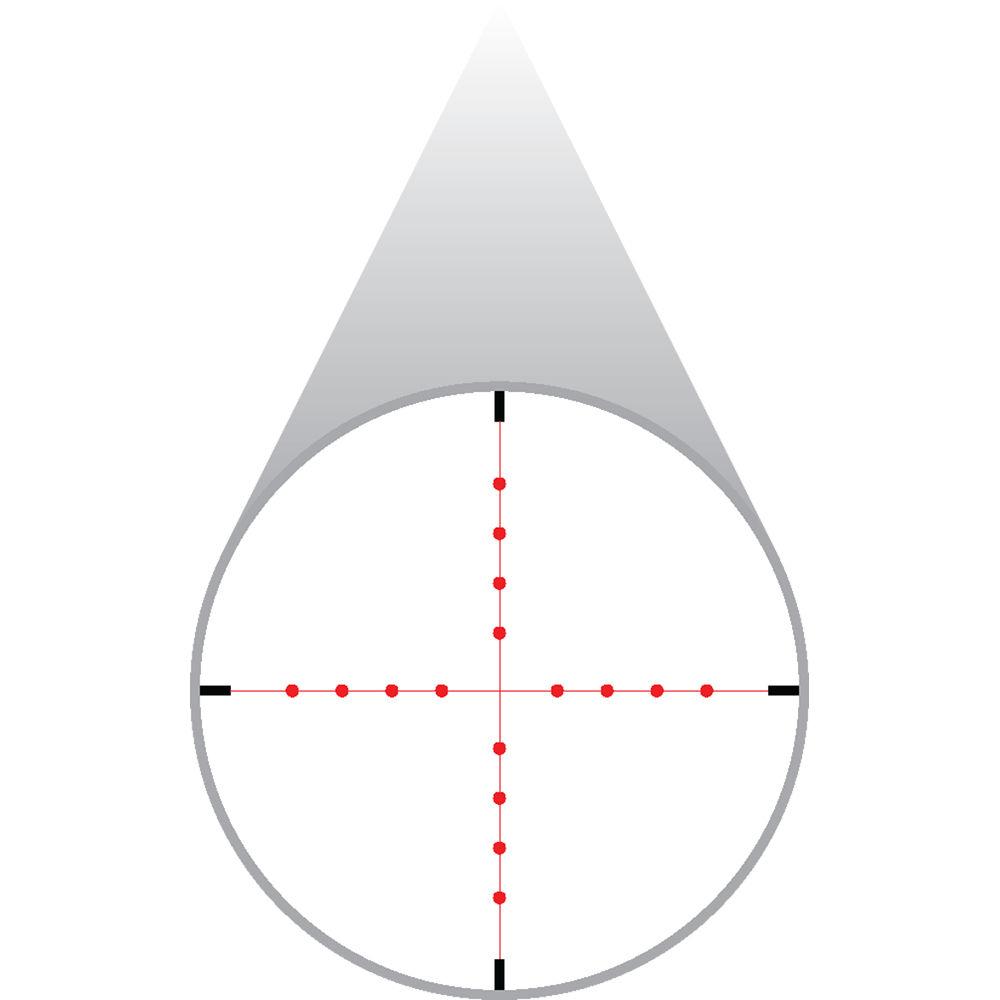

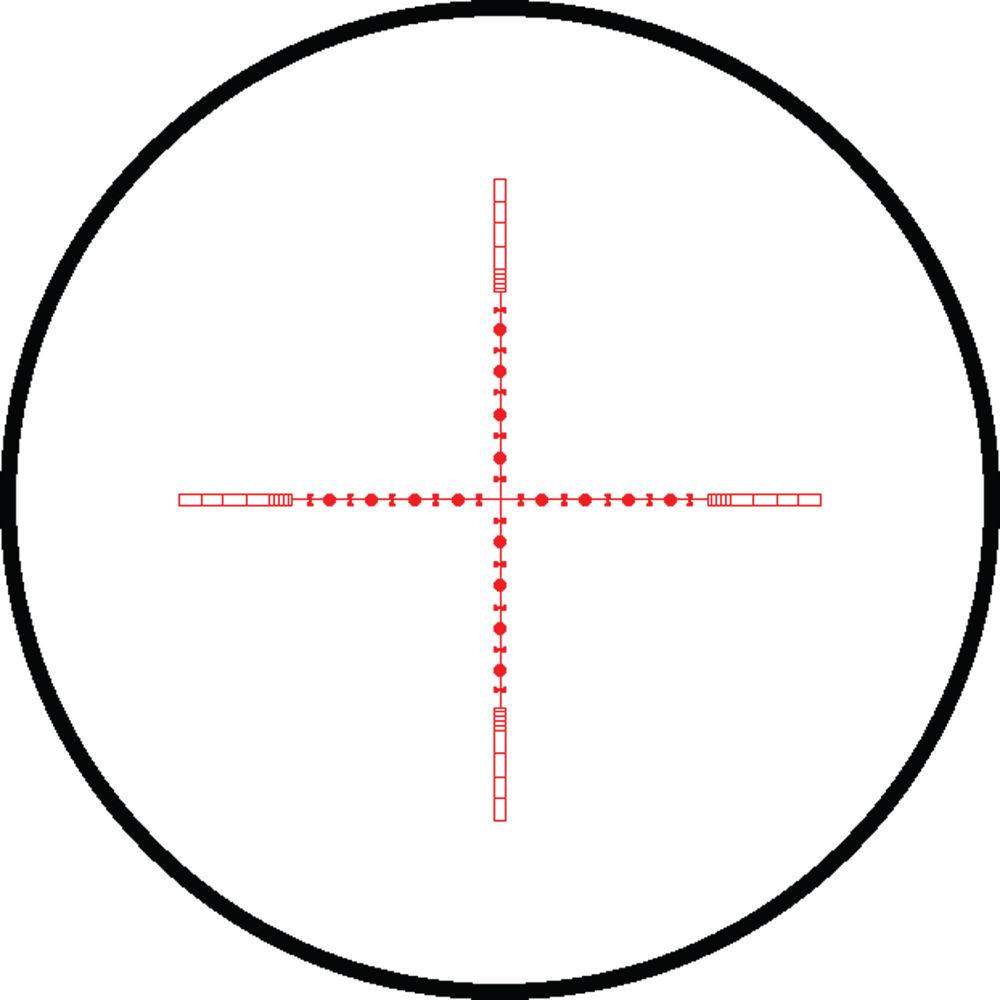

- Reticle Details
-
- Modified duplex crosshair-style
- Thicker outer posts
- Thin center hairs with mil dots and stadia markers
- 0.5 mil diameter dots with dashes in between for precision aiming
- Dots and stadia can be used for hold-over/under, range estimation, target size estimation
- Second focal plane placement, sub-tensions set at 10x
- Use and Handling
-
- Fast-focus collar
- High-torque zoom mechanism maintains settings even after repeated recoils
- 1/4 MOA per click impact point correction
- 50 MOA windage and elevation adjustment range
- Finger-adjustable, low-profile covered turret caps prevent accidental adjustment
- Side parallax adjustment turret, adjustment range from 15 yards to infinity
- 7-2mm exit pupil
- 3.5" eye relief
- Construction Details
-
- 1" one-piece maintube
- Lightweight and durable aluminum alloy housing
- Nitrogen-filled for water and fogproof performance
- Rated for use on most calibers and recoil-resistant
- Threads on ocular and objective for mounting optional accessories like eyecups and sun shades
- Length: 14.7 inches
- Weight: 18.7 ounces
In the Box Hawke Sport Optics 6-24x44 Vantage SF Riflescope (1/2 Mil Dot Duplex Reticle) Lens Cloth Ocular Lens Cover Objective Lens Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 6-24x44 Vantage SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 14162 Specs | | | Magnification | 6 to 24x | | Objective Lens Diameter | 44 mm | | Field of View | 6x: 15.3' @ 100 yd / 5 m @ 100 m
24x: 3.8' @ 100 yd / 1.3 m @ 100 m | | Exit Pupil Diameter | 6x: 7 mm
24x: 2 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | 1/2 MIL Dot Duplex Crosshair Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 50 MOA | | Elevation Adjustment | 50 MOA | | Parallax Correction | Yes, 15 yd / 13.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 14.7" / 37 cm | | Weight | 18.7 oz / 531 g | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 16.5 x 3.7 x 3.2" |
