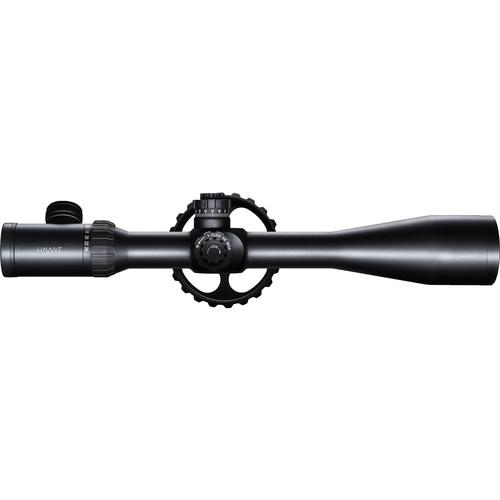

User Manual for Hawke Sport Optics 6-24x50 Airmax 30 SF Riflescope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 6-24x50 Airmax 30
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
 |
User manual for the Hawke Sport Optics 6-24x50 Airmax 30 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|

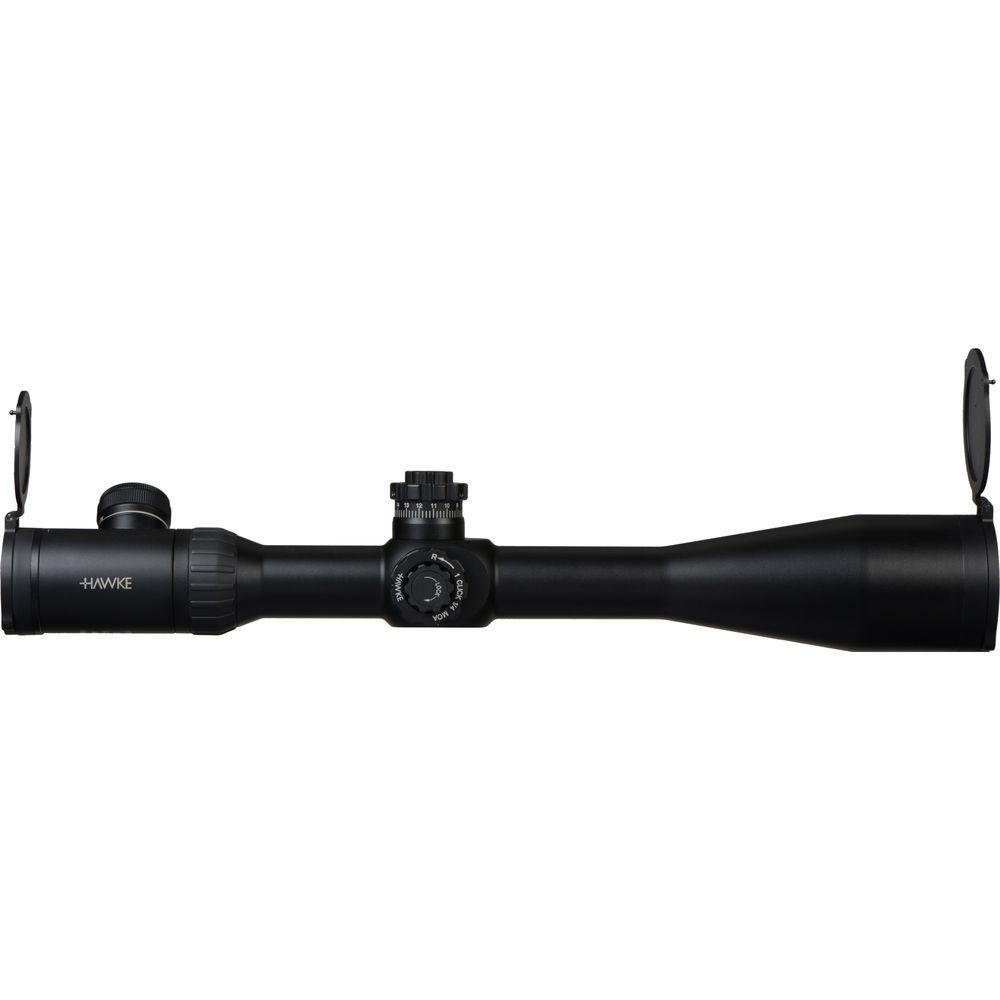

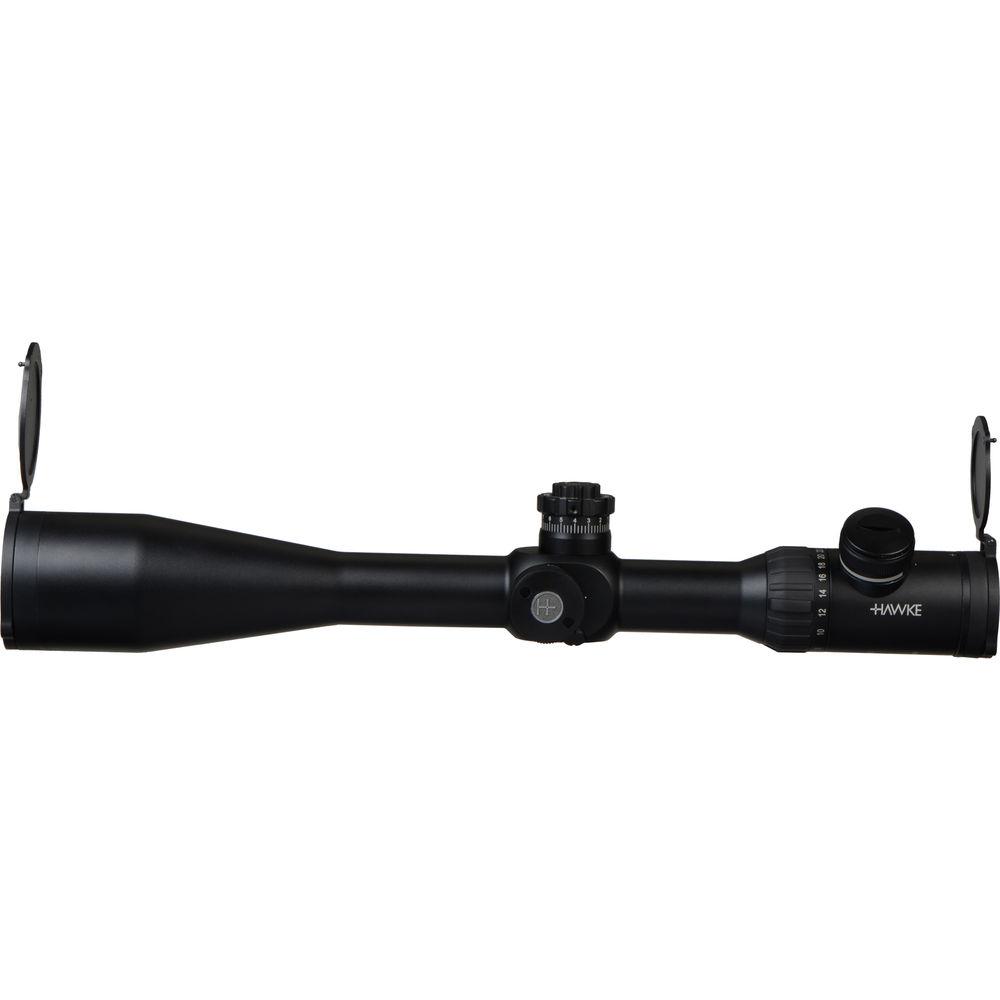

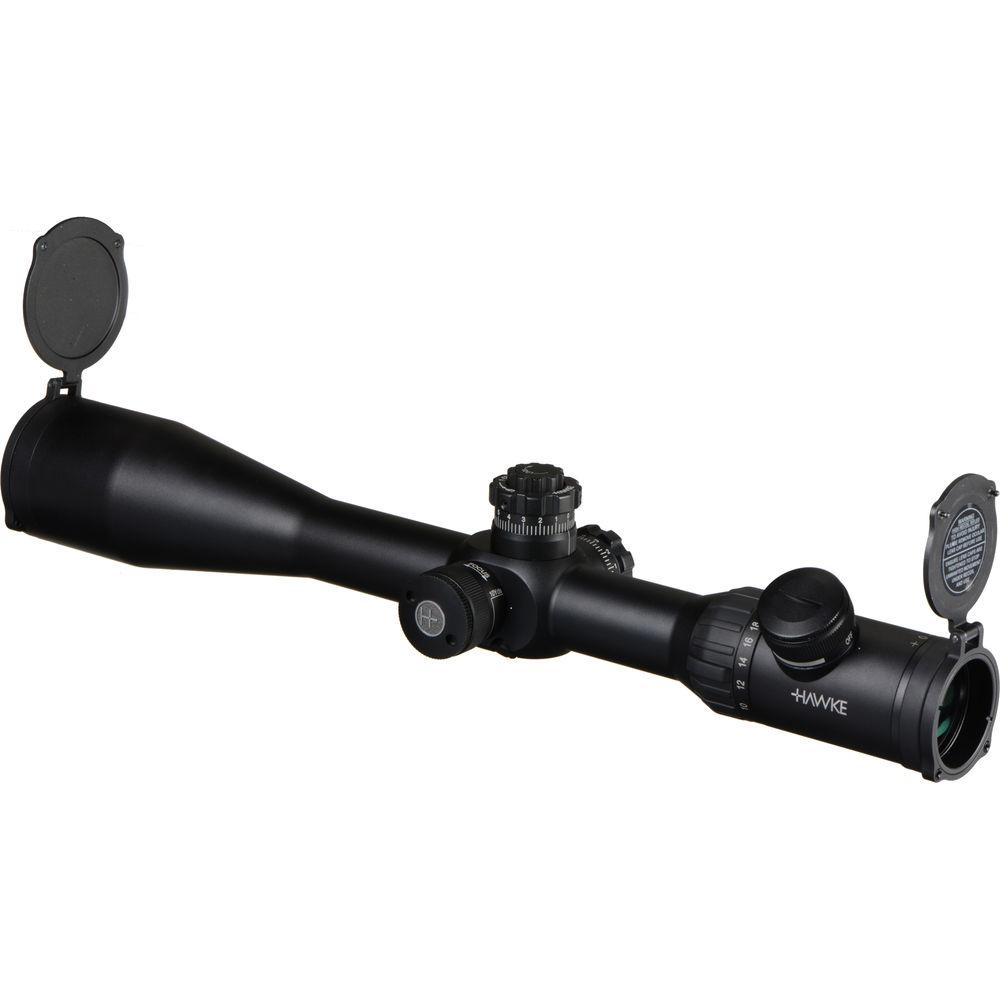

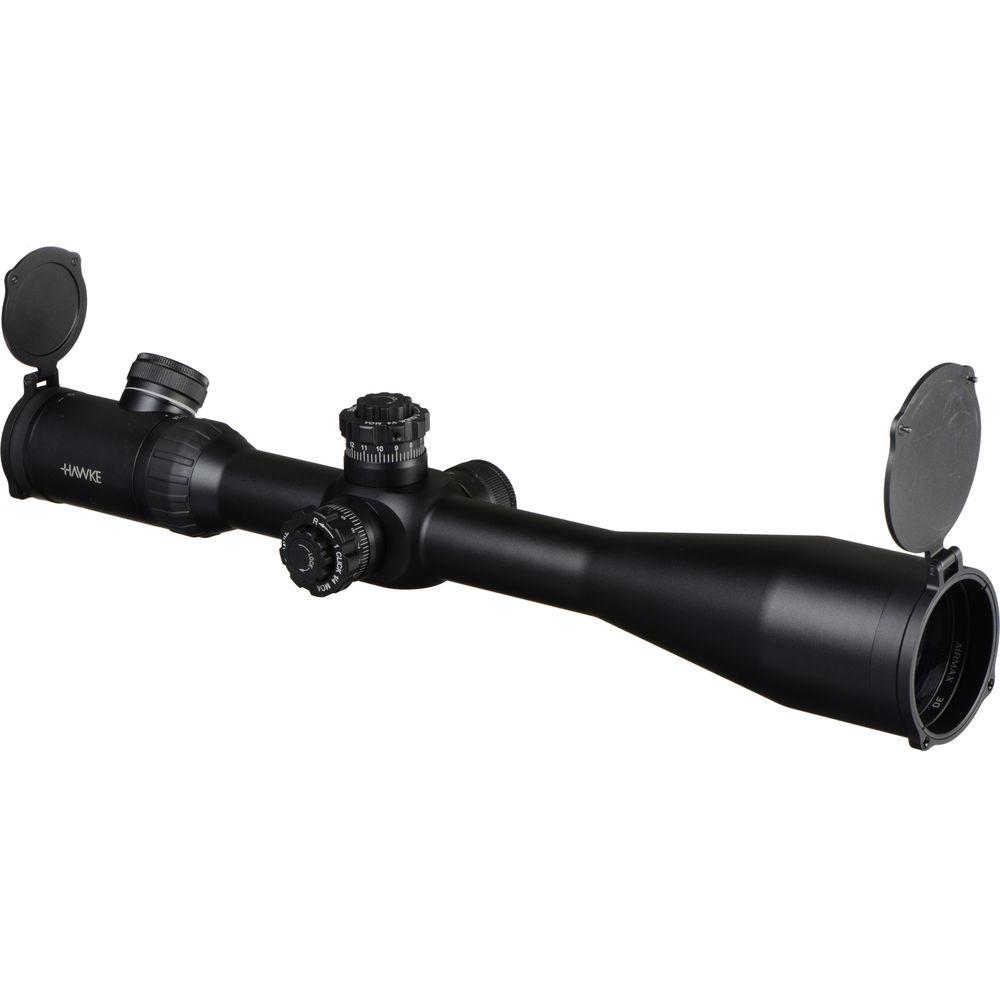

Product description Hawke Optics engineered their 6-24x50 Airmax 30 SF Riflescope to increase the accuracy of airguns, especially in low-light situations, by employing a broad magnification range, a large objective, fully multi-coated optics, and a partially-illuminated reticle. This duplex ranging reticle is based on a mil-dot system and provides multiple aiming points on all axes to help compensate for the notoriously-wobbly air pellet trajectory. Utilizing the reticle's aiming points allows you to adjust your shot quickly without having to manipulate the scope's windage and elevation turrets. Its center crosshairs, mil dots, and stadia are illuminated so users can see it in low-light conditions. Additionally, a stepless rheostat provides precise reticle intensity adjustment.The scope's large 50mm objective draws in considerably more light than smaller-objective optics and the 16-layer anti-reflection optical coatings increase light transmission to enhance its low-light performance, such as at dawn, dusk, or in heavily-canopied woods. Exposed finger-adjustable locking tactical turrets and a removable 4" parallax adjustment wheel, coupled with its fast focus collar and zoom ring allow users to quickly adapt to rapidly changing situations. Complementing the performance of the scope is a lightweight and durable anodized aluminum housing with a robust 30mm one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof. - Optical Performance
-
- 6-24x zoom range
- 50mm objective lens
- 16-layer anti-reflection fully multi-coated optics improve contrast, color rendition, and overall image brightness
- 17.3-4.5' field of 0view at 100 yards
- Reticle Details
-
- Modified duplex crosshair-style reticle
- 1 mil spacing on all axes for ranging, hold-over/under, and target size estimation
- Hollow non-illuminated outer posts with 1 mil indicators
- 1/2 mil-dot spacing on the lower post offer aim-points long distance ballistic drop compensation
- Horizontal bars calculated at 0.5/1.5/2.5/3.5/4.5 mil spacing
- Mil-spaced hollow outer bars for bracketing
- Sub-tension set at 10x
- Partial illumination:
- Illuminated in red
- Stepless rheostat for precise reticle intensity control
- Center hairs and mil-dots illuminated for low-light use
- Etched onto glass resists fading or shifting over time
- Placed on second focal plane
- Runs on one included CR2032 battery
- Use and Handling
-
- Locking fast-focus collar
- High-torque zoom ring ensures the magnification doesn't change due to repeated recoils from high-caliber rifles
- 1/4 MOA per click impact point correction
- Broad 65 MOA windage and elevation adjustment range
- 15 MOA travel per rotation
- Side parallax turret, adjustable from 10 yards to infinity
- Exposed finger-adjustable turrets enable fast windage, elevation, and parallax adjustments
- Push/pull locking turrets, resettable to zero
- Removable 4" side wheel for faster and more precise parallax adjustment, even when wearing gloves
- Long 4.0" eye relief
- 8.3-2.1 exit pupil
- Construction Details
-
- Sturdy 30mm one-piece maintube
- Lightweight and durable aluminum alloy housing
- Nitrogen-filled for water and fogproof performance
- Rated for use on most calibers and recoil-resistant
- Threaded ocular and objective for optional accessories
- Anodized aluminum flip-up front and rear lens covers
- 4" screw-on sun shade
- Length: 15.6 inches
- Weight: 26.7 ounces
In the Box Hawke Sport Optics 6-24x50 Airmax 30 SF Riflescope (AMX IR Illuminated Reticle) Lens Cloth CR2032 Battery 4" Side Wheel 4" Screw-in Sun Shade Ocular Lens Cap Objective Lens Cap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 6-24x50 Airmax 30 SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 13320 Specs | | | Magnification | 6 to 24x | | Objective Lens Diameter | 50 mm | | Field of View | 6x: 17.3' @ 100 yd / 5.8 m @ 100 m
24x: 4.5' @ 100 yd / 1.5 m @ 100 m | | Exit Pupil Diameter | 6x: 8.3 mm
24x: 2.1 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | AMX IR Modified Duplex Reticle (Second Focal Plane) | | Illuminated Color | Red | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 65 MOA | | Elevation Adjustment | 65 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 15.6" / 39.5 cm | | Weight | 26.7 oz / 757 g | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 18.8 x 6.5 x 3.7" |
