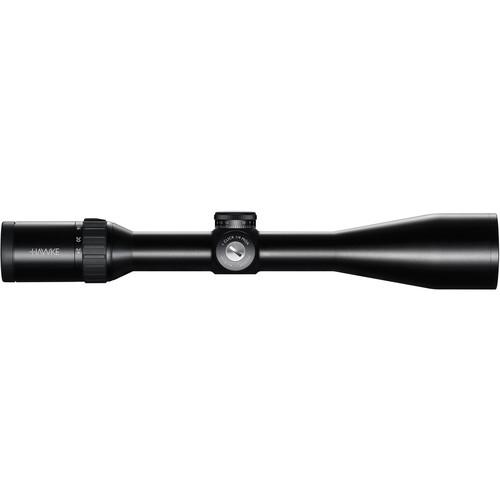

Product description Hawke's 6-24x50 Endurance 30 WA SF Riflescope combines a high zoom range with a wide 50mm objective in a compact and lightweight body to deliver a versatile scope for precision and distance hunting in low light. The scope inherits many characteristics of the series such as bright and clear fully multi-coated optics, a strong and durable one-piece 30mm maintube, a 15-yard minimum parallax-free range, and a fast-focus eyepiece while also introducing improvements in the form of an extended 20.7-5.1' (at 100 yards) field of view, 75 MOA windage and elevation ranges, and an increased number of layers of coatings (18). At the core of the optical system is the second focal plane .223/.308 Marksman illuminated reticle, defined by the German #4 outline with three hollow posts, a thin crosshair with illuminated red ballistic stadia out to 600 yards, and a brilliant red illuminated target cross. The reticle draws power from the included CR2032 battery, has six brightness levels, and provides a precise aiming reference. - Optical Performance
-
- 6-24x magnification
- 50mm objective diameter
- Precision-ground optics

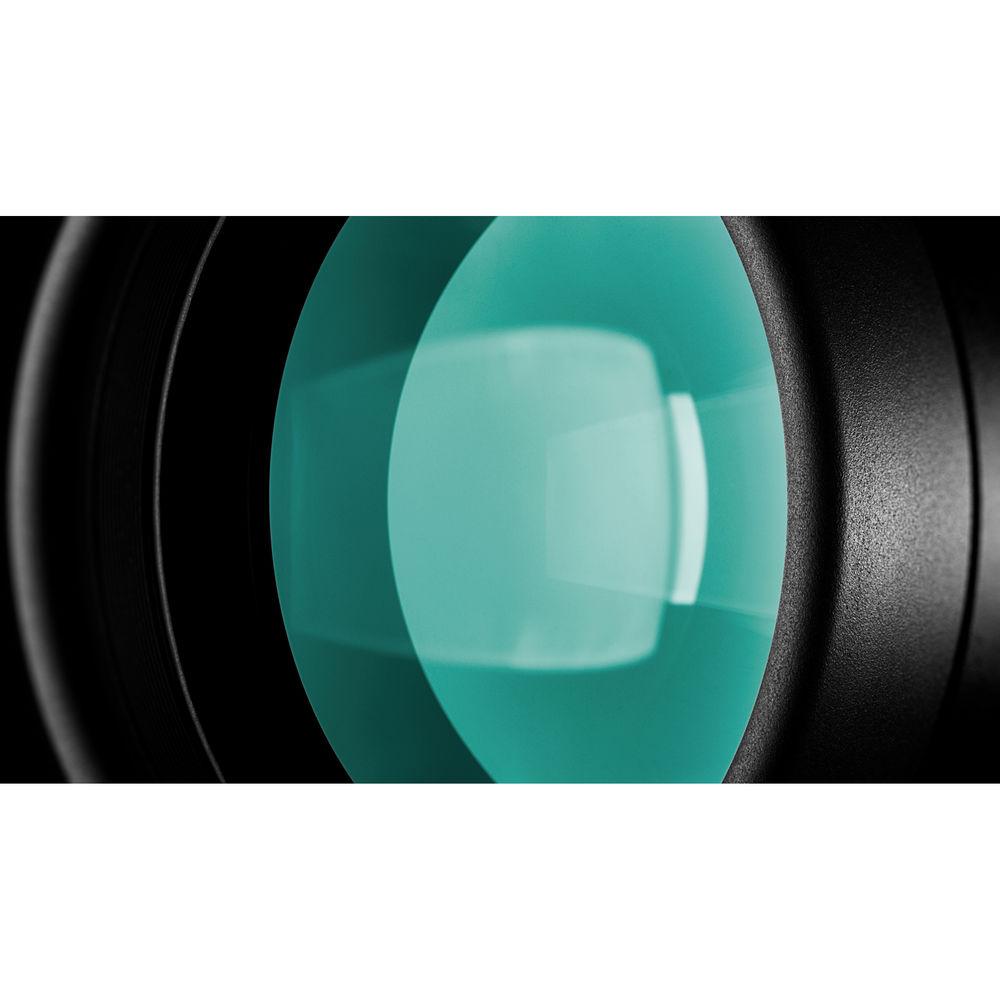

- 18-layer fully multi-coated optics
- Wide angle optical system (WA): 20.7-5.1' at 100 yards
- Use and Handling
-
- 1/4 MOA impact point correction
- 75 MOA windage and elevation ranges
- Parallax-free from 15 yards to infinity
- 4"-long eye relief
- Construction Details
-
- 30mm one-piece maintube
- Lightweight and durable aluminum-alloy housing

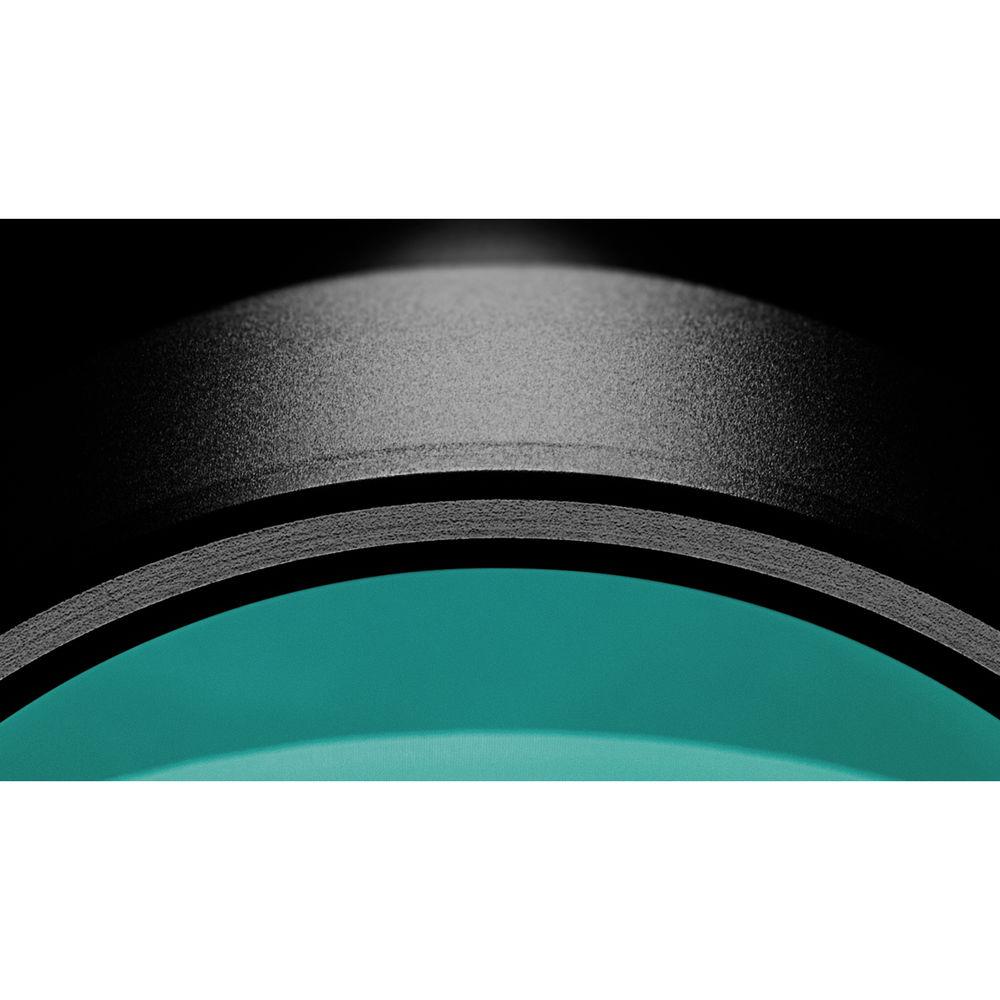

- Threaded objective bezel for attaching accessories

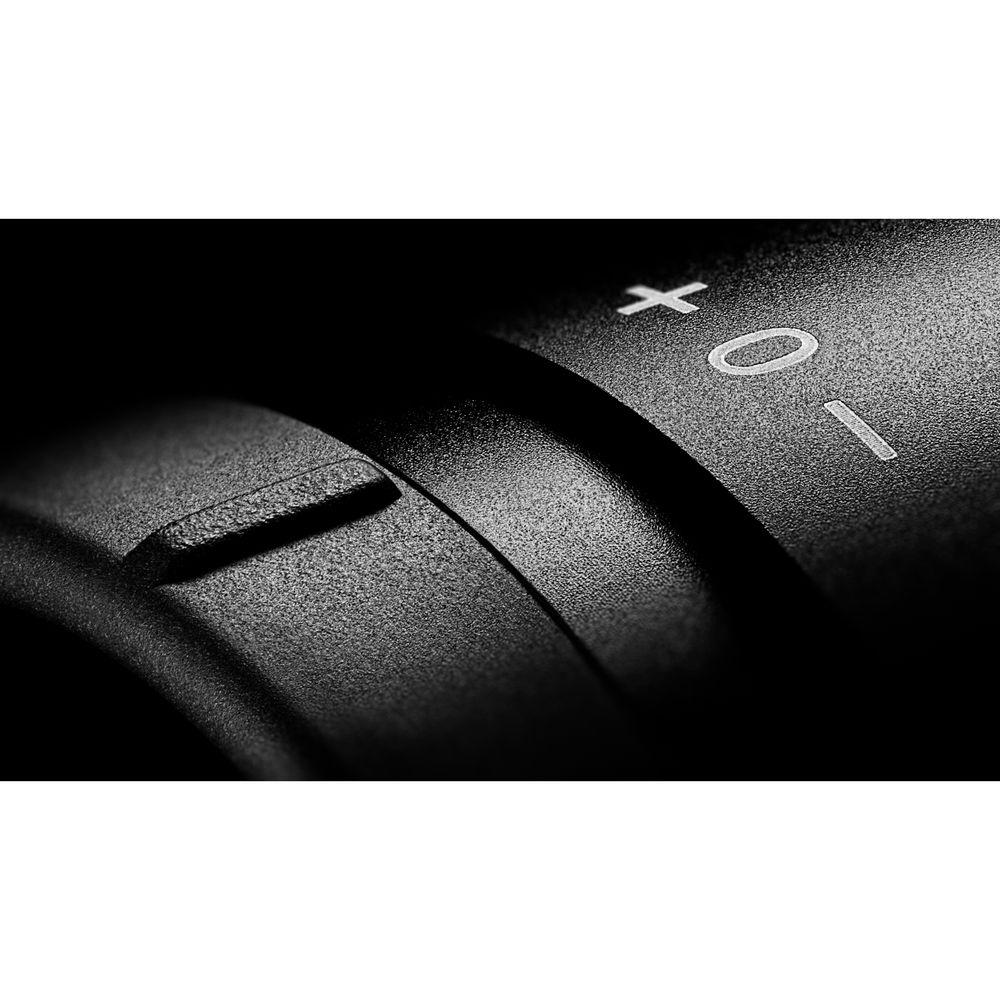

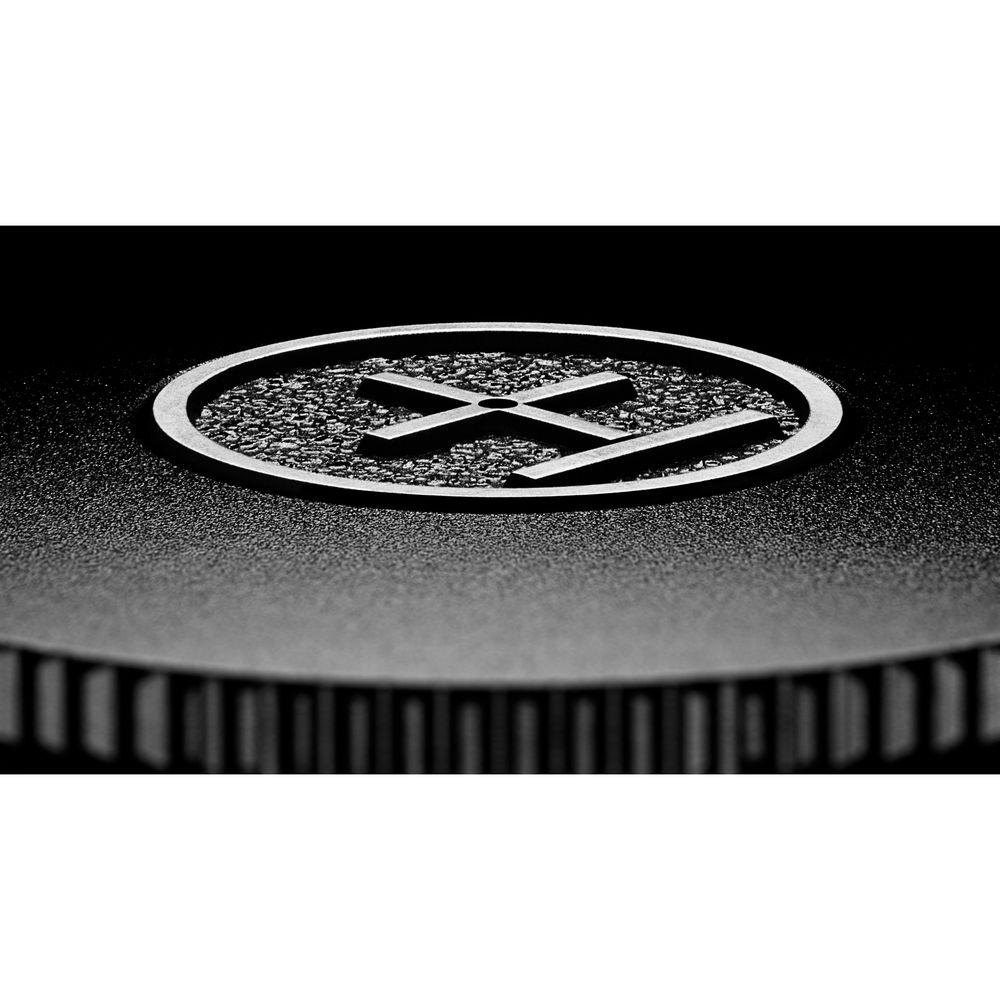

- Exposed, finger-operated turrets have graduations for easy adjustments

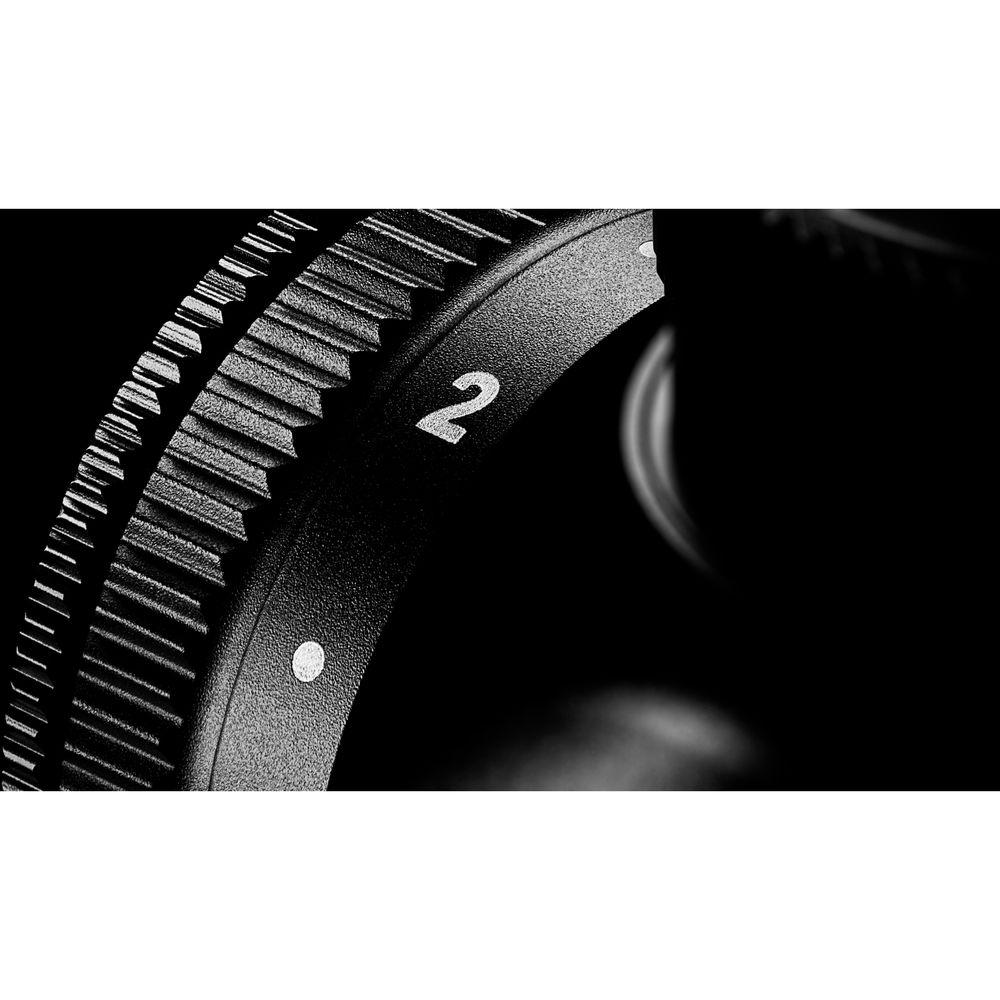

- Fast-focus eyepiece with a high-torque zoom ring
- Nitrogen filled for water and fogproof performance
- Two lens covers and a 4" sunshade are included

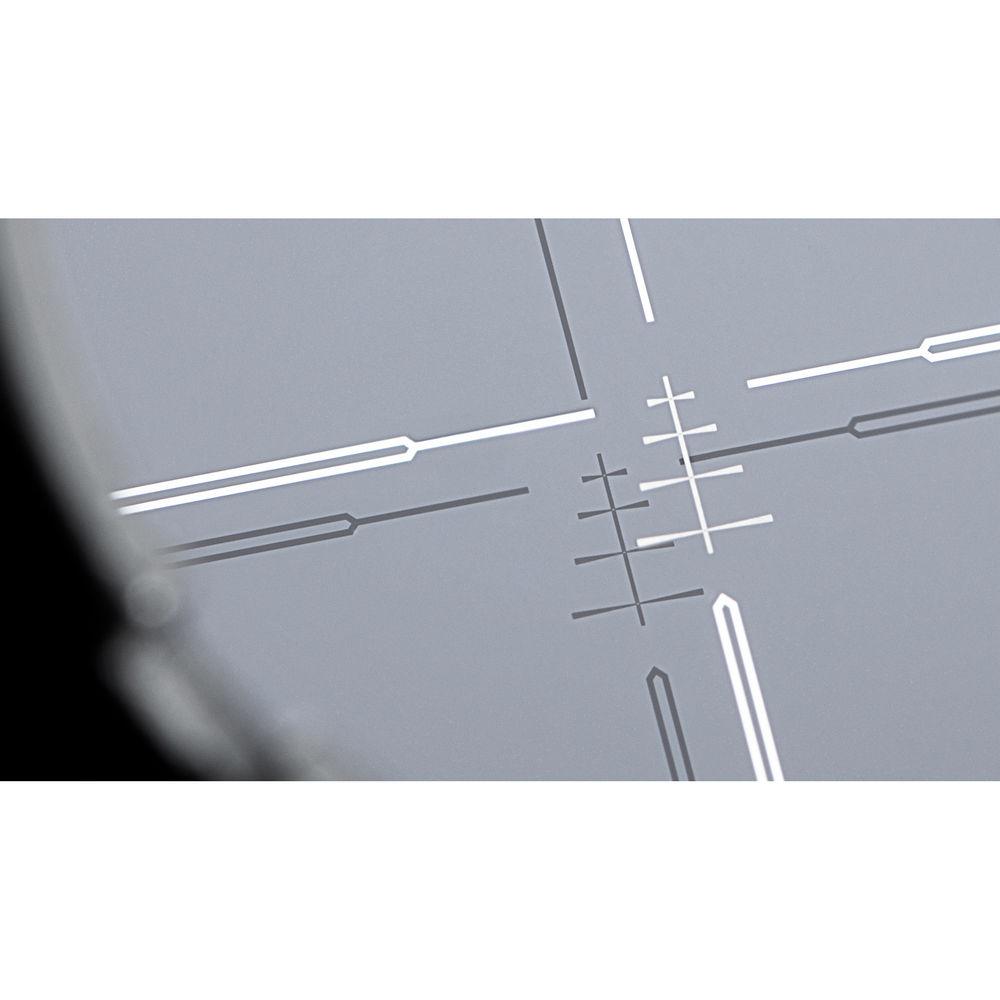

- .223/.308 Marksman Illuminated Reticle
-
- Second focal plane
- German #4 style outline
- For .223/.308 calibers
- Three hollow posts
- Fine crosshair with red illuminated holdovers out to 600 yards
- Six brightness levels
In the Box Hawke Sport Optics 6-24x50 Endurance 30 WA SF Riflescope (.223/.308 Marksman Illuminated Reticle, Matte Black) - CR2032 Battery
- 2 x Lens Covers
- 4" Sunshade
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 6-24x50 Endurance 30 WA SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 16361 Specs | | | Magnification | 6 to 24x | | Objective Lens Diameter | 50 mm | | Field of View | 6x: 20.7' @ 100 yd / 6.9 m @ 100 m
24x: 5.1' @ 100 yd / 1.7 m @ 100 m | | Exit Pupil Diameter | 6x: 8 mm
24x: 2 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | .223/.308 Marksman German #4 Crosshair Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 75 MOA | | Elevation Adjustment | 75 MOA | | Parallax Correction | Yes, 15 yd / 13.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.5" / 36.9 cm | | Weight | 19.7 oz / 644 g | | | | Package Weight | 2.82 lb | | Box Dimensions (LxWxH) | 20.3 x 3.6 x 3.1" |
