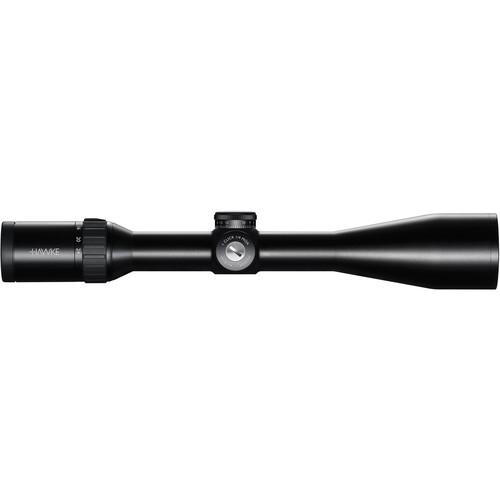

Product description Hawke's 6-24x50 Endurance 30 WA SF Riflescope combines a high zoom range with a wide 50mm objective in a compact and lightweight body to deliver a versatile scope for precision and distance hunting in low light. The scope inherits many characteristics of the series such as bright and clear fully multi-coated optics, a strong and durable one-piece 30mm maintube, a 15-yard minimum parallax-free range, and a fast-focus eyepiece while also introducing improvements in the form of an extended 20.7-5.1' (at 100 yards) field of view, 75 MOA windage and elevation ranges, and an increased number of layers of coatings (18). At the core of the optical system is the second focal plane LRC (Long Range Centerfire) illuminated reticle, defined by three hollow tapered posts, a thin crosshair, and a red cascading illuminated set of ballistic stadia. The reticle draws power from the included CR2032 battery, has six brightness levels, and provides a precise aiming reference. - Optical Performance
-
- 6-24x magnification
- 50mm objective diameter
- Precision-ground optics

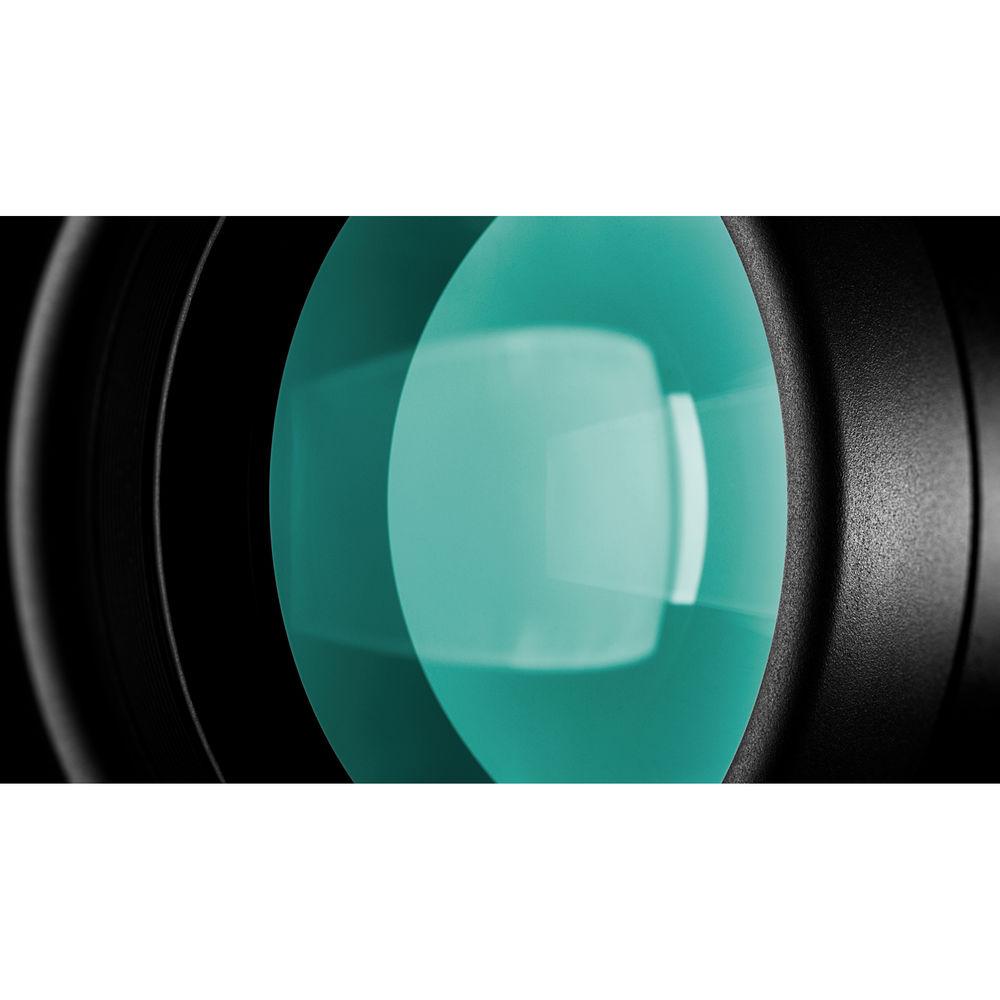

- 18-layer fully multi-coated optics
- Wide angle optical system (WA): 20.7-5.1' at 100 yards
- Use and Handling
-
- 1/4 MOA impact point correction
- 75 MOA windage and elevation ranges
- Parallax-free from 15 yards to infinity
- 4"-long eye relief
- Construction Details
-
- 30mm one-piece maintube
- Lightweight and durable aluminum-alloy housing

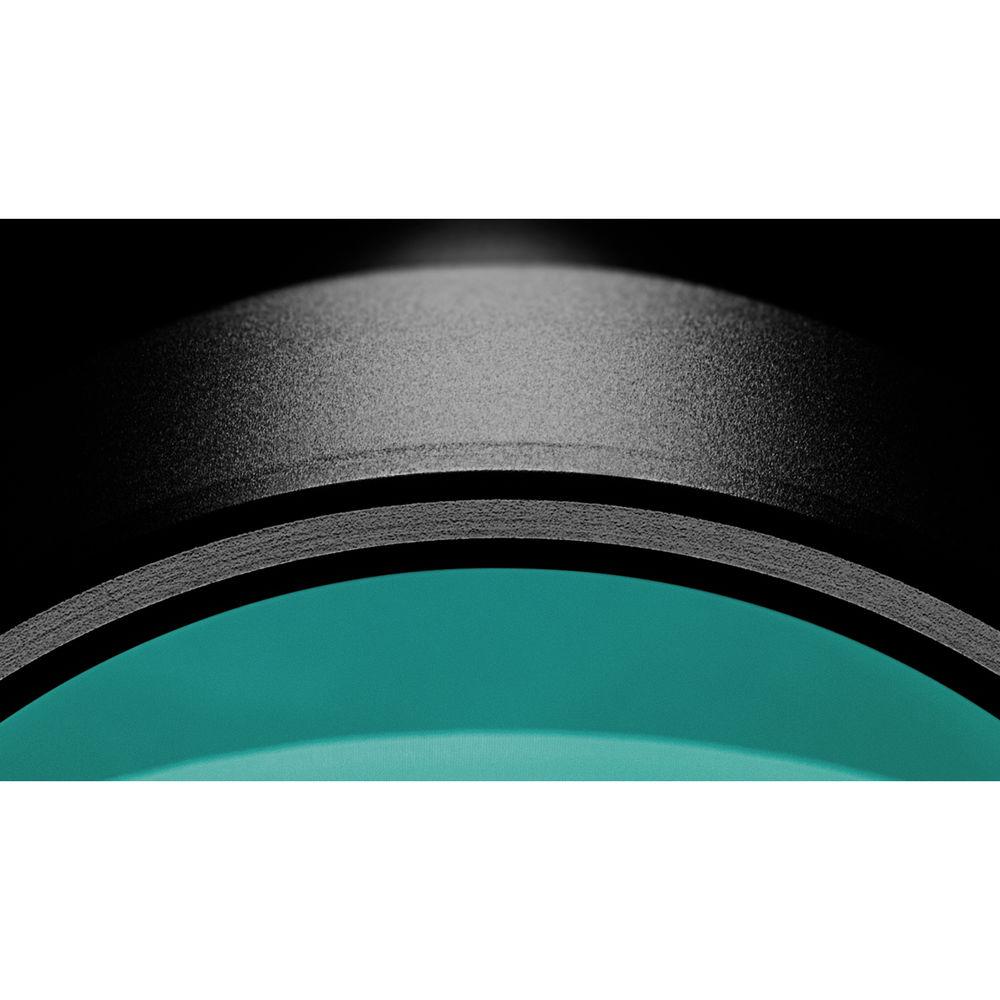

- Threaded objective bezel for attaching accessories
- Exposed, finger-operated turrets have graduations for easy adjustments

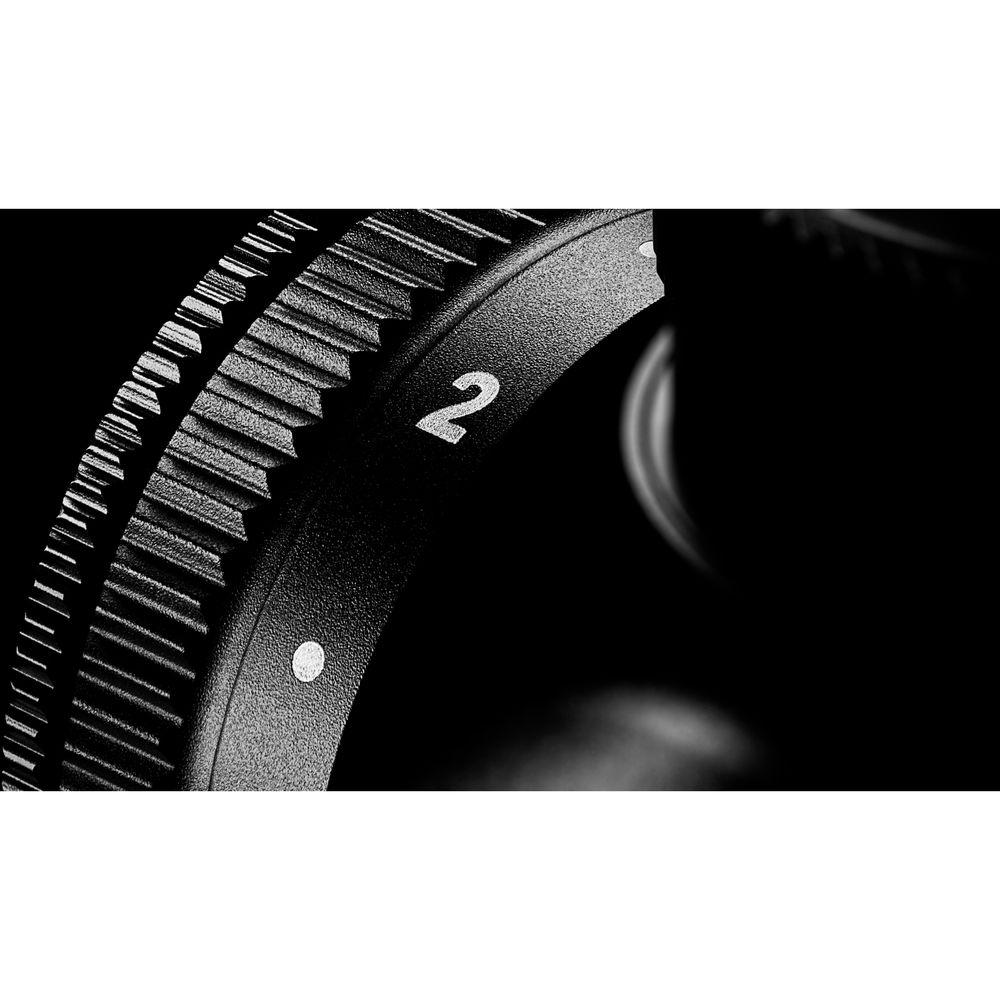

- Fast-focus eyepiece with a high-torque zoom ring
- Nitrogen filled for water and fogproof performance
- Two lens covers and a 4" sunshade are included

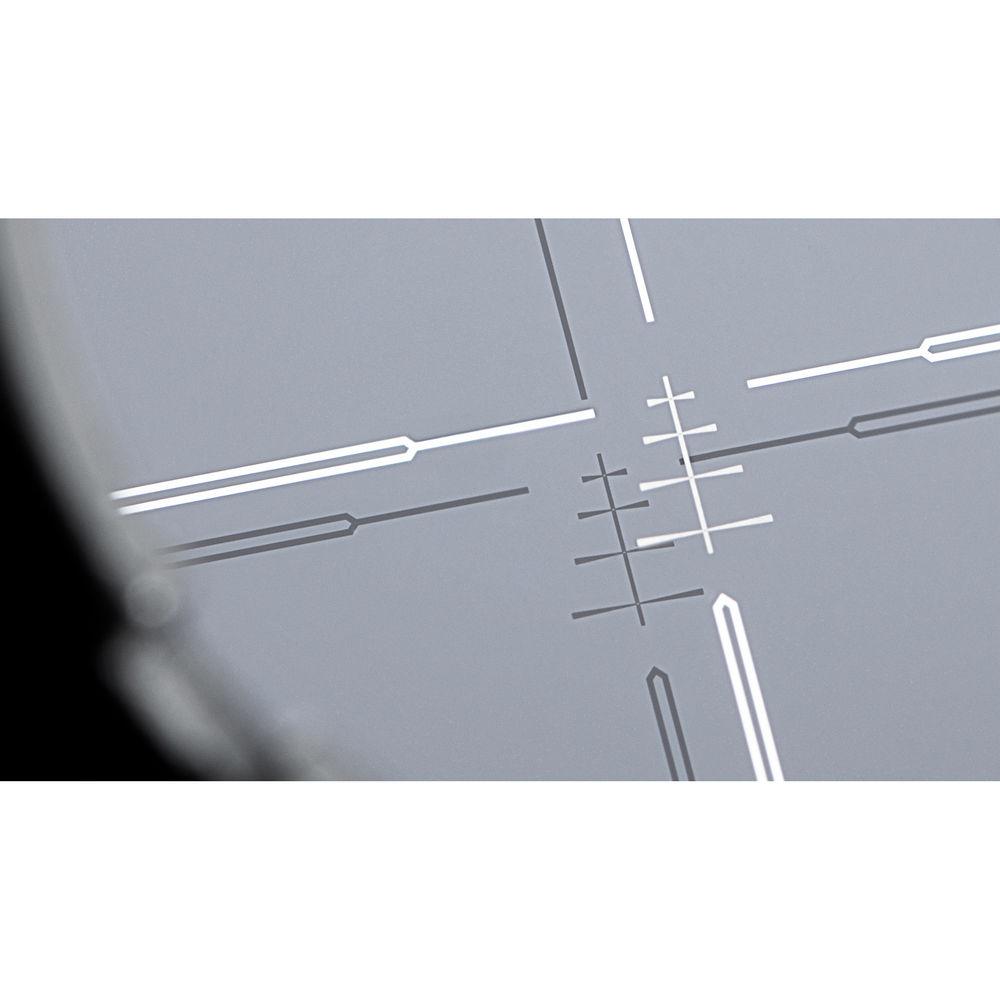

- LRC Illuminated Reticle
-
- Second focal plane
- Long Range Centerfire (LRC)
- Hollow bottom and horizontal tapered posts
- Illuminated cascading red ballistic stadia
- Thin crosshair
- Six brightness levels
In the Box Hawke Sport Optics 6-24x50 Endurance 30 WA SF Riflescope (LRC Illuminated Reticle, Matte Black) - CR2032 Battery
- 2 x Lens Covers
- 4" Sunshade
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 6-24x50 Endurance 30 WA SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 16362 Specs | | | Magnification | 6 to 24x | | Objective Lens Diameter | 50 mm | | Field of View | 6x: 20.7' @ 100 yd / 6.9 m @ 100 m
24x: 5.1' @ 100 yd / 1.7 m @ 100 m | | Exit Pupil Diameter | 6x: 8 mm
24x: 2 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | LRC Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 75 MOA | | Elevation Adjustment | 75 MOA | | Parallax Correction | Yes, 15 yd / 13.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.5" / 36.9 cm | | Weight | 19.7 oz / 644 g | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 20.2 x 3.8 x 3.1" |
