User Manual for Hawke Sport Optics 6-24x50 Vantage 30 WA SF Riflescope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 6-24x50 Vantage 30
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
 |
User manual for the Hawke Sport Optics 6-24x50 Vantage 30 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|

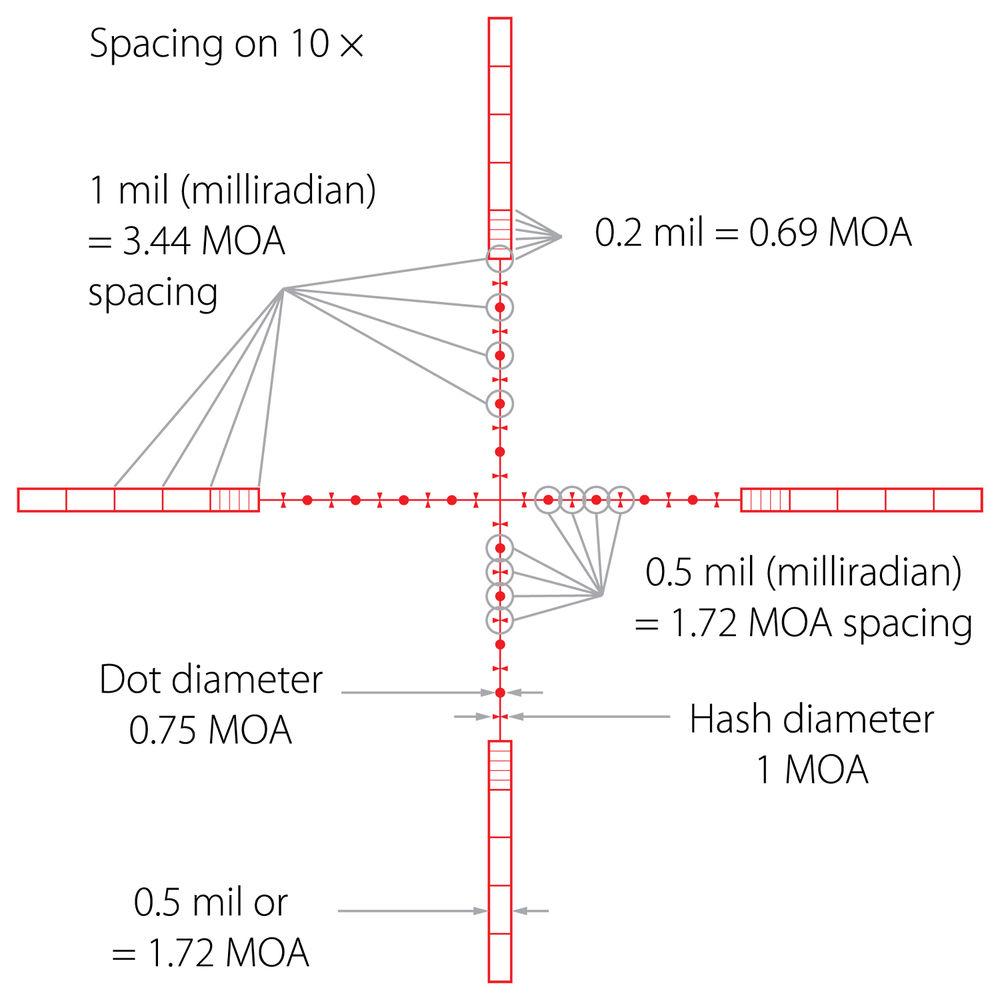

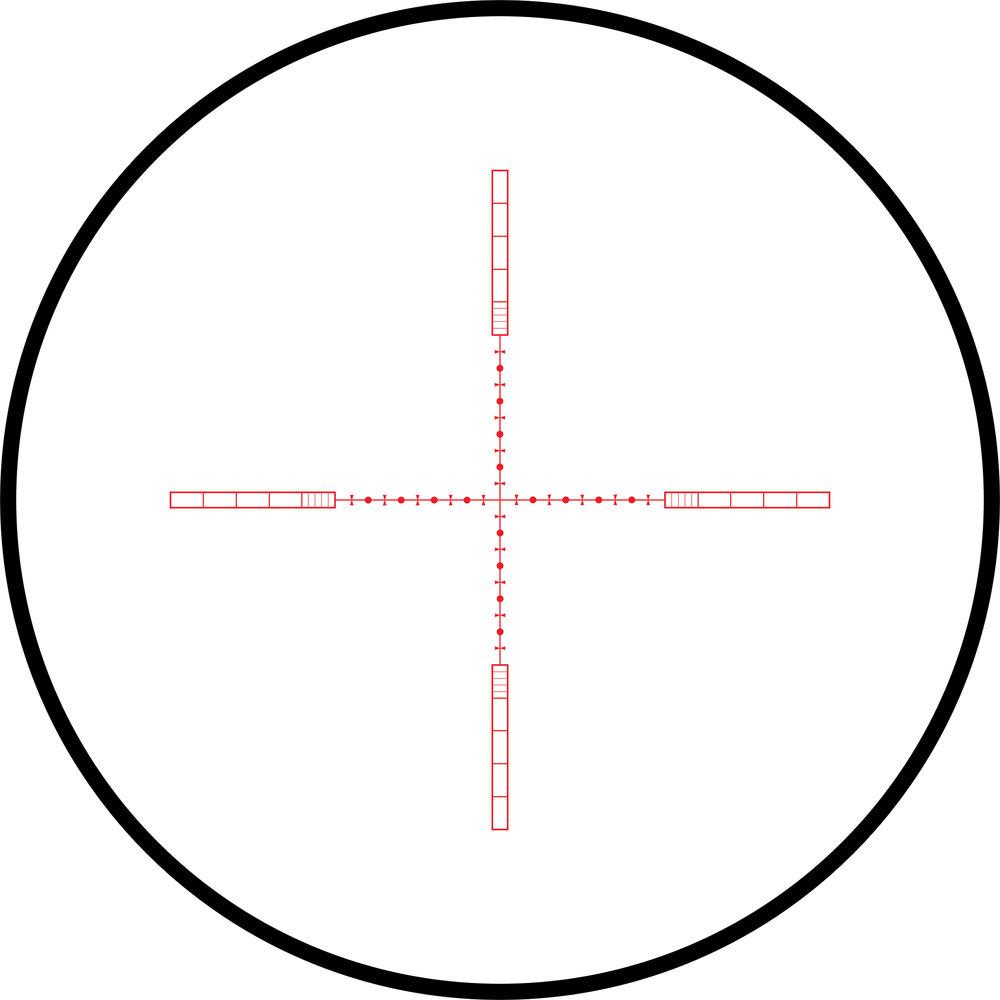

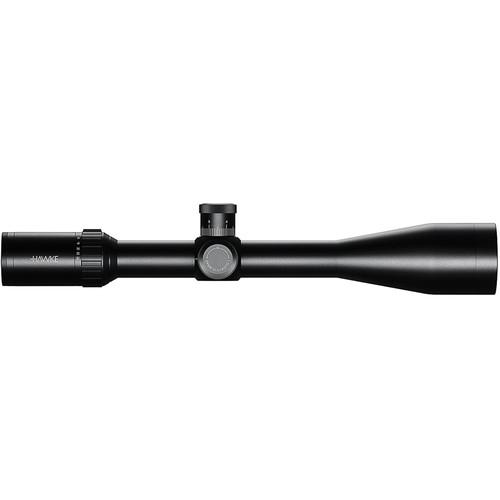

Product description See a sharp image even at dawn and dusk with the Hawke 6-24x50 Vantage 30 WA SF Riflescope. This optic's large objective lens admits a great deal of light for a bright image even in low-light conditions, and its 11 layers of anti-reflection coatings on all lens surfaces deliver a sharp image with ample contrast. Designated WA for its wide-angle field of view (20.7-5.4' at 100 yards), the scope features a strong, single-piece 30mm maintube with 20 MRAD of elevation and windage adjustment at 1/10 MRAD per click for long-distance shots. The glass-etched 1/2 Mil Dot reticle in the second (rear) focal plane features alternating dots and hashes at half-MRAD spacing in the crosshairs, hollow bars with 1-MRAD marks, and five red or green brightness levels. A side-mounted control allows you to correct for parallax from 10 yards to infinity. The aluminum housing is purged with nitrogen and sealed for water and fogproof performance. - Optical Performance
-
- 6-24x zoom range
- 50mm objective lens is suitable for most lighting conditions
- 11 layers of anti-reflection coatings on all lens aurfaces
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 6-24x50 Vantage 30 WA SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 14297 Specs | | | Magnification | 6 to 24x | | Objective Lens Diameter | 50 mm | | Field of View | 6x: 20.7' @ 100 yd / 6.9 m @ 100 m
24x: 5.4' @ 100 yd / 1.8 m @ 100 m | | Exit Pupil Diameter | 6x: 8 mm

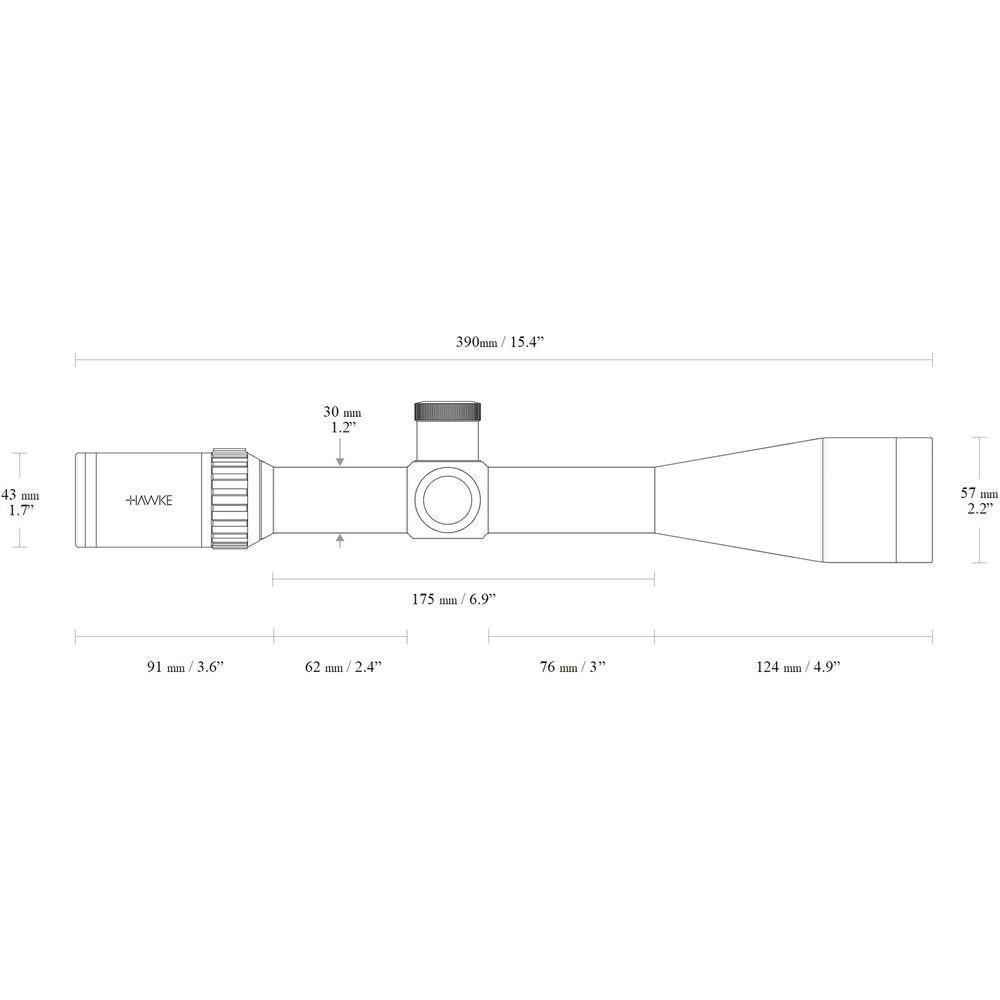

24x: 2 mm | | Eye Relief | 3.5" / 88.9 mm | | | | Reticle Type | 1/2 Mil Dot Reticle (Second Focal Plane) | | Illuminated Color | Green, Red | | Brightness Settings | Adjustable Brightness (5 Levels) | | | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 20 MRAD | | Elevation Adjustment | 20 MRAD | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 15.4" / 39.1 cm | | Weight | 26.3 oz / 746 g |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
