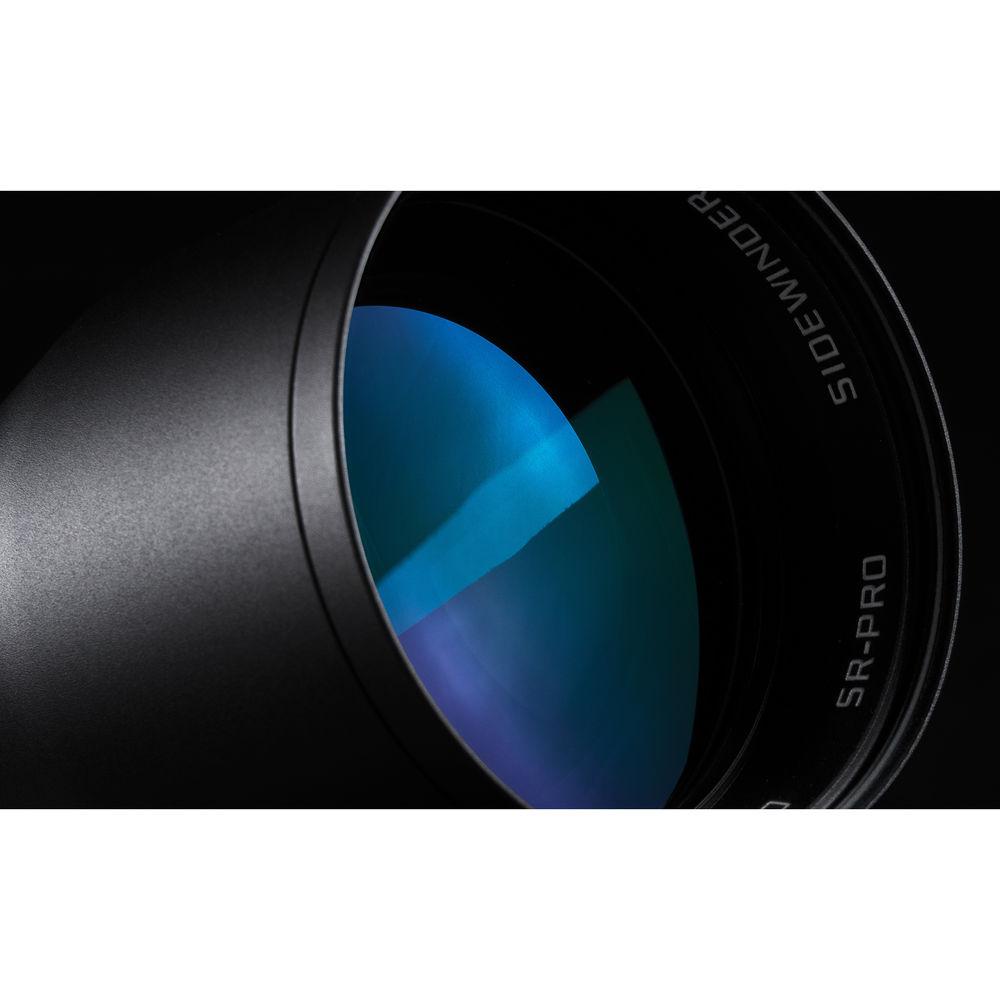

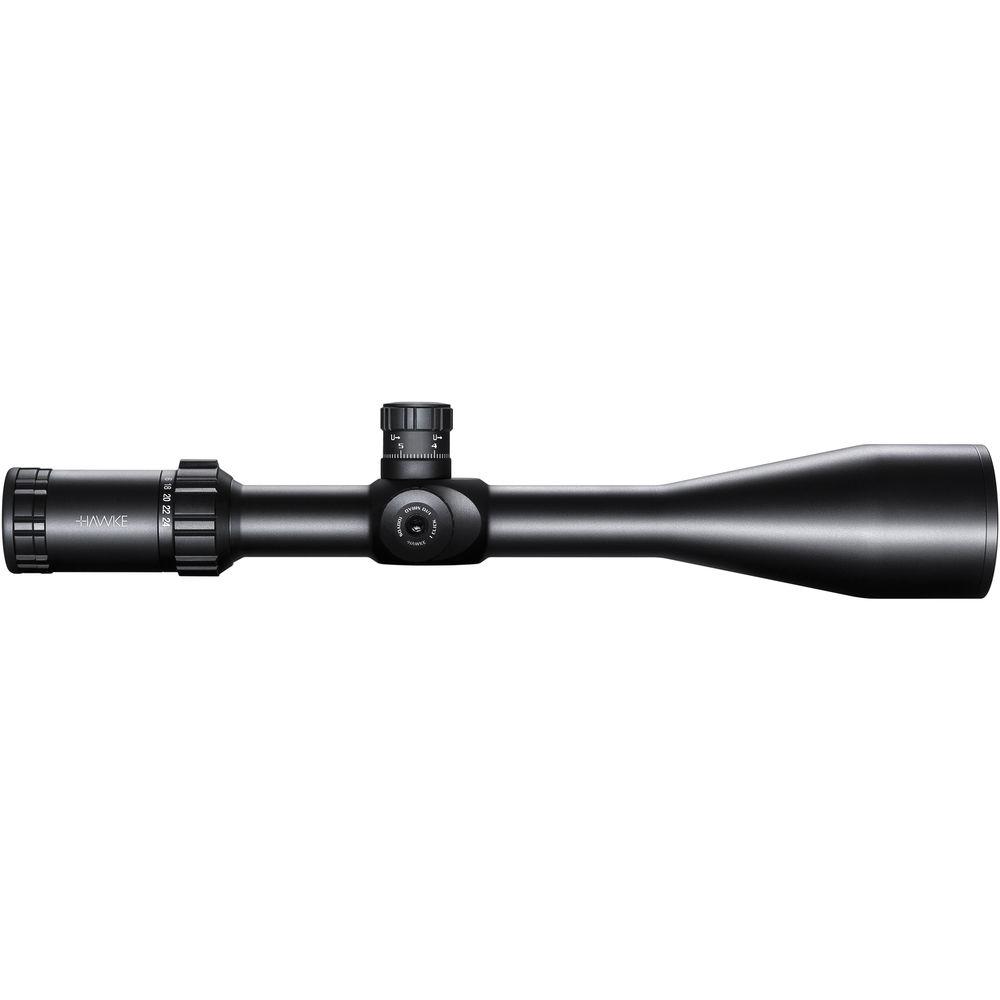

Product description Designed to satisfy long-range shooting requirements, the Hawke 6-24x56 Sidewinder FFP Riflescope does so by delivering strength, optical precision, and ease of adjustments. The optical system features precision-ground lenses with 18 layers of anti-reflection full multi-coatings. For exceptional image clarity, free of ghost images and stray light, the interior of the housing is covered with a special black finish that absorbs stray light. The scope also has a wide 50mm objective to maximize brightness and visibility in challenging lighting conditions. Another highlight is the first focal plane illuminated Mil reticle, whose fine features allow precise aiming without covering the background. It offers four hollow posts, a red and green illuminated milling crosshair, and a cascading grid of crosses for ballistic and wind compensation. The scope also has a side focus parallax corrector for parallax-free aiming from 10 yards to infinity.
To match the optical design, this riflescope is outfitted with strong and lightweight housing and ergonomic adjustments. While its strength comes from a single-piece machined 30mm maintube, the ergonomics and ease of adjustments stem from over-engineered knurled (locking and resettable) turrets and an eyepiece ring. The interior of the scope is purged with dry nitrogen and sealed for water and fogproof performance. The scope also ships with a pair of flip-up lens caps, one CR2032 battery, a 4" sunshade, a pointer, and a wide 4" parallax knob wheel. - Optical Performance
-
- 6-24x zoom range
- 56mm objective lens for extremely low-light conditions
- Precision-ground lenses
- 18-layer anti-reflection fully multi-coated optics
- Black internal tube coating absorbs stray light
- 15.7-4.5' field of view at 100 yards
- 9-2mm exit pupil
- 3.5" eye relief
- Use and Handling
-
- 1/10 MIL impact point correction
- 18 MIL windage and elevation

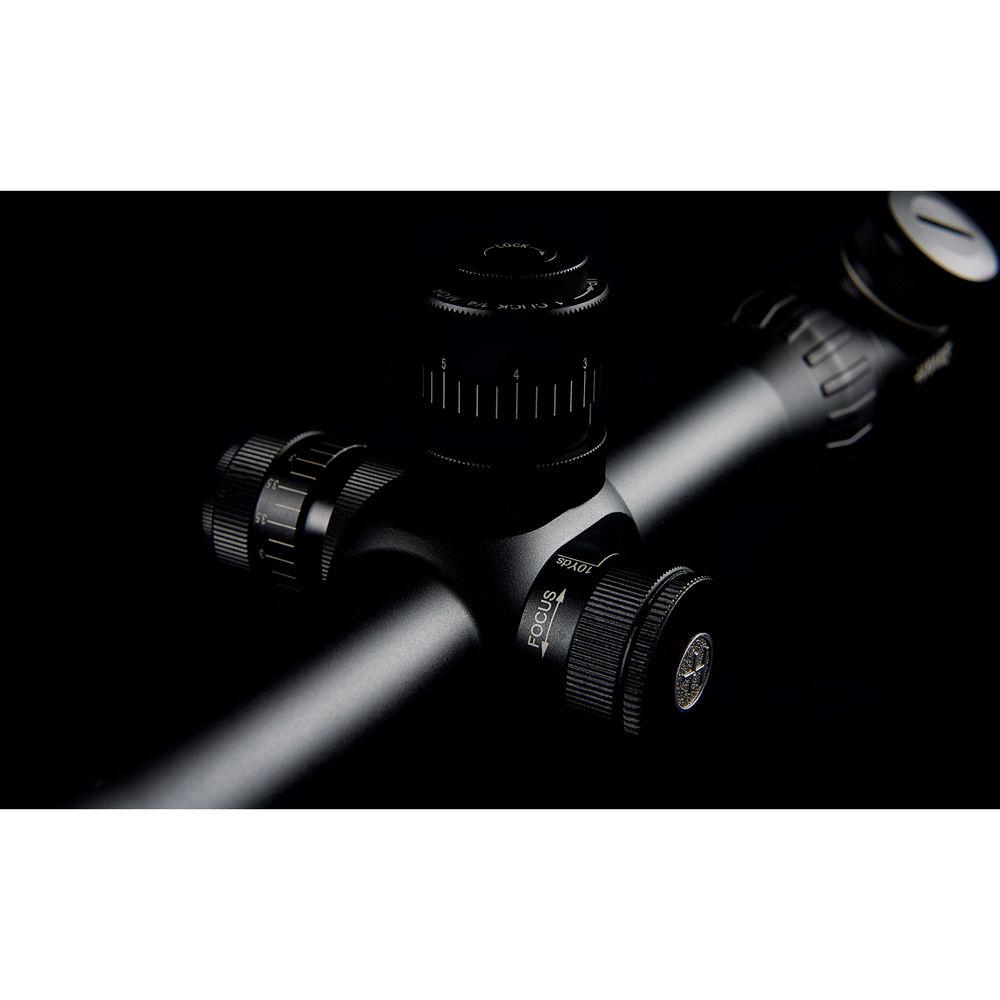

- Parallax-free from 10 yards to infinity
- Construction Details
-
- CNC-machined aluminum construction
- Scratch-resistant anodized finish
- 30mm one-piece maintube
- Threaded objective bezel

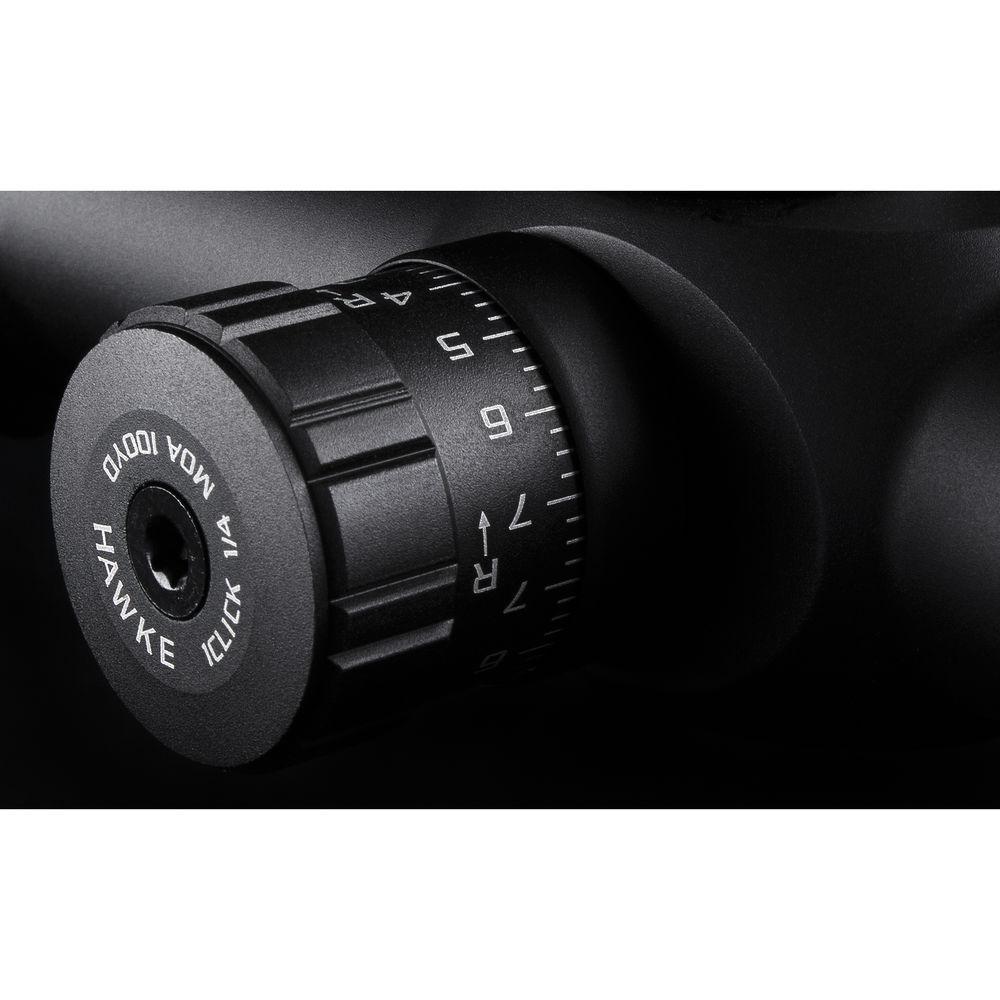

- Finger-operated locking resettable turrets
- Locking fast focus eyepiece
- High-torque zoom ring

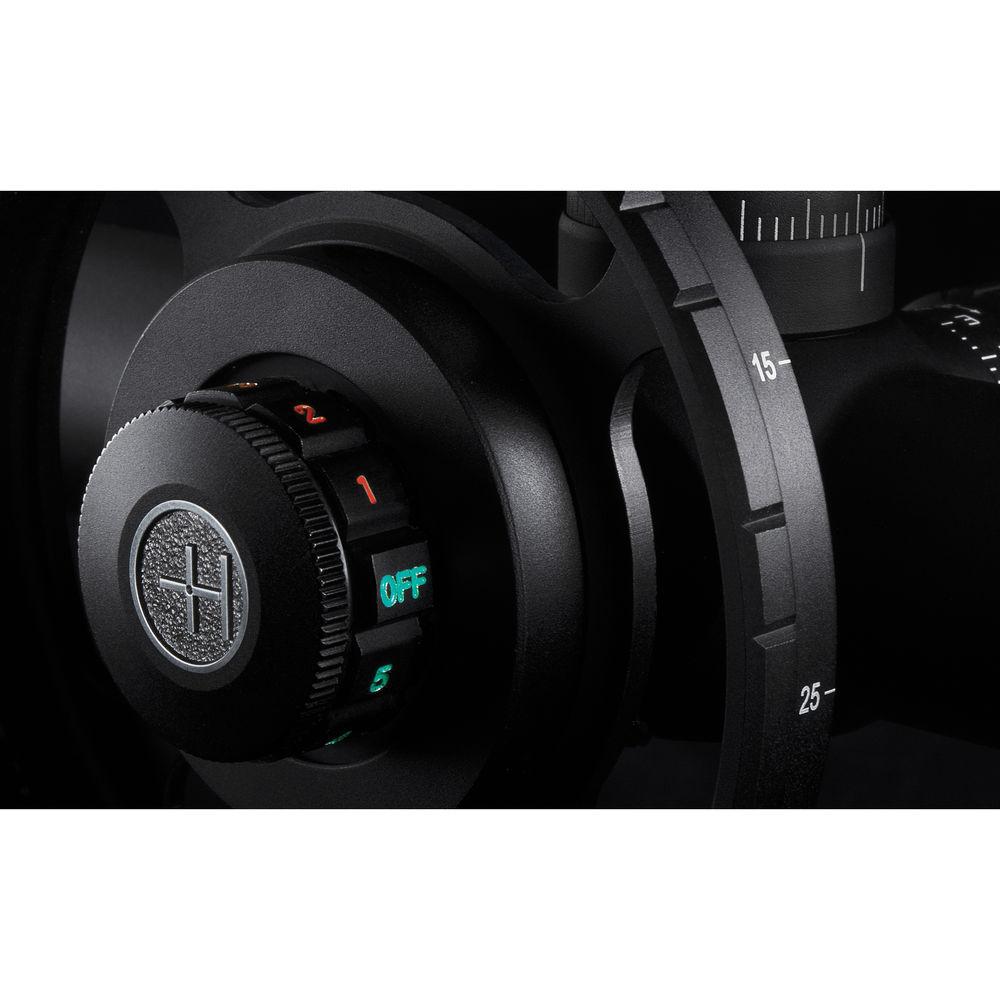

- 4" parallax wheel included
- 4" sunshade included
- Water and fogproof
- Impact resistant
- Mil Illuminated Reticle
-
- First focal plane
- Four hollow posts
- Milling red and green illuminated crosshair
- Cascading grid of crosses for ballistic and wind compensation
In the Box Hawke Sport Optics 6-24x56 Sidewinder FFP Riflescope (Red & Green Mil Illuminated Reticle, Matte Black) - 4" Side Wheel
- 4" Sunshade
- 2 x Flip-Up Lens Covers

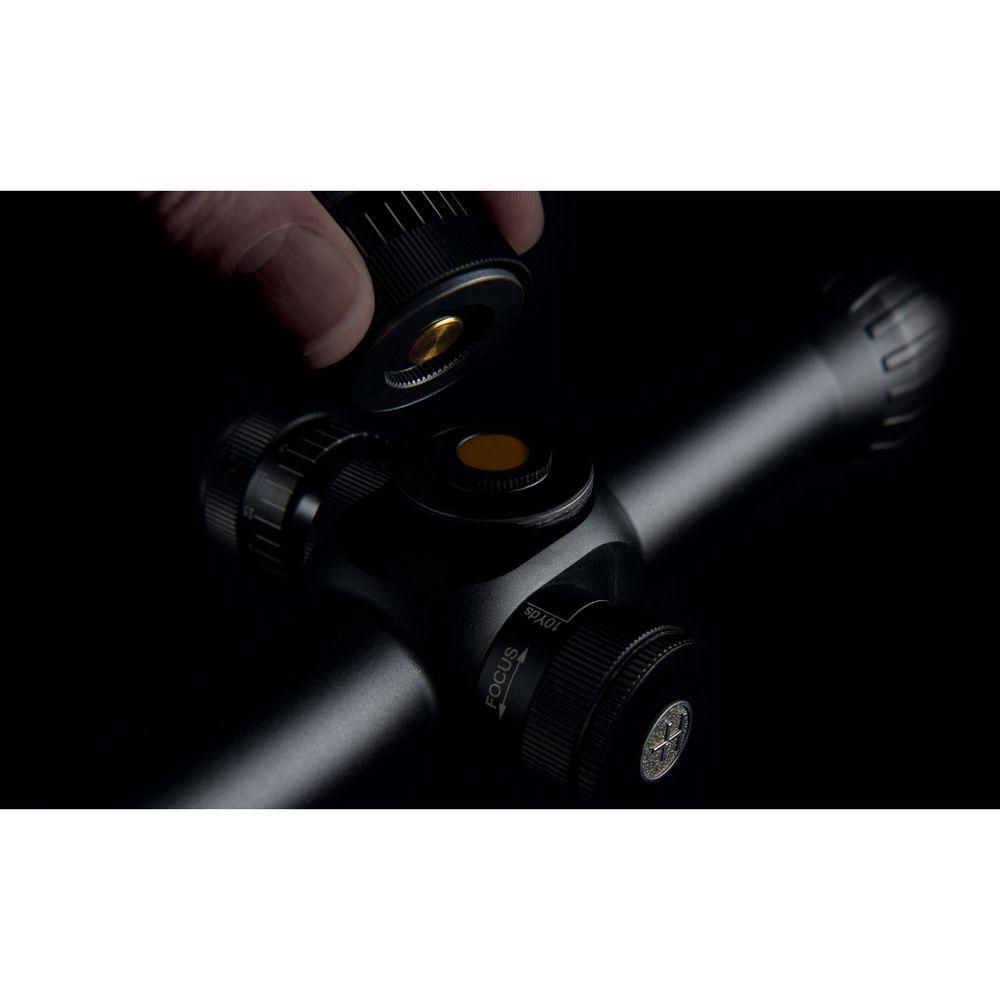

- CR2032 Battery
- Pointer
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 6-24x56 Sidewinder FFP Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 17420 Specs | | | Magnification | 6 to 24x | | Objective Lens Diameter | 56 mm | | Field of View | 6x: 15.7' @ 100 yd / 5.2 m @ 100 m
24x: 4.5' @ 100 yd / 1.5 m @ 100 m | | Exit Pupil Diameter | 6x: 9 mm
24x: 2 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | MIL Reticle (First Focal Plane) | | | | Impact Point Correction | 1/10 MIL per Click | | Windage Adjustment | 18 MIL | | Elevation Adjustment | 18 MIL | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 15.9" / 40.4 cm | | Weight | 32.2 oz / 910 g | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 22.2 x 8.7 x 3.7" |
