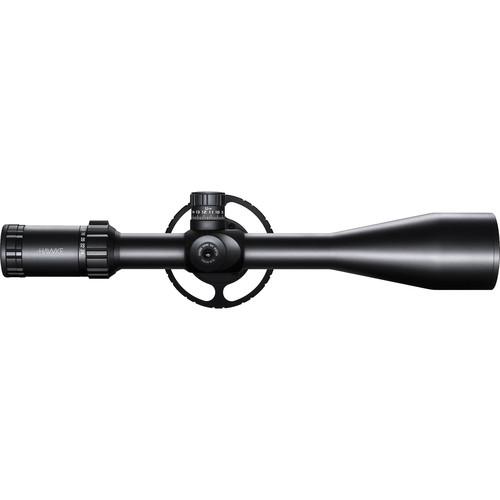

User Manual for Hawke Sport Optics 6-24x56 Sidewinder Riflescope SR Pro Illuminated Reticle Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 6-24x56 Sidewinder Riflescope
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
 |
User manual for the Hawke Sport Optics 6-24x56 Sidewinder Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|

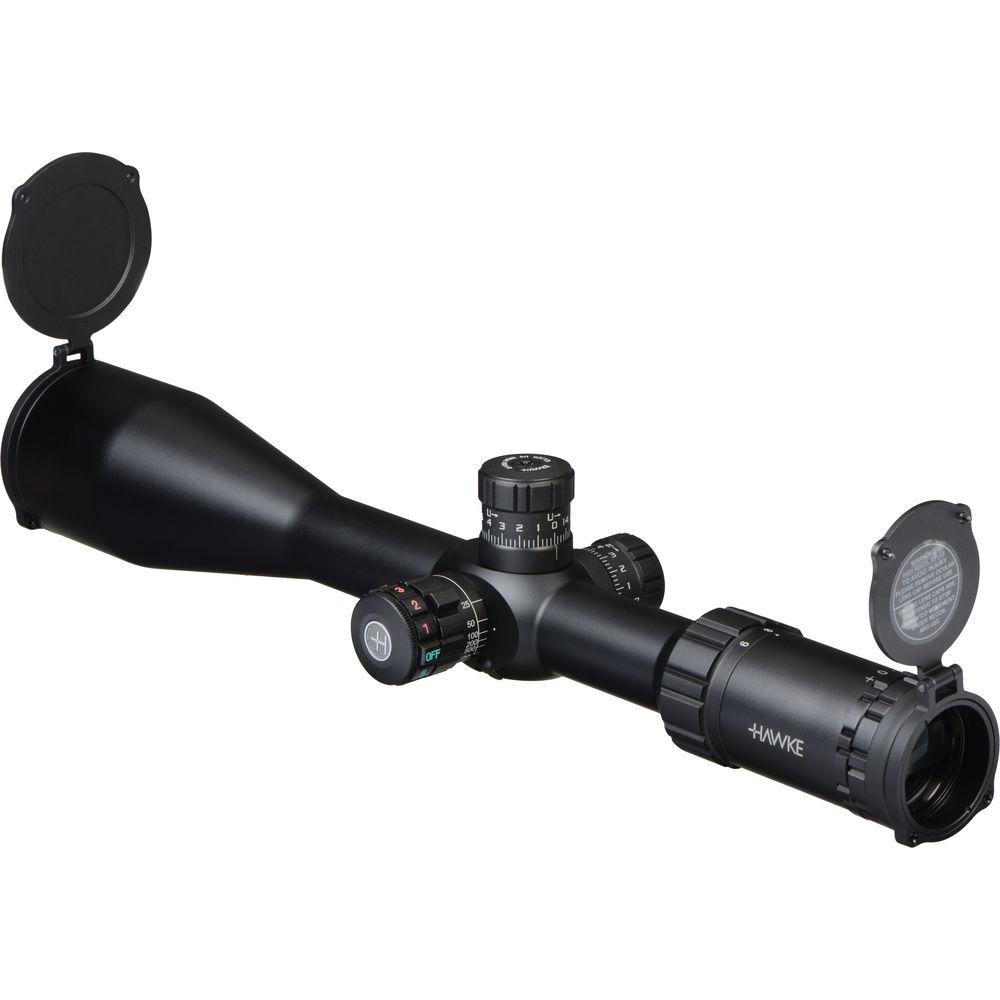

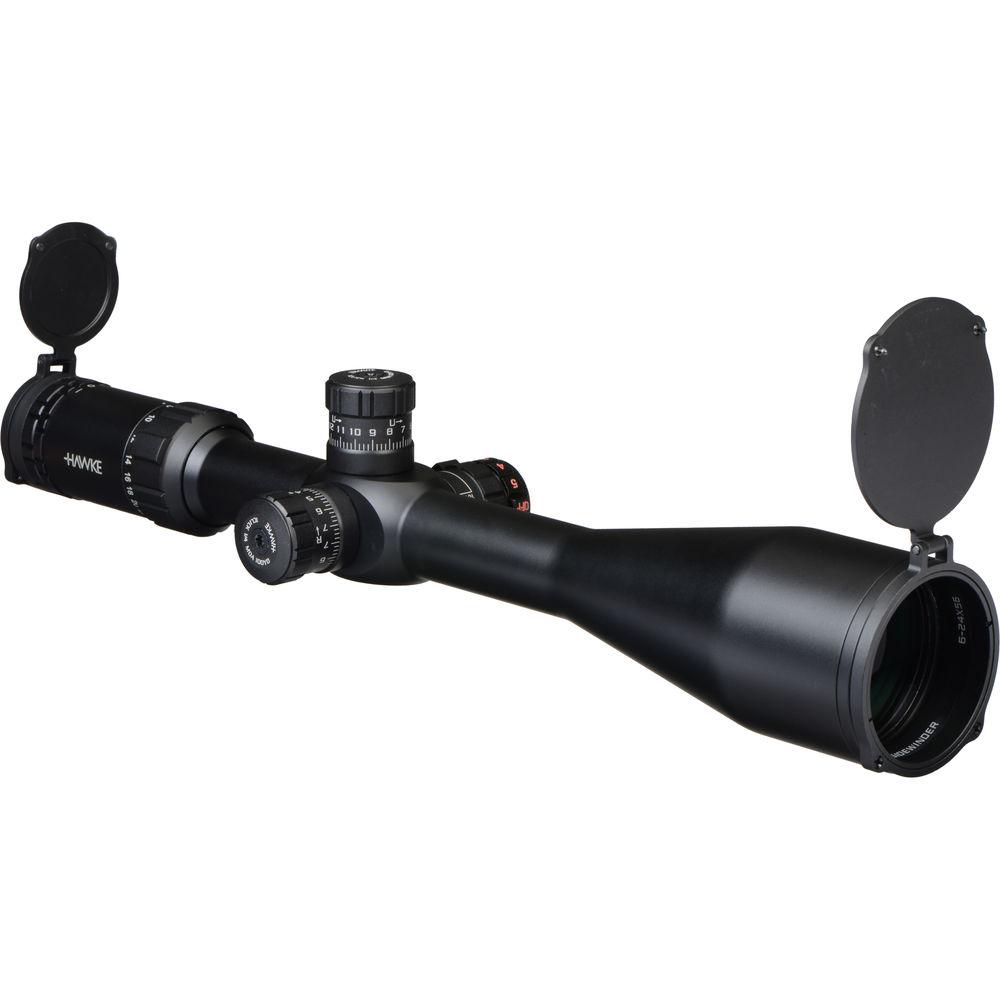

Product description Designed for long-range use with exceptional low-light capabilities, the Hawke Sport Optics 6-24x56 +Sidewinder Riflescope boasts a wide and powerful zoom range that brings subjects in close while preserving a wider field of view and exit pupil, especially at max magnification, versus models with higher zooms. Its partially-illuminated reticle can be displayed in either red or green with five intensity levels for each color to give you the ability to customize the reticle to your preference or specific situation. The reticle is glass-etched so it will not only resist fading and shifting over time. Compatible with Hawke's Ballistic Reticle Calculator, the reticle can be calibrated to your gun and round to make long-range shooting even more precise. This +Sidewinder is designed with a generous eye box to give you ample room for recoil when using the high-caliber rifles required for accurate long-distance shooting.Versus smaller objective scopes, the +Sidewinder’s 56mm objective and 18-layer anti-reflection, fully multi-coated optics draws in generous amounts of light. It provides you with bright and clear, high-contrast images during the pre-dawn and post-dusk hours when many game animals are most active, even if you have to stalk your prey through heavily canopied areas during those periods. A fast-focus collar, rubber-coated zoom ring, and knurled rheostat control, along with exposed turrets, allow you to quickly adapt to rapidly changing situations. Complementing the performance of the scope is a lightweight and durable anodized magnesium alloy housing with a robust 30mm one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof. To get the most out of the scope's long-range capabilities, a 4" screw-on sun shade is included to reduce glare and increase image quality, and a 4" removable side adjustment wheel can be installed on the parallax turret for precise adjustments even when wearing gloves. - Optical Performance
-
- 6-24x zoom range
- 56mm objective lens
- 18-layer anti-reflection fully multi-coated optics improve contrast, color rendition, and overall image brightness
- 14.8-4.4' field of 0view at 100 yards
- Reticle Details
-
- Modified duplex crosshair-style
- Thick hollow outer posts with stadia markers inside
- Thin broken center hairs isolates illuminated aiming cross
- Long dashes on lower vertical axis for ballistic drop compensation (BDC), ranging, target size estimation
- Sub-tension set at 8x magnification
- Illumination:
- Knurled Posi-Grip adjustment collar
- Five selectable brightness levels
- Choose between red and green colors
- Red is ideal for low-light conditions or in areas with green background where a green reticle can get lost
- Green is easier to see in bright daylight than red
- Glass-etched, illumination can be turned off for a completely black non-illuminated reticle
- Compatible with the Hawke Ballistic Reticle Calculator (BRC) system
- Customize the reticle performance for your specific crossbow and bolt combination
- Change Ballistic Coefficient
- Change zero distances, muzzle velocity, and magnification
- Plot your trajectory and find suitable aim points
- Print trajectory graphs, reticle images, and range finding calculations
- Free download for desktop use on the Hawke website
- Free Android / iOS / Windows mobile apps for smartphones and tablets
- Runs on one included CR2032 coin-cell battery
- Use and Handling
-
- Locking fast-focus collar
- High-torque zoom ring ensures the magnification doesn't change due to repeated recoils from high-caliber rifles
- 1/4 MOA per click impact point correction
- Broad 62 MOA windage and elevation adjustment range
- 15 MOA travel per rotation
- Side parallax turret, adjustable from 10 yards to infinity
- Exposed finger-adjustable turrets enable fast windage, elevation, and parallax adjustments
- Push-pull locking turrets, resettable to zero
- Removable 4" side wheel for faster and more precise parallax adjustment, even when wearing gloves
- 3.5" eye relief
- 9.3-2.3mm exit pupil
- Construction Details
-
- Sturdy 30mm one-piece maintube
- Lightweight and durable magnesium alloy housing
- Nitrogen-filled for water and fogproof performance
- Rated for use on most calibers and recoil-resistant
- Threaded ocular and objective for optional accessories
- Anodized aluminum flip-up front and rear lens covers
- 4" screw-on sun shade
- Length: 15.9 inches
- Weight: 29.8 ounces
In the Box Hawke Sport Optics 6-24x56 +Sidewinder Riflescope SR Pro Illuminated Reticle) Pointer Lens Cloth CR2032 Battery 4" Side Wheel Ocular Lens Cover Objective Lens Cover 4" Screw-On Sun Shade Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 6-24x56 Sidewinder Riflescope SR Pro Illuminated Reticle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 17221 Specs | | | Magnification | 6 to 24x | | Objective Lens Diameter | 56 mm | | Field of View | 6x: 14.8' @ 100 yd / 4.9 m @ 100 m
24x: 4.4' @ 100 yd / 1.5 m @ 100 m | | Exit Pupil Diameter | 6x: 9.3 mm
24x: 2.3 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | SR Pro Duplex Crosshair Reticle | | Illuminated Color | Green, Red | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 62 MOA | | Elevation Adjustment | 62 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 15.9" / 40.4 cm | | Weight | 29.8 oz / 844 g | | | | Package Weight | 4.05 lb | | Box Dimensions (LxWxH) | 18.7 x 6.9 x 3.8" |
