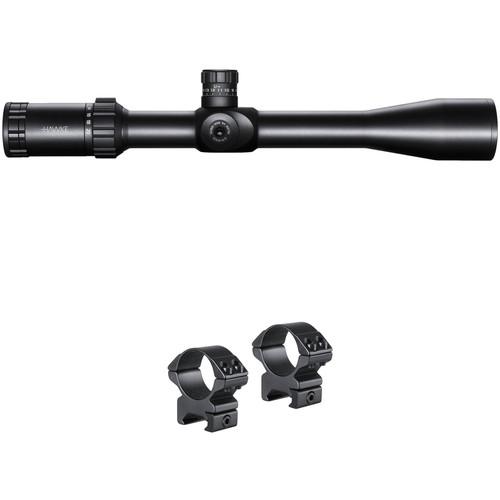

Hawke Sport Optics 6.5-20x42 Sidewinder Riflescope

User Manual for Hawke Sport Optics 6.5-20x42 Sidewinder Riflescope & Medium Match Ring Mounts Kit

• Product category: Riflescopes Hawke Sport Optics
• Brand: Hawke Sport Optics
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Hawke Sport Optics Riflescopes

Product description

• Hawke Sport Optics 6.5-20x42 Sidewinder Riflescope (20x 1/2 Mil Dot Illuminated Reticle) Designed for mid to long-range use, the Hawke Sport Optics 6.5-20x42 Sidewinder Riflescope boasts a wide and powerful zoom range and a side parallax turret with an adjustment range from 10 yards out to infinity. Its illuminated reticle can be displayed in either red or green with five intensity levels for each color to give you the ability to customize the reticle to your preference or specific situation. The reticle is glass-etched so it will not only resist fading and shifting over time, but will show as a conventional black reticle when the illumination is turned off. Compatible with Hawke's Ballistic Reticle Calculator, the reticle can be calibrated to your rifle and round to make shooting even more precise. This Sidewinder is designed with a generous eye box to give you ample room for recoil when using the high-caliber rifles required for accurate long-distance shooting.Versus smaller objective scopes, the Sidewinder’s 42mm objective and 18-layer anti-reflection, fully multi-coated optics draw in generous amounts of light. It provides you with bright and clear, high-contrast images during the pre-dawn and post-dusk hours when many game animals are most active, even if you have to stalk your prey through heavily canopied areas during those periods. A fast-focus collar, rubber-coated zoom ring, and knurled rheostat control, along with exposed turrets, allow you to quickly adapt to rapidly changing situations. Complementing the performance of the scope is a lightweight and durable anodized magnesium alloy housing with a robust 30mm one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof. To get the most out of the scope's long-range capabilities, a 4" screw-on sun shade is included to reduce glare and increase image quality, and a 2" removable side adjustment wheel can be installed on the parallax turret for precise adjustments even when wearing gloves.
  Optical Performance
  • • 6.5-20x zoom range
    • 42mm objective lens
    • 18-layer anti-reflection fully multi-coated optics improve contrast, color rendition, and overall image brightness
    • 16.8-5.5' field of view at 100 yards
  Reticle Details
  • • Duplex crosshair-style
      • Thick hollow outer posts
      • Thin center hairs with mil dots and stadia markers
      • 0.5 mil (1.72 MOA) spacing between dot and dash indicators
      • Markers can be used for hold-over/under, range estimation, target size estimation
    • Reticle sub-tension set at 20x
    • Illumination:
      • Knurled Posi-Grip adjustment collar
      • Five selectable brightness levels
      • Choose between red and green colors
      • Red is ideal for low-light conditions or in areas with green background where a green reticle can get lost
      • Green is easier to see in bright daylight than red
    • Glass-etched, illumination can be turned off for a completely black non-illuminated reticle
    • Compatible with the Hawke Ballistic Reticle Calculator (BRC) system
      • Customize the reticle performance for your specific crossbow and bolt combination
      • Change Ballistic Coefficient
      • Change zero distances, muzzle velocity, and magnification
      • Plot your trajectory and find suitable aim points
      • Print trajectory graphs, reticle images, and range finding calculations
      • Free download for desktop use on the Hawke website
      • Free Android / iOS / Windows mobile apps for smartphones and tablets
    • Runs on one included CR2032 coin-cell battery
  Use and Handling
  • • Locking fast-focus collar
    • High-torque zoom ring ensures the magnification doesn't change due to repeated recoils from high-caliber rifles
    • 1/4 MOA per click impact point correction
    • Broad 80 MOA windage and elevation adjustment range
    • 15 MOA travel per rotation
    • Side parallax turret, adjustable from 10 yards to infinity
    • Exposed finger-adjustable turrets enable fast windage, elevation, and parallax adjustments
    • Push-pull locking turrets, resettable to zero
    • Removable 2" side wheel for faster and more precise parallax adjustment, even when wearing gloves
    • 3.5" eye relief
    • 6.5-2.1mm exit pupil
  Construction Details
  • • Sturdy 30mm one-piece maintube
    • Lightweight and durable magnesium alloy housing
    • Nitrogen-filled for water and fogproof performance
    • Rated for use on most calibers and recoil-resistant
    • Threaded ocular and objective for optional accessories
    • Anodized aluminum flip-up front and rear lens covers
    • 4" screw-on sun shade
    • Length: 15.4 inches
    • Weight: 26 ounces
• Hawke Sport Optics 2-Piece Match Mount for Weaver Rails (30mm, Aluminum, Medium, Matte Black) Designed to attach riflescopes with a 30mm maintube to a Weaver mounting system, this Match Mount from Hawke Sport Optics features a two-piece anodized aluminum alloy design along with a medium profile that positions the center of the scope 1.2" above the mount. The scope is secured in place with double hex screws and internal cushion tape prevents marking or damage to the scope's exterior. A crossbar is also integrated into the design for additional mounting security during use.

• 6.5-20x42 Sidewinder Riflescope (20x 1/2 Mil Dot Illuminated Reticle) vcfafvfwscwvuzrsdsaftaesbwbwdrzwvzfaer
• Pointer
• Lens Cloth
• CR2032 Battery
• 2" Side Wheel
• Ocular Lens Cover
• Objective Lens Cover
• 4" Screw-On Sun Shade
• Limited Lifetime Warranty

• 2-Piece Match Mount for Weaver Rails (30mm, Aluminum, Medium, Matte Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Hawke Sport Optics 6.5-20x42 Sidewinder Riflescope (20x 1/2 Mil Dot Illuminated Reticle)

  Magnification	6.5 to 20x
  Objective Lens Diameter	42 mm
  Field of View	6x: 16.8' @ 100 yd / 5.6 m @ 100 m 24x: 5.5' @ 100 yd / 1.8 m @ 100 m
  Exit Pupil Diameter	5x: 6.5 mm 20x: 2.1 mm
  Eye Relief	3.5" / 89 mm

  Reticle Type	1/2 MIL Dot Duplex Crosshair Reticle (Second Focal Plane)
  Illumination	Illuminated
  Illuminated Color	Green, Red

  Impact Point Correction	1/4 MOA per Click
  Windage Adjustment	80 MOA
  Elevation Adjustment	80 MOA
  Parallax Correction	Yes, 10 yd / 9.1 m to Infinity

  Water Resistance	Waterproof
  Fogproof	Yes, Nitrogen Filled

  Maintube Diameter	30 mm
  Battery	1 x CR2032
  Dimensions	Length: 15.4" / 39.1 cm
  Weight	26 oz / 738 g

  Box Dimensions (LxWxH)	17.05 x 6.9 x 3.7"

• Hawke Sport Optics 2-Piece Match Mount for Weaver Rails (30mm, Aluminum, Medium, Matte Black)

  Maintube Diameter	30 mm
  Mounting System	Weaver
  Cap Screws	Two double hex screws per ring
  Construction	Matte black anodized aluminum alloy
  Dimensions	1.8 x 0.8 x 1.9" / 47 x 21 x 48 mm (per ring)
  Weight	2.9 oz / 82 g

  Box Dimensions (LxWxH)	7.0 x 4.8 x 1.0"
