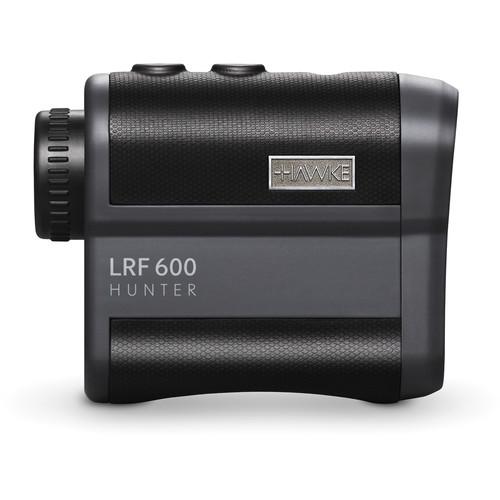

User Manual for Hawke Sport Optics 6x21 Hunter 600 Laser Rangefinder Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 6x21 Hunter 600
- Product category: Laser Rangefinders Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Laser Rangefinders
|
User manual for the Hawke Sport Optics 6x21 Hunter 600 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|
Product description Hawke Optics' black 6x21 Hunter 600 Laser Rangefinder combines a Class 1 eye-safe IR laser with a useful multi-coated monocular to create an effective and waterproof ranging system that will be a valuable addition to your hunting kit. With a metering range of 656 yards, a wide 420' field of view and a ranging accuracy of ±1 yard, the rangefinder features spot and continuous ranging – take a reading on a stationary object, or hold the button down and scan the distance to numerous points. Rain and Hunt modes are used to improve accuracy in inclement weather or tall grass and brush, respectively. The intuitive two-button/one-handed operation enables quick activation and operation while allowing you keep hold of your bow or rifle. The Hunter is powered by an included CR2 battery and comes with a wrist strap and carrying case. - Optical Performance
-
- 6x magnification
- 21mm objective lens
- BK7 roof prism
- Anti-reflection multi-coated optics help to improve light transmission, color, contrast, and brightness
- 420' field of view at 1000 yards
- Comfortable 12mm eye relief
- 3.5mm exit pupil
- Rangefinder
-
- Class 1 eye-safe IR laser
- 7-656' (6.5-600m) metering range
- ±1 yard/meter accuracy
- Measures distance in yards or meters
- Spot mode ranges to single, stationary target
- Scan mode ranges continuously ranges to multiple targets or single moving target
- Reticle: Short crosshair with center aiming circle
- Runs on one included 3V CR2 battery
Usage modes:- Standard: Line-of-sight straight linear distance
- Rain: Line-of sight distance, but ignores rain drops to prevent bad metering. Target distance must be more than 33yards (30m) away
- Hunt: Line-of-sight distance, but ignores interference from objects like tall grass or bushes
- Use and Handling
-
- In-view LCD display shows reticle, range, targeting mode, targeting quality indicator, laser emission signal, low battery indicator
- Easy focus mechanism with dioptric focus for in-view display
- Intuitive two-button control
- Auto shut-off after 15 seconds of non-use to conserve battery power
- Construction Details
-
- Lightweight plastic housing
- Textured rubberized armor provides a slip-resistant grip
- Nitrogen-filled and O-ring sealed for water and fogproof performance in all weather
- Operating temperature: 14 to 104°F (-10 to 40°C)
- Lightweight: 5-ounces
In the Box Hawke Sport Optics 6x21 Hunter 600 Laser Rangefinder (Black) Lens Cloth CR2 Battery Wrist Strap Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 6x21 Hunter 600 Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 41001 Specs Prism Type | Roof | Magnification | 6x | Objective Lens Diameter | 21mm | Field of View | 420' @ 1000 yd / 140 m @ 1000 m | Laser Type | Class 1 eye-safe IR | Metering Range | 7.0 - 656.0 yd / 6.4 - 600.0 m | Accuracy | ±1 yd/m | Exit Pupil Diameter | 3.5 | Eye Relief | 12.0 mm | Weatherproofing | Nitrogen-filled, water and fogproof | Tripod Socket | None | Power Source | 1 x CR2 battery | Dimensions | 3.8 x 3.0 x 1.7" / 9.6 x 7.7 x 4.2 cm | Weight | 5.0 oz / 141.0 g |
