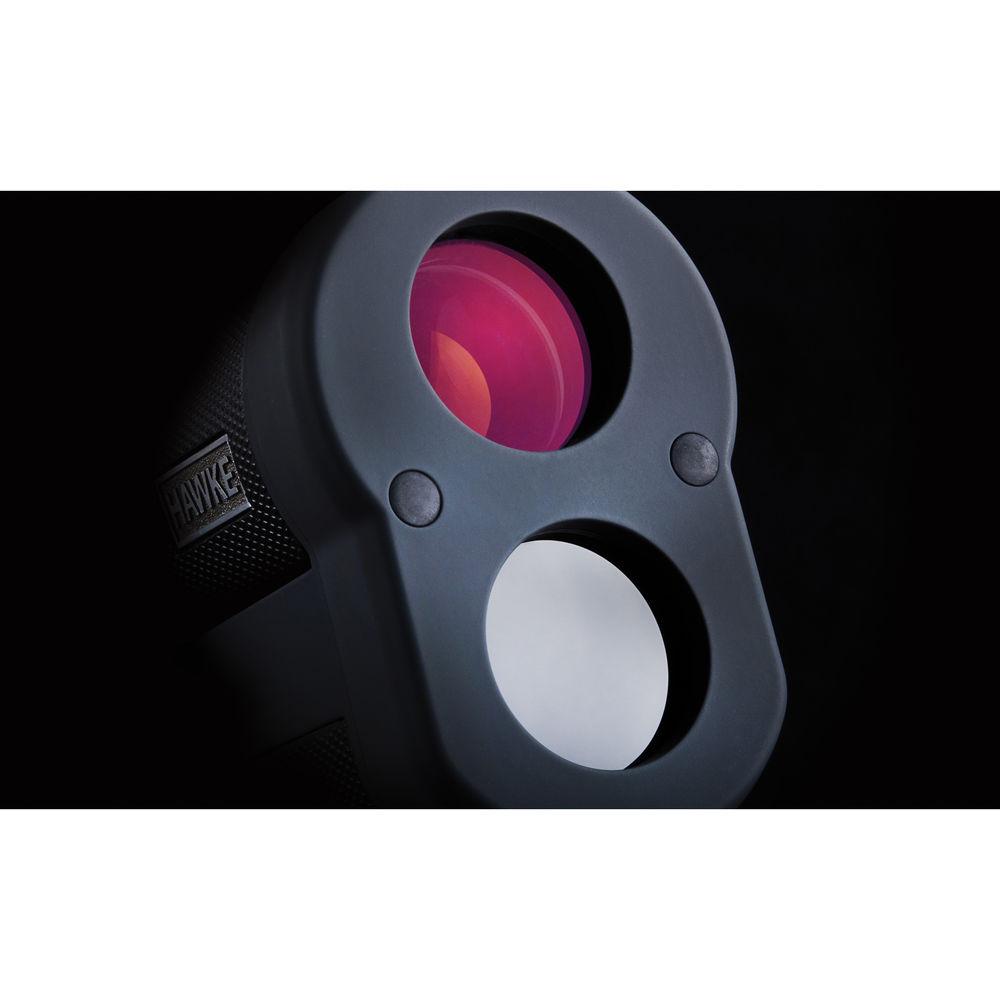

Product description With the Hawke Optics 6x25 Pro 400 Laser Rangefinder, you get more than just range — you learn the angle to your target, its height, and even its height compared to another object. This rangefinder is a 6x25 monocular with a wide field of view that brings distant details close for accurate target acquisition and tracking, and is equipped with a Class 1 eye-safe IR laser that can range from 7-437 yards (6.5-400 meters) with one-yard accuracy. Beyond showing horizontal distance, the rangefinder can tell you how tall a target is, show the vertical distance between two points, and indicate the angle from your position to the target. Hunters in particular will appreciate knowing the angle, since shooting uphill or downhill can have a significant impact on a bullet's trajectory. Compensating for angle helps determine the correct holdover for the shot. Optical features include fully multi-coated lenses and BK7 prisms for optimal light transmission and a bright, sharp image. The twist-up eyecup makes for comfortable use when wearing glasses, and there's an adjustable diopter to fine-tune the focus. The Pro is powered by a single, included CR2 battery and comes with a wrist strap and carrying case. - Optical Performance
-
- 6x magnification
- 25mm objective lens
- BK7 roof prism
- Anti-reflection fully multi-coated optics help to improve light transmission, color, contrast, and brightness
- 366' field of view at 1000 yards
- Comfortable 12mm eye relief
- Wide 4.2mm exit pupil
- Rangefinder
-
- Class 1 eye-safe IR laser
- 7-437' (6.5-400m) metering range
- ±1 yard/meter accuracy
- Measures distance in Yard or Meter
- Measures relative angle to target, ±90°
- Spot mode ranges to single, stationary target
- Scan mode ranges continuously ranges to multiple targets or single moving target
- Reticle: Short crosshair with center aiming circle
- Runs on one included 3V CR2 battery
Ranging modes:- Standard: Line-of-sight straight linear distance
- Beeline: Only measures the horizontal distance to the target
- Angle: Measures the relative angle to a target to half a degree
- Height: Displays the height of a target in relation to the user
- Height difference: Displays vertical distance between two points
- Use and Handling
-

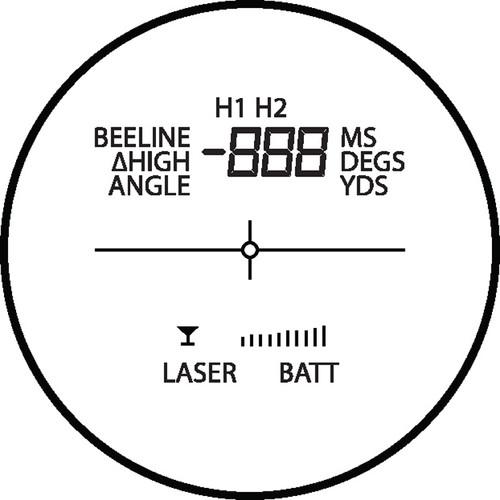

- In-view LCD display shows Reticle, Range, Targeting mode, Targeting quality indicator, Laser emission signal, Low battery indicator, Units (Yards, Meters, Degrees)
- Easy focus mechanism with dioptric focus for in-view display

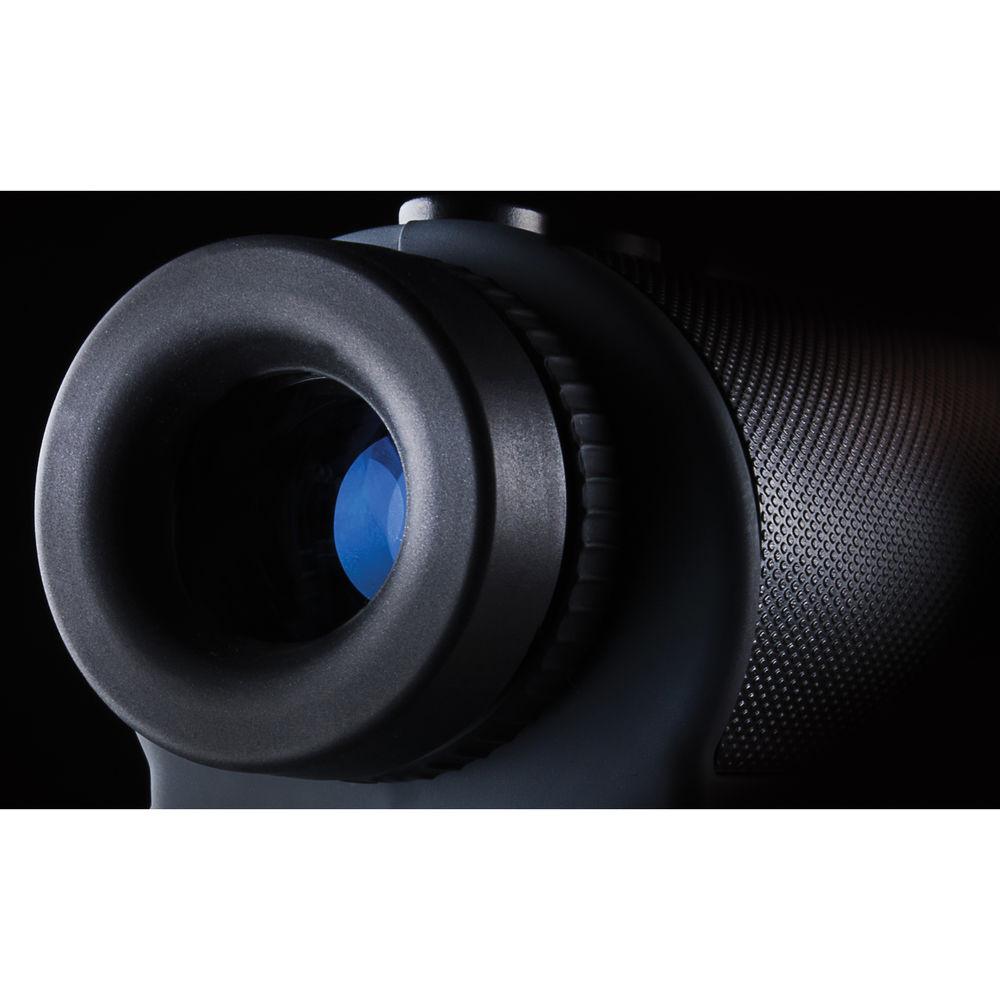

- Twist-up rubber eyecup for comfortable use with or without eyewear

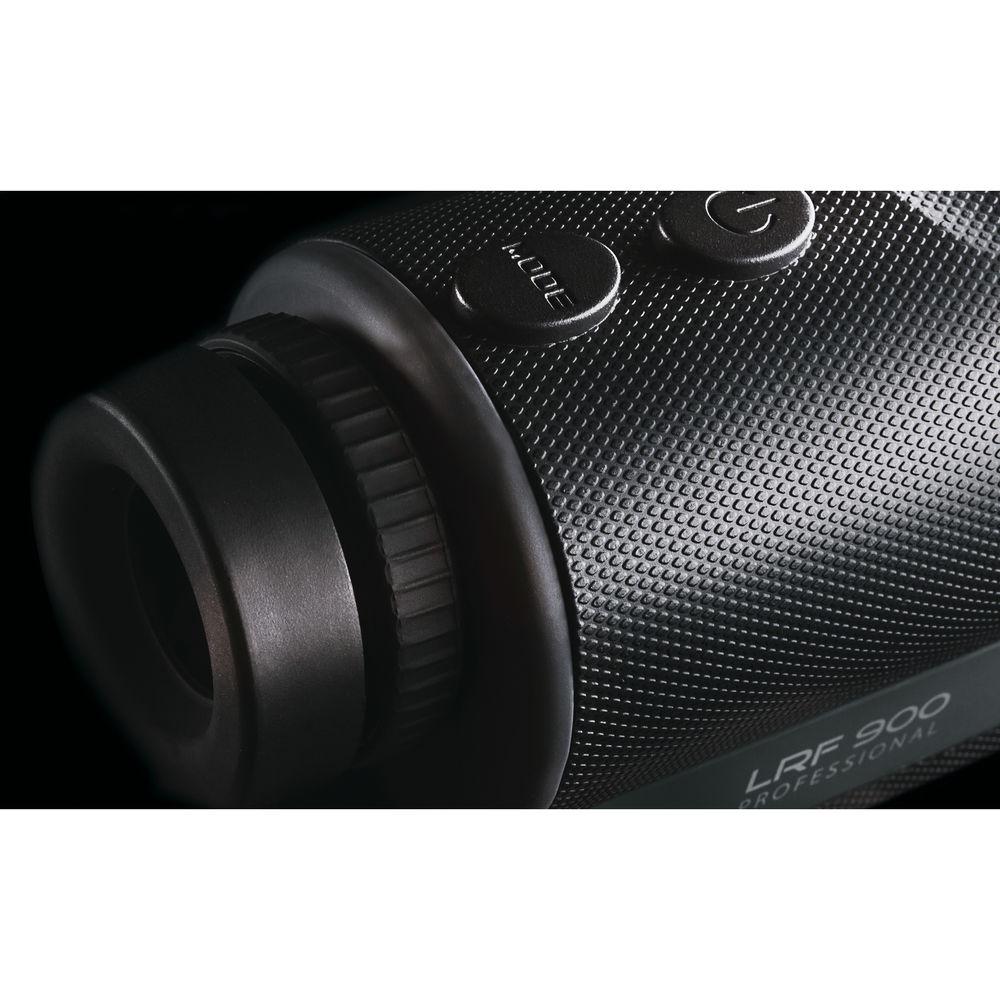

- Intuitive two-button control
- Auto-shut off after 15 seconds of non-use to conserve battery power
- Construction Details
-
- Lightweight, plastic housing
- Textured, rubberized armor provides a slip-resistant grip
- Nitrogen-filled and O-ring sealed for water and fogproof performance in all weather
- Operating temperature: -4 - 104°F (-20 - 40°C)
- Lightweight: 6.3 ounces
In the Box Hawke Sport Optics 6x25 Pro 400 Laser Rangefinder (Black) Lens Cloth CR2 Battery Wrist Strap Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 6x25 Pro 400 Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 41100 Specs | Prism Type | Roof | | Magnification | 6x | | Objective Lens Diameter | 25mm | | Field of View | 366' @ 1000 yd / 122 m @ 1000 m | | Laser Type | Class 1 eye-safe IR | | Metering Range | 7.0 - 437.0 yd / 6.4 - 400.0 m | | Accuracy | ±1 yd/m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 12.0 mm | | Weatherproofing | Nitrogen-filled, water and fogproof | | Tripod Socket | None | | Power Source | 1 x CR2 battery | | Dimensions | 4.6 x 2.9 x 2.0" / 11.8 x 7.4 x 5.1 cm | | Weight | 6.3 oz / 178.6 g | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 6.6 x 5.2 x 3.2" |
