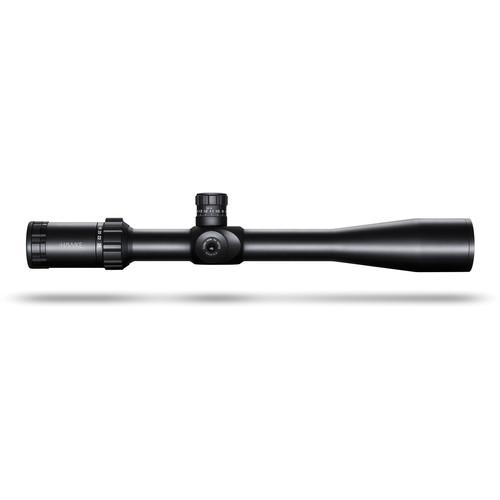

User Manual for Hawke Sport Optics 8-25x42 Sidewinder Riflescope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 8-25x42 Sidewinder Riflescope
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
|
User manual for the Hawke Sport Optics 8-25x42 Sidewinder Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|
Product description Hawke Sports Optics crafted the 8-25x42 Sidewinder Riflescope to address the needs of long-range precision tactical shooters. To emphasize its goals, Hawke outfitted the scope with the unobtrusive 20x ½ Mil Dot fully-illuminated reticle and a 42mm objective, which can provide bright images from dusk until dawn. The fully multi-coated optics offer 18 layers of anti-reflection coatings to further increase image resolution, clarity, and brightness. Located on the 2nd focal plane is an etched-on-glass 20x ½ Mil Dot fully-illuminated reticle. Its offers four short, hollow outer posts and a thin crosshair with major and minor marks evenly spaced at 0.5 mil. At the inside edges of the four outer posts, minor hollow bars are spaced at 0.2 mil to provide ranging capability. To make precise shots at a variety of ranges, you can easily correct the parallax from 10 yd to infinity with the side focus parallax knob. To help with compensating for wind and a ballistic bullet drop, the riflescope offers 70 MOA of windage and elevation adjustment range and a 1/4 MOA per click impact point correction.
The scope's ultra-lightweight and durable magnesium construction is centered around its 30mm single-piece maintube, which is filled with nitrogen for fogproof and waterproof performance. The overall design features a slender, unobtrusive shape with finger-operated, exposed turrets. To prevent recoil-related zoom shift, the fast-focus eyepiece is outfitted with a high-torque zoom ring. To keep your scope's lenses protected from debris, dust, and dirt while it is not used, flip-up lens covers are also included. Other included accessories are a lens cloth, one CR-2032 battery, and a screw-in sunshade. - Optical Performance
-
- 8.5-25x zoom range
- 42mm objective lens
- Fully multi-coated optics: 18 anti-reflection layers
- 12.7 - 3.9' field of view at 100 yards
- 20x 1/2 Mil Dot Illuminated Reticle
-
- 2nd focal plane
- Etched-on-glass, fully illuminated
- Four short and hollow outer posts
- Inside edges of outer posts have minor bars spaced at 0.2 mil for ranging
- Thin crosshair with dots and bow-ties evenly spaced at 0.5 mil
- Red or green illumination
- 5 brightness settings
- Use and Handling
-
- Fast-focus eyepiece
- Knurled high-torque rubber ring
- 1/4 MOA per click impact point correction
- 70 MOA windage and elevation ranges
- Side focus parallax correction: 10 yd to infinity
- Eye relief: 3.5"
- Exit pupil: 5.0 - 2.0mm
- Compatibility with Hawke Ballistic Reticle Calculator (BRC)
-
- Downloadable free Hawke BRC software and mobile apps for Android / iOS / Windows allow you to:
- Customize the reticle performance
- Change Ballistic Coefficient (BC)
- Change zero distances, muzzle velocity, and magnification
- Plot your trajectory and find suitable aim points
- Print trajectory graphs, reticle images, and range calculations
- Construction Details
-
- 30mm one-piece maintube
- Lightweight aluminum housing
- Finger-operated capped turrets
- Side focus parallax correction
- High-torque eyepiece zoom ring
- Metal flip-up lens covers are included
- Nitrogen-filled for water and fogproof performance
- Shock-resistant
In the Box Hawke Sport Optics 8-25x42 Sidewinder Riflescope (20x 1/2 Mil Dot Illuminated Reticle, Matte Black) - CR-2032 Battery
- 2 x Metal Flip-Lens Lens Covers
- 2" Side Wheel
- 4" Screw-On Sunshade
- Pointer
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 8-25x42 Sidewinder Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 17120 Specs | | | Magnification | 8 to 25x | | Objective Lens Diameter | 42 mm | | Field of View | 8x: 12.7' @ 100 yd / 4.2 m @ 100 m
25x: 3.9' @ 100 yd / 1.3 m @ 100 m | | Exit Pupil Diameter | 8x: 5 mm
25x: 2 mm | | Eye Relief | 3.5" / 88.9 mm | | | | Reticle Type | 1/2 MIL Dot Duplex Crosshair Reticle (Second Focal Plane) | | Illumination | Illuminated | | Illuminated Color | Green, Red | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 70 MOA | | Elevation Adjustment | 70 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 16" / 406 mm | | Weight | 27.5 oz / 779.6 g | | | | Package Weight | 4.1 lb | | Box Dimensions (LxWxH) | 19.4 x 7.5 x 3.8" |
