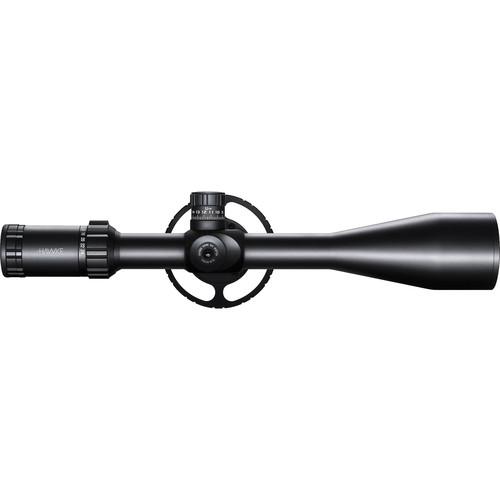

Product description Hawke Sports Optics designed the 8-32x50 Airmax 30 Side Focus Riflescope specifically to address the needs of airgun shooters and hunters. By optimizing it's long-range and low-light capabilities, this scope is ideal for precise target acquisition when battling pesky, nocturnal game. The large 50mm objective will deliver exemplary image brightness, and will scoop more light at dawn and dusk than your grandpa's average scope, especially at a high zoom factor. The fully multi-coated optics offer 16 layers of anti-reflection coatings to increase image resolution, clarity, and brightness. Located on the 2nd focal plane is an etched-on-glass AMX ranging duplex illuminated reticle. It is specially designed for the bent trajectories of airguns and features 0.75 MOA dots on a thin crosshair with spacing of 1 mrad intervals. For added accuracy, the parallax can be corrected from 10 yd to infinity by using the side focus turret. To compensate for wind and ballistic bullet drop, the riflescope offers 55 MOA of windage and elevation adjustment range and a 1/4 MOA per click impact point correction.
The lightweight and durable aluminum housing features a 30mm single-piece maintube. It is filled with nitrogen for fogproof and waterproof performance. The overall design features a slender, unobtrusive shape and exposed turrets. To ease the zooming process, the fast-focus eyepiece is outfitted with a high-torque knurled rubber zoom ring. To keep your scope's lenses protected from debris, dust, and dirt while it is not used, one objective lens cap and one ocular lens cap are also included. - Optical Performance
-
- 8-32x zoom range
- 50mm objective lens
- Fully multi-coated optics with 16 layers of anti-reflection coatings
- 13-3.4' field of view at 100 yards

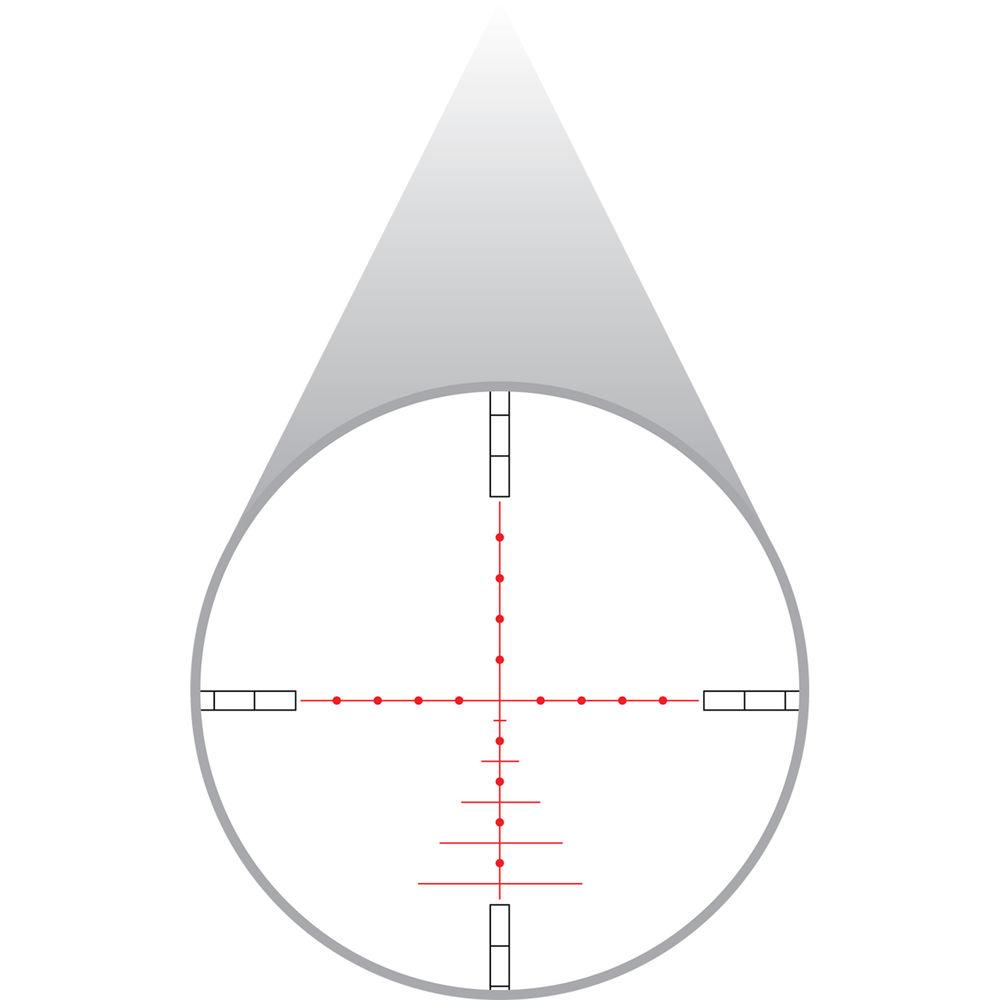

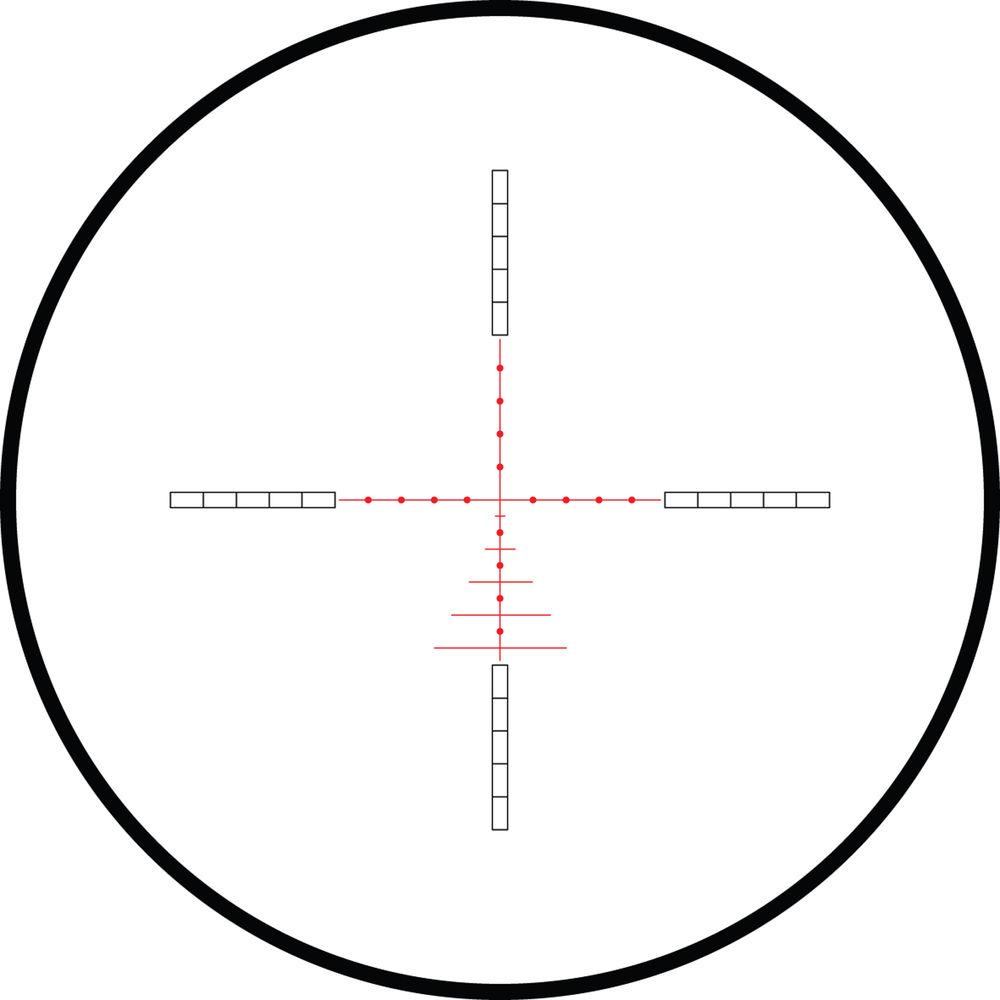

- AMX Ranging Duplex Illuminated Reticle
-
- 2nd focal plane
- Etched duplex crosshair-style reticle
- 0.75 MOA dots on crosshairs spaced 1 mrad (3.44 MOA) apart
- Sub-tension set at 10x magnification
- Horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5, and 4.5 mil spacing
- Hollow posts are broken up into 1 mil segments and can be used for bracketing
- Stepless rheostat offers continuous, non-discrete brightness tuning
- Use and Handling
-
- 1/4 MOA impact point correction
- 55 MOA windage and elevation range
- Side focus parallax correction: 10 yd to infinity
- Eye relief: 4"
- Exit pupil: 6.5 - 1.6mm
- Compatibility with Hawke Ballistic Reticle Calculator (BRC)
-
- Downloadable free Hawke BRC software and mobile apps for Android / iOS / Windows allow you to:
- Customize the reticle performance
- Change Ballistic Coefficient (BC)
- Change zero distances, muzzle velocity, and magnification
- Plot your trajectory and find suitable aim points
- Print trajectory graphs, reticle images, and range calculations
- Construction Details
-
- 30mm single-piece maintube
- Lightweight and durable aluminum housing
- Fast-focus eyepiece with knurled high-torque zoom ring
- Exposed, finger-operated windage and elevation turrets
- Sunshade prevents glare from sun or other bright light sources
- Side focus parallax wheel helps quick adjustments
- Nitrogen-filled, fogproof and waterproof
In the Box Hawke Sport Optics 8-32x50 Airmax 30 Side Focus Riflescope (AMX Ranging Duplex Illuminated Reticle) - Lens Cloth
- CR-2032 Battery
- 4" Side Focus Wheel
- 4" Screw-in Sunshade
- Ocular Lens Cover
- Objective Lens Cover
- Limited Lifetime Warranty
- Limited 10-Year Europe Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 8-32x50 Airmax 30 Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 13340 Specs | | | Magnification | 8 to 32x | | Objective Lens Diameter | 50 mm | | Field of View | 8x: 13' @ 100 yd / 4.3 m @ 100 m
32x: 3.4' @ 100 yd / 1.1 m @ 100 m | | Exit Pupil Diameter | 8x: 6 mm
32x: 2 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | AMX Duplex Ranging Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 55 MOA | | Elevation Adjustment | 55 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 16.6" / 42.2 cm | | Weight | 27.3 oz / 774 g | | | | Package Weight | 3.75 lb | | Box Dimensions (LxWxH) | 18.3 x 6.6 x 3.7" |
