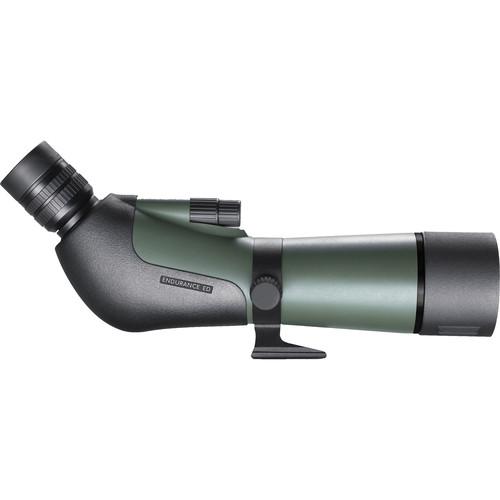

User Manual for Hawke Sport Optics Endurance ED 16-48x68 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics Endurance ED 16-48x68
- Product category: Spotting Scopes Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Spotting Scopes
|
User manual for the Hawke Sport Optics Endurance ED 16-48x68 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More wwuzaewwsfybyfrzq The angled viewing Endurance ED 16-48x68 Spotting Scope from Hawke Sport Optics features high-quality glass with specialized optical coatings to provide clear and bright images. The lens elements are made of extra-low dispersion (ED) glass to correct for chromatic aberrations, increase contrast, and improve color rendition. Additionally, they are multi-coated to prevent internal ghosting and reflections. To ensure accurate color across the entire visible spectrum, the BAK4 Porro prisms are dielectric coated. These coatings are highly reflective and minimize the loss of light while further boosting contrast and color fidelity. Highly refractive BAK4 Porro prisms minimize spherical aberrations for increased edge-to-edge sharpness and create a better depth of view over roof prisms. This combination of coatings and optics creates a spotting scope that produces bright, clear, highly contrasted images with accurate color transmission.The chassis is made of polycarbonate, which is corrosion, impact, and temperature resistant, and the optical tubes are nitrogen filled and O-ring sealed to be water and fogproof even in extreme weather conditions. This iteration of the Endurance ED has a two-speed focusing system to allow for fast coarse and precision fine focusing, making it a perfect complement to the wide zoom range. The angled-viewing configuration sets the eyepiece at a 45° angle to the scope's body, which places your head in a more comfortable viewing position versus straight-through viewing models. A 1/4"-20 mount makes it compatible with many tripods, quick-release plates, and other popular support systems like window mounts. - Optical Performance
-
- 16-48x zoom eyepiece
- 68mm objective lens
- Extra-low dispersion (ED) glass corrects for chromatic aberrations for increased contrast and true color rendition
- Multi-coated optics prevent internal ghosting and reflections
- BAK4 Porro prism design for better edge-to-edge sharpness and depth of view
- Highly reflective dielectric prism coatings increase light transmission, boost contrast, and improve color fidelity
- Use and Handling
-
- Eyepiece is inclined 45° from the objective lens for more comfortable viewing
- Dual focusing dials offer rapid coarse and fine focus
- Twist-up eyecup for use with or without eyewear
- Rotating tripod collar for precise eyepiece placement
- 1/4"-20 tripod mount
- Construction Details
-
- Lightweight, temperature-resistant, and durable polycarbonate chassis
- Chassis' temperature resistance ensures it stays a comfortable handling temperature in cold or wet conditions, while resisting the expansion and contraction common with metal chassis that can cause the optical components to move out of alignment over time
- Nitrogen filled for water and fogproof performance
- Built-in retractable sunshield
- Includes stay-on/view-through soft cover
In the Box Hawke Sport Optics Endurance ED 16-48x68 Spotting Scope (Angled Viewing) 16-48x Eyepiece Eyepiece Cap Objective Lens Cap Objective Lens Cover Lens Cloth Limited 2-Year Warranty Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics Endurance ED 16-48x68 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 56200 Specs | | | Magnification | 16 to 48x | | Objective Lens Diameter | 68 mm | | Field of View | 16x: 130.5' @ 1000 yd / 43.5 m @ 1000 m
48x: 64.5' @ 1000 yd / 21.5 m @ 1000 m | | Minimum Focus Distance | 16.4' / 5.0 m | | Exit Pupil Diameter | 16x: 4 mm
48x: 1 mm | | Eye Relief | 20.0 mm | | | | Fogproof | Yes | | Water Resistance | Waterproof | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 15.9" / L: 40.4 cm | | Weight | 52.6 oz / 1.5 kg |
