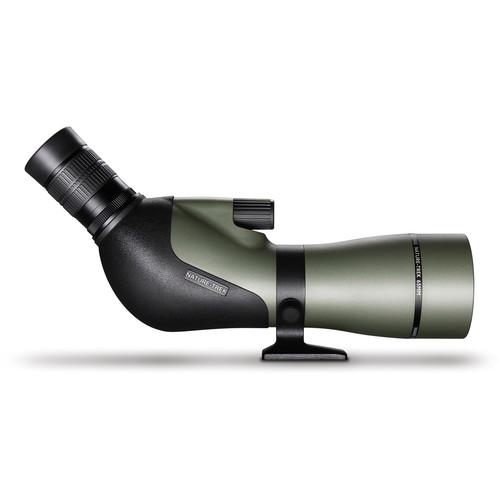

User Manual for Hawke Sport Optics Nature-Trek 16-48x65 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics Nature-Trek 16-48x65 Spotting
- Product category: Spotting Scopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Spotting Scopes
|
User manual for the Hawke Sport Optics Nature-Trek 16-48x65 Spotting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More With its short length, wide zoom range, and larger objective, the Hawke Sport Optics Nature-Trek 16-48x65 Spotting Scope will become your constant companion in the field, on the trail, or at the range. Utilizing BAK4 glass in their Porro prism and anti-reflection fully multi-coated optics, images are vivid with high contrast and accurate color representation, casting minimal distortion—even in low-light conditions. Its 11-foot close focus distance and 16-48x magnification range make this an ideal spotter for mid- to long-range glassing needs.Hawke designed the Nature-Trek with its eyepiece set at 45° to the body to place your head in a more natural and comfortable position whether you are standing, sitting, or lying prone. For optimum eyepiece positioning, the mounting collar can rotate to change the orientation of the eyepiece relative to your support system. The aluminum-alloy chassis is wrapped in protective rubber armoring and is nitrogen filled and O-ring sealed for water and fogproof performance. A retractable sunshade reduces glare to improve visibility, while a stay-on case adds another layer of protection, ensuring you're ready to move quickly and quietly without fumbling for the case. - Optical Performance
-
- 16-48x zoom eyepiece
- 65mm objective lens
- BAK4 Porro prism system
- Anti-reflection fully multi-coated optics help to improve light transmission, color rendition, contrast, and overall image brightness
- 138.0-73.5 foot field of view at 1,000 yards
- Long 20mm eye relief
- 4.1-1.4mm exit pupil
- Use and Handling
-
- Magnification indicators on eyepiece allow for easy repeatability
- Eyepiece set 45° to body puts head in a comfortable viewing position whether sitting, standing, or lying prone
- Single-speed focusing knob
- Rotating tripod collar allows for precise eyepiece positioning for optimal viewing angle
- Twist-up rubber eyecup for use with or without eyewear
- 1/4"-20 mount to fit most photo/video/field tripods and quick-release plates
- Construction Details
-
- Lightweight and durable aluminum-alloy chassis
- Protective rubberized armoring
- Nitrogen filled and O-ring sealed for water and fogproof performance
- Retractable sunshade reduces glare and reflections to improve view
- Stay-on scope cover offers additional protection and ease of use
- Length: 14", including eyepiece
In the Box Hawke Sport Optics Nature-Trek 16-48x65 Spotting Scope (Angled Viewing) Lens Cloth 16-48x Eyepiece Ocular Mount Cover Objective Lens Cover Stay-On Scope Cover Limited Lifetime Warranty Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics Nature-Trek 16-48x65 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 55200 Specs | | | Magnification | 16 to 48x | | Objective Lens Diameter | 65 mm | | Field of View | 16x: 138.0' @ 1000 yd / 46.0 m @ 1000 m
48x: 73.5' @ 1000 yd / 24.5 m @ 1000 m | | Minimum Focus Distance | 11.5' / 3.5 m | | Exit Pupil Diameter | 16x: 4.1 mm
48x: 1.4 mm | | Eye Relief | 20.0 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 14.0" / L: 18.5 cm | | Weight | 39.9 oz / 1130.0 g | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 17.0 x 7.5 x 5.5" |
