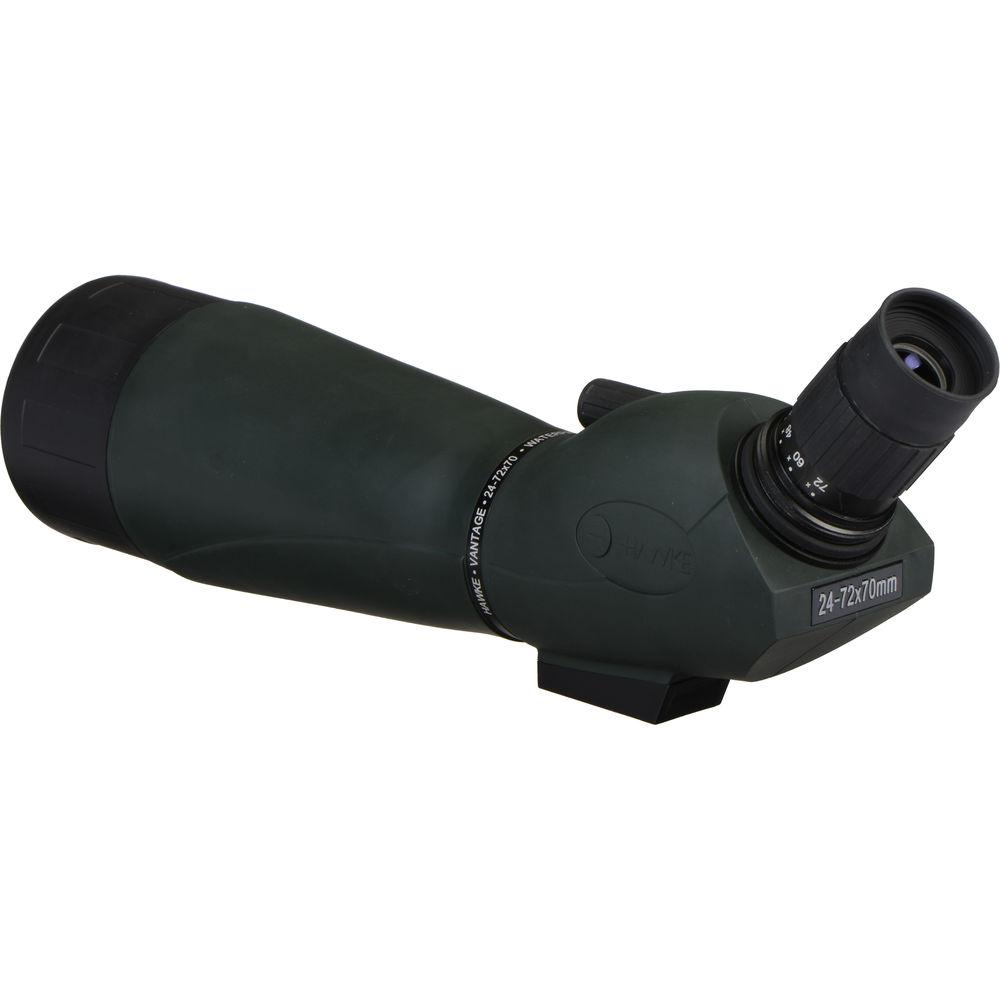

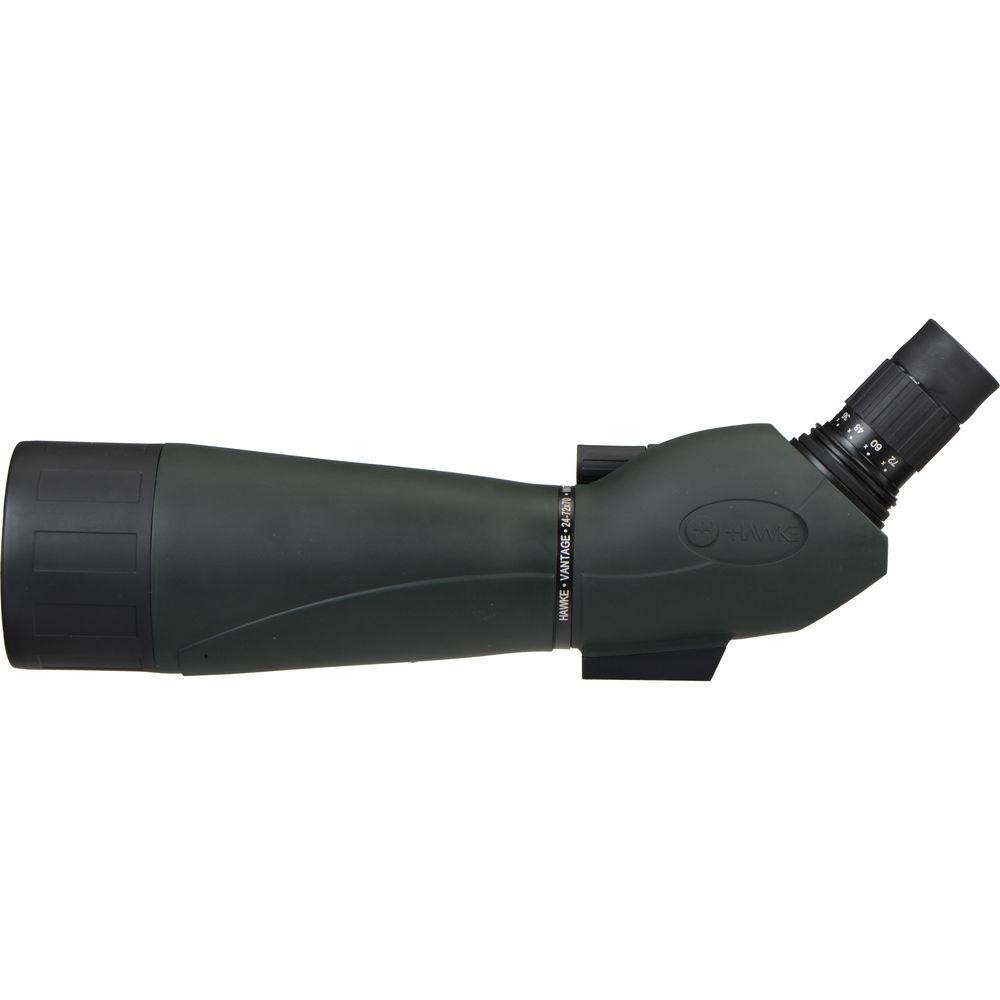

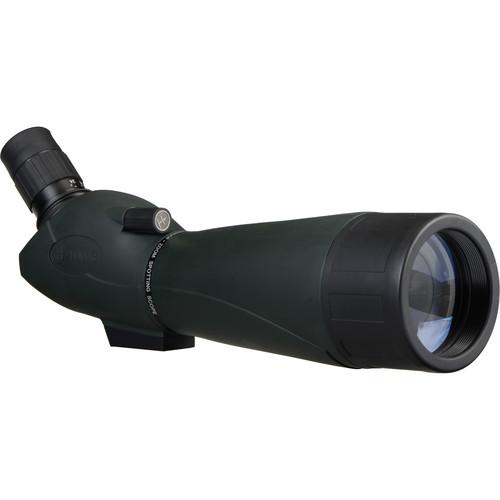

User Manual for Hawke Sport Optics Vantage 24-72x70 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics Vantage 24-72x70 Spotting
- Product category: Spotting Scopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Spotting Scopes
 |
User manual for the Hawke Sport Optics Vantage 24-72x70 Spotting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More Get the most out of every advantage that the Hawke Sport Optics Vantage 24-72x70 Spotting Scope has to offer when you're out in the field, on the trail, or at the range. Its broad zoom range allows you to quickly and easily find or track your subjects, then with a simple twist of the eyepiece collar dial it up to maximum power to make detailed observations. Fully multi-coated optics and a traditional BK7 Porro prism light path offer a rich depth of field with accurate color rendition and high-contrast images for an immersive observational experience.The eyepiece is set at a 45° angle to the optical tube to place the user's head in a comfortable viewing position whether standing, sitting, or lying prone. Its impact and corrosion-resistant polycarbonate housing is nitrogen filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature or environmental changes. The spotter is supplied with a tabletop tripod that has an integrated window mount for fast glassing on the go; standard 1/4"-20 mount photo/video/field tripods are also compatible. To protect the scope during transport and storage, Hawke includes a hard carrying case; and when you're in the field, use the supplied soft stay-on case for additional protection from drops, knocks, or other impacts. - Optical Performance
-
- Broad 24-72x zoom range
- Wide 70mm objective lens
- Traditional BK7 Porro prism light path
- Anti-reflection fully multi-coated optics improve light transmission, color fidelity, contrast, and clarity
- 84-foot field of view at 1000 yards on 24x
- 42-foot field of view at 1000 yards on 72x
- Use and Handling
-
- Eyepiece set at a 45° angle to the optical tube to place the user's head in a comfortable viewing position whether standing, sitting, or lying prone
- Large knurled, slip-resistant single-speed focus knob is easy to manipulate, even when wearing gloves
- Fold-down rubber eyecup for comfortable use with or without eyewear
- 1/4"-20 tripod mount on foot
- 18-13mm eye relief
- 2.9-1.0mm exit pupil
- Construction Details
-
- Protective rubber armor provides a slip-resistant grip for more secure handling during setup and breakdown
- Nitrogen filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature or environmental conditions
- Extendable sunshade protects against lens flare and prevents snow and rain from getting on objective lens
- Tabletop tripod with integrated window mount included
- Hard travel case protects during transport and storage
- Soft stay-on cover adds protection while in the field
- Weight: 37 ounces
In the Box Hawke Sport Optics Vantage 24-72x70 Spotting Scope (Angled Viewing) Lens Cloth Eyepiece Cap Objective Lens Cap Soft Stay-On Cover Hard Carrying Case Tabletop Tripod with Integrated Window Mount Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics Vantage 24-72x70 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 51101 Specs | | | Magnification | 24 to 72x | | Objective Lens Diameter | 70 mm | | Field of View | 24x: 82.9' @ 1000 yd / 28.0 m @ 1000 m
72x: 42.0' @ 1000 yd / 14.0 m @ 1000 m | | Minimum Focus Distance | 29.5' / 9.0 m | | Exit Pupil Diameter | 24x: 2.9 mm
72x: 1 mm | | Eye Relief | 18.0 to 13.0 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 15.0" / L: 38.0 cm | | Weight | 36.9 oz / 1046.1 g | | | | Package Weight | 9.2 lb | | Box Dimensions (LxWxH) | 18.3 x 9.9 x 7.2" |
