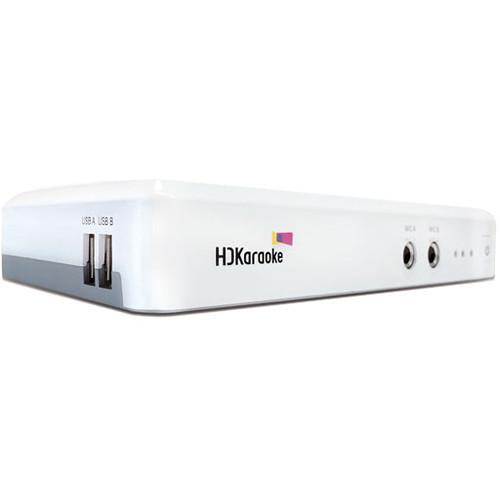

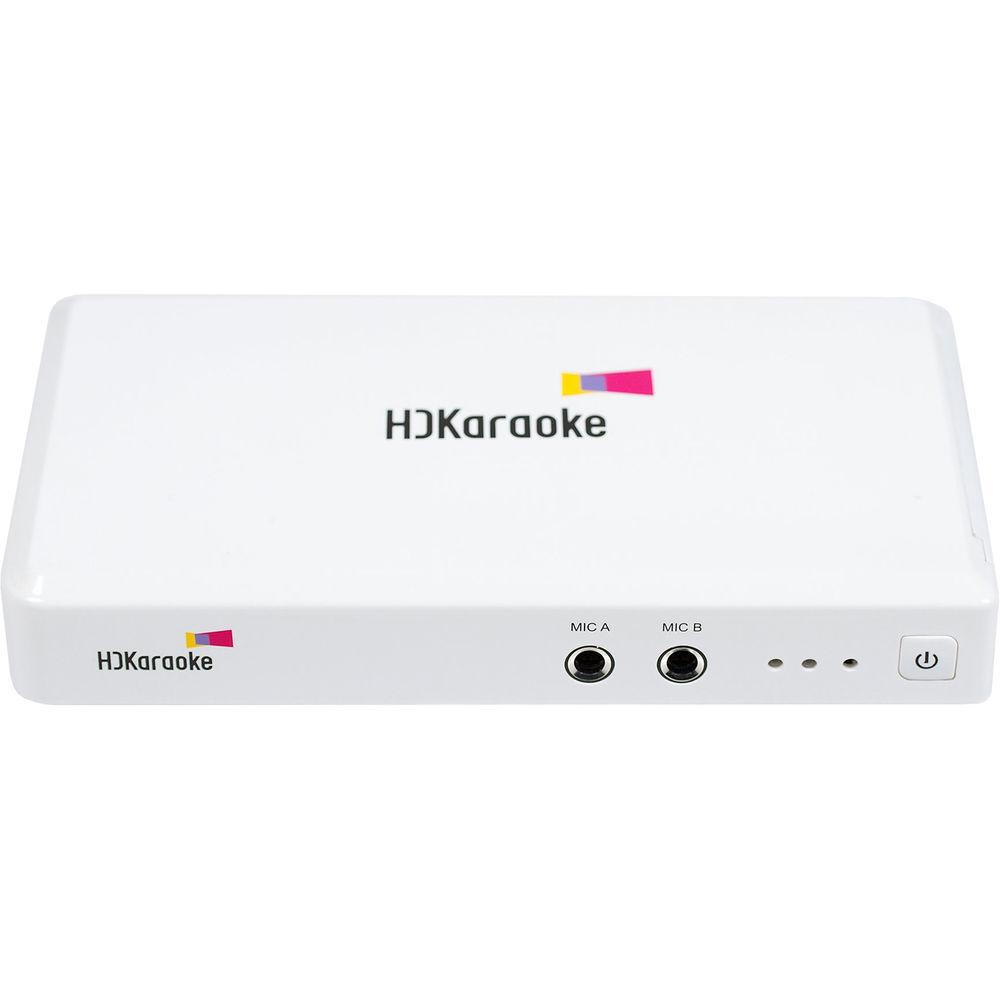

User Manual for HD Karaoke HDK Box 2.0 Internet-Enabled Streaming Karaoke Player with Microphone

Click to enlarge the picture
HD Karaoke HDK Box 2.0 Internet-Enabled Streaming Karaoke Player with Microphone Contents of the user manual for the HD Karaoke HDK Box 2.0 Internet-Enabled
  • Product category: Karaoke HD Karaoke
  • Brand: HD Karaoke
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for HD Karaoke Karaoke

HD Karaoke HDK Box 2.0 Internet-Enabled Streaming Karaoke Player with Microphone HD Karaoke HDK Box 2.0 Internet-Enabled Streaming Karaoke Player with Microphone HD Karaoke HDK Box 2.0 Internet-Enabled Streaming Karaoke Player with Microphone HD Karaoke HDK Box 2.0 Internet-Enabled Streaming Karaoke Player with Microphone HD Karaoke HDK Box 2.0 Internet-Enabled Streaming Karaoke Player with Microphone HD Karaoke HDK Box 2.0 Internet-Enabled Streaming Karaoke Player with Microphone HD Karaoke HDK Box 2.0 Internet-Enabled Streaming Karaoke Player with Microphone HD Karaoke HDK Box 2.0 Internet-Enabled Streaming Karaoke Player with Microphone HD Karaoke HDK Box 2.0 Internet-Enabled Streaming Karaoke Player with Microphone
User manual for the HD Karaoke HDK Box 2.0 Internet-Enabled contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any HD Karaoke product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official HD Karaoke user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a HD Karaoke product will considerably shorten its lifespan!



Product description

The HDK Box 2.0 Internet-Enabled Streaming Karaoke Player with Microphone from HD Karaoke integrates Internet multimedia technologies, bringing the latest Karaoke content directly to your home for you to enjoy on your TV or with your tablet and mobile phone. HDK Box incorporates the Sigma Design processor, offering full support for Ethernet (LAN), wireless networks (Wi-Fi) connections, 1080p Full HD video output, iPhone/iPad/Android control applications and a variety of media formats. Its high-quality, slim, lightweight body allows users to sing and share with their friends and family on social media. HDK Box 2.0 offers you an iPhone/iPad/Android app so you can use your smart phones and tablets to control the selection of songs and all other operations. There is no longer any need to use a remote and a songbook or an additional touch screen. The HDK Box 2.0 ships with a microphone, an HDK remote, AC power adapter, a HDMI cable, and a Wi-Fi receiver. Note: Monthly subscription and "a la carte" song purchase options are available through the manufacturer. Internet connection is required.
    Automatic Song Update
  • HDK Box supports Ethernet (LAN) and wireless networks (Wi-Fi) connections allowing the system to automatically update songs weekly. Manually adding songs is no longer necessary
    Large Licensed Karaoke Library
  • HDKaraoke receives support from American Service providers and Asian major and independent record companies and provides licensed digital music and video content. It features a very large karaoke music content portal in North America to provide over 9,000 English karaoke videos as well as many thousands of karaoke videos (Chinese, Taiwanese, Cantonese, Vietnamese and Filipino) to the Asian market
    Supports MP3+G Files

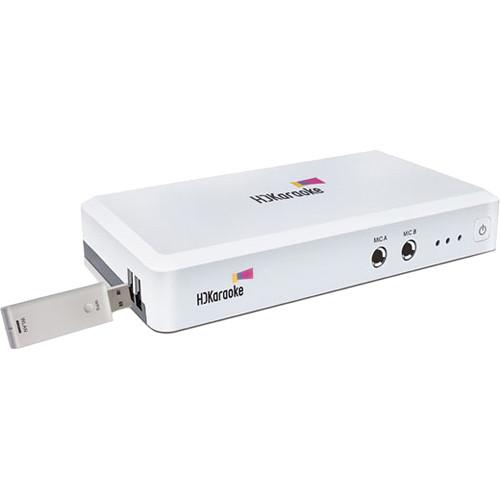

  • HDK Box 2.0 now offers MP3+G files playback from external USB storage. User can even use the "HDKaraoke Control App" to wirelessly search and select your favorite MP3+G files saved in USB drive from your iPad, iPhone and Android devices
    Record Your Singing & Share
  • HDK Box 2.0 newly added recording feature allows you to record your own singing. You can choose to save your singing to your USB storage, or with just one click of a button instantly share your singing to social sites such as Facebook and Twitter
    1080P HD
  • The high-performance Sigma Design configuring decoder chip supports HD 1080P HDMI Full HD output, YAMAHA professional karaoke mixing chip supports wide range of video encoding methods

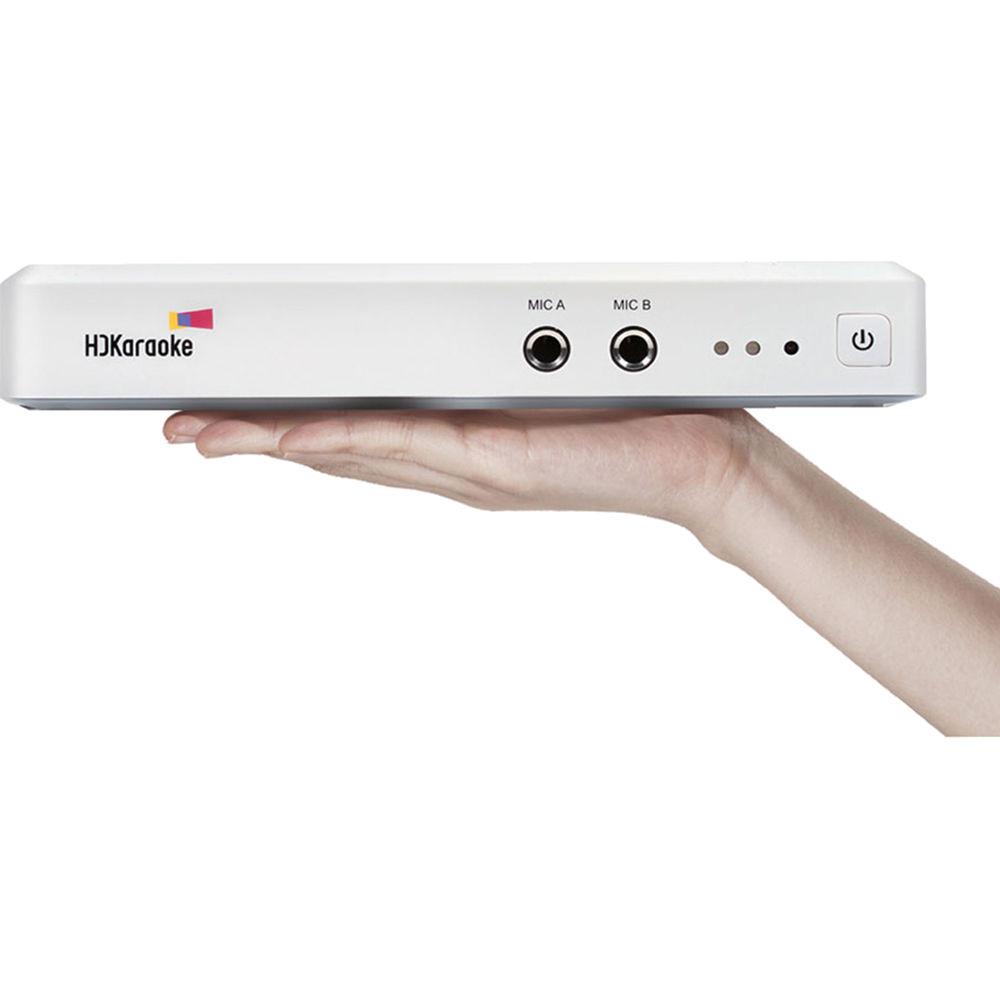

    Compact and Portable
  • Only 8.0 x 4.7 x 1.3", and weighing just 2.1 lb, makes it easy to use at home or take it to a party
    Online Streaming and Built-In Hard Drive
  • HDK Box has online streaming technology and a large capacity built-in hard drive. When you choose a song for the first time, it will automatically online stream to play and synchronize download to your HDK Box built-in hard drive. Next time when you choose the same song, it will play locally. You can add and delete songs anytime you want. With these flexible features, you never have to worry about a full hard drive. Streaming service requires a subscription that's paid separately
    HDKaraoke App Supports Multiple Devices
  • HDKaraoke App supports the multiple devices simultaneously. You don't need to wait for a long time to choose a song. Just touch your smart device, select your songs whenever and wherever you want
    Song Request Feature

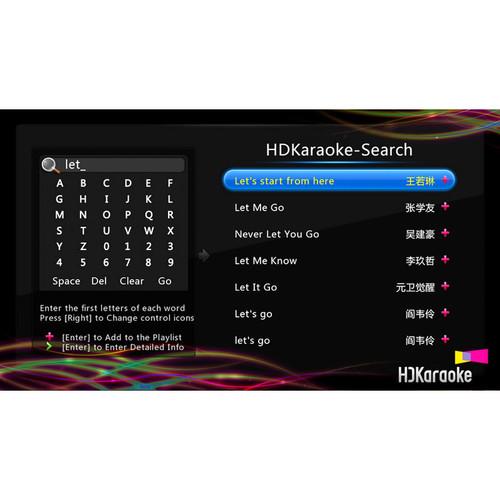

  • HDK Box has "Song Request" function. If you search a song and cannot find it, HDKaraoke App will automatically prompt the screen "Song Request". You can click "request" button to submit application. Users can also visit our website to fill out the "Request Song" form
    Add-on Video Service
  • Online singing lessons including free lessons, as well as beginner and advanced lessons are available for stream
UPC: 861805000134 In the Box HD Karaoke HDK Box 2.0 Internet-Enabled Streaming Karaoke Player with Microphone
  • Microphone
  • HDK Remote
  • AC Power Adapter
  • HDMI Cable
  • Wi-Fi Receiver
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the HD Karaoke HDK Box 2.0 Internet-Enabled Streaming Karaoke Player with Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    HD Karaoke HDK-8653V2M Specs

    Connectivity Supports external wireless card, IEEE 802.11 b/g
    Built-in 10/100/1000 BASE-T Gigabit Ethernet LAN Card
    2 USB 2.0 Port(Up to 480 Mbps transfer rate)
    Seamless connection to the HDK Portal
    Xunlei P2P Movie Download
    UPnP AV, Samba, NFS
    NAS Access: SMB, NFS
    Ports Audio and Video Ports
    2 x 1/4" / 6.35 mm (microphone ports, supports both wired and wireless microphones, requires XLR female to 1/4" / 6.35 mm TS (mono) male microphone cable
    HDMI Port
    Component video and audio (YPbPr) port
    S/PDIF audio optical output port
    Photos Supported Photo Formats: JPG, BMP, GIF, PNG
    Languages English, traditional Chinese, simplified Chinese
    TV and Video MPEG-1, MPEG-2 (MP@HL), MPEG-4.2 (ASP@L5), WMV9(MP@HL), VC-1 (MP@HL, AP@L3), H.264 (MP@L4 .0, HP@L4.0), MPEG-4 (v3 DivX v3.11), H.261, MPEG1/2/4 Elementary (M1V, M2V, M4V), MPEG1/2 PS (M2P, MPG, DAT, VOB), MPEG2 Transport Stream (TS, TP, TRP, M2T, M2TS, MTS), AVI, ASF, WMV, Matroska (MKV), MOV (H.264), MP4, RMP4, DVD Discs,DVD ISO, Blu-ray Disc, Blu-ray ISO [DTS and Dolby are optional]
    Support for 1080 x 720 pixel with HDMI 1.3a cable
    Audio Playback Audio Formats Supported: DTS, DTS-HD HR, DTS-HD MA, Dolby Digital, Dolby Digital Plus, Dolby True HD, WMA, WMA Pro, MPEG-1 Layer 1, 2, 3, MPEG-4 AAC-LC, MPEG-4 HE-AAC,MPEG-4 BSAC, FLA, AAC, M4A, MPEG audio (MP1, MP2, MP3, MPA), WAV, WMA, FLAC, APE, OGG [DTS and Dolby are optional]
    Audio Source Output: DTS, DTS-HD HR, DTS-HD MA, Dolby Digital, Dolby Digital Plus, Dolby True HD, AC3, PCM, LPCM, WMAPRO [DTS and Dolby are optional]
    Capacity Hard Drive: SATA I/II 2.5" / 63.5 mm
    Power 100 to 240 VAC, 50/60 Hz, 12 VDC, 3 A
    Environmental (Operating) Operating Temperature: 32 to 95°F / 0 to 35°C
    Relative Humidity: 10 ~ 95% Atmospheric Pressure: 86 ~ 106 kPa
    Dimension(L x W x H) 8.0 x 4.7 x 1.3" / 203.2 x 119.4 x 33.0 mm
    Weight 1.5 lb / 0.7 kg
    Package Weight 4.4 lb
    Box Dimensions (LxWxH) 10.3 x 8.0 x 4.0"
