User Manual for HDfury Dr. HDMI EDID Manager Detective Click to enlarge the picture
Contents of the user manual for the HDfury Dr. HDMI EDID Manager Detective
- Product category: Signal Converters HDfury
- Brand: HDfury
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HDfury Signal Converters
 |
User manual for the HDfury Dr. HDMI EDID Manager Detective contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HDfury product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HDfury user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HDfury product will considerably shorten its lifespan!
|

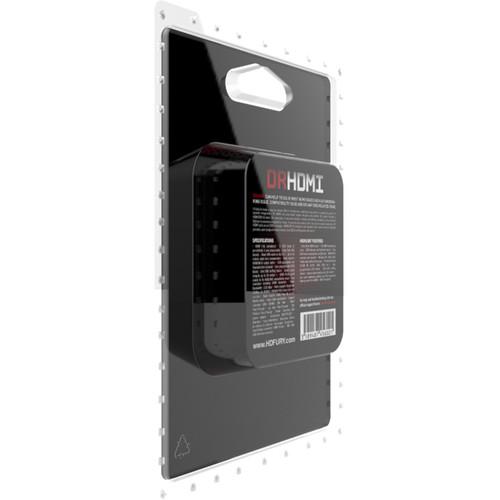

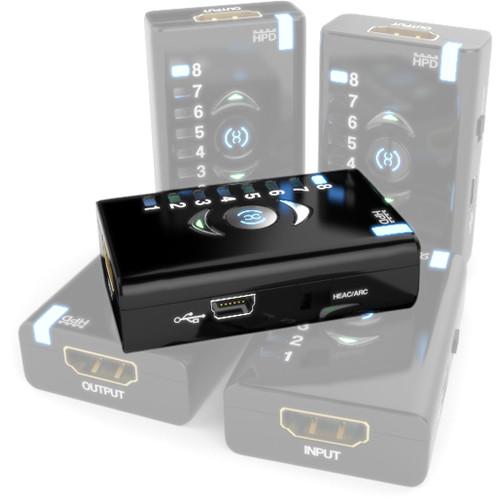

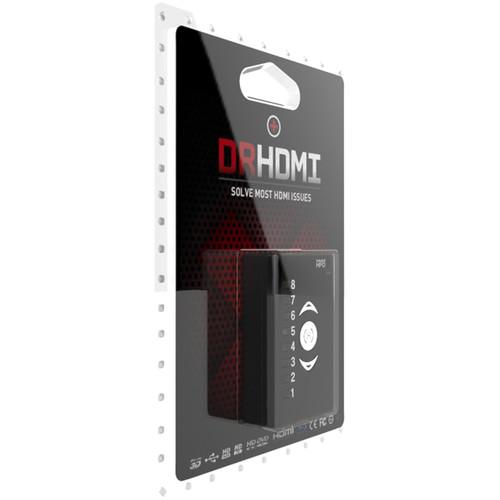

Product description Use the Dr. HDMI EDID Manager / Detective from HD Fury to keep your HDMI source and display in sync. This device solves HDMI connectivity problems such as handshake, compatibility, or other EDID (Extended Display Identification Data) issues. Dr. HDMI also boosts your video signal integrity, and can extend a 5V signal through an HDMI/DVI-D chain.Dr. HDMI features a total of eight EDID banks: five presets, two user-programmable, and one sink (display) copy. Features include HDCP, Lip-Sync, and CEC-protocol pass-through, a sink (display) EDID-sniffing function, and HDCP compliance. The Dr. HDMI Windows-based utility software is available via download. - EDID Banks
- 1—Full, unlimited, all 3D features enabled2—Full, unlimited, no 3D features3—1080i limited, no 3D features4—720p limited, no 3D features5—480/576p limited, no 3D features6—Full, unlimited, all 3D features enabled, but can be altered with Windows software7—Full, unlimited, all 3D features enabled, but can be altered with Windows software8—Display EDID, push the middle button to read and store the EDID
UPC: 019962384646 In the Box HDfury Dr. HDMI EDID Manager / Detective Mini-USB Cable (6') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HDfury Dr. HDMI EDID Manager Detective in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHDfury Dr HDMI Specs | EDID Modes | 8 x preset
2 x user-programmable
1 x display device copy | | Video Support | 1080p/60
2K
WUXGA
12-bit deep color
x.v. color
EDID CEA-861, 256-byte | | Interfaces | Input/Output: 1 x HDMI (female)
USB: Mini-USB B (female) | | Video Bandwidth | 225 MHz | | Switch | HDMI pin 14 on/off switch | | Weight | 1.7 oz (50 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 5.6 x 3.8 x 1.7" |
