HDfury FX4 HDMI to RGB YUV

Search your instruction manual in PDF to download

User Manual for HDfury FX4 HDMI to RGB YUV DVI & HDMI Converter with 3Dfury Firmware

Click to enlarge the picture
HDfury FX4 HDMI to RGB YUV DVI & HDMI Converter with 3Dfury Firmware Contents of the user manual for the HDfury FX4 HDMI to RGB YUV
  • Product category: Signal Converters HDfury
  • Brand: HDfury
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for HDfury Signal Converters

HDfury FX4 HDMI to RGB YUV DVI & HDMI Converter with 3Dfury Firmware HDfury FX4 HDMI to RGB YUV DVI & HDMI Converter with 3Dfury Firmware HDfury FX4 HDMI to RGB YUV DVI & HDMI Converter with 3Dfury Firmware HDfury FX4 HDMI to RGB YUV DVI & HDMI Converter with 3Dfury Firmware
User manual for the HDfury FX4 HDMI to RGB YUV contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any HDfury product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official HDfury user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a HDfury product will considerably shorten its lifespan!



Product description

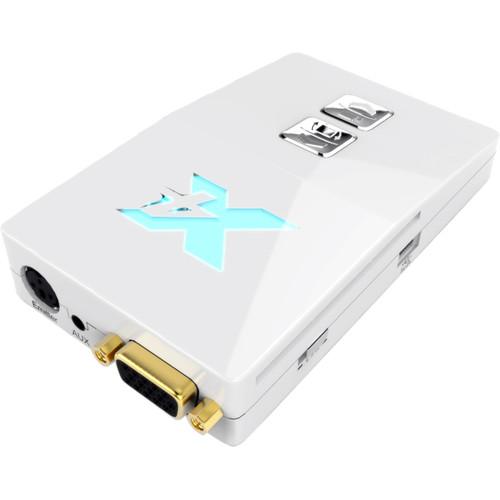

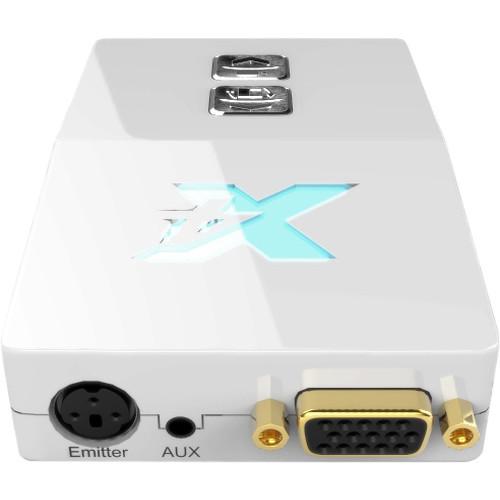

The versatile, compact HDfury X4 HDMI Converter enables you to view your device's richer HDMI output using your HDMI/DVI-D/YUV/RGB or VGA display. The HDfury X4 upscales, downscales, transcodes, deinterlaces, and converts HDMI signals for viewing on any standard 50/60 Hz or 100/120 Hz display. Cinephiles will appreciate the HDfury X4 retaining your source's correct aspect ratio and automatically-scaling black bars. A DIP switch enables you to view 50 or 60 Hz material, and to toggle between PAL and NTSC. The single HDMI 1.4–input HDfury X4's features include 3D, deep color, and graphics-mode support.The HDfury X4 can output both digital and analog video/audio simultaneously, acting as a splitter. Color-depth upscaling, and third-party output accessories are supported by the HDfury X4. Audio features include HDMI audio pass-through, stereo output, 2-channel PCM, and DTS-HD Master Audio, 5.1 and 7.1 Dolby support. Customized-EDID banks can be based on your sink (display) parameters. Use the HDfury X4's USB port for 3Dfury firmware upgrades and to draw power from a USB device.
    Features
    • Display HDMI content at any HDMI/DVI-D/RGB/VGA/YUV TV, monitor, or projector's maximum resolution
    • Capable of simultaneous digital and analog video/audio output
    • Multiply lower-resolution material up to 1080p/96
    • Scales, deinterlaces, converts, and transcodes signals
    • Toggle between 50/60 Hz or PAL/NTSC
    • 1 x HDMI 1.4 input with 3D and Deep Color support
    • HDMI/DVI-D and/or component (YPbPr/YCbCr) and VGA (RGBHV) video output
    • Three aspect ratio modes (Full Width, Full Screen, Original)
    • 7.1 Dolby True HD and DTS Master Audio support
    • Analog and digital optical stereo audio output via a 3.5mm combo jack
    • Customizable EDID banks (2 per channel)
    • Performs color depth upscaling in all modes (on/off user-selectable)
    • Sync-polarity inverter included
    • Automatic SD/HD color-space selection
    • Accepts third-party accessories on output
    • Improved output cable driver for long cable runs (40-50')
    • Upgrade software or power via USB

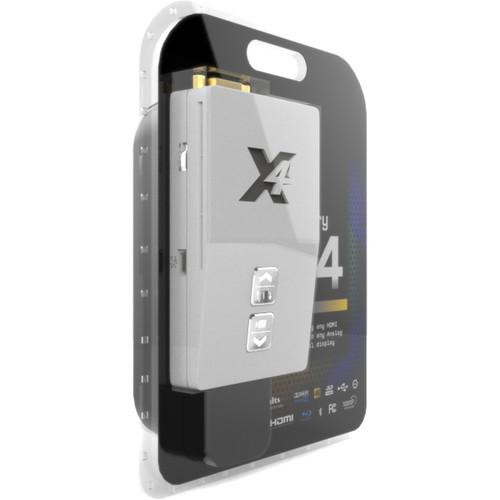

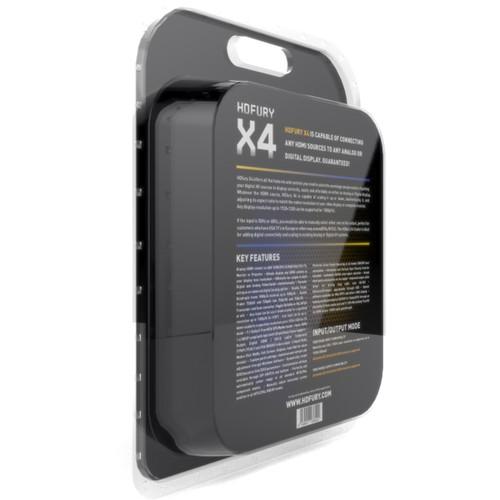

UPC: 019962384547 In the Box HDfury FX4 HDMI to RGB/YUV/DVI & HDMI Converter with 3Dfury Firmware
  • Component Extender Cable
  • Digital Audio Extender Cable
  • BNC, VGA & DB9 RGBHV Extender Cable
  • US Power Supply
  • USB to Mini-USB Cable
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the HDfury FX4 HDMI to RGB YUV DVI & HDMI Converter with 3Dfury Firmware in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    HDfury X4 Specs

    Inputs 1 x HDMI 1.4 (DVI 1.0-compatible)
    Output 1 x HDMI 1.4
    1 x VGA (female)
    RGB or YPbPr, DIP switch selectable
    YPbPr requires VGA to 3 x RCA breakout cable (not included)
    Video Support All HD/SDTV formats from 1080p to 480i, NTSC and PAL
    (1080p at 72 Hz for RGB output only)
    Color Spaces Supported 24-/30-/36-bit RGB/YCbCr 4:4:4
    16-/20-/24-bit YCbCr 4:2:2
    8-/10-/12-bit YCbCr 4:2:2 (ITU-R BT.656)
    Digital to Analog Converter 11-bit, 225 MHz
    Audio Support HDMI audio pass-through
    7.1 Dolby True HD, DTS master audio support
    S/PDIF digital output for 5.1 Dolby/DTS
    2-channel stereo analog (L/R), 32-192 kHz
    2-channel PCM
    Dimensions and Weight Not specified by manufacturer
