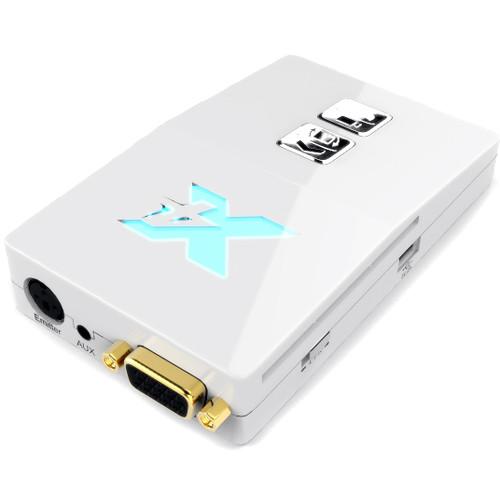

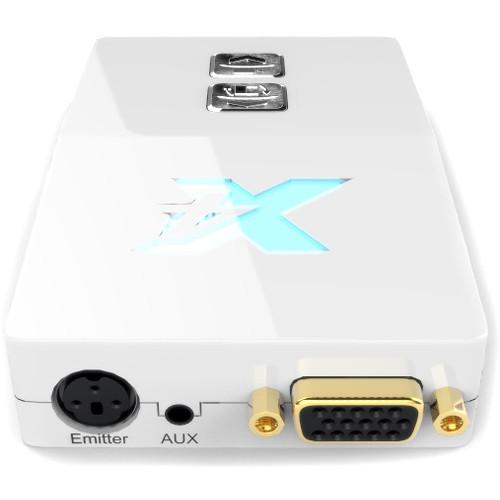

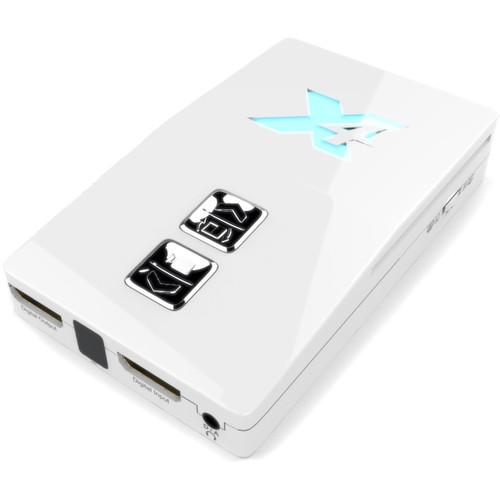

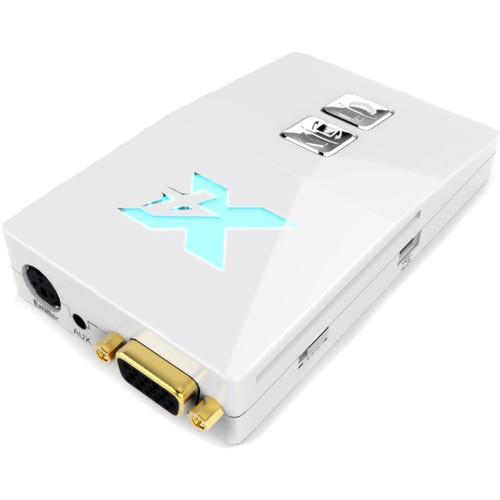

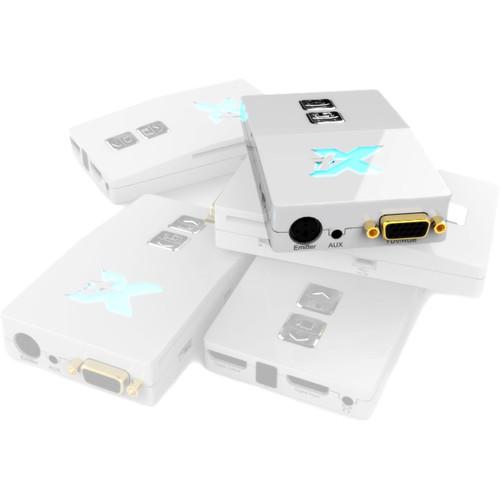

Product description The versatile, compact HDfury X4 HDMI Converter enables you to view your device's richer HDMI output using your HDMI/DVI-D/YUV/RGB or VGA display. The HDfury X4 upscales, downscales, transcodes, deinterlaces, and converts HDMI signals for viewing on any standard 50/60 Hz or 100/120 Hz display. Cinephiles will appreciate the HDfury X4 retaining your source's correct aspect ratio and automatically-scaling black bars. A DIP switch enables you to view 50 or 60 Hz material, and to toggle between PAL and NTSC. The single HDMI 1.4–input HDfury X4's features include 3D, deep color, and graphics-mode support.The HDfury X4 can output both digital and analog video/audio simultaneously, acting as a splitter. Color-depth upscaling, and third-party output accessories are supported by the HDfury X4. Audio features include HDMI audio pass-through, stereo output, 2-channel PCM, and DTS-HD Master Audio, 5.1 and 7.1 Dolby support. Customized-EDID banks can be based on your sink (display) parameters. Use the HDfury X4's USB port for Scaler firmware upgrades and to draw power from a USB device. - Features
-
- Display HDMI content at any HDMI/DVI-D/RGB/VGA/YUV TV, monitor, or projector's maximum resolution
- Capable of simultaneous digital and analog video/audio output
- Multiply lower-resolution material up to 1080p/96
- Scales, deinterlaces, converts, and transcodes signals
- Toggle between 50/60 Hz or PAL/NTSC
- 1 x HDMI 1.4 input with 3D and Deep Color support
- HDMI/DVI-D and/or component (YPbPr/YCbCr) and VGA (RGBHV) video output
- Three aspect ratio modes (Full Width, Full Screen, Original)
- 7.1 Dolby True HD and DTS Master Audio support
- Analog and digital optical stereo audio output via a 3.5mm combo jack
- Customizable EDID banks (2 per channel)
- Performs color depth upscaling in all modes (on/off user-selectable)
- Sync-polarity inverter included
- Automatic SD/HD color-space selection
- Accepts third-party accessories on output
- Improved output cable driver for long cable runs (40-50')
- Upgrade software or power via USB

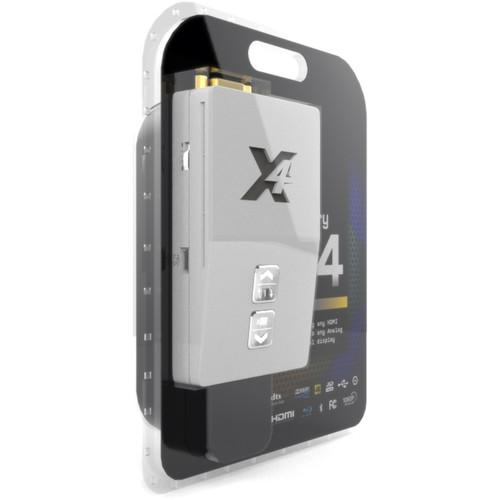

UPC: 686603105207 In the Box HDfury FX4 HDMI to RGB/YUV/DVI & HDMI Converter with Scaler Firmware Component Extender Cable Digital Audio Extender Cable BNC, VGA & DB9 RGBHV Extender Cable US Power Supply USB to Mini-USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HDfury FX4 HDMI to RGB YUV DVI & HDMI Converter with Scaler Firmware in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHDfury X4 Specs | Inputs | 1 x HDMI 1.4 (DVI 1.0-compatible) | | Output | 1 x HDMI 1.4
1 x VGA (female)
RGB or YPbPr, DIP switch selectable
YPbPr requires VGA to 3 x RCA breakout cable (not included) | | Video Support | All HD/SDTV formats from 1080p to 480i, NTSC and PAL
(1080p at 72 Hz for RGB output only) | | Color Spaces Supported | 24-/30-/36-bit RGB/YCbCr 4:4:4
16-/20-/24-bit YCbCr 4:2:2
8-/10-/12-bit YCbCr 4:2:2 (ITU-R BT.656) | | Digital to Analog Converter | 11-bit, 225 MHz | | Audio Support | HDMI audio pass-through
7.1 Dolby True HD, DTS master audio support
S/PDIF digital output for 5.1 Dolby/DTS
2-channel stereo analog (L/R), 32-192 kHz
2-channel PCM | | Dimensions and Weight | Not specified by manufacturer | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 7.6 x 5.9 x 2.6" |
