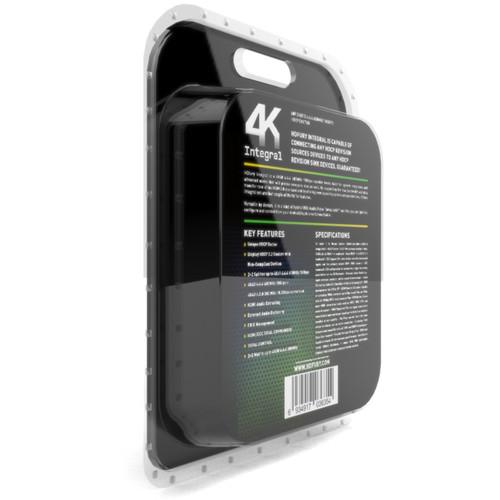

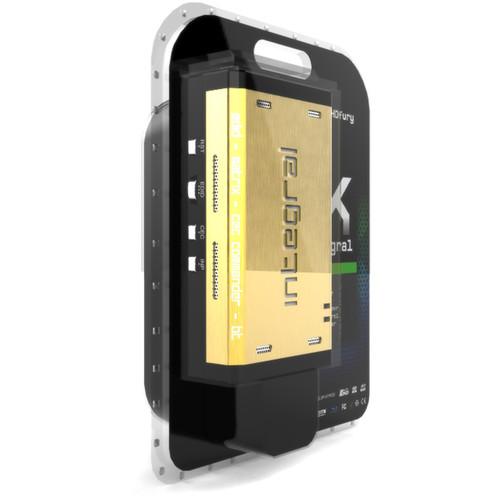

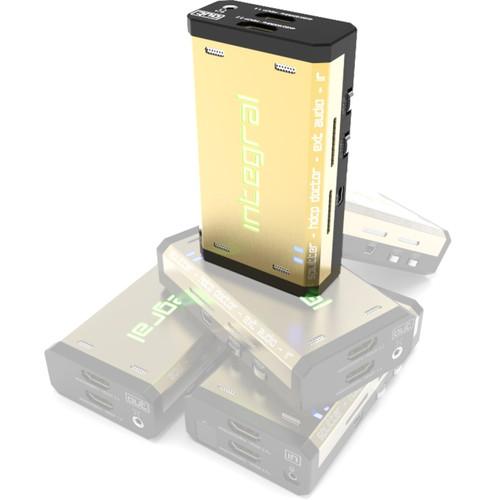

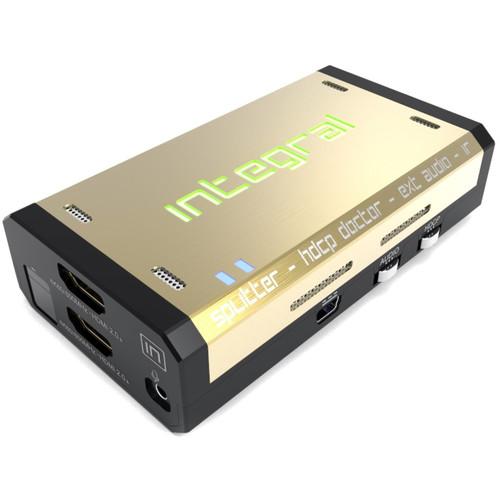

User Manual for HDfury Integral 4K60 4:4:4 600 MHz Splitter HDCP Doctor Click to enlarge the picture
Contents of the user manual for the HDfury Integral 4K60 4:4:4 600 MHz
- Product category: Distribution Amplifiers (DA's) HDfury
- Brand: HDfury
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HDfury Distribution Amplifiers (DA's)
 |
User manual for the HDfury Integral 4K60 4:4:4 600 MHz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HDfury product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HDfury user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HDfury product will considerably shorten its lifespan!
|
Product description The HDfury Integral Splitter employs two HDMI inputs and outputs to distribute UHD 4K signals in resolutions up to 4K60 fps with 4:4:4 600 MHz at 18 Gbps, and uses six engines for HDCP 2.2/1.4 conversion. The versatile Integral offers advanced EDID management with 25 EDID presets, an AutoMix custom EDID function, uploading of custom EDIDs, and EDID-sniffing from connected sink devices. Conversion of 4K60 / 4:4:4 / 600 MHz at 18 Gbps to 4K60 / 4:2:0 / 300 MHz at 18 Gbps enables you to run a main, 600 MHz signal while simultaneously outputting a secondary, 300 MHz signal.The Integral's HTCP Mode resolves source and output incompatibilities, and its splitting function divides a 600 MHz stream into two 300 MHz feeds for easier processing. Use the Integral to extend 1080p video up to 98' total (49' in and 49' out), or extend UHD 4K up to a total of 66'. Additional features include support for Deep Color and xvYCC color space, 3D video, replacement of external audio, and audio de-embedding.HDMI/CEC command control is offered using panel buttons, via a USB port, or via an Android/iOS app. Total control of the Integral is available via an Android/iOS app, Bluetooth, a Windows/USB-based GUI, IR control, and panel buttons. - CEC Features
- CEC support: Supports inter-device control between both inputs and the primary output (TOP) HDMI channel
CEC command: USB configuration for automation, trigger via events, push button, or via IR/Bluetooth - Audio Features
- External audio replacing: Input external sound or switch sound between inputs
Audio extracting: Audio de-embedder of optical and analog L/R - EDID Features
- Advanced EDID management via USB, IR, or Bluetooth application
Improved EDID Management solutions via a selected EDID bank, custom uploaded EDID, self-generated auto-mix EDID, or fixed basic EDID
Sniffs EDID from connected sink devices; save, edit, or load any custom EDID table at any time
Select your choice of EDIDs from a pre-loaded list of EDID tables, HPD (Hot Plug-Detect) will load and reset the chosen EDID automatically
AutoMix EDID feature creates a custom EDID by mixing both sink EDIDs connected to the splitter output ports
Force-select EDID flags in AutoMix (stereo / 5.1 / full / YCbCr / BT.2020 / HDR) - Additional Features
- HDR and InfoFrame metadata live injector
HDMI booster/extender: Extends 1080p video up to 49' in, and 49' out (98' total for 1080p); extends UHD up to 33' (66' total)
HDMI Doctor: Solves most HDMI integration issues such as HDCP, EDID, HPD, and audio breakout
HDMI Equal-Level: Precise signal equalization for both input and output signals delivers optimal picture quality with minimal dropouts
Splitting function divides a 600 MHz stream into two 300 MHz feeds for easier processing
Output both a main 4K60 4:4:4 600 MHz signal, and a secondary output at 4K60 4:2:0 300 MHz
Hot plug control: Forces the input device to always see an active connection
Deep Color and xvYCC support
Flexible, portable, plug-and-play installation
3D Ready: 3D stereoscopic signal-capable
USB-upgradable firmware UPC: 019962385247 In the Box HDfury Integral 4K60 4:4:4 600 MHz Splitter / HDCP Doctor USB to Mini-USB Cable Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HDfury Integral 4K60 4:4:4 600 MHz Splitter HDCP Doctor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHDfury INTEGRAL Specs | | | Video In/Out | 2 x HDMI
Compatible with HDMI 2.0a, HDMI 1.4, DVI 1.0 | | HDMI Splitter | 4K60 4:4:4 600 MHz 18 Gbps pass-through
Dual HDMI 2.0a and HDMI 1.4 combined | | Video Converter | 4K60 4:4:4 600 MHz 18 Gbps to 4K60 4:2:0 300 MHz 10.2 Gbps | | HDCP Management | HDCP 2.2 to HDCP 1.4
HDCP 1.4 to HDCP 2.2
HDCP x.x to HDCP x.x
Dual HDCP 1.4 & HDCP 2.2 combined | | HDMI Booster | Extends 1080p up to 49' (15 m) in and out; 98' (30 m) total
Extends UHD up to 33' (10 m) in and out; 66' (20 m) total | | EDID Modes | Presets: 25 | | | | Audio Out | Analog stereo mini-jack | | Audio Sampling | Mic In (Line In): 44.1/48 kHz | | Audio Impedance | 10 kOhms input impedance
2 Vrms input-level tolerance | | | | USB Power | 5 V, 2 A | | Power Consumption | <2 W | | | | Dimensions | 3.6 x 2.5 x 1" (91 x 64 x 25 mm) | | Weight | 4 oz (113 g) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 7.4 x 5.9 x 2.8" |
