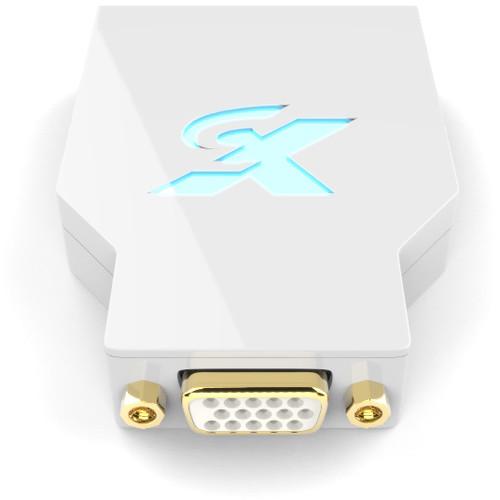

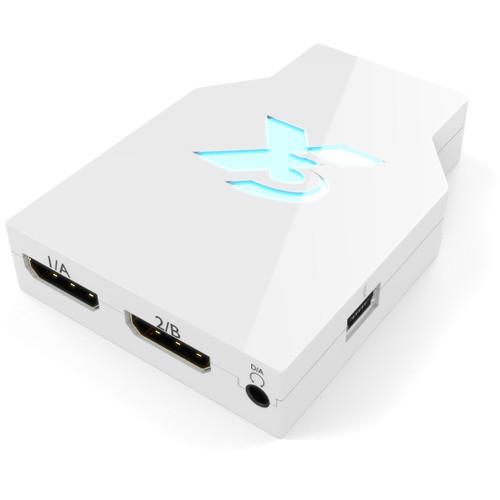

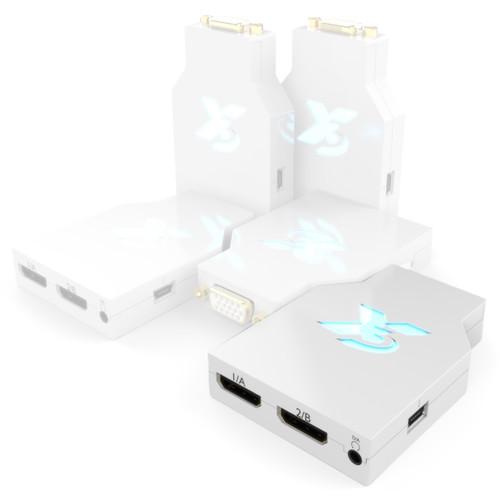

Product description The compact HDfury X3 HDMI to VGA/YUV Converter enables you to access your HDMI device's richer 1080p/720p output using your VGA/YUV display. Keeping the component video features of the X2, the HDfury X3 has updated RGB, audio, and EDID features for improved television and A/V equipment compatibility. Two HDMI 1.3 inputs feature deep color support and both manual- and auto-switching. Both optical and analog stereo audio outputs are offered, with support for third-party accessories. Two of the four customized-EDID banks can limit your 1080p output for 1080i displays. The X3's DIP switch can be used to force H/V syncs on recalcitrant RGB displays to either positive or negative. - Features
-
- 2 x HDMI 1.3 inputs with Deep Color support (manual or auto switch mode, user-selectable)
- Component (YPbPr/YCbCr) and VGA (RGBHV) video output
- Analog and digital optical stereo audio output (S/PDIF 5.1 Dolby/DTS) through a 3.5mm combo jack
- 4 x EDID banks (2 per channel)
- Built-in, user-selectable output resolution limit settings
- Customizable settings available through DIP switch
- Automatically centers image in all standard NTSC/PAL component modes
- Manually adjust horizontal screen position in all NTSC/PAL RGBHV modes
- Performs color depth upscaling in all modes (on/off user-selectable)
- Sync-polarity inverter included
- Automatic SD/HD color-space selection
- Accepts third-party accessories on output
- Improved output cable driver for long cable runs (40'-50')
- Upgradable software
UPC: 019962384448 In the Box HDfury X3 HDMI to VGA/YUV Converter Component Cable Power Supply USB to Mini-USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HDfury X3 HDMI to VGA YUV Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHDfury X3 Specs | Inputs | 2 x HDMI 1.3 (DVI 1.0-compatible) | | Output | 1 x VGA (female)
RGB or YPbPr, dip switch–selectable
YPbPr requires VGA to 3 x RCA breakout cable (not included) | | Video Support | All HD/SDTV formats from 1080p to 480i, NTSC and PAL
(1080p at 72 Hz for RGB output only) | | Color Spaces Supported | 24-/30-/36-bit RGB/YCbCr 4:4:4
16-/20-/24-bit YCbCr 4:2:2
8-/10-/12-bit YCbCr 4:2:2 (ITU-R BT.656) | | Digital to Analog Converter | 11-bit, 225 MHz | | Audio Support | S/PDIF digital output for 5.1 Dolby/DTS
2-channel stereo analog (L/R), 32-192 kHz
2-channel PCM | | Dimensions and Weight | Not specified by manufacturer | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 7.5 x 5.9 x 2.3" |
