User Manual for HeadRush Gigboard with Guitar Amplifier and Effects Modeling Processor

Click to enlarge the picture
HeadRush Gigboard with Guitar Amplifier and Effects Modeling Processor Contents of the user manual for the HeadRush Gigboard with Guitar Amplifier and
  • Product category: Effects Pedals HeadRush
  • Brand: HeadRush
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for HeadRush Effects Pedals

HeadRush Gigboard with Guitar Amplifier and Effects Modeling Processor HeadRush Gigboard with Guitar Amplifier and Effects Modeling Processor HeadRush Gigboard with Guitar Amplifier and Effects Modeling Processor
User manual for the HeadRush Gigboard with Guitar Amplifier and contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any HeadRush product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official HeadRush user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a HeadRush product will considerably shorten its lifespan!



Product description

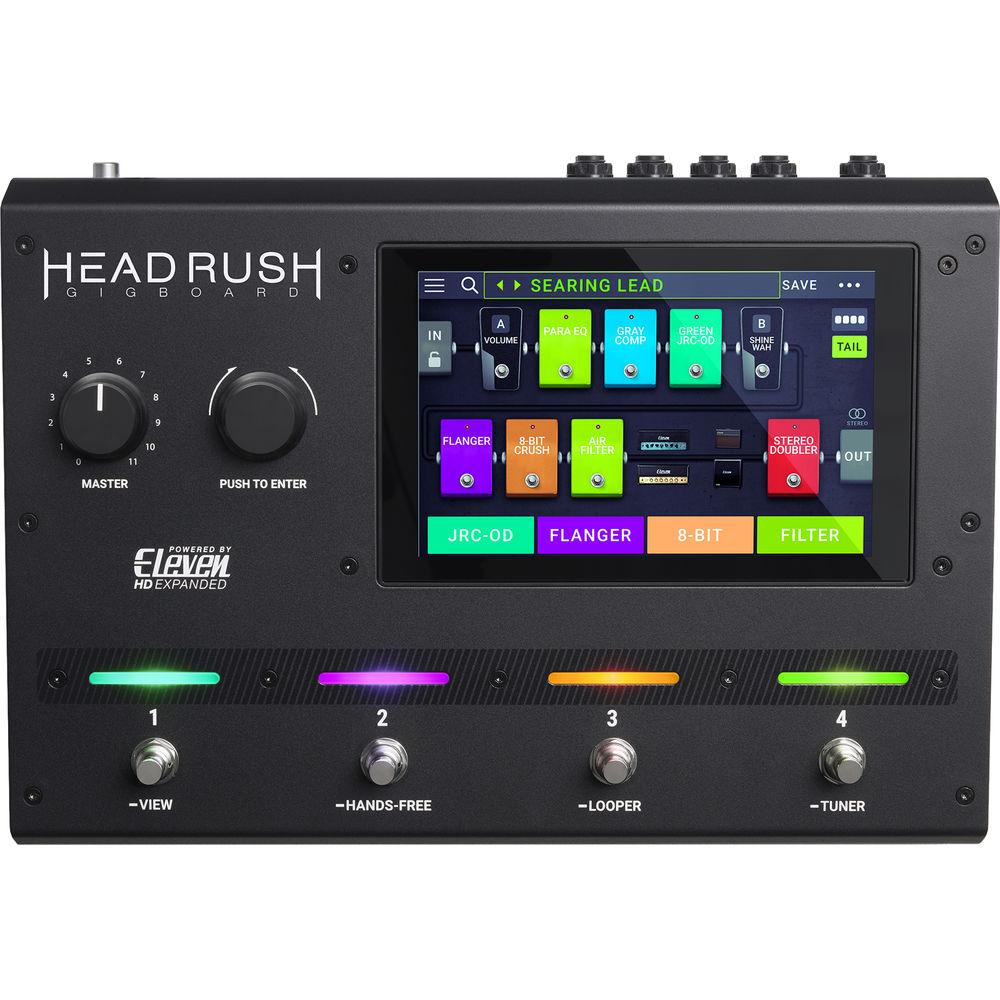

Designed for electric guitarists on the move, the HeadRush Gigboard provides amplifier and cabinet modeling, multiple effects processors, a 20-minute looper, and more. Its quad-core processor and Eleven HD Expanded DSP software ensure you'll have loads of sounds, all of which can be controlled via four footswitches and a powerful 7" touchscreen allowing swipe, touch, and drag and drop controls.

The preloaded models include 34 amplifiers, 15 cabinets, 10 microphones, and over 40 effects. Load third-party and custom impulse responses to expand your tonal options.

Plug your guitar into the 1/4" input and play along with music from a smartphone or MP3 player via the 3.5mm input. You can use the mono 1/4" send/return path to loop your own pedals or rack effects into the chain. Connect to an amplifier or house PA via the 1/4" output or record and reamp via USB. The HeadRush Gigboard offers MIDI I/O and a secondary expression pedal input for expanded control capabilities.
    Powerful Processing
  • Utilizing a quad-core processor and exclusive Eleven HD Expanded DSP software, the HeadRush Gigboard delivers loads of amplifier, cabinet, microphone, and effects models
    Models
  • Loads of models for tone-shaping power: 34 amplifiers, 15 cabinets, 10 microphones, six distortion pedals, eight rotary effects, four EQs, two compressors, one gate, 13 modulation effects, four delays, three reverbs, and seven expression effects
    Touch Display

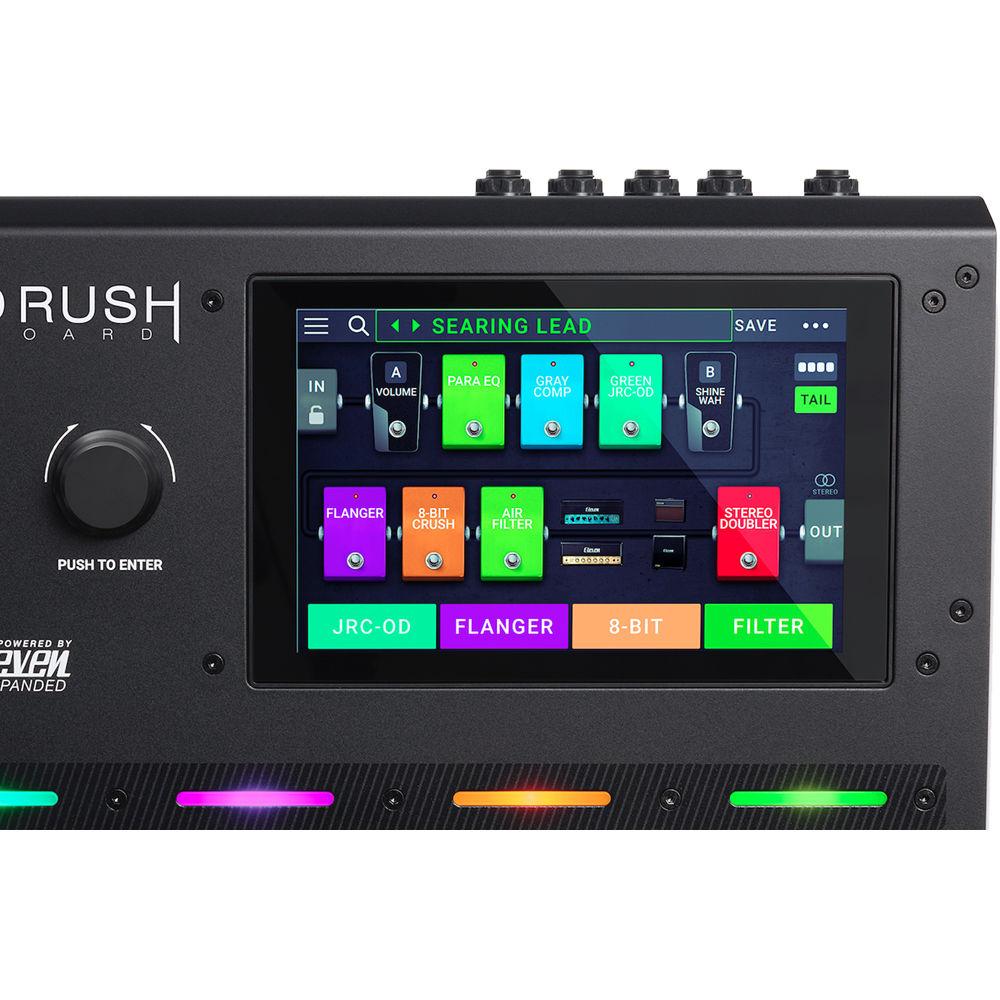

  • The 7" touch display and intuitive user interface enable touch, swipe, and drag-and-drop to efficiently create and edit rigs
    Intuitive Controls
  • Easily control presets and parameters via 4 footswitches, a master knob, the 7" touchscreen, a rotary encoder, and any expression pedal you'd like to plug into the unit
    Smooth Preset Changes
  • Gapless preset changes with reverb and delay spillover ensure that your previous sound won't cut out when you switch to a different preset
    Looping
  • A built-in looper offers up to 20 minutes of record time
    Custom IRs
  • HeadRush teamed up with Celestion to include an exclusive download in the box to get you started, plus you can load third-party and custom impulse response files (support is provided for WAV and AIFF files, sample rates up to 192 kHz, and bit-depths up to 32 bits)
    Connections
  • 1/4" mono and 3.5mm stereo inputs, 1/4" output, 1/4" sends/return path, MIDI I/O, and USB port provide versatile connectivity
    Ready for the Road
  • The steel chassis and universal power supply make it ready for use on tour or in the studio
In the Box HeadRush Gigboard with Guitar Amplifier and Effects Modeling Processor
  • USB Cable
  • Power Adapter
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the HeadRush Gigboard with Guitar Amplifier and Effects Modeling Processor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    HeadRush GIGBOARD Specs

    Inputs 1 x 1/4" TS (Instrument)
    1 x 1/4" TS (Expression Pedal Switch)
    1 x 1/4" TRS (Expression Pedal Input)
    1 x 3.5 mm Stereo Mini-Jack (Auxiliary Device)
    Outputs 2 x XLR
    1 x 1/4" TRS (External Amp Switch)
    Sends/Returns 1 x 1/4" TRS Send
    1 x 1/4" TRS Return
    MIDI Connectors 1 x 5-Pin MIDI Input
    1 x 5-Pin MIDI Output/Thru
    USB 1 x USB Type-B
    Controls 4 x Footswitches
    1 x Master knob
    1 x Rotary encoder
    Display Full-Color LED-Backlit Display with Touch Interface
    6.9" / 176.0 mm (Diagonal)
    5.9 x 3.7" / 150.0 x 93.0 (Width x Height)
    Construction Material Steel Chassis
    Power Requirement Input Voltage: 19 VDC, 3.42 A
    Connection: DC Power Adapter Input
    Dimensions (W x D x H) 13.0 x 8.9 x 2.6" / 329.2 x 225.6 x 67.1 mm
    Weight 7.1 lb / 3.2 kg

    Rating

    90% users recommend this product to others. And what about you?
    Rating: 4.5 of 5

    This product has already been rated by 16 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to HeadRush Gigboard with Guitar Amplifier and Effects Modeling Processor

    Subject: reset to factory settings
    Date: 06.05.2022 00:12:59Name: Danny Head
    How do i reset the gigboard to it's factory settings? thanks.
