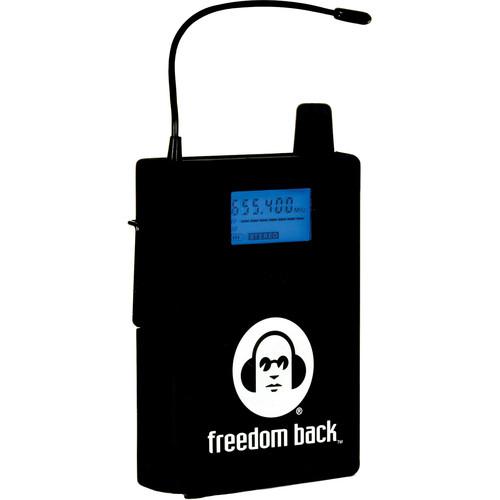

User Manual for Hear Technologies Freedom Back Receiver UHF Wireless Bodypack Receiver Click to enlarge the picture
Contents of the user manual for the Hear Technologies Freedom Back Receiver UHF
- Product category: Digital Mixer Accessories Hear Technologies
- Brand: Hear Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hear Technologies Digital Mixer Accessories
|
User manual for the Hear Technologies Freedom Back Receiver UHF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hear Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hear Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hear Technologies product will considerably shorten its lifespan!
|
Product description The Hear Technologies Freedom Back Receiver is a UHF wireless bodypack receiver designed to deliver clear mix monitoring with wireless freedom for musicians, singers, and actors in clubs, houses of worship, concert venues, and live stage applications. It operates in the 655 to 679 MHz frequency band and is compatible with your Freedom Back wireless transmitter. Ten groups allow access to 120 channels per band. Featuring an external antenna, an integrated belt clip, and an 1/8" stereo headphone output, it enables simple and fast physical setup. A single rotary control provides on/off switching and volume adjustment. Easily check the frequency, group, channel, battery indicator, and mono/stereo status via the backlit LCD. A top-panel LED indicates presence of RF signal. Powered by two AA batteries (included), the Freedom Back Receiver offers approximately four to five hours of operating time. - Use unlimited receivers (available separately) with one transmitter on the same frequency
- Backlit LCD shows frequency, group, channel, battery indicator, and mono/stereo status
- 1/8" stereo mini jack for connection of headphones or in-ear monitors
- Rotary control provides on/off switching and volume adjustment
- Top-panel LED indicates RF signal presence
- Up, down, and set buttons for easy operation
- Two AA batteries provide approximately four to five hours of operating time
In the Box Hear Technologies Freedom Back Receiver UHF Wireless Bodypack Receiver (B: 655 to 679 MHz) 2 x AA Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hear Technologies Freedom Back Receiver UHF Wireless Bodypack Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHear Technologies FBRB Specs | Wireless Frequency Range | 655 to 679 MHz | | Channels | 120 (10 groups of 12) | | Outputs | 1 x 1/8" stereo mini jack | | Audio Output Level | 100 mW | | Sensitivity | -94 dB for 30 dB SINAD, typical | | Image Rejection | >55 dB | | Operating Range | Up to 330' / 100 m (line of sight under typical conditions) | | Frequency Response ± 3dB | 40 Hz to 16 kHz | | Dynamic Range | >90 dBA | | Total Harmonic Distortion | <1% (
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
