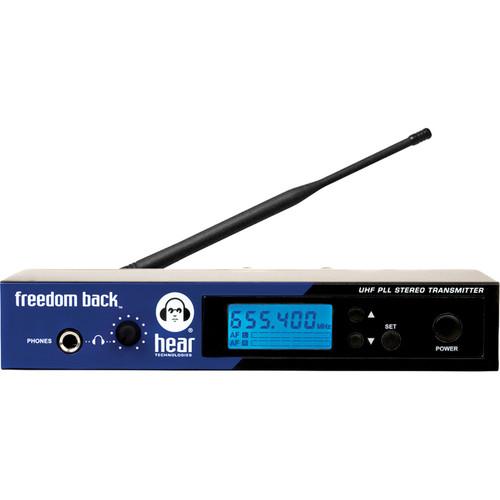

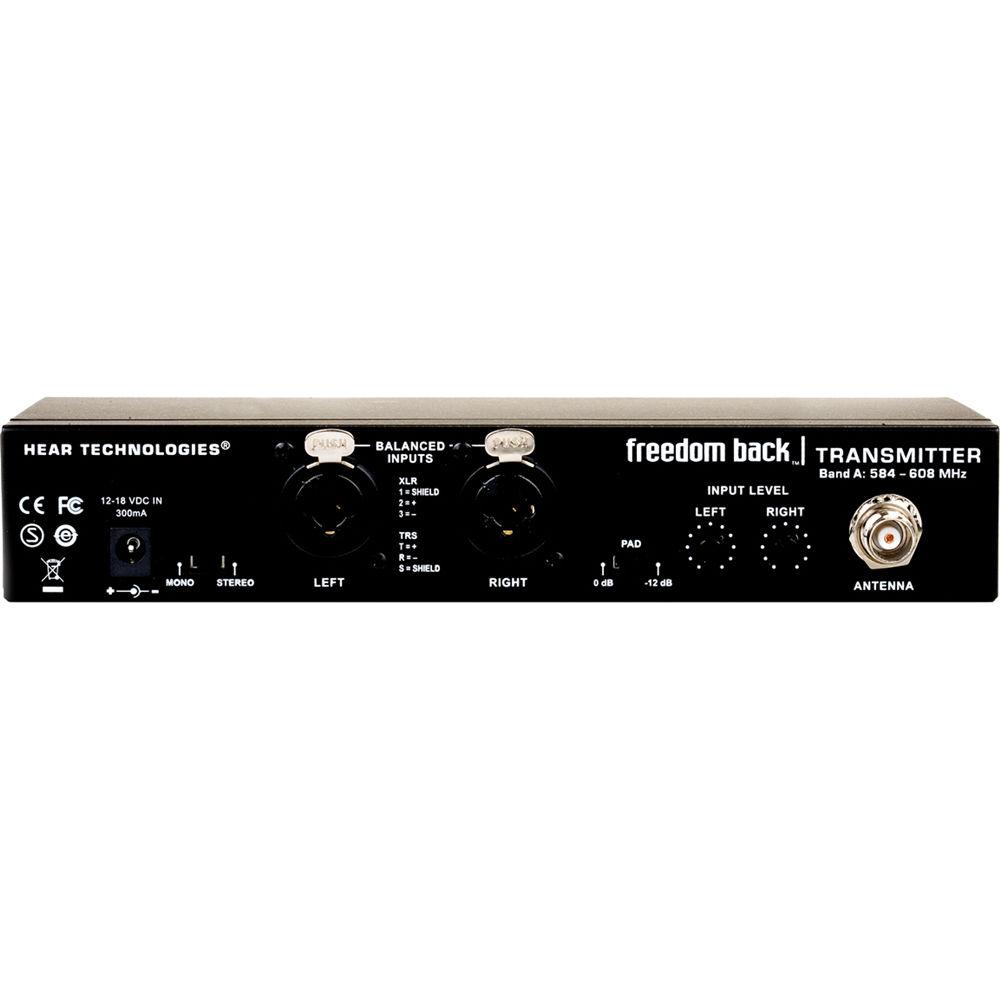

Product description The Hear Technologies Freedom Back Transmitter is a UHF wireless transmitter with a rackmount kit designed to deliver strong, clear signal transmission to musicians, singers, and actors in clubs, houses of worship, concert venues, and live stage applications. It operates in the 584 to 608 MHz frequency band and is compatible with your Freedom Back wireless receiver. Ten groups allow access to 120 channels per band. A rear-panel switch enables quick switching between mono and stereo modes.Route your mix to the XLR-1/4" combo inputs. Utilize the -12 dB pad and adjustable input levels to optimize the audio signal strength. A built-in automatic limiter inhibits overloading and distortion. Effectively monitor the output via the volume-adjustable, front-panel 1/4" headphone jack. Set the transmitter on a worksurface or house it in a rack with the included rackmount kit, which allows the external whip antenna to be front-mounted and connected via the supplied extension cable. Easily check the frequency, group, channel, audio level, and battery status via the backlit LCD. - Supports unlimited receivers (available separately) with one transmitter on the same frequency
- Use up to ten transmitters in the same space
- 120 digitally selectable UHF channels
- Backlit LCD shows frequency, group, channel, audio level, and battery status
- 1/4" TRS output for connection of headphones or in-ear monitors
- Front-panel headphone volume adjustment
- Separate left and right input level controls
- Up, down, and set buttons for easy operation
- External whip antenna can be front-mounted with included rack ears and extension cable
- Includes external power supply

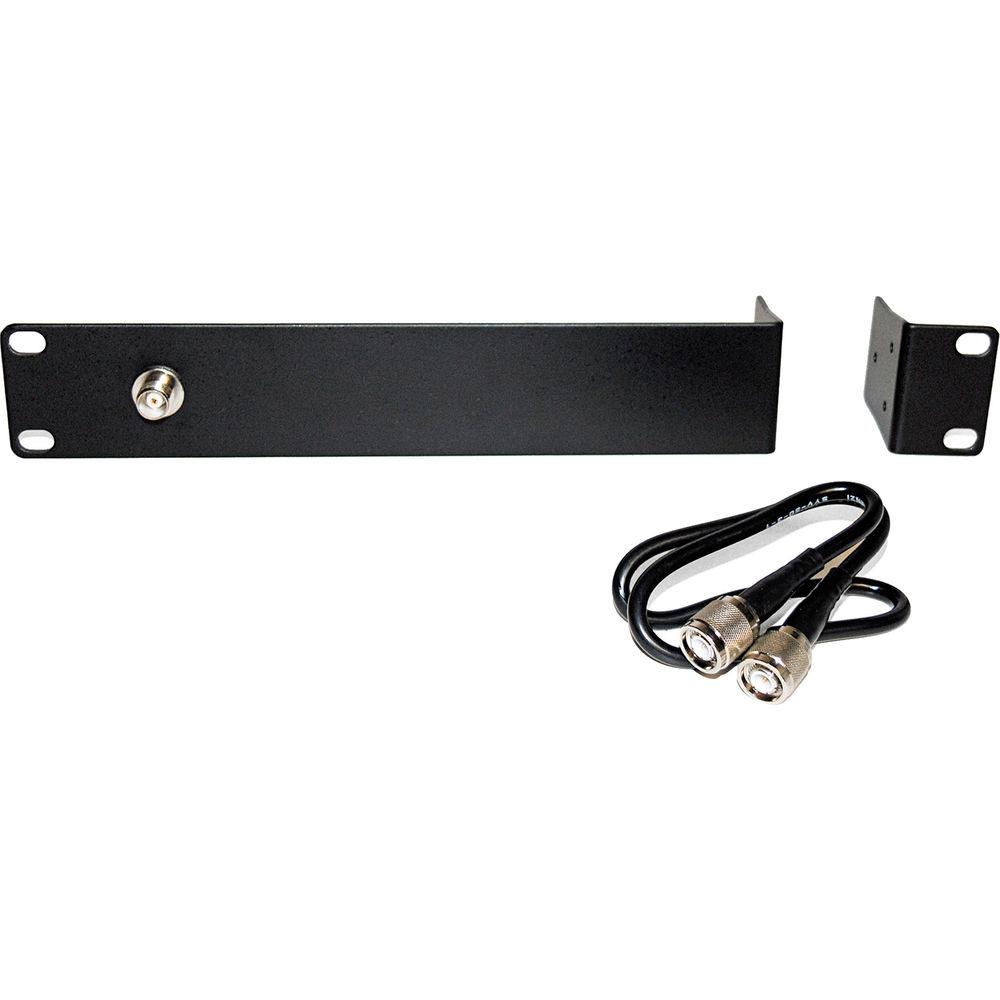

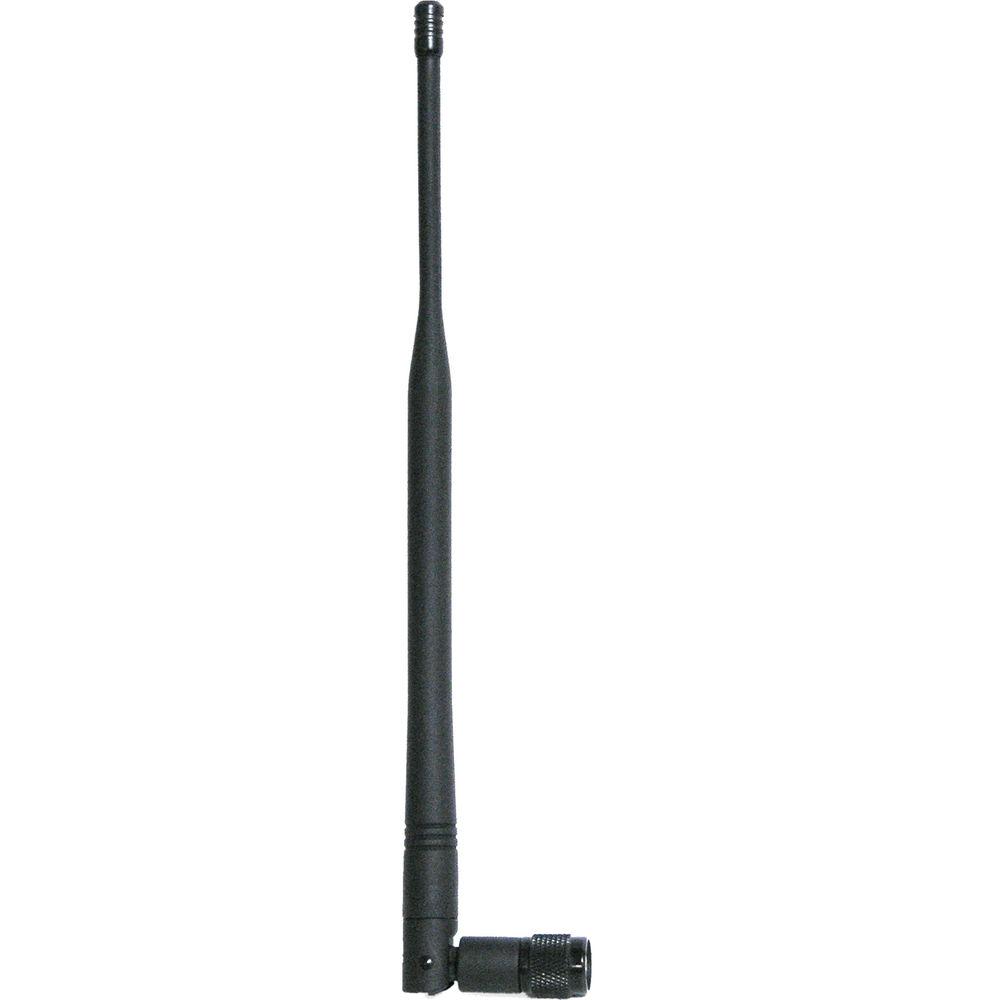

In the Box Hear Technologies Freedom Back Transmitter UHF Wireless Transmitter with Rackmount Kit (A: 584 to 608 MHz) Power Supply External Antenna Antenna Extension Cable Rackmount Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hear Technologies Freedom Back Transmitter UHF Wireless Transmitter with Rackmount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHear Technologies FBTA Specs | Wireless Frequency Range | 584 to 608 MHz | | Channels | 120 (10 groups of 12) | | Inputs | 2 x XLR-1/4" combo jacks | | Outputs | 1 x 1/4" stereo headphone jack | | Output Level | 10 dBm | | Gain Adjustment Range | 16 dB | | Maximum Input Level | +6 dBV without pad
+18 dBV with pad | | Input Impedance | 10 kOhms unbalanced
20 kOhms balanced | | Antenna Impedance | 50 Ohms | | Operating Range | Up to 330' / 100 m (line of sight under typical conditions) | | Frequency Response ± 3dB | 40 Hz to 16 kHz | | Dynamic Range | >90 dBA | | Total Harmonic Distortion | <1% (
