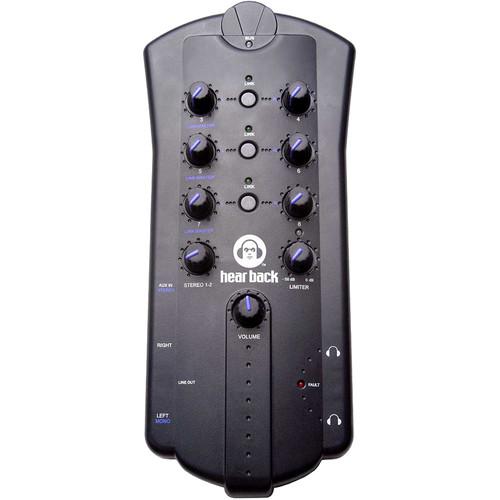

Product description The Hear Technologies Hear Back Mixer is a personal monitor mixer designed to provide simple multi-source mixing and low system latency for musicians, vocalists, and various performers in recording studios, rehearsal spaces, and live stage applications. It receives power and signal via a Cat5e connection to a Hear Back Hub (available separately). Once connected, its LEDs indicate the bus status, headphone amp fault, channel link mode, and more. It features an integrated 5/8”-27 threaded socket for easy mounting to a mic stand.The 10-channel mixer accepts eight channels via Cat5e and two channels via the 3.5mm stereo aux input jack. Adjacent mono channels can be linked for true stereo operation. Volume controls are provided for each channel and the master output. 24-bit D/A conversion and an adjustable built-in DSP limiter deliver high-quality signal free of distortion to the two 1/4" stereo headphone jacks and the two 1/4" balanced line outs. - Mix up to eight channels via Cat5e input and two channels via stereo aux input
- 3.5mm stereo aux input for click track or mix from other modules
- Two-stage DSP limiter with adjustable threshold
- System latency less than 1.5 ms
- LED indicators for limiter activity, bus status, link mode, and headphone amplifier fault
- Mono inputs 3-4, 5-6, and 7-8 can be linked for stereo operation
- Two 1/4" balanced line outputs for connection external monitors or other personal mixers
- Connects to Hear Back Hub (available separately) via Cat5e
UPC: 812737000136 In the Box Hear Technologies Hear Back Mixer Personal Monitor Mixer for Hear Back Hub Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hear Technologies Hear Back Mixer Personal Monitor Mixer for Hear Back Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHear Technologies Hear Back Mixer Specs | Inputs | 1 x 1/8" (3.5 mm) TRS stereo mini-jack
1 x RJ45 | | Outputs | 2 x 1/4" TRS balanced line outputs
2 x 1/4" TRS unbalanced stereo headphone jacks | | D/A Conversion | 24-bit | | Maximum Input Level | Aux Input: +22 dBu (+4 dBu optimal)
System: +15 dBu | | Maximum Output Level | +24 dBu | | Dynamic Range | 112 dB typical | | Noise | -91 dBu analog (A-weighted)
-97 dBu optical (A-weighted) | | Impedance | Aux Input: 10 kOhms typical | | Frequency Response | Line Outputs: 20 Hz to 20 kHz (+0.04 dB, -0.55 dB) | | THD + N | Line Outputs: 0.008% typical (at 1 kHz, +15 dBu), 0.02% typical (at 20 Hz to 20 kHz, +4 dBu) | | IMD | Line Outputs: 0.02% typical (at +4 dBu, 60 Hz/7 kHz)
Headphone Outputs: <0.03% | | Crosstalk | Line Outputs: Better than -85 dB at 1 kHz | | Propagation Delay | Line Outputs: <1.5 ms | | Headphone Output Power | @ 8 Ohms: 150 mW (THD <0.015%), 230 mW (THD <0.1%)
@ 16 Ohms: 235 mW (THD <0.01%), 500 mW (THD <0.1%)
@ 25 Ohms: 675 mW (THD <0.01%), 775 mW (THD <0.1%)
@ 32 Ohms: 950 mW (THD <0.01%), 1.1 W (THD <0.1%)
@ 50 Ohms: 1.6 W (THD <0.01%), 1.8 W (THD <0.1%)
@ 100 Ohms: 1.14 W (THD <0.01%), 1.25 W (THD <0.1%)
@ 200 Ohms: 500 mW (THD <0.01%), 650 mW (THD <0.1%)
@ 600 Ohms: 215 mW (THD <0.01%), 220 mW (THD <0.1%) | | Mounting | 5/8"-27 threaded socket | | Enclosure Material | UV-stabilized ABS | | Dimensions (H x W x D) | 11.5 x 5.2 x 3.6" / 292.0 x 132.0 x 91.5 mm | | Weight | 1.2 lb / 0.5 kg | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 13.8 x 7.2 x 5.0" |
