User Manual for Hear Technologies Hear Back OCTO Mixer 8-Channel Personal Monitor Mixer for Hear Back OCTO Hub Click to enlarge the picture
Contents of the user manual for the Hear Technologies Hear Back OCTO Mixer
- Product category: In-Ear Monitoring Systems Hear Technologies
- Brand: Hear Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hear Technologies In-Ear Monitoring Systems
 |
User manual for the Hear Technologies Hear Back OCTO Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hear Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hear Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hear Technologies product will considerably shorten its lifespan!
|

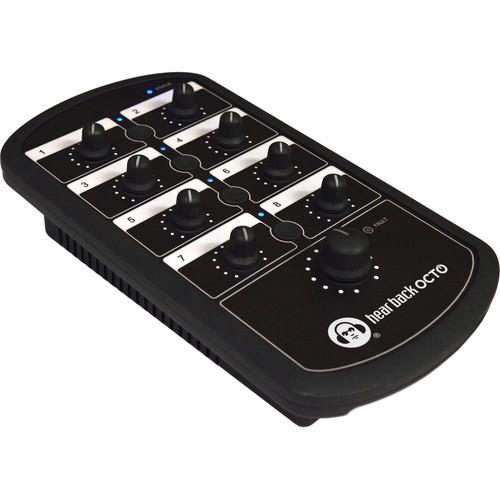

Product description The Hear Technologies Hear Back OCTO Mixer is a personal monitor mixer designed to provide simple multi-source mixing and low system latency for musicians, vocalists, and various performers in recording studios, rehearsal spaces, and live stage applications. It receives power and signal via a Cat5e connection to a Hear Back OCTO Hub (available separately) and features an integrated 5/8"-27 threaded socket for easy mounting to a mic stand. The ten-channel mixer accepts eight channels via Cat5e and two channels via the 1/8" stereo aux input jack. Adjacent mono channels can be linked for stereo operation using the capacitive touch link buttons. Volume is adjustable for each channel and a dedicated master output knob allows for quick control of the headphone level. 24-bit D/A conversion delivers high-quality signal to the 1/8" and 1/4" stereo headphone jacks and the two 1/4" balanced line outs. LEDs are provided for indication of headphone amplifier fault, channel link, and bus status. - Mix up to eight channels via Cat5e input and two channels via stereo aux input
- 1/8" stereo aux input for click track or mix from other modules
- System latency less than 1.5 ms
- Mono inputs can be linked for stereo operation

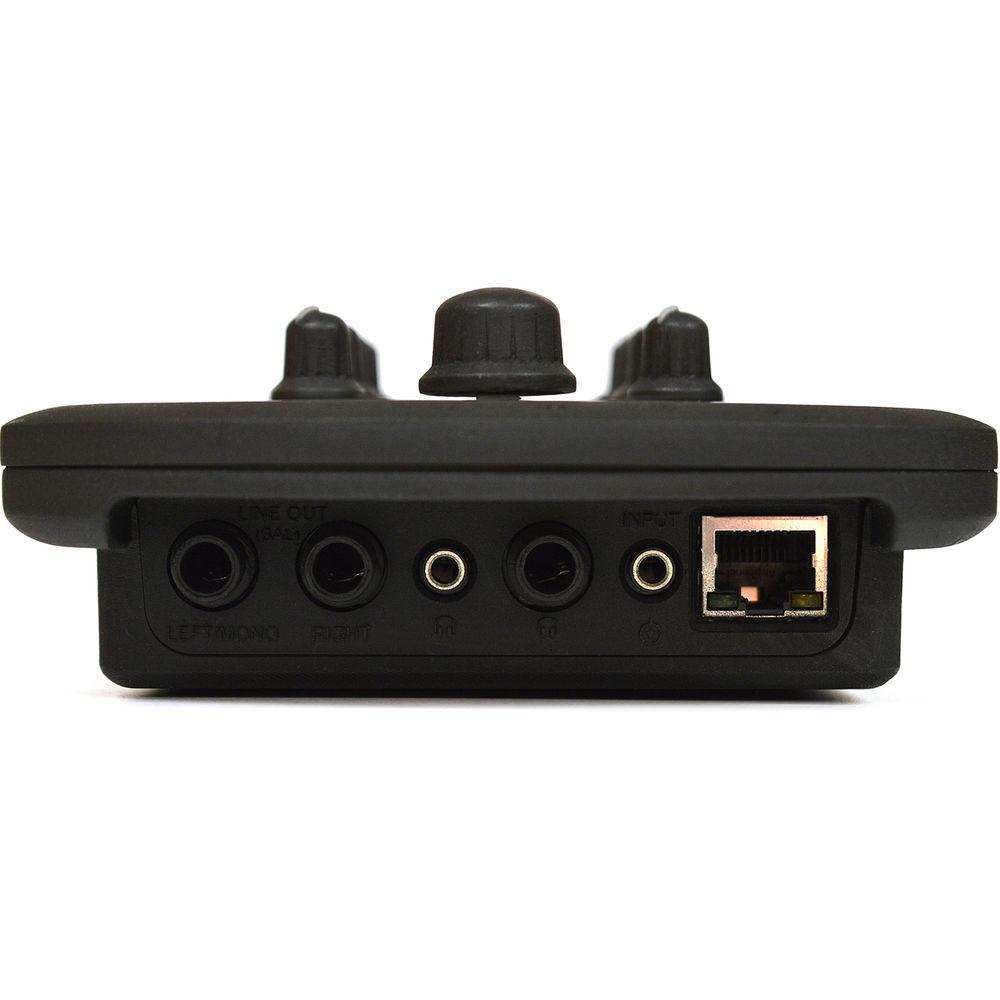

- Two 1/4" balanced line outputs for connection to external monitors or other personal mixers

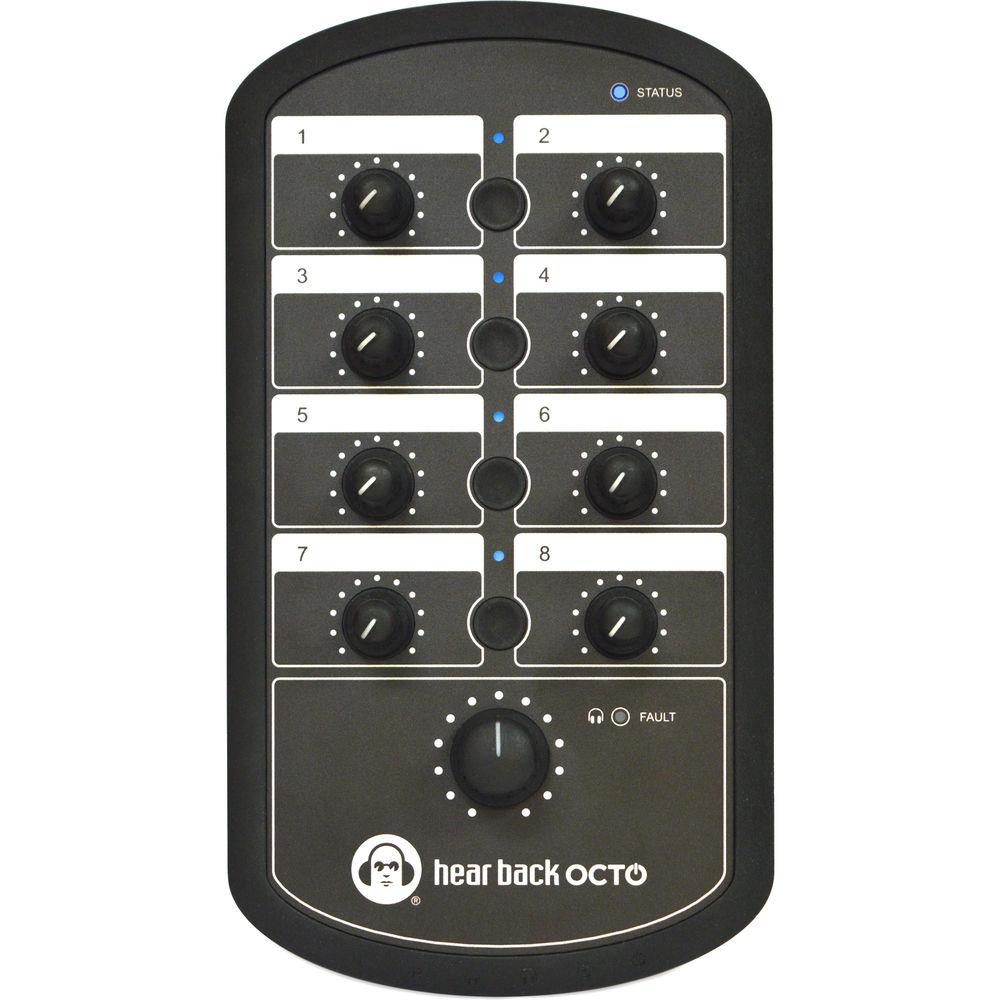

- Per-channel level controls and master volume
- LED indicators for headphone amplifier fault, link, and bus status

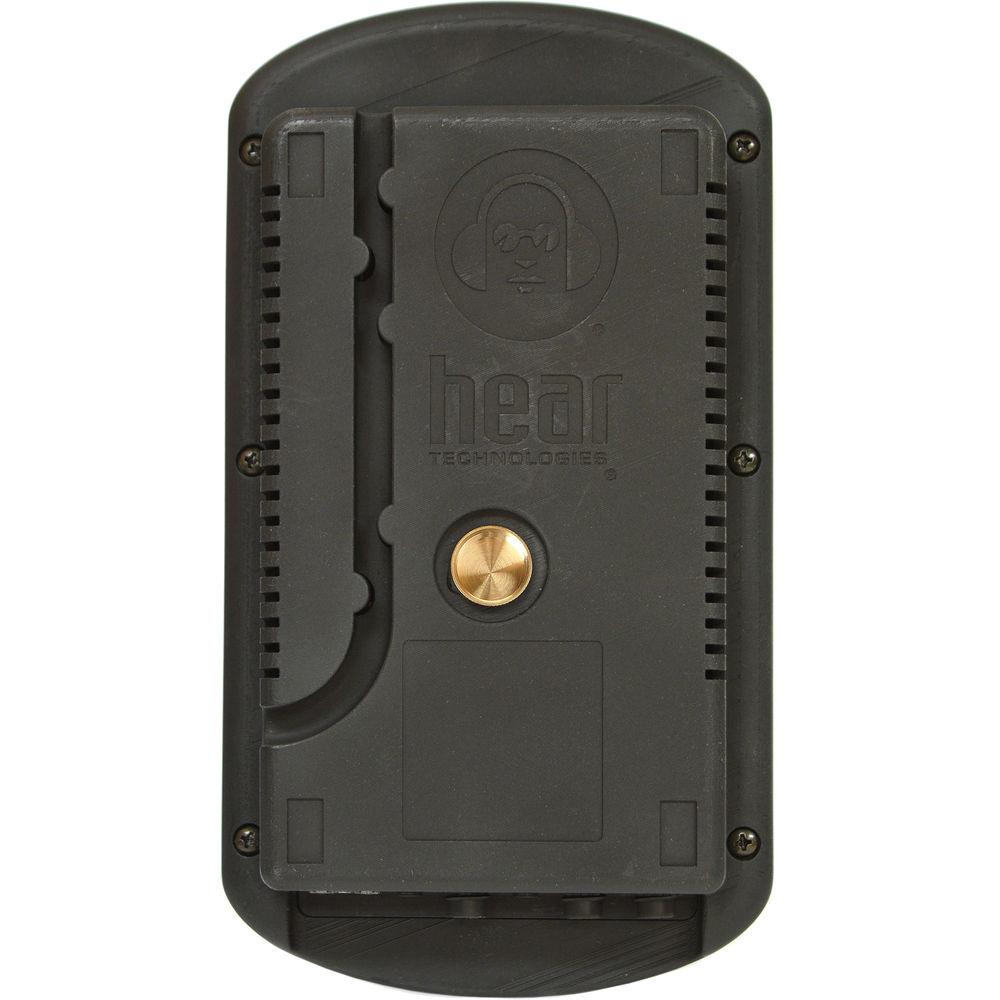

- Built-in 5/8"-27 thread for easy mounting to a mic stand
- Connects to Hear Back OCTO Hub (available separately) via Cat5e
UPC: 812737001263 In the Box Hear Technologies Hear Back OCTO Mixer 8-Channel Personal Monitor Mixer for Hear Back OCTO Hub Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hear Technologies Hear Back OCTO Mixer 8-Channel Personal Monitor Mixer for Hear Back OCTO Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHear Technologies Hear Back OCTO Specs | Total # Of Inputs | 10 channels | | Inputs | 1 x RJ45
1 x 1/8" stereo | | Outputs | 2 x 1/4" balanced line
1 x 1/4" stereo headphone
1 x 1/8" stereo headphone | | Frequency Response | 20 Hz to 20 kHz
