User Manual for Hear Technologies Hear Back PRO 4-Pack Personal Mixing System Click to enlarge the picture
Contents of the user manual for the Hear Technologies Hear Back PRO 4-Pack
- Product category: In-Ear Monitoring Systems Hear Technologies
- Brand: Hear Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hear Technologies In-Ear Monitoring Systems
 |
User manual for the Hear Technologies Hear Back PRO 4-Pack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hear Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hear Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hear Technologies product will considerably shorten its lifespan!
|

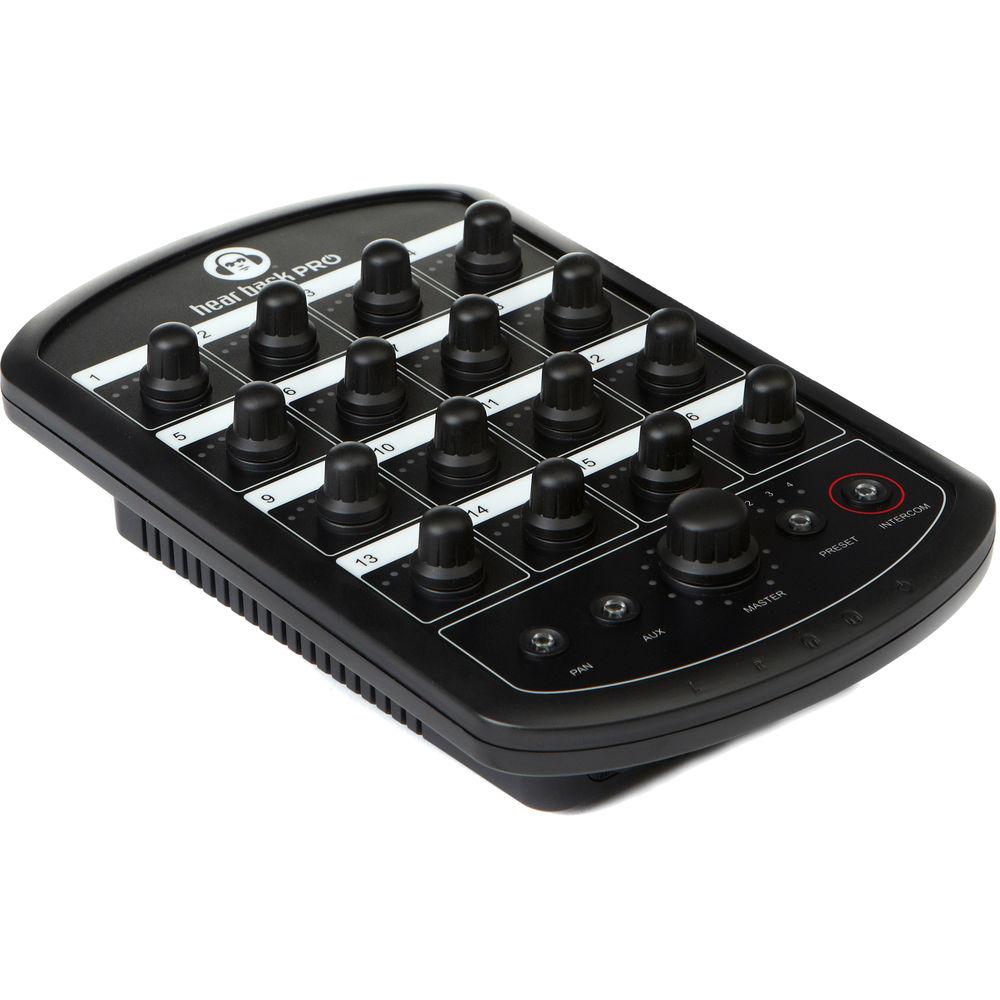

Product description The Hear Technologies Hear Back PRO 4-Pack is a personal mixing system offering independent multi-channel mixing for up to four performers in the studio or on stage. It includes one Hear Back PRO Hub, four Hear Back PRO Mixers, four 50’ Cat6 cables, an eight-port network card, and a Waves SoundGrid I/O card. 24-bit A/D and D/A converters deliver detailed audio with extended dynamic range and resolution up to 96 kHz. The low system latency of less than 0.25 milliseconds ensures there will be no monitoring delay.Artists can make their own headphone mixes comprised of up to 16 digital inputs via the RJ45 port on the Waves SoundGrid I/O card and a mono mic or stereo aux input, blending levels and pans as they please. Each mixer offers an 1/8" and 1/4" TRS headphone output to accommodate different headphones. Per-channel input metering on the Hear Back PRO Hub provides clear indication of signal presence and peaking status. The built-in intercom grants easy communication to other Hear Back PRO Mixers. If mixing stations are needed for more than four artists, the system is easily expandable via additional Hear Back PRO Mixers (available separately) and other interface cards. - Hear Back PRO Personal Monitor Mixer for Hear Back PRO Hub The Hear Technologies Hear Back PRO Mixer is a personal monitor mixer designed to provide simple multi-source mixing and low system latency for musicians, vocalists, and various performers in recording studios, rehearsal spaces, and live stage applications. It receives power and signal via a Cat6e connection to a Hear Back PRO Hub (available separately) and features an integrated 5/8”-27 threaded socket for easy mounting to a mic stand. Store and recall up to four presets to instantly reconfigure mixer settings for different monitoring scenarios.The 18-channel mixer accepts 16 channels via Cat6e and two channels via the 3.5mm stereo aux input jack. Adjacent mono channels can be linked for true stereo operation. Connect an external mic to the XLR 3-pin jack, then use the built-in intercom function to communicate to other connected Hear Back PRO Mixers. Volume and pan is adjustable for each channel and a dedicated master output knob allows for quick control of the headphone level. 24-bit A/D and D/A conversion delivers high-quality signal to the 3.5mm and 1/4" stereo headphone jacks and the two 1/4" balanced line outs.
- Mix up to 16 channels via Cat6e input and two channels via stereo aux input
- 3.5mm stereo aux input for click track or mix from other modules

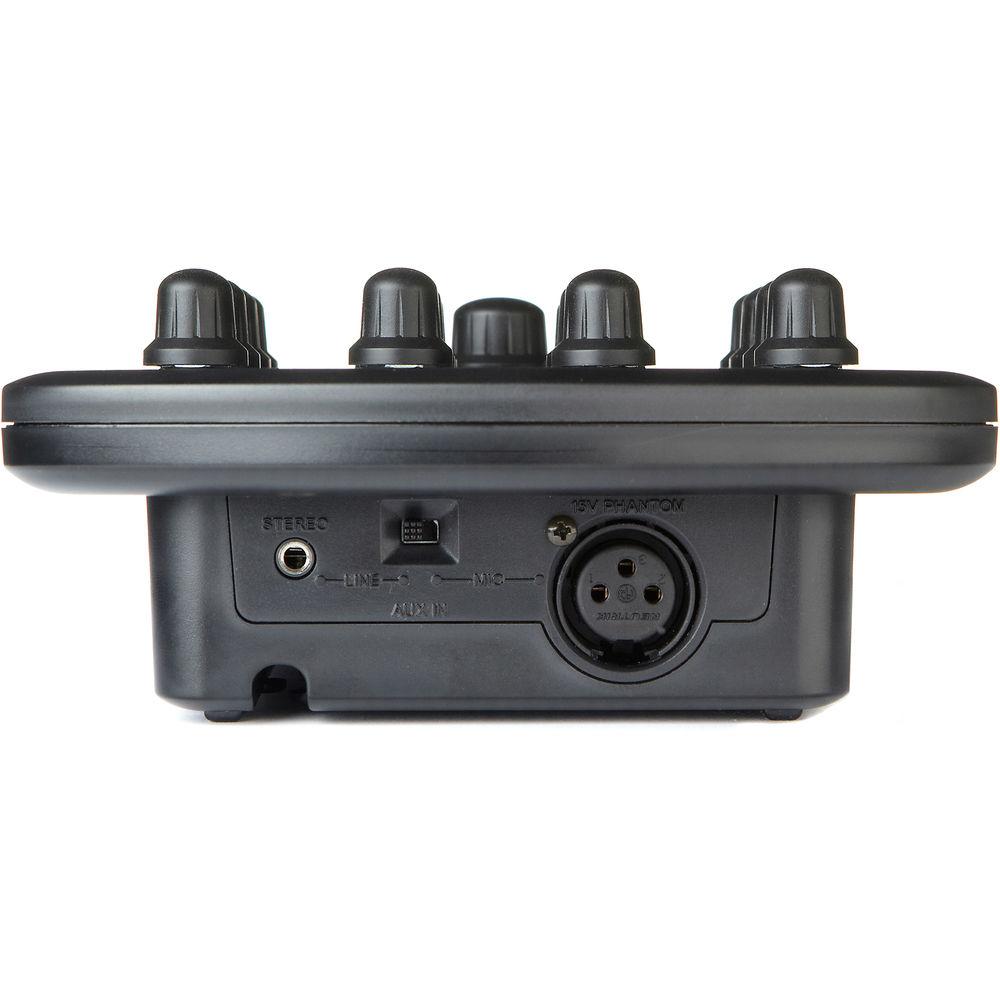

- XLR 3-pin mic input with 15 VDC phantom power
- System latency less than 0.25 ms
- Mono inputs can be linked for stereo operation

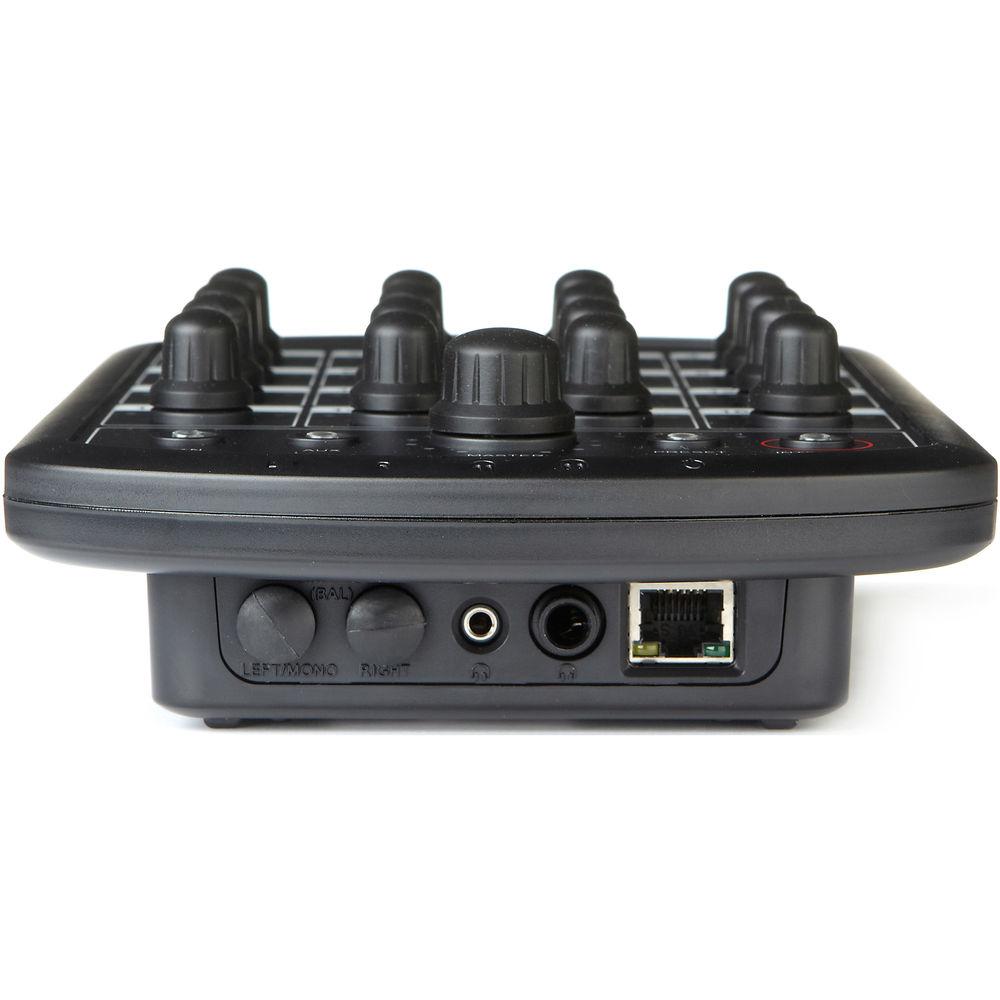

- Two 1/4" balanced line outputs for connection external monitors or other personal mixers
- Integrated intercom allows communication to anyone with a Hear Back PRO Mixer
- Store and recall up to four presets for quick mixer configuration
- Connects to Hear Back PRO Hub (available separately) via Cat6e

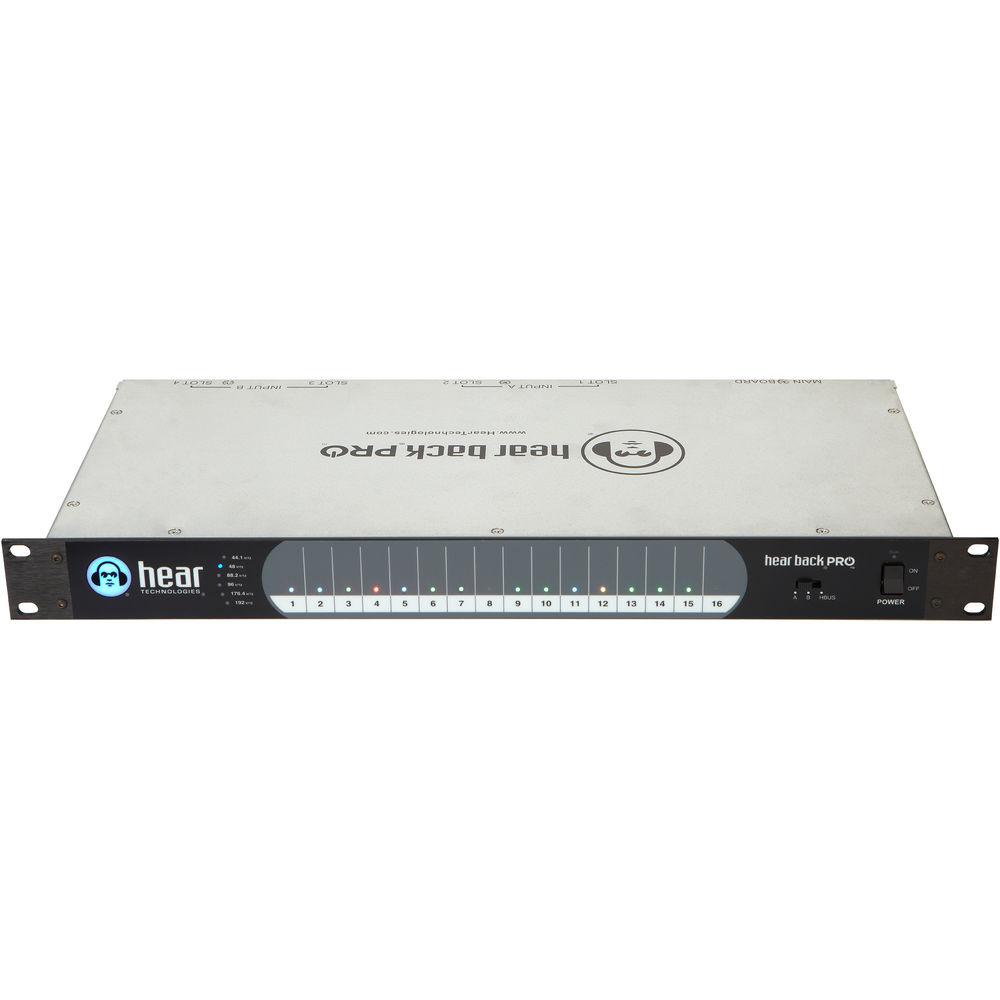

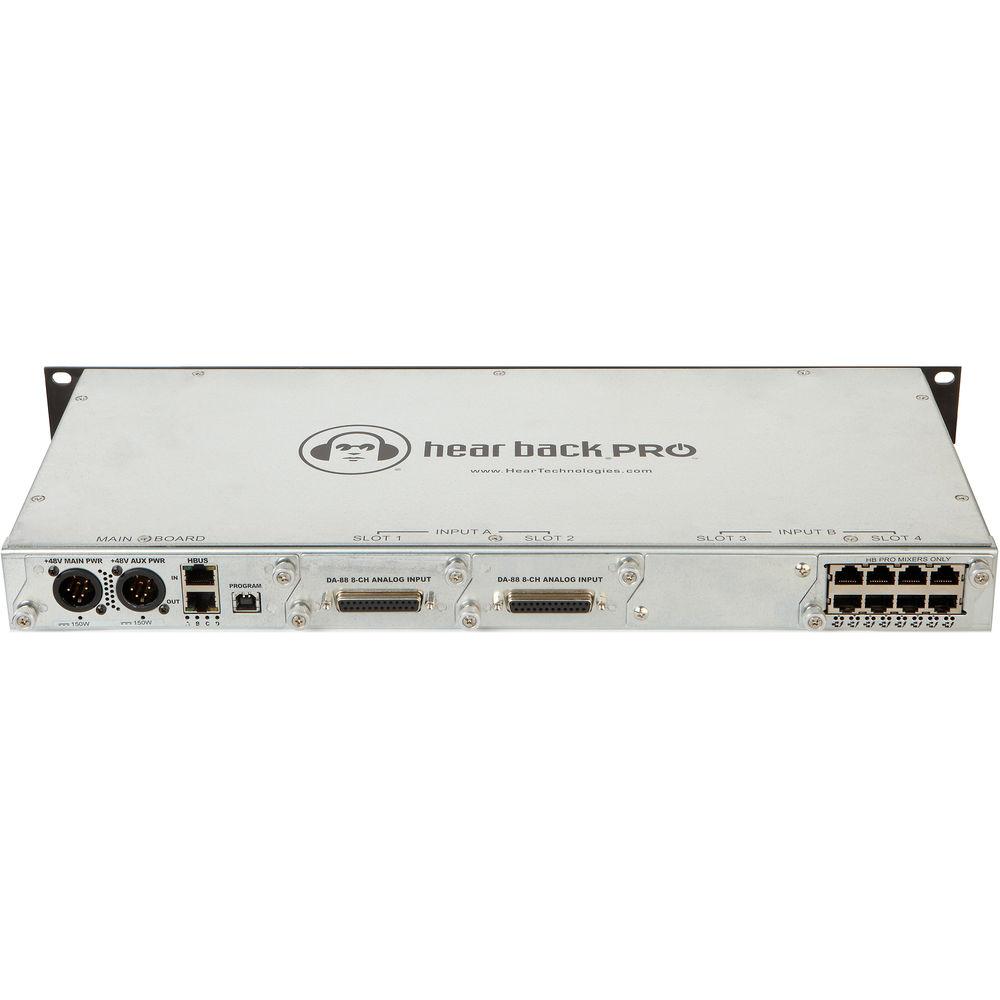

UPC: 812737001003 - Hear Back PRO Hub Mainframe
- Network Card 8-Port RJ45 Card for Hear Back PRO Hub
- Waves Card 16-Channel SoundGrid I/O Card for Hear Back PRO Hub
- Cat6 Patch Cable (50')

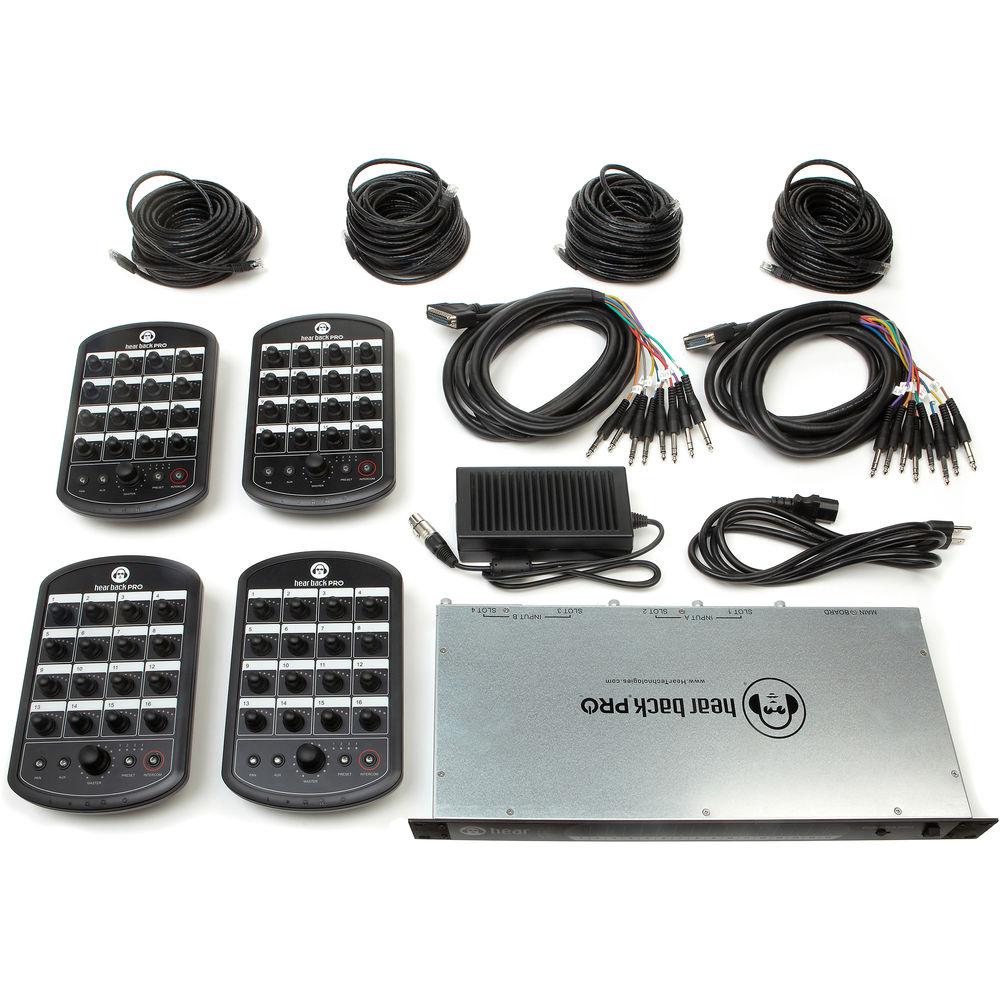

In the Box Bundle Items Hear Back PRO Hub Mainframe xrevzeywtuubsr 4 x Hear Back PRO Personal Monitor Mixer for Hear Back PRO Hub Network Card 8-Port RJ45 Card for Hear Back PRO Hub Waves Card 16-Channel SoundGrid I/O Card for Hear Back PRO Hub 4 x Cat6 Patch Cable (50') Table of Contents
|
Upload User Manual
Have you got an user manual for the Hear Technologies Hear Back PRO 4-Pack Personal Mixing System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Hear Back PRO Personal Monitor Mixer for Hear Back PRO Hub
| Inputs | 1 x 1/8" (3.5 mm) TRS stereo mini-jack
1 x XLR 3-pin microphone input
1 x RJ45 | | Outputs | 2 x 1/4" TRS balanced line outputs
1 x 1/4" TRS unbalanced stereo headphone jack
1 x 1/8" (3.5 mm) unbalanced stereo headphone mini-jack | | Phantom Power | 15 V for XLR input | | A/D and D/A Conversion | 24-bit Delta-Sigma | | Maximum Input Level | Aux Input: +18 dBu (0 dBu optimal)
Mic Input: -30 dBu (-42 dBu optimal) | | Maximum Output Level | +24 dBu | | Dynamic Range | 117 dB typical | | Noise | -93 dBu at 192 kHz sample rate (A-weighted) | | Impedance | Aux Input: 10 kOhms typical
Mic Input: 1 kOhm, 150 Hz high-pass filter | | Frequency Response | Line Outputs: 20 Hz to 20 kHz (
