User Manual for Hedbox PB-D150A Pro Gold Mount Lithium-Ion Battery Pack Click to enlarge the picture
Contents of the user manual for the Hedbox PB-D150A Pro Gold Mount Lithium-Ion
- Product category: On Camera Batteries Hedbox
- Brand: Hedbox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hedbox On Camera Batteries
 |
User manual for the Hedbox PB-D150A Pro Gold Mount Lithium-Ion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hedbox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hedbox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hedbox product will considerably shorten its lifespan!
|

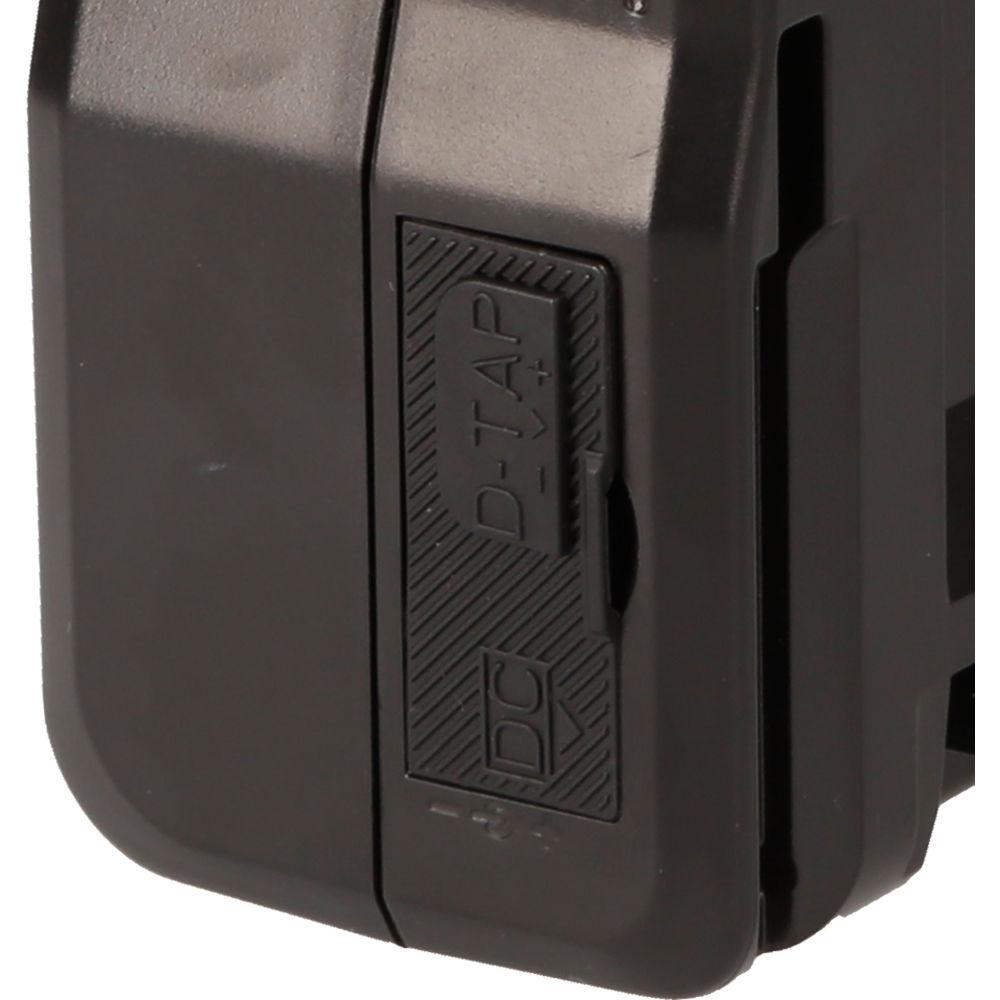

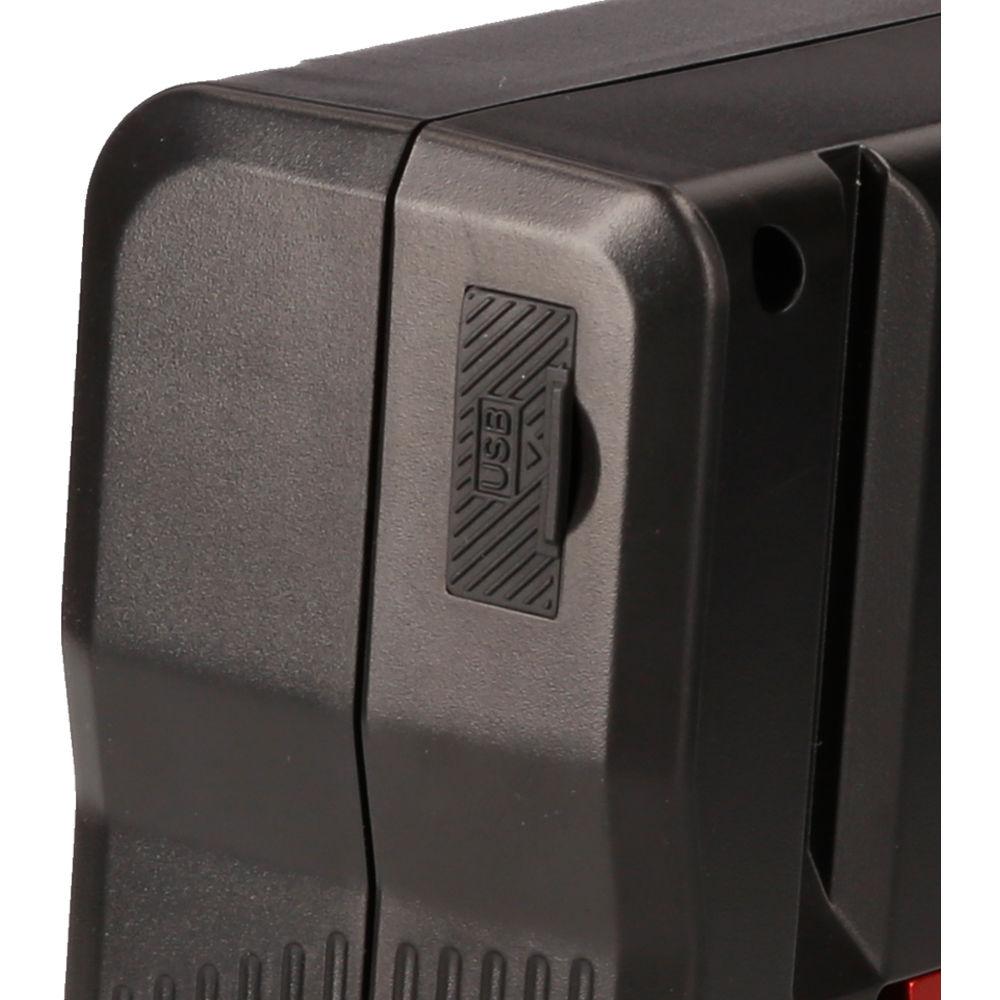

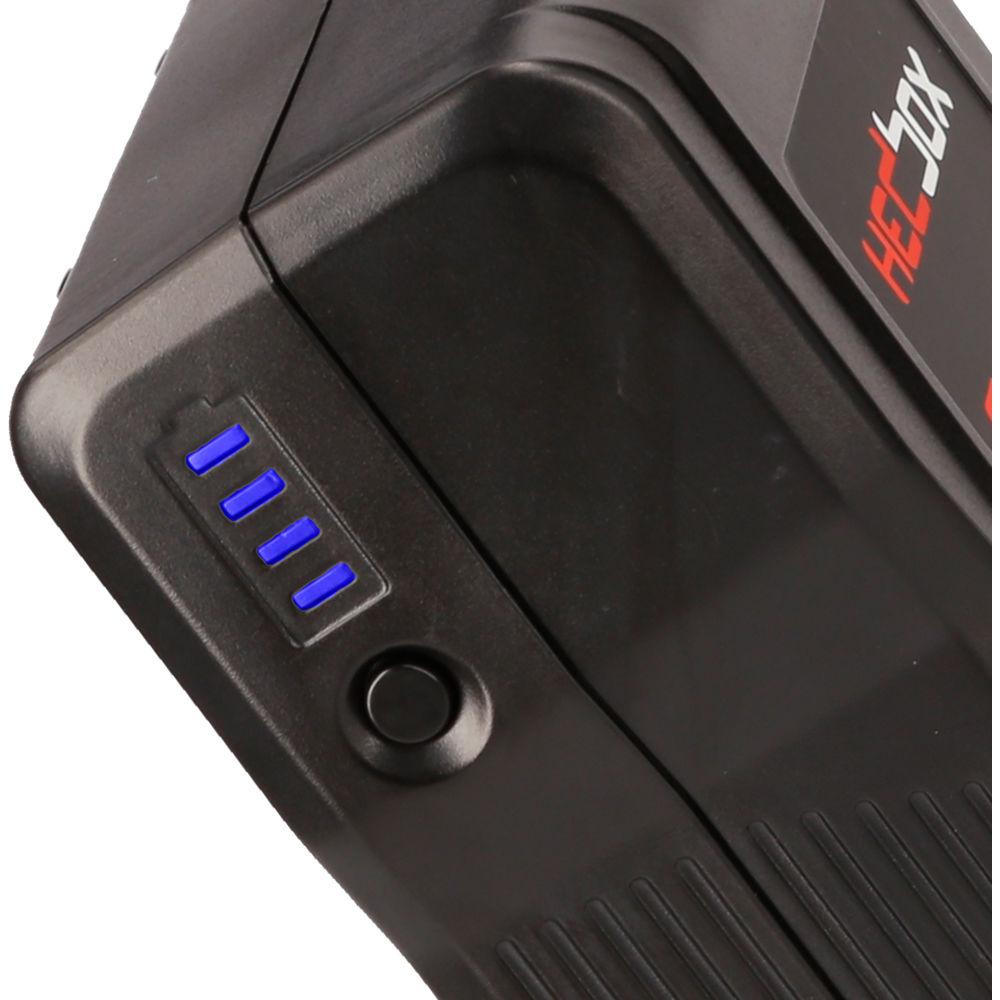

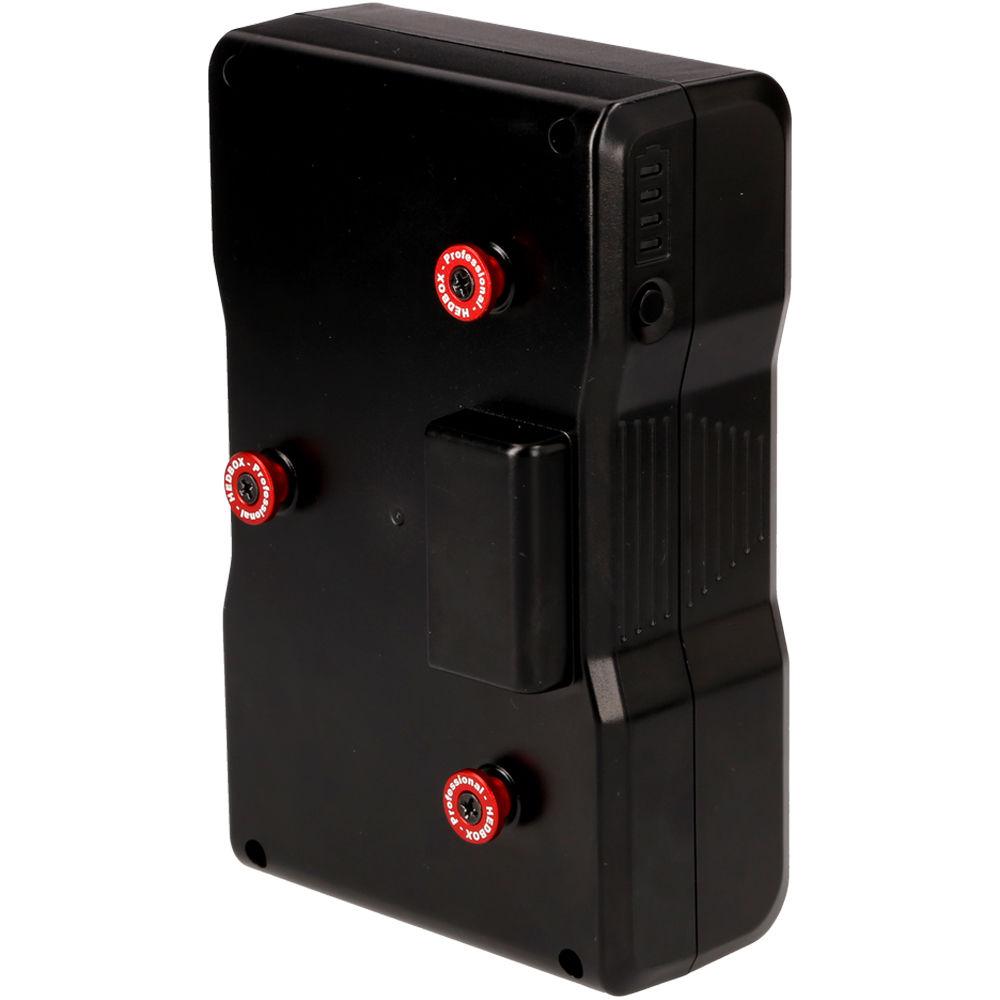

Product description The PB-D150A Pro Gold Mount Lithium-Ion Battery Pack from Hedbox consists of 10400mAh Samsung 18650 battery cells and reaches up to 154Wh, 10A capacity. The battery can run for approximately five hours for 30W ENG camcorders and 1.5 hours for ARRI Alexa camcorders. The PB-D150A features a USB and a D-Tap output with dust covers for providing power to external devices such as on-cameras LED lights, monitors, wireless transmitters, and digital recorders. A 4-LED power meter displays the remaining battery percentage at 100, 75, 50, and 25%. In the Box Hedbox PB-D150A Pro Gold Mount Lithium-Ion Battery Pack (14.8V, 10400mAh) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hedbox PB-D150A Pro Gold Mount Lithium-Ion Battery Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHedbox PB-D150A Specs | Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 154 Wh | | Amp-Hours | 10,400 mAh | | Output Voltage | 14.8 VDC | | Maximum Load | 145 W, 10 A | | Accessory Port | 1 x USB Type-A
1 x D-Tap | | Maximum Load (Accessory Port) | 10 W, 2.1 A ( USB )
118 W, 8 A ( D-Tap ) | | USB Output | 5 V, 2.1 A | | Charging Voltage | 16.8 VDC | | Operating Temperature | -4 to 113°F / -20 to 45°C | | Dimensions (W x H x D) | 3.8 x 6.0 x 2.1" / 96.0 x 152.0 x 53.0 mm | | Weight | 1.9 lb / 880 g | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 7.4 x 4.75 x 3.35" |
