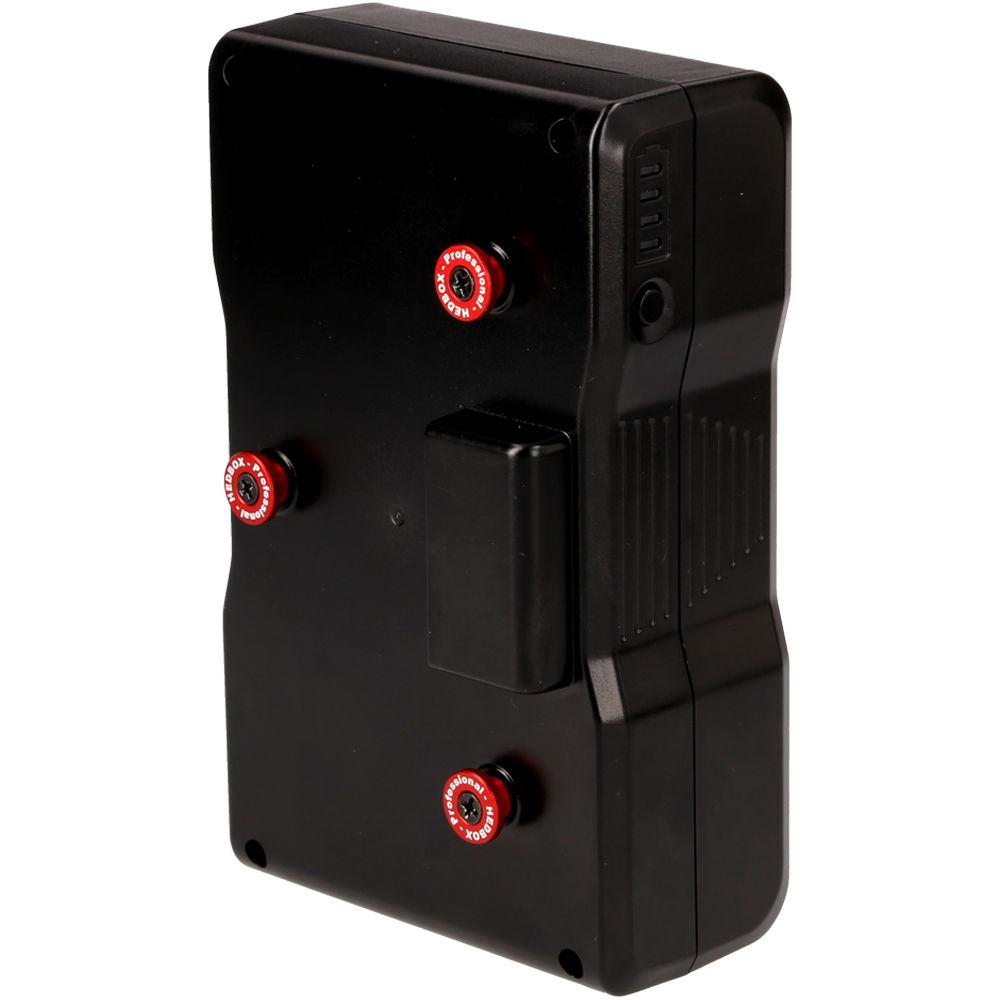

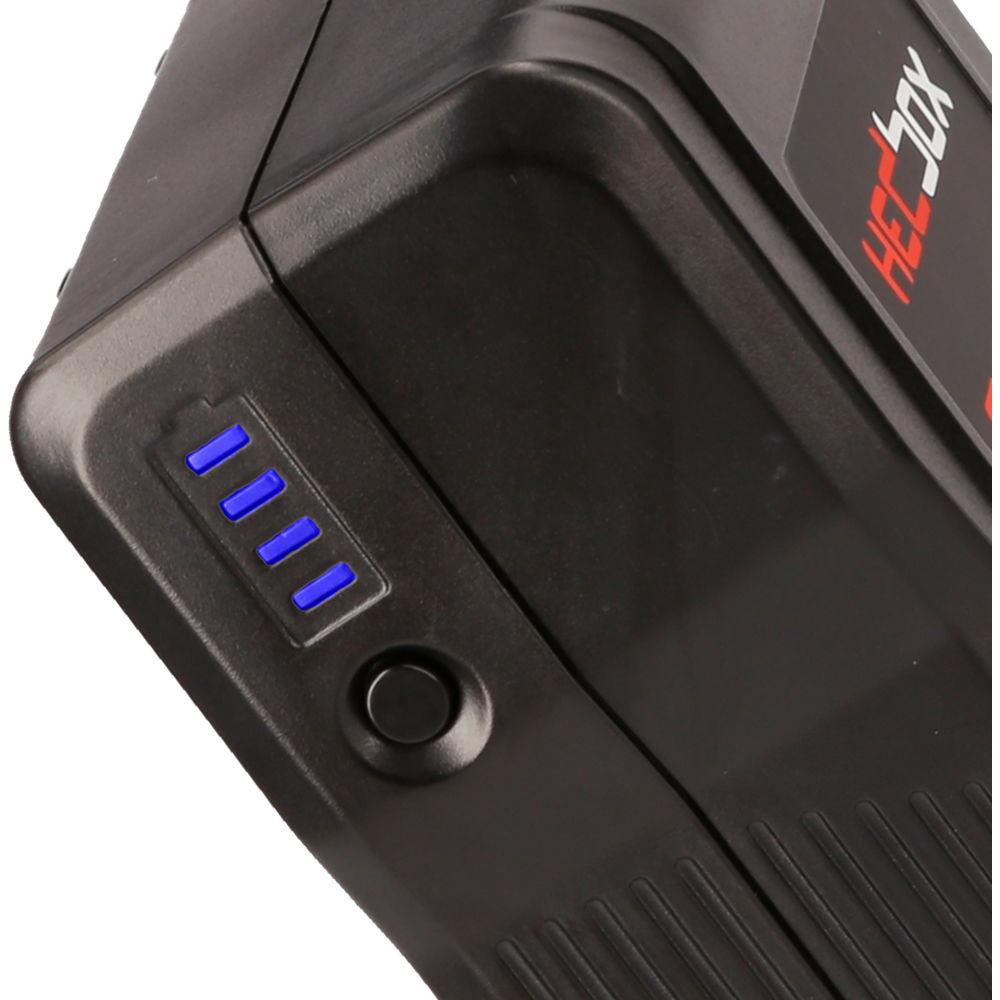

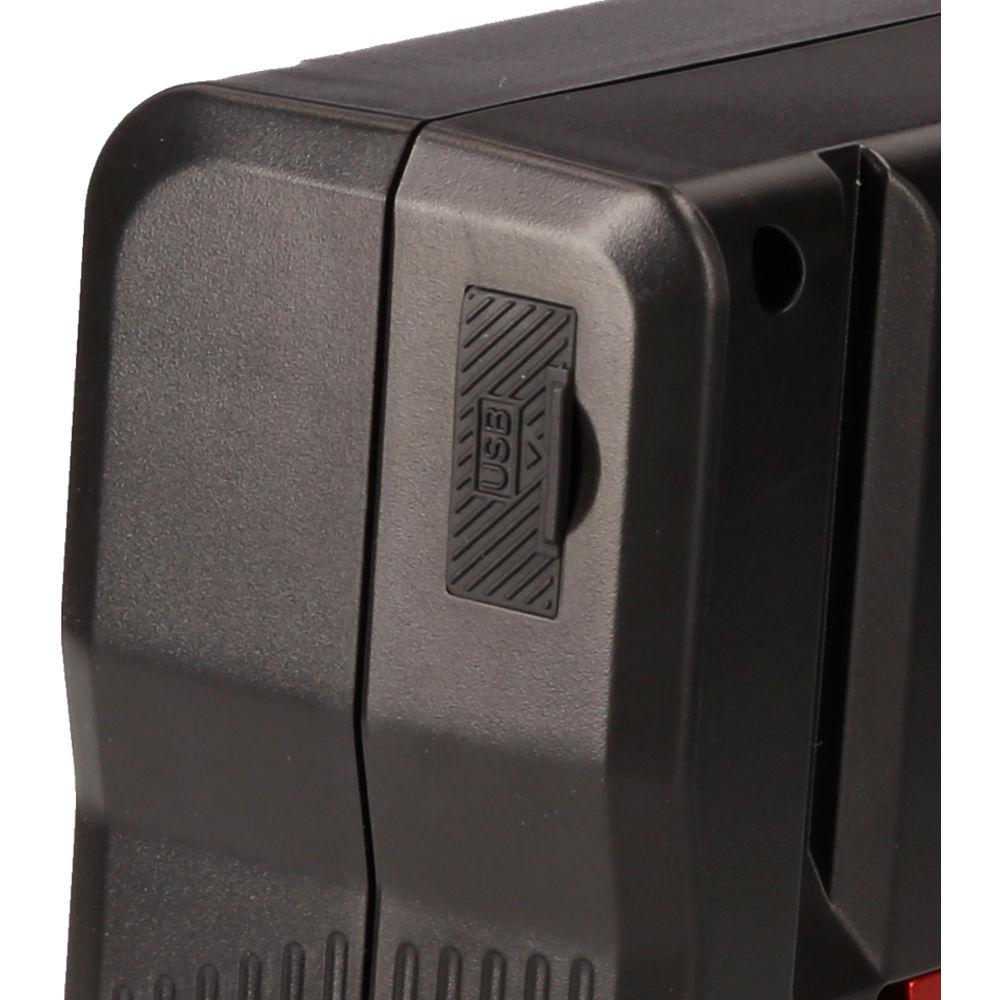

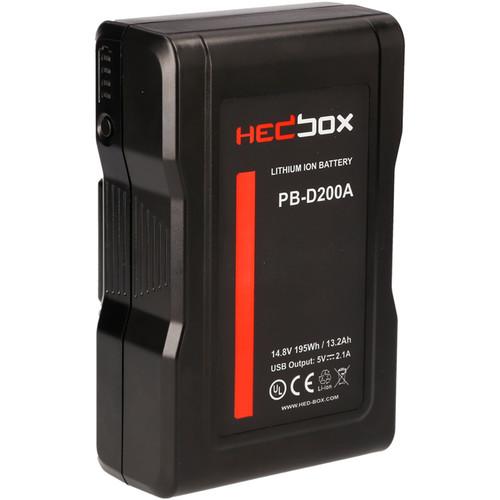

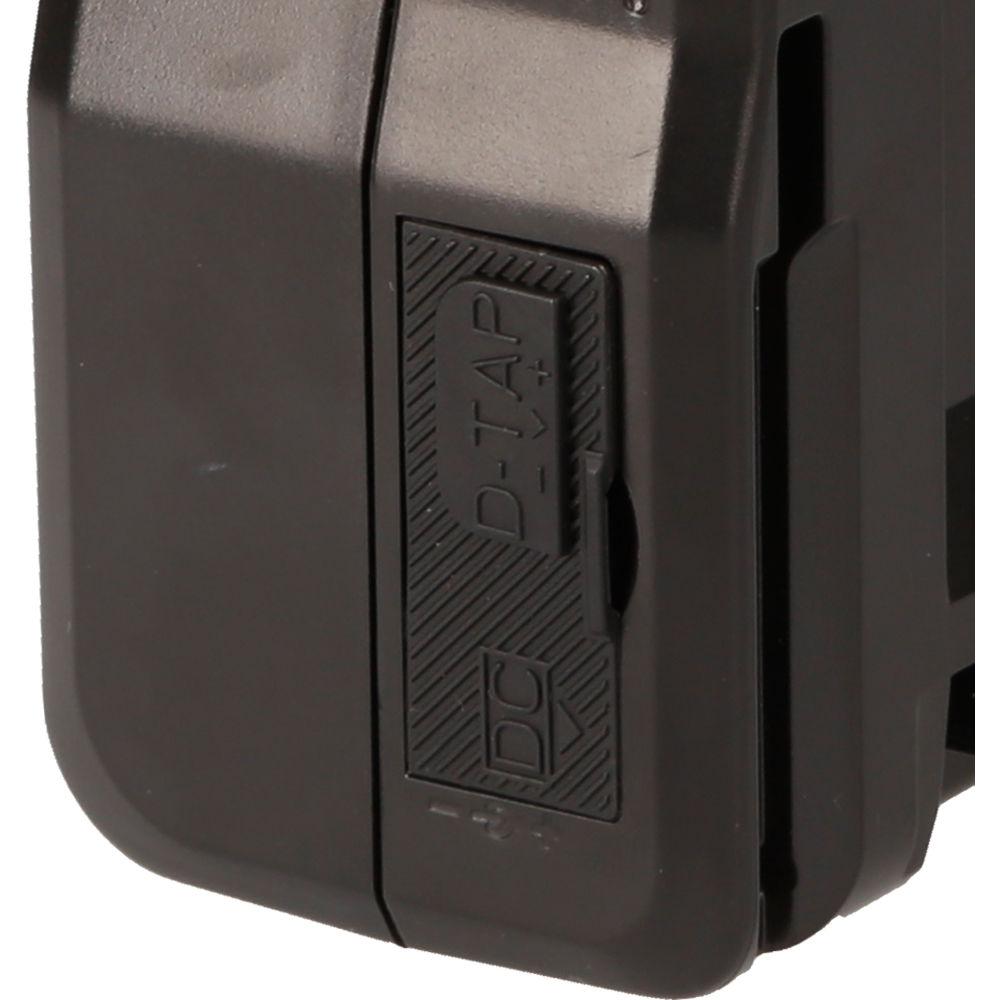

Product description The PB-D200A Pro Gold Mount Lithium-Ion Battery Pack from Hedbox consists of 13200mAh Samsung 18650 battery cells and reaches up to 195Wh, 13A capacity. The battery can run for approximately five hours for 30W ENG camcorders and 1.5 hours for ARRI Alexa camcorders. The PB-D200A features a USB and a D-Tap output with dust covers for providing power to external devices such as on-cameras LED lights, monitors, wireless transmitters, and digital recorders. A 4-LED power meter displays the remaining battery percentage at 100, 75, 50, and 25%. UPC: 712323920124 In the Box Hedbox PB-D200A Pro Gold Mount Lithium-Ion Battery Pack (14.8V, 13200mAh) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hedbox PB-D200A Pro Gold Mount Lithium-Ion Battery Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHedbox PB-D200A Specs | Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 195 Wh | | Amp-Hours | 13,200 mAh | | Output Voltage | 14.8 VDC | | Maximum Load | 190 W, 13 A | | Accessory Port | 1 x USB Type-A
1 x D-Tap | | Maximum Load (Accessory Port) | 10 W, 2.1 A ( USB )
145 W, 10 A ( D-Tap ) | | USB Output | 5 V, 2.1 A | | Charging Voltage | 16.8 VDC | | Operating Temperature | -4 to 113°F / -20 to 45°C | | Dimensions (W x H x D) | 3.8 x 6.0 x 2.1" / 96.0 x 152.0 x 53.0 mm | | Weight | 2 lb / 895 g | | | | Package Weight | 8.18 lb | | Box Dimensions (LxWxH) | 12.3 x 12.2 x 9.7" |
