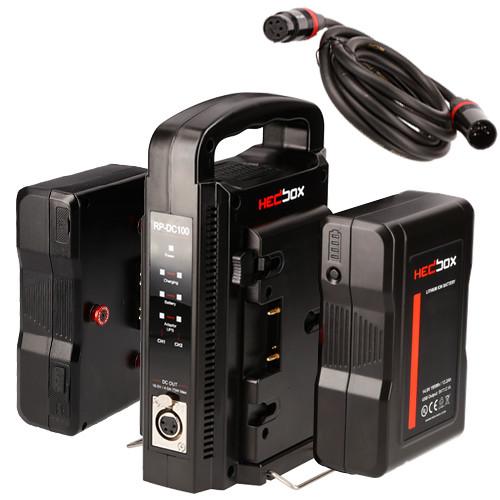

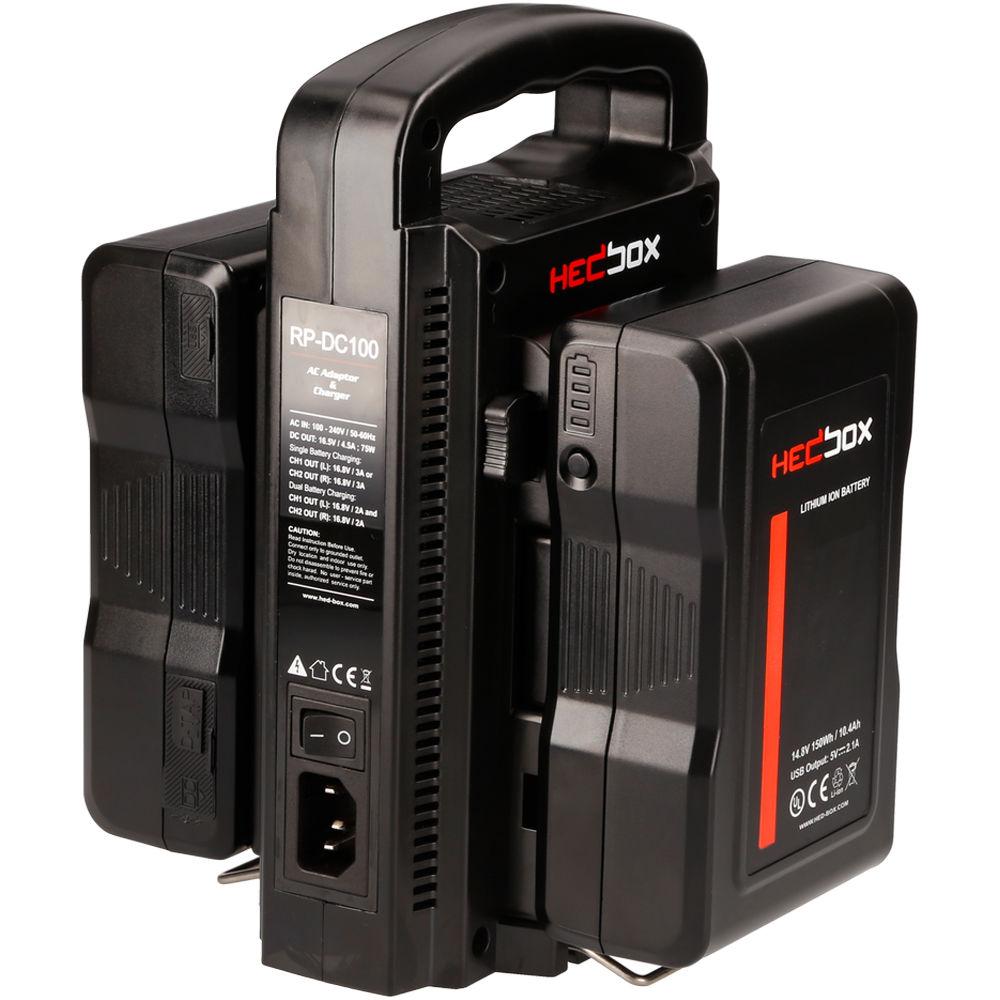

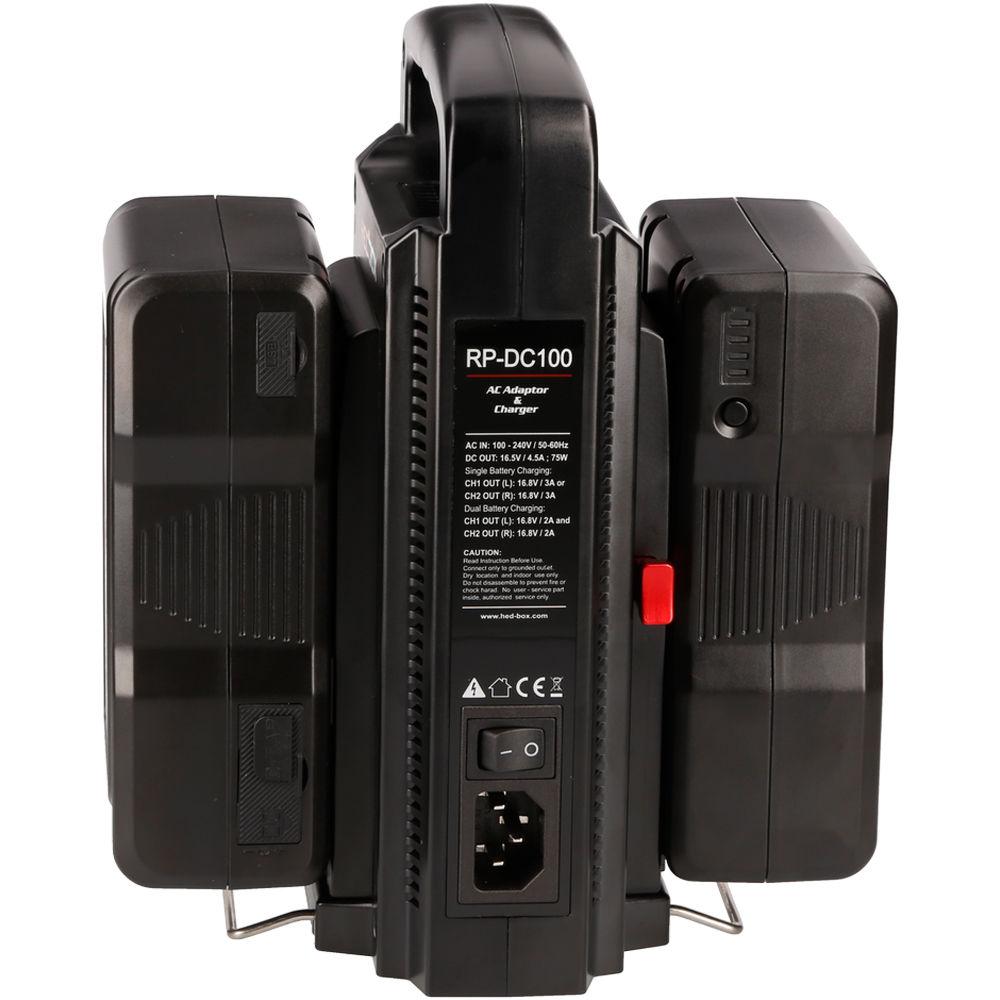

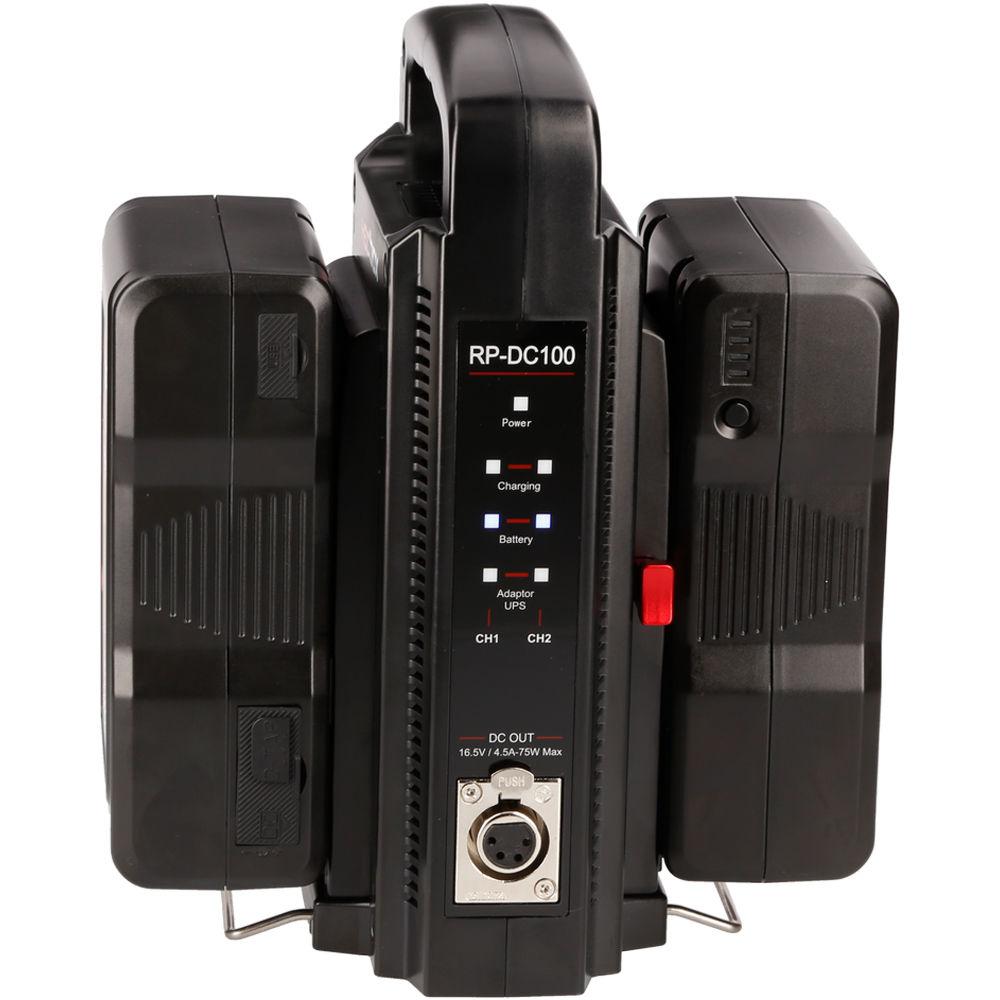

Product description The PB-PB200A Gold Mount Pro Power Bank Set from Hedbox includes two Gold Mount lithium-ion battery packs, a Gold Mount dual battery charger, and a 4-pin XLR female to 4-pin XLR male cable. The batteries feature USB and D-Tap outputs, and a 4-LED power meter. The charger charges both batteries simultaneously and features an LED status display. It can also be used as a power bank with the included XLR cable. - RP-DC100A Gold Mount Dual Battery Charger The RP-DC100A Gold Mount Dual Battery Charger from Hedbox conveniently charges two professional batteries simultaneously. An LED display provides clear and accurate display of power status, charging status, battery channel status, and power bank mode. The RP-DC100A is equipped with extra support stands providing extra stability while charging only one battery. The battery charger can also be used as a power bank with the included 4-pin XLR female to 4-pin XLR male cable, supplying power to external units like camcorders, video monitors, and LED lights. UPC: 712323920520
- PB-D100A Pro Gold Mount Lithium-Ion Battery Pack (14.8V, 6600mAh) The PB-D100A Pro Gold Mount Lithium-Ion Battery Pack from Hedbox consists of 6600mAh Samsung 18650 battery cells and reaches up to 98Wh, 10A capacity. The battery can run for approximately three hours for 30W ENG camcorders and one hour for ARRI Alexa camcorders. The PB-D100A features a USB and a D-Tap output with dust covers for providing power to external devices such as on-cameras LED lights, monitors, wireless transmitters, and digital recorders. A 4-LED power meter displays the remaining battery percentage at 100, 75, 50, and 25%. UPC: 712323919951
In the Box Bundle Items RP-DC100A Gold Mount Dual Battery Charger - 6.5' 4-Pin XLR Female to 4-Pin XLR Male Power Cable
2 x PB-D100A Pro Gold Mount Lithium-Ion Battery Pack (14.8V, 6600mAh) xsttrfrxeweubwtvzsxdu Table of Contents
|
Upload User Manual
Have you got an user manual for the Hedbox PB-PB200A Gold Mount Pro Power Bank Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RP-DC100A Gold Mount Dual Battery Charger
| Battery Plate | Gold Mount | | Connectors | 1 x 4-Pin XLR Female, 16.5 VDC Power Output
1 x US Plug, AC Power Input | | Power Input | 110 to 240 VAC, 50/60 Hz | | Power Consumption | 85 W Maximum | | Power Output per Channel | 16.8 VDC
Single Channel: 3 A
Dual Channel: 2.4 A | | Power Output | 16.5 VDC, 4.5 A, 75 W | | Charging Type | Ni-CD , Ni-MH , Li-Ion | | Operating Temperature | -4 to 113°F / -20 to 45°C | | Dimensions | 4.9 x 4.5 x 17.5" / 124 x 114 x 445 mm | | Weight | 7.7 oz / 218 g | | | | Box Dimensions (LxWxH) | 10.4 x 8.5 x 4.9" | - PB-D100A Pro Gold Mount Lithium-Ion Battery Pack (14.8V, 6600mAh)
| Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6600 mAh | | Output Voltage | 14.8 VDC | | Maximum Load | 145 W, 10 A | | Accessory Port | 1 x USB Type-A
1 x D-Tap | | Maximum Load (Accessory Port) | 10 W, 2.1 A ( USB )
88 W, 6 A ( D-Tap ) | | USB Output | 5 V, 2.1 A | | Charging Voltage | 16.8 VDC | | Operating Temperature | -4 to 113°F / -20 to 45°C | | Dimensions (W x H x D) | 3.8 x 6.0 x 2.1" / 96.0 x 152.0 x 53.0 mm | | Weight | 1.7 lb / 780 g | | | | Box Dimensions (LxWxH) | 9.7 x 7.7 x 4.9" |
