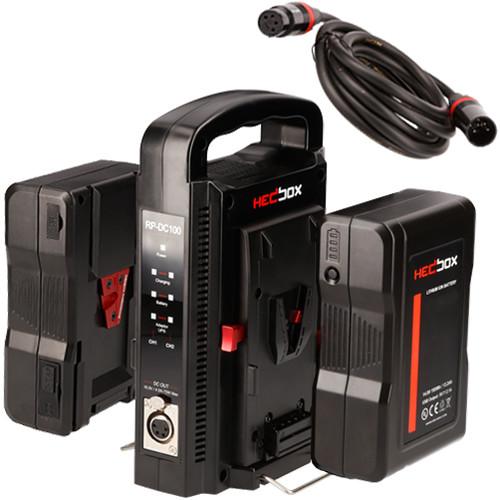

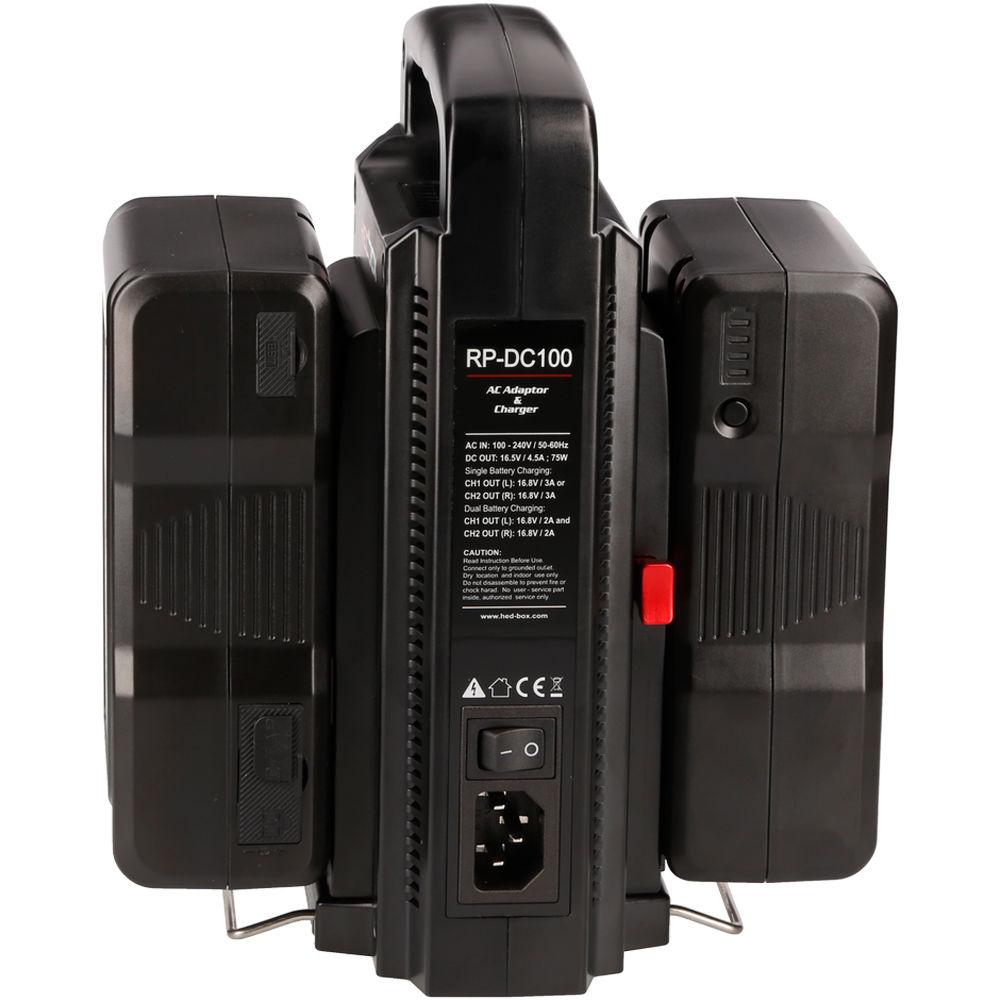

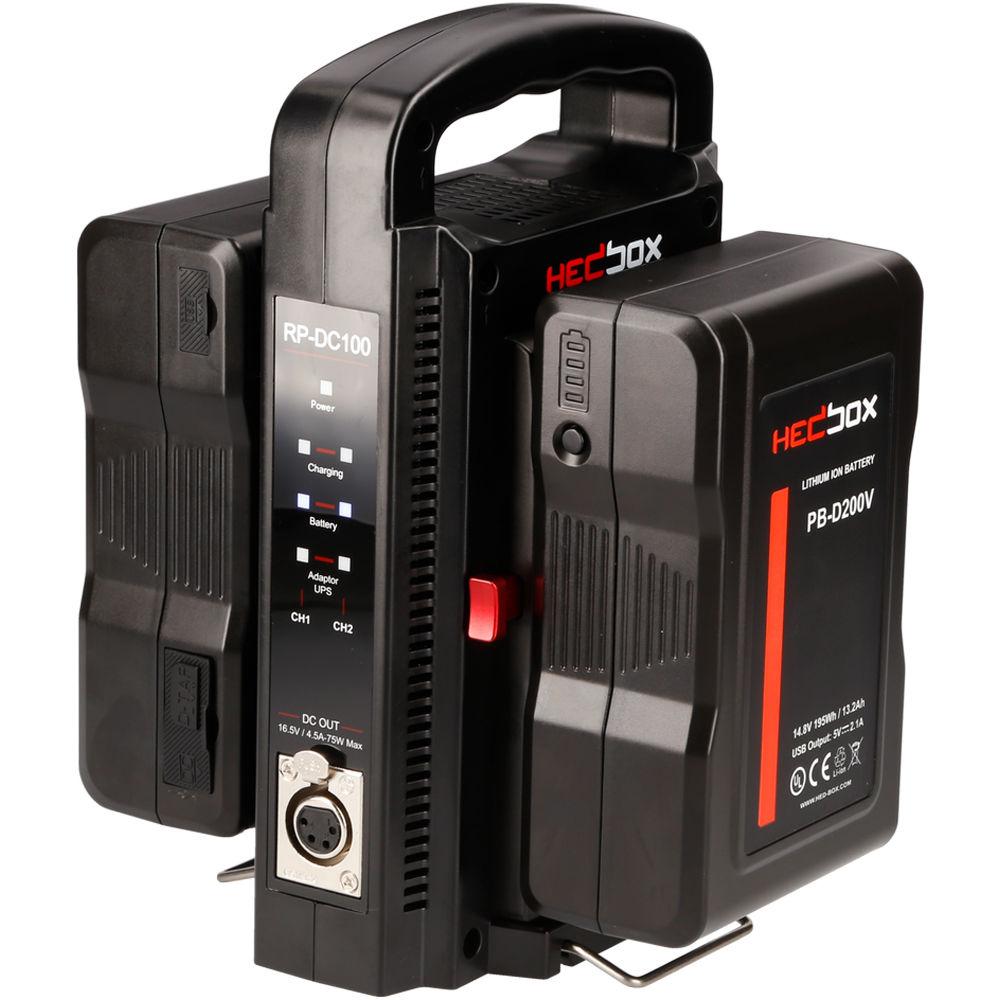

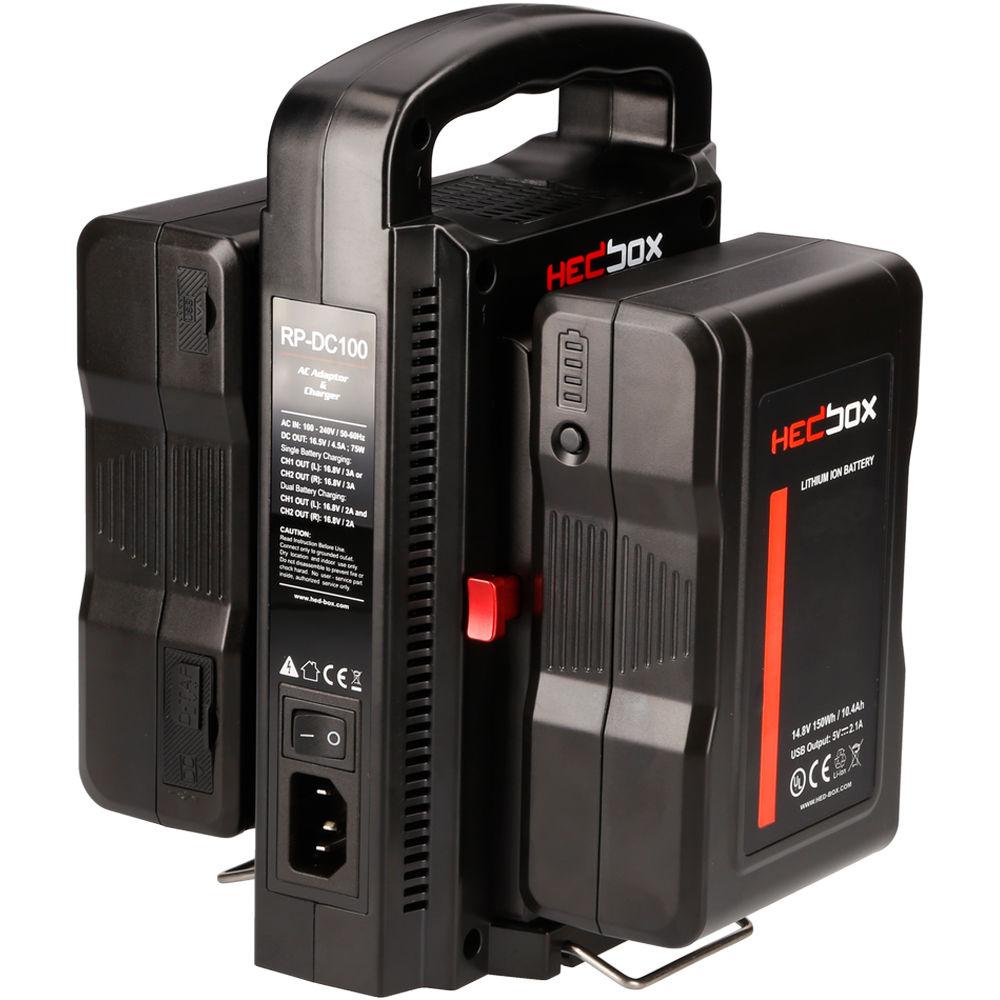

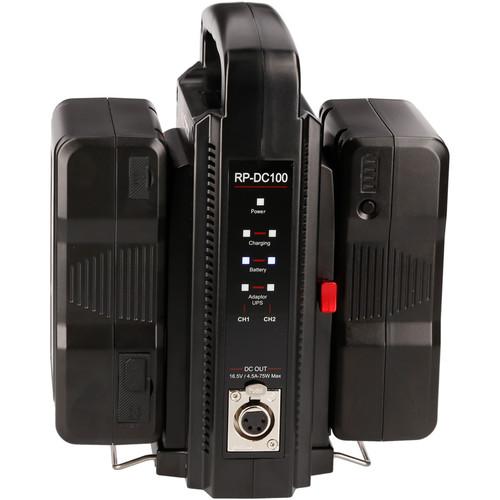

Product description The PB-PB400V V-Mount Pro Power Bank Set from Hedbox includes two V-Mount lithium-ion battery packs, a V-Mount dual battery charger, and a 4-pin XLR female to 4-pin XLR male cable. The batteries feature USB and D-Tap outputs, and a 4-LED power meter. The charger charges both batteries simultaneously and features an LED status display. It can also be used as a power bank with the included XLR cable. - RP-DC100V V-Mount Dual Battery Charger The RP-DC100V V-Mount Dual Battery Charger from Hedbox conveniently charges two professional batteries simultaneously. An LED display provides clear and accurate display of power status, charging status, battery channel status, and power bank mode. The RP-DC100V is equipped with extra support stands providing extra stability while charging only one battery. The battery charger can also be used as a power bank with the included 4-pin XLR female to 4-pin XLR male cable, supplying power to external units like camcorders, video monitors, and LED lights. UPC: 712323920360
- PB-D200V Pro V-Mount Lithium-Ion Battery Pack (14.8V, 13200mAh) The PB-D200V Pro V-Mount Lithium-Ion Battery Pack from Hedbox consists of 13200mAh Samsung 18650 battery cells and reaches up to 195Wh, 13A capacity. The battery can run for approximately five hours for 30W ENG camcorders and 1.5 hours for ARRI Alexa camcorders. The PB-D200V features a USB and a D-Tap output with dust covers for providing power to external devices such as on-cameras LED lights, monitors, wireless transmitters, and digital recorders. A 4-LED power meter displays the remaining battery percentage at 100, 75, 50, and 25%. UPC: 712323920186
In the Box Bundle Items RP-DC100V V-Mount Dual Battery Charger - 6.5' 4-Pin XLR Female to 4-Pin XLR Male Power Cable
2 x PB-D200V Pro V-Mount Lithium-Ion Battery Pack (14.8V, 13200mAh) ewydwcusueutabc Table of Contents
|
Upload User Manual
Have you got an user manual for the Hedbox PB-PB400V V-Mount Pro Power Bank Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RP-DC100V V-Mount Dual Battery Charger
| Battery Plate | V-Mount | | Connectors | 1 x 4-Pin XLR Female, 16.5 VDC Power Output
1 x US Plug, AC Power Input | | Power Input | 110 to 240 VAC, 50/60 Hz | | Power Consumption | 85 W Maximum | | Power Output per Channel | 16.8 VDC
Single Channel: 3 A
Dual Channel: 2.4 A | | Power Output | 16.5 VDC, 4.5 A, 75 W | | Charging Type | Ni-CD , Ni-MH , Li-Ion | | Operating Temperature | -4 to 113°F / -20 to 45°C | | Dimensions | 4.9 x 4.5 x 17.5" / 124 x 114 x 445 mm | | Weight | 7.7 oz / 218 g | | | | Box Dimensions (LxWxH) | 10.4 x 8.5 x 4.8" | - PB-D200V Pro V-Mount Lithium-Ion Battery Pack (14.8V, 13200mAh)
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 195 Wh | | Amp-Hours | 13,200 mAh | | Output Voltage | 14.8 VDC | | Maximum Load | 190 W, 13 A | | Accessory Port | 1 x USB Type-A
1 x D-Tap | | Maximum Load (Accessory Port) | 10 W, 2.1 A ( USB )
145 W, 10 A ( D-Tap ) | | USB Output | 5 V, 2.1 A | | Charging Voltage | 16.8 VDC | | Operating Temperature | -4 to 113°F / -20 to 45°C | | Dimensions (W x H x D) | 3.8 x 6.0 x 2.1" / 96.0 x 152.0 x 53.0 mm | | Weight | 2 lb / 895 g | | | | Box Dimensions (LxWxH) | 12.4 x 12.1 x 9.6" |
