User Manual for HEDD Type 05 - Series ONE Nearfield Studio Monitor with 6" Woofer

Click to enlarge the picture
HEDD Type 05 - Series ONE Nearfield Studio Monitor with 6" Woofer Contents of the user manual for the HEDD Type 05 - Series ONE
  • Product category: Studio Monitors HEDD
  • Brand: HEDD
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for HEDD Studio Monitors

User manual for the HEDD Type 05 - Series ONE contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any HEDD product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official HEDD user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a HEDD product will considerably shorten its lifespan!



Product description

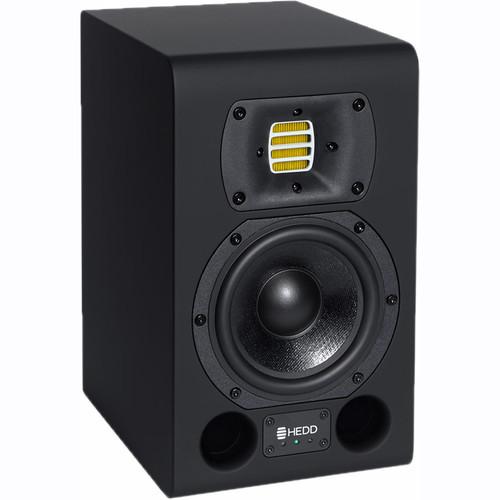

The Series ONE Type 05 from HEDD is a compact, precision, nearfield studio monitor well suited for mobile broadcast stations, recording and home studios, multichannel setups, and VoIP conferences. The 2-way design combines a 6" Ultra Honeycomb Composite (UHC) woofer and a HEDD Air Motion Transformer (HEDD AMT) tweeter to provide an accurate frequency response of 44 Hz to 50 kHz with a maximum SPL of 111 dB (with both speakers a 1m.)

The sturdy unibody casing ensures that the cabinet remains stable and provides effortless audio, even at full power. The ICE power amplifier offers 50W per driver and is universally powered for compatibility anywhere in the world. The rear panel features balanced XLR and unbalanced RCA inputs as well as a gain trim and high/low shelf potentiometers. Additionally, the monitor is compatible with optional HEDD Bridge input cards for digital connectivity including cards with Dante, AES67, AES3, and USB2 connectors. An optional wireless card is also planned for future development. The Type 05 ships with a power cord.
    • Frequency Response: 45 Hz – 50 kHz
    • Crossover: 2.3 kHz
    • 2 x 50W ICEpower amps from Denmark
    • Maximum SPL: 111 dB (per pair at 1m)
    • XLR & RCA inputs
    • HEDD Bridge modular input card system for digital connectivity (USB2, AES3, Dante / AES67)
    • Solid unibody-like cabinet with a modern matte-black rubber finish
    • Input Gain: -30 to +6 dB
    • High Shelf EQ: ±4 dB at 20 kHz
    • Low Shelf EQ: ±4 dB at 50 Hz
    • Universal Mains: 85 – 265 V
UPC: 701197395176 In the Box HEDD Type 05 - Series ONE Nearfield Studio Monitor with 6" Woofer (Single)
  • Power Cord
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the HEDD Type 05 - Series ONE Nearfield Studio Monitor with 6" Woofer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    HEDD Type 05 Specs

    Monitor Type Active 2-Way
    Enclosure Bass-Reflex, Shielded
    Power Rating 50 W per Channel 2 x 50 W "ICE Power" Amplifiers
    Drivers HF Driver: 1 x 2.2" / 55.9 mm Air Motion Transformer
    LF Driver: 1 x 6" / 152 mm Honeycomb Composite Cone with 1.5" / 38 mm Voice Coil
    Frequency Range 45 Hz to 50 kHz
    Frequency Response 52 Hz to 20 kHz ± 1.5 dB
    Maximum Sound Pressure Level (SPL) 111 dB
    Total Harmonic Distortion (THD) 0.5%
    Maximum Input Level +17.8 dBu (Balanced)
    +17.6 dBV (Balanced)
    +15.3 dBu (Unbalanced)
    +13 dBV (Unbalanced)
    Analog Input Sensitivity/Gain +6 to -30 dB (Incrementally Variable)
    EQ 1 x HF Shelf: -4 to +4 dB at 20 kHz
    1 x LF Shelf: -4 to +4 dB at 50 Hz
    Crossover Frequency 2.3 kHz
    I/O 1 x 3-Pin XLR Balanced Analog Input (10 kOhms)
    1 x RCA Unbalanced Analog Input (47 kOhms)
    AC Input Power 85 to 265 VAC at 50/60 Hz
    Dimensions (W x H x D) 7.1 x 12.1 x 9.0" / 180.0 x 308.0 x 228.0 mm
    Weight 15.4 lb / 7.0 kg
    Package Weight 17.45 lb
    Box Dimensions (LxWxH) 15.2 x 12.4 x 10.2"

    Rating

    50% users recommend this product to others. And what about you?
    Rating: 2.5 of 5

    This product has already been rated by 10 owners. Add your rating and experience with the product.
