HEDD Type 07 - Series ONE

Search your instruction manual in PDF to download

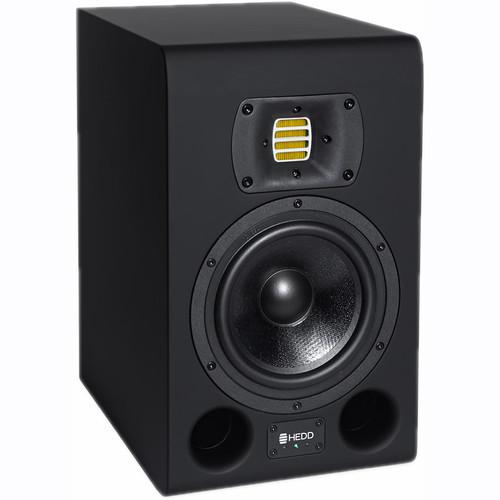

User Manual for HEDD Type 07 - Series ONE Nearfield Studio Monitor with 7" Woofer

Click to enlarge the picture
HEDD Type 07 - Series ONE Nearfield Studio Monitor with 7" Woofer Contents of the user manual for the HEDD Type 07 - Series ONE
  • Product category: Studio Monitors HEDD
  • Brand: HEDD
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for HEDD Studio Monitors

User manual for the HEDD Type 07 - Series ONE contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any HEDD product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official HEDD user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a HEDD product will considerably shorten its lifespan!



Product description

The Series ONE Type 07 from HEDD is a standard-sized, precision nearfield studio monitor, well suited for mobile broadcast stations, recording- and home studios, multi-channel setups, and VoIP conferences. The 2-way design combines a 7" Ultra Honeycomb Composite (UHC) woofer and a HEDD Air Motion Transformer (HEDD AMT) tweeter to provide an accurate frequency response of 38 Hz to 50 kHz with a maximum SPL of 116 dB (with both speakers a 3.3').

The sturdy unibody casing ensures the cabinet remains stable and provides effortless audio, even a full power. The ICEpower amplifier offers 100W per driver and is universally powered for compatibility anywhere in the world. The rear panel features balanced XLR and unbalanced RCA inputs as well as a gain trim and high-/low-shelf potentiometers. Additionally, the monitor is compatible with optional HEDD Bridge input cards for digital connectivity including cards with Dante, AES67, AES3, and USB2 connectors. An optional wireless card is also planned for future development. The Type 07 ships with a power cord.
    • Frequency Response: 38 Hz – 50 kHz
    • Crossover: 2.3 kHz
    • 2 x 100W ICEpower amps from Denmark
    • Maximum SPL: 116 dB (per pair at 3.3')
    • XLR & RCA inputs
    • HEDD Bridge modular input-card system for digital connectivity (USB2, AES3, Dante / AES67) (available separately)
    • Solid unibody-like cabinet with a modern matt-black rubber finish
    • Input Gain: -30 to +6 dB
    • High Shelf EQ: ±4 dB at 20 kHz
    • Low Shelf EQ: ±4 dB at 50 Hz
    • Universal Mains: 85 – 265 VAC
UPC: 701197395183 In the Box HEDD Type 07 - Series ONE Nearfield Studio Monitor with 7" Woofer (Single)
  • Power Cord
  • Limited 2-Year Warranty
  • User Manual PDF 4.4mbddrczbstxuvaatbausrrescedsawabwbyqddt Table of Contents




    Upload User Manual

    Have you got an user manual for the HEDD Type 07 - Series ONE Nearfield Studio Monitor with 7" Woofer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    HEDD Type 07 Specs

    Monitor Type Active 2-Way
    Enclosure Bass-Reflex, Shielded
    Power Rating 100 W per Channel 2 x 100 W "ICE Power" Amplifiers
    Drivers HF Driver: 1 x 2.2" / 55.9 mm Air Motion Transformer
    LF Driver: 1 x 7.2" / 182.9 mm Composite Cone with 1.5" / 38 mm Voice Coil
    Frequency Range 38 Hz to 50 kHz
    Frequency Response 45 Hz to 20 kHz ± 1.5 dB
    Maximum Sound Pressure Level (SPL) 116 dB
    Total Harmonic Distortion (THD) 0.5%
    Maximum Input Level +17.8 dBu (Balanced)
    +17.6 dBV (Balanced)
    +15.3 dBu (Unbalanced)
    +13 dBV (Unbalanced)
    Analog Input Sensitivity/Gain +6 to -30 dB (Incrementally Variable)
    EQ 1 x HF Shelf: -4 to +4 dB at 20 kHz
    1 x LF Shelf: -4 to +4 dB at 50 Hz
    Crossover Frequency 2.3 kHz
    I/O 1 x 3-Pin XLR Balanced Analog Input (10 kOhms)
    1 x RCA Unbalanced Analog Input (47 kOhms)
    AC Input Power 85 to 265 VAC at 50/60 Hz
    Dimensions (W x H x D) 8.7 x 14.6 x 11.8" / 220.0 x 370.0 x 300.0 mm
    Weight 22.0 lb / 10.0 kg
    Package Weight 24.75 lb
    Box Dimensions (LxWxH) 18.3 x 15.6 x 12.3"

    Rating

    100% users recommend this product to others. And what about you?
