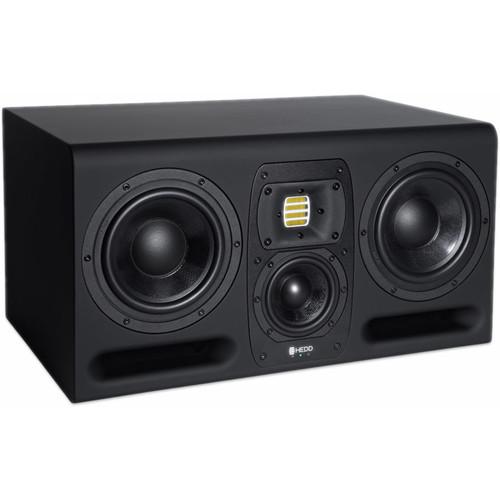

Product description The Series ONE Type 30 from HEDD is a precision midfield studio monitor, well suited for mobile broadcast stations, recording- and home studios, multi-channel setups, and VoIP conferences. The 3-way design combines two 7" Ultra Honeycomb Composite (UHC) woofers, a 4" UHC midrange driver, and a HEDD Air Motion Transformer (HEDD AMT) tweeter to provide an accurate frequency response of 32 Hz to 50 kHz with a maximum SPL of 126 dB (with both speakers a 1m.)
The sturdy uni-body casing ensures the cabinet remains stable and provides effortless audio, even a full power. The ICE power amplifier offers 300W per driver and is universally powered for compatibility anywhere in the world. The rear panel features balanced XLR and unbalanced RCA inputs as well as a gain trim and high/low shelf potentiometers. Additionally, the monitor is compatible with optional HEDD Bridge input cards for digital connectivity including cards with Dante, AES67, AES3, and USB2 connectors. An optional wireless card is also planned for future development. The Type 30 ships with a power cord. -
- Frequency Response: 32 Hz – 50 kHz
- Crossover: 250 Hz / 2.5 kHz
- 4 x 300W ICEpower amps from Denmark
- Maximum SPL: 126 dB (per pair at 1m)
- XLR & RCA inputs
- HEDD Bridge modular input-card system for digital connectivity (USB2, AES3, Dante / AES67)
- Solid unibody-like cabinet with a modern matt-black rubber finish
- Input Gain: -30 to +6 dB
- High Shelf EQ: ±4 dB at 20 kHz
- Low Shelf EQ: ±4 dB at 50 Hz
- Universal Mains: 85 – 265 VAC
UPC: 701197395190 In the Box HEDD Type 30 - Series ONE 3-Way Midfield Studio Monitor with Two 7" Woofers (Single) Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HEDD Type 30 - Series ONE 3-Way Midfield Studio Monitor with Two 7" Woofers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHEDD Type 30 Specs | Monitor Type | Active 2-Way | Enclosure | Bass-Reflex, Shielded | Power Rating | 300 W per Channel 4 x 300 W "ICE Power" Amplifiers | Drivers | HF Driver: 1 x 2.2" / 55.9 mm Air Motion Transformer MF Driver: 1 x 4" / 101.6 mm Honeycomb Composite Cone with 1.25" / 32 mm Voice Coil LF Driver: 2 x 7" / 177.8 mm Composite Cone with 2" / 50.8 mm Voice Coil | | Frequency Range | 38 Hz to 50 kHz | Frequency Response | 45 Hz to 20 kHz ± 1.5 dB | Maximum Sound Pressure Level (SPL) | 126 dB | Total Harmonic Distortion (THD) | 0.5% | Maximum Input Level | +17.8 dBu (Balanced) +17.6 dBV (Balanced) +15.3 dBu (Unbalanced) +13 dBV (Unbalanced) | Analog Input Sensitivity/Gain | +6 to -30 dB (Incrementally Variable) | | EQ | 1 x HF Shelf: -4 to +4 dB at 20 kHz 1 x LF Shelf: -4 to +4 dB at 50 Hz | | Crossover Frequency | Low-Pass Frequency: 250 Hz High-Pass Frequency: 2.5 kHz | | I/O | 1 x 3-Pin XLR Balanced Analog Input (10 kOhms) 1 x RCA Unbalanced Analog Input (47 kOhms) | | AC Input Power | 85 to 265 VAC at 50/60 Hz | | Dimensions (W x H x D) | 20.9 x 11.0 x 13.3" / 530.0 x 280.0 x 338.0 mm | Weight | 50.7 lb / 23.0 kg |
