User Manual for HEDEN M21VE-L Motor Click to enlarge the picture
Contents of the user manual for the HEDEN M21VE-L Motor
- Product category: Wireless Lens Control Accessories HEDEN
- Brand: HEDEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HEDEN Wireless Lens Control Accessories
|
User manual for the HEDEN M21VE-L Motor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HEDEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HEDEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HEDEN product will considerably shorten its lifespan!
|

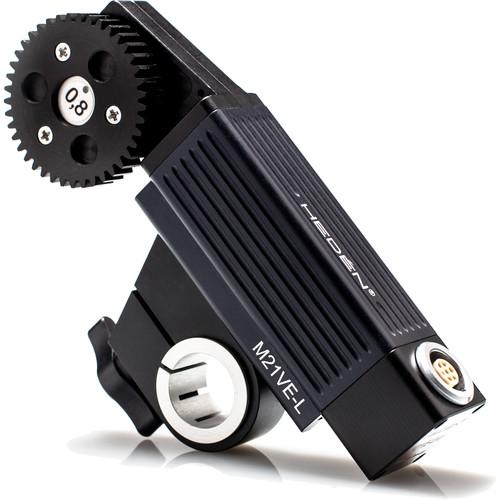

Product description The HEDEN M21VE-L Motor is a quiet, small, lightweight lens motor for driving focus, zoom, or iris rings on cinema or ENG lenses. The included 0.8 MOD gear interfaces with standard cine lenses or photo lenses with gear rings and can be attached on either side of the motor. While it won't drive the stiffest of lenses, the motor's small size lends itself to workflows where rig size and weight are at a premium. Gimbals, Steadicams, and drones can all benefit from the weight reduction of a smaller motor. Secure the motor itself to your rig using the 19mm rod clamp, which includes a 15mm bushing for lightweight setups. This particular model of M21VE-L features 512 encoders and a 3.3k resistor for compatibility with HEDEN and Preston equipment. A 7-pin LEMO connection provides both power and control signals to the motor from the receiver or motor driver. In the Box HEDEN M21VE-L Motor (512 Encoder, 3.3k ID Resistor) Drive Gear for M21VE and M21VE-L Motors (0.8 MOD) ufqavrrrfauqxccw Standard Motor Rod Clamp Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HEDEN M21VE-L Motor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHEDEN M21-110 Specs | Connector | 7-pin LEMO | | Torque | 1 Nm | | Dimensions | 1.3 x 1 x 4.6" / 3.3 x 2.6 x 11.7 cm | | Weight | 7.8 oz / 222 g (motor only) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 5.0 x 3.7 x 0.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
